OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGEN\fY FEATURES
25
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 25
125434_11-TCS-04995_QRG_Matrix_1_0F_lm.indd 211/28/11 10:36 AM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES

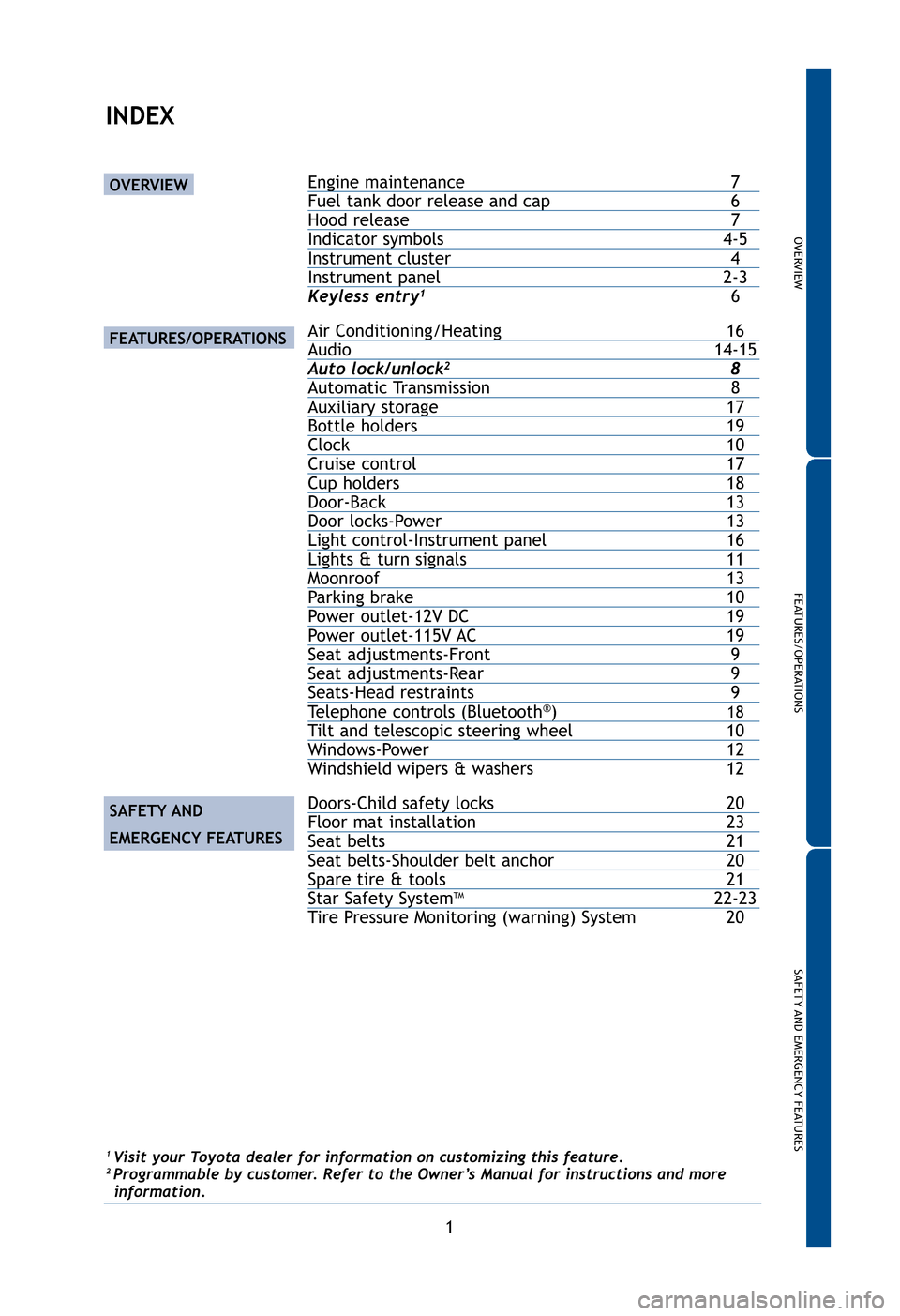

Engine maintenance 7Fuel tank door release and cap6Hood release 7Indicator symbols4-5Instrument cluster 4Instrument panel2-3
Keyless entry16
Air Conditioning/Heating16Audio 14-15Auto lock/unlock28Automatic Transmission 8Auxiliary storage17Bottle holders19Clock10Cruise control17Cup holders18Door-Back 13Door locks-Power 13Light control-Instrument panel16Lights & turn signals11Moonroof13Parking brake10Power outlet-12V DC 19Power outlet-115V AC19Seat adjustments-Front9Seat adjustments-Rear9Seats-Head restraints 9Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel10Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 20Floor mat installation23Seat belts21Seat belts-Shoulder belt anchor20Spare tire & tools21Star Safety SystemTM22-23
Tire Pressure Monitoring (warning) System 20
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 1

2
OVERVIEW

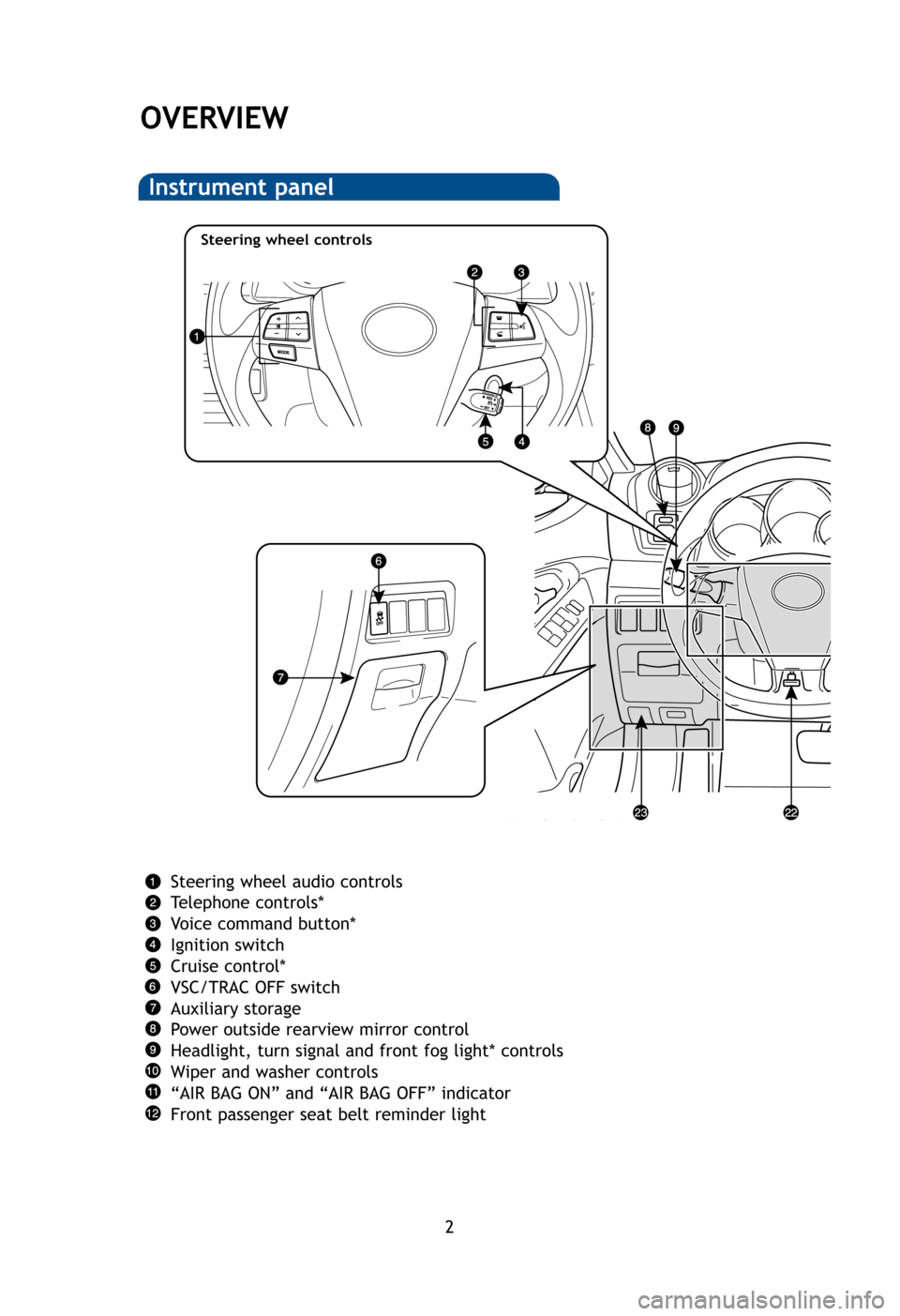

Instrument panel
Steering wheel audio controls
Telephone controls*
Voice command button*
Ignition switch
Cruise control*
VSC/TRAC OFF switch
Auxiliary storage
Power outside rearview mirror control
Headlight, turn signal and front fog light*controls
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Front passenger seat belt reminder lightE
E
A
A
O
P
A
P
T
T
H
*
Steering wheel controls
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 2

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
3

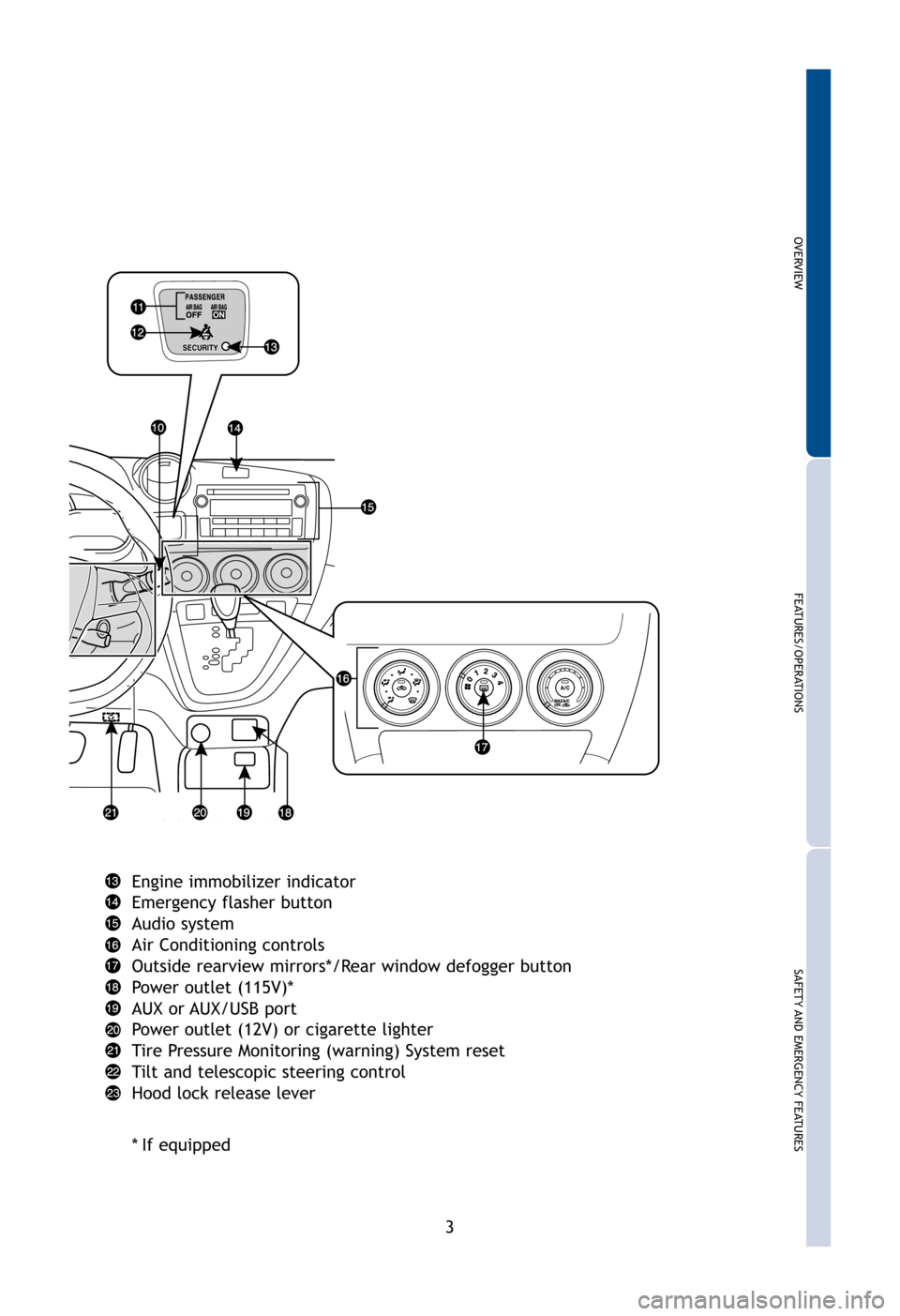

Engine immobilizer indicator
Emergency flasher button
Audio system
Air Conditioning controls
Outside rearview mirrors*/Rear window defogger button
Power outlet (115V)*
AUX or AUX/USB port
Power outlet (12V) or cigarette lighter
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
* If equipped
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 3

4
OVERVIEW
1If indicator does not turn off within a few seconds of starting engine, th\
ere may be a
malfunction. Have vehicle inspected by your Toyota dealer.

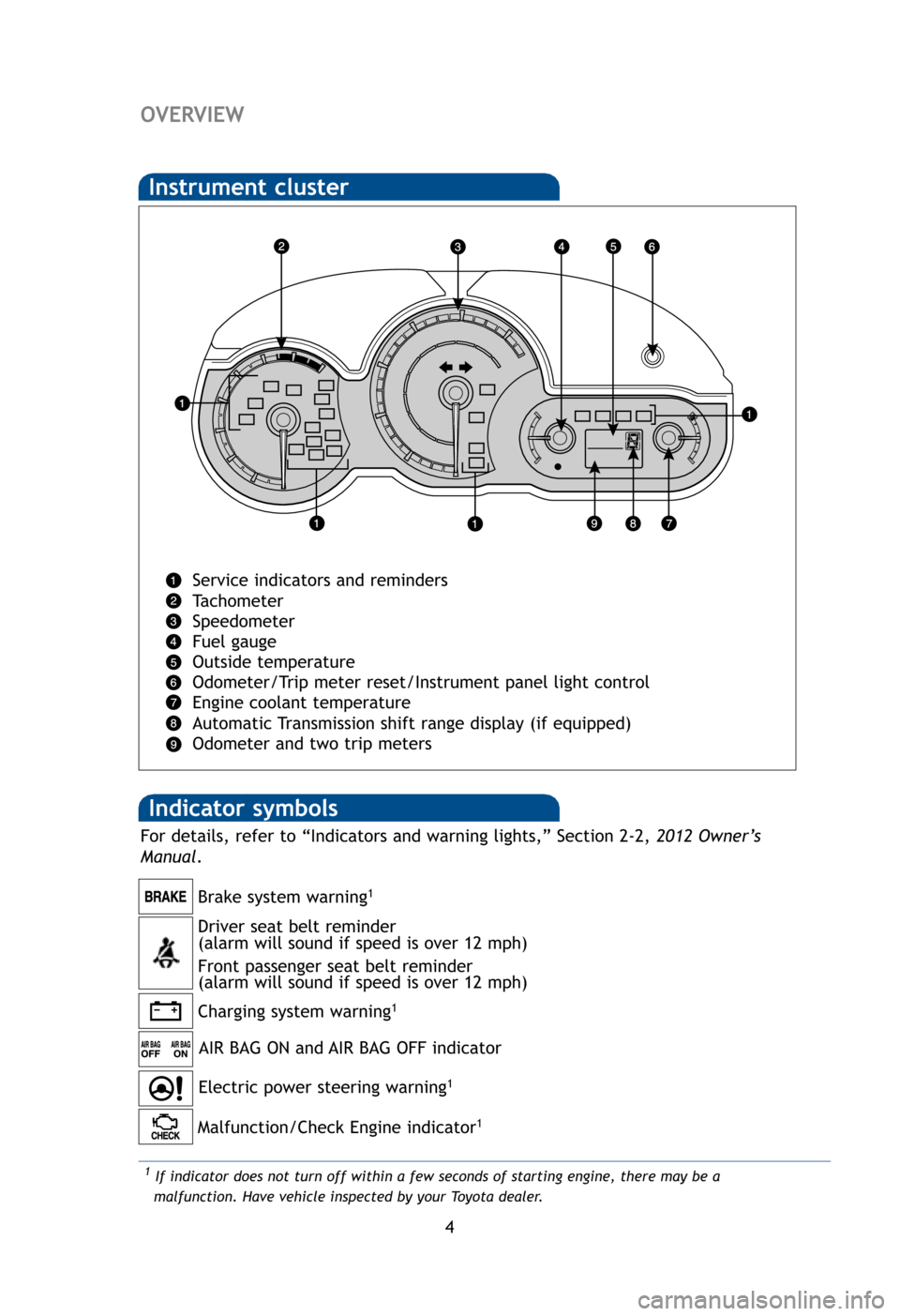

Indicator symbols
Instrument cluster
Service indicators and reminders
Tachometer
Speedometer
Fuel gauge
Outside temperature
Odometer/Trip meter reset/Instrument panel light control
Engine coolant temperature
Automatic Transmission shift range display (if equipped)
Odometer and two trip meters
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2012 Owner’s
Manual .
Electric power steering warning1
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 4

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
5
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Low fuel level warning
Fog light indicator
Active torque control 4WD system warning1
Low engine oil pressure warning1
Maintenance/Service required indicator1
Engine immobilizer system indicator
Traction control OFF indicator
1
Vehicle Stability Control OFF indicator1
Cruise control SET indicator
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 5

6
OVERVIEW

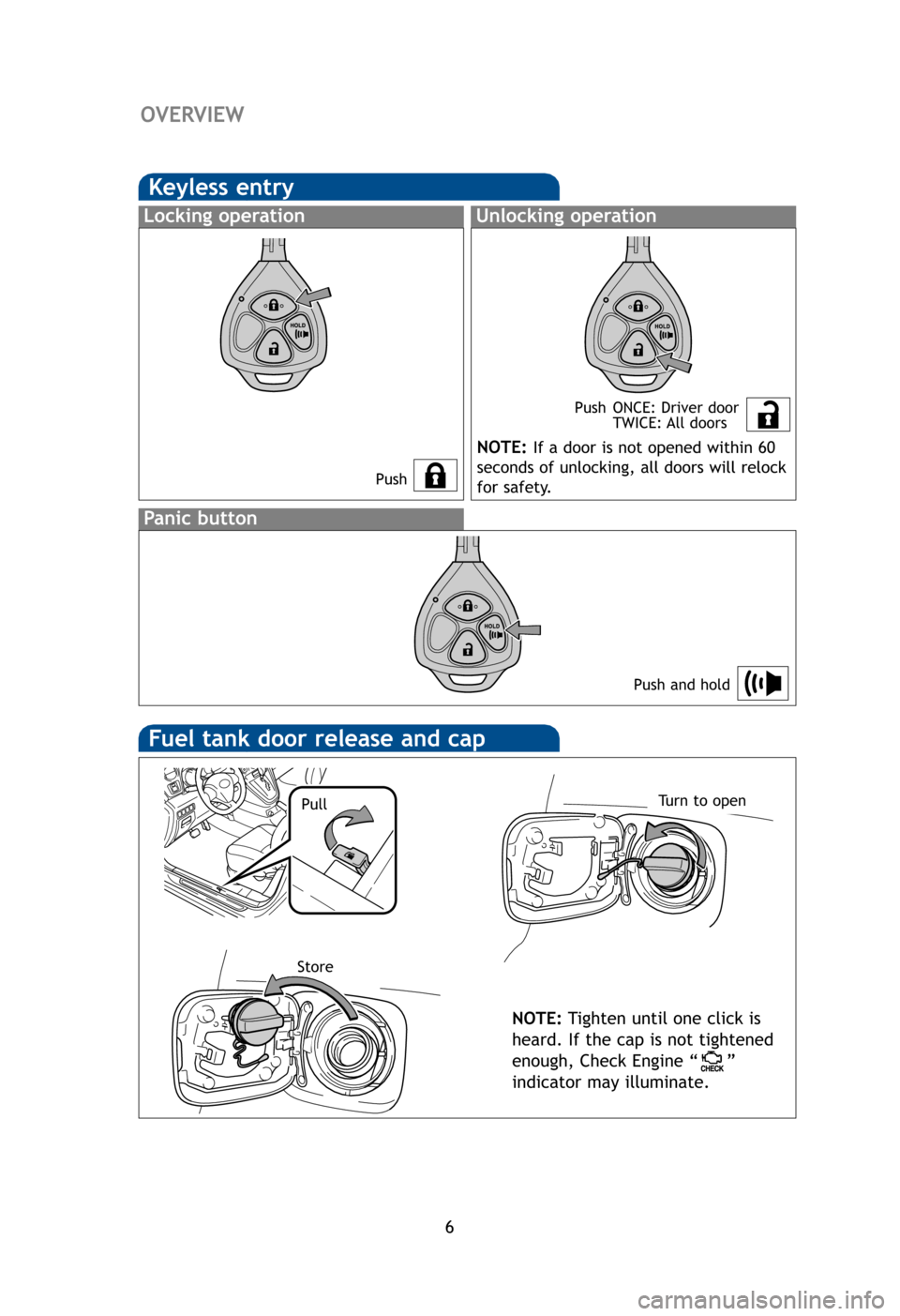

Keyless entry
PushPush ONCE: Driver door
TWICE: All doors
Locking operationUnlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within 60
seconds of unlocking, all doors will relock
for safety.
Ho
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
PullTurn to open
Store
E
E
E
W
NOT
En
4 cy
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 6

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
7
60
ock

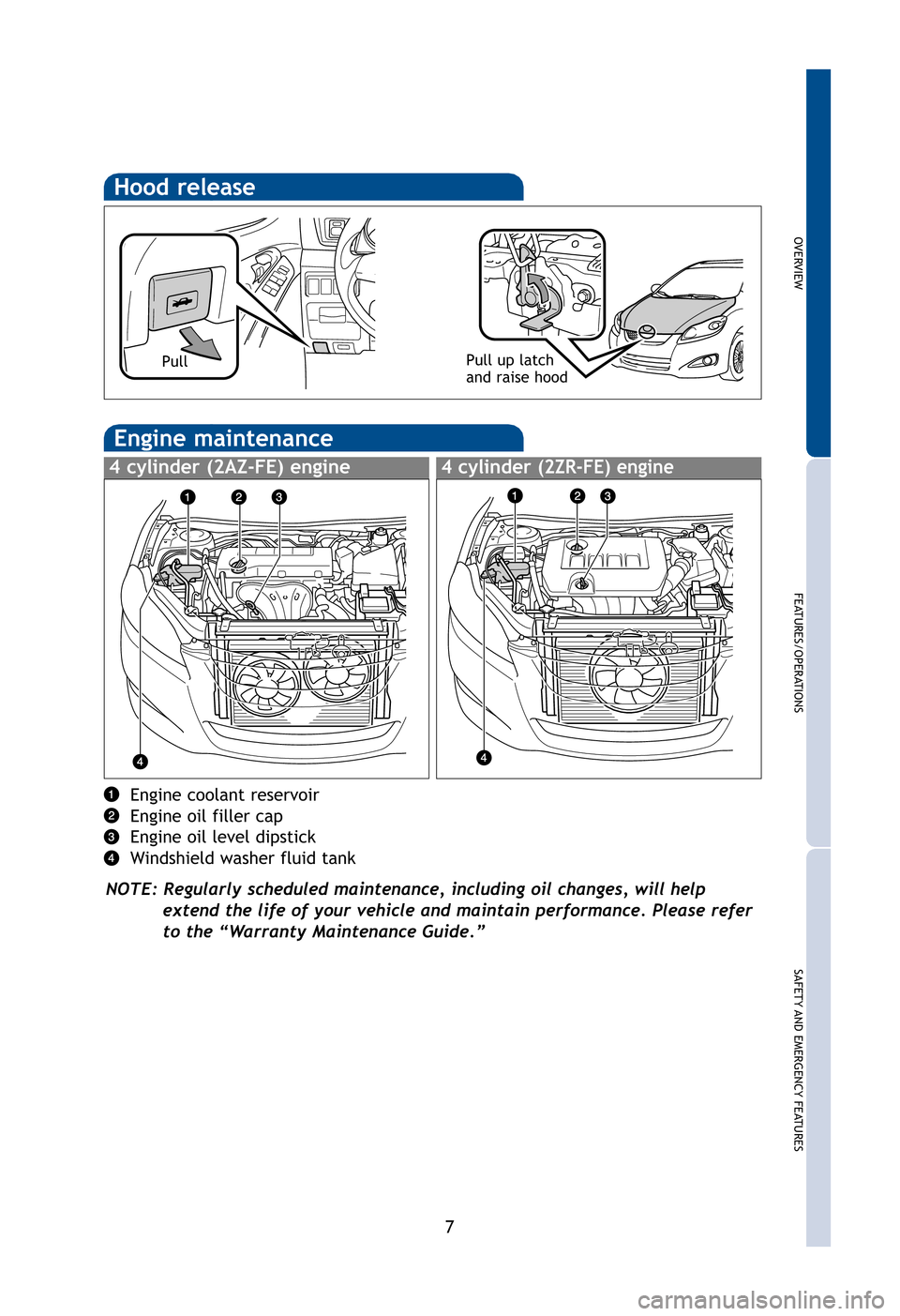

Hood release
Pull up latch
and raise hood
ed
Pull
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
4 cylinder (2AZ-FE) engine4 cylinder(2ZR-FE) engine
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 7

8
FEATURES/OPERATIONS

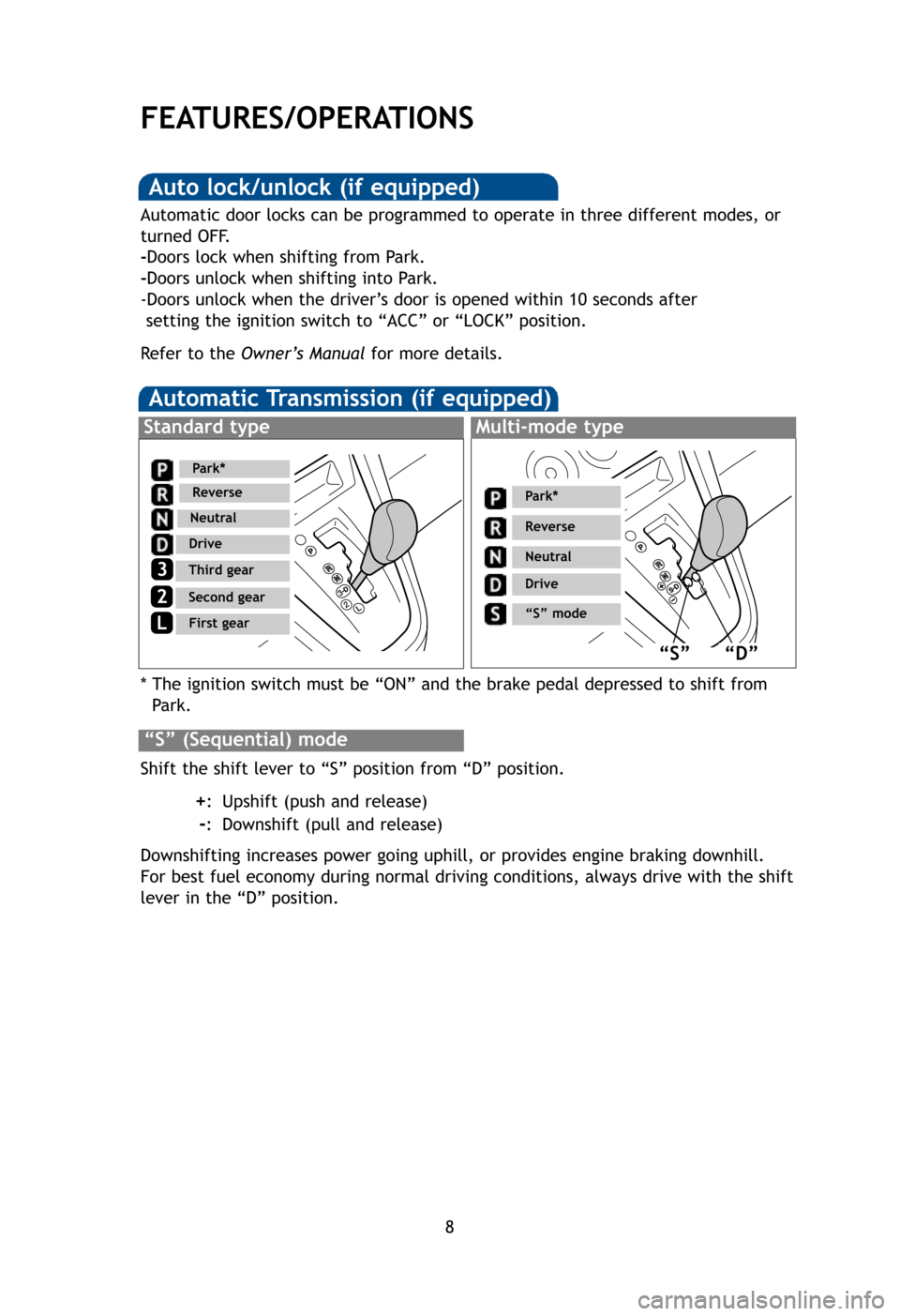

Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shi\
ft from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with t\
he shift
lever in the “D” position.
“S” (Sequential) mode
3
2L
Standard typeMulti-mode type
Park*
Reverse
Neutral
Drive
“S” mode
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
3
2
L
“S”“D”
Automatic door locks can be programmed to operate in three different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after setting the ignition switch to “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
Se
Se
S
H
S
Se
Fron
Auto lock/unlock (if equipped)
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 8
