TOYOTA MATRIX 2012 E140 / 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
19

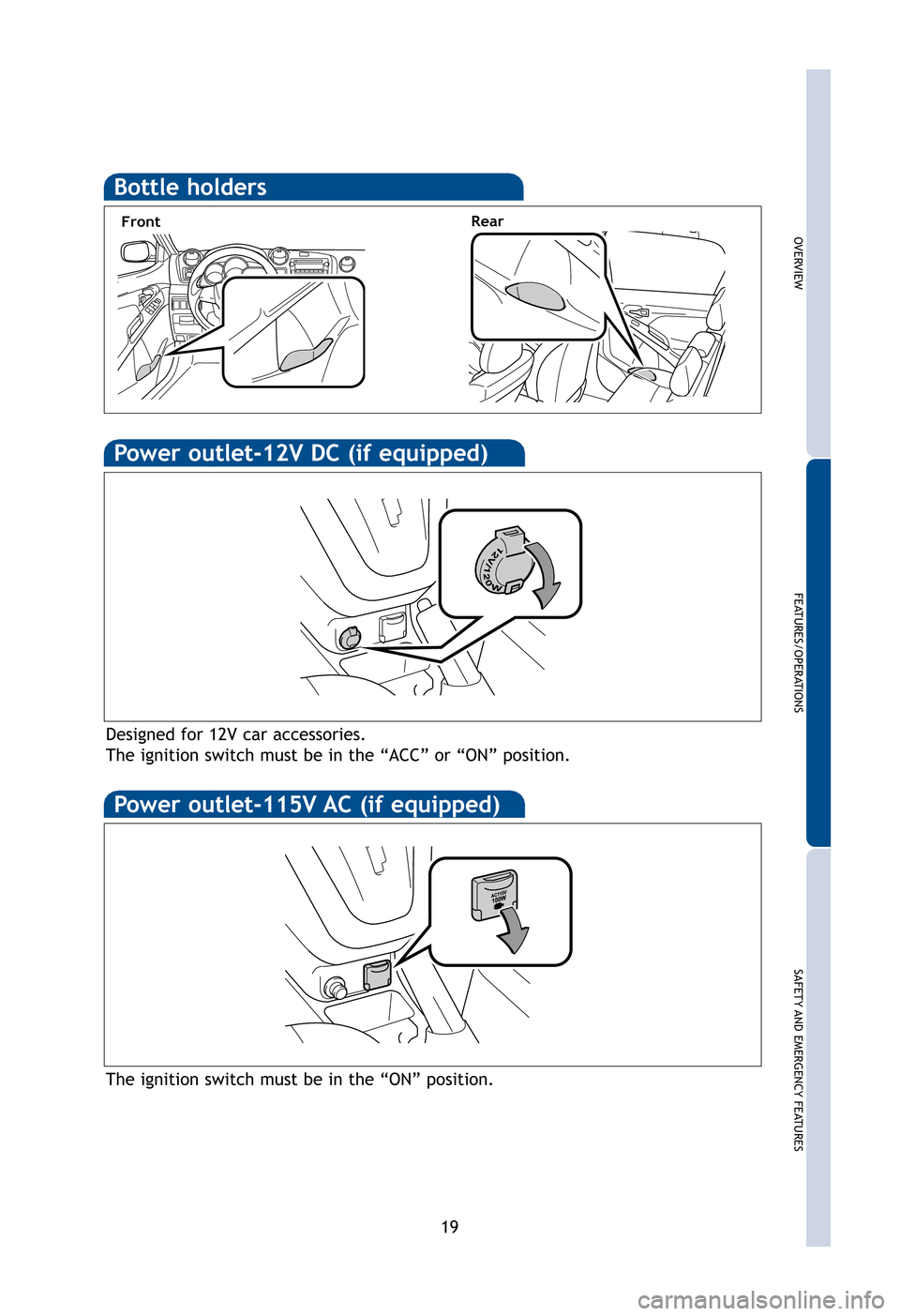

Power outlet-12V DC (if equipped)
Power outlet-115V AC (if equipped)
Designed for 12V car accessories.
The ignition switch must be in the “ACC” or “ON” position.
The ignition switch must be in the “ON” position.
om
he
4
in
Bottle holders
Front Rear
ne
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 19

20

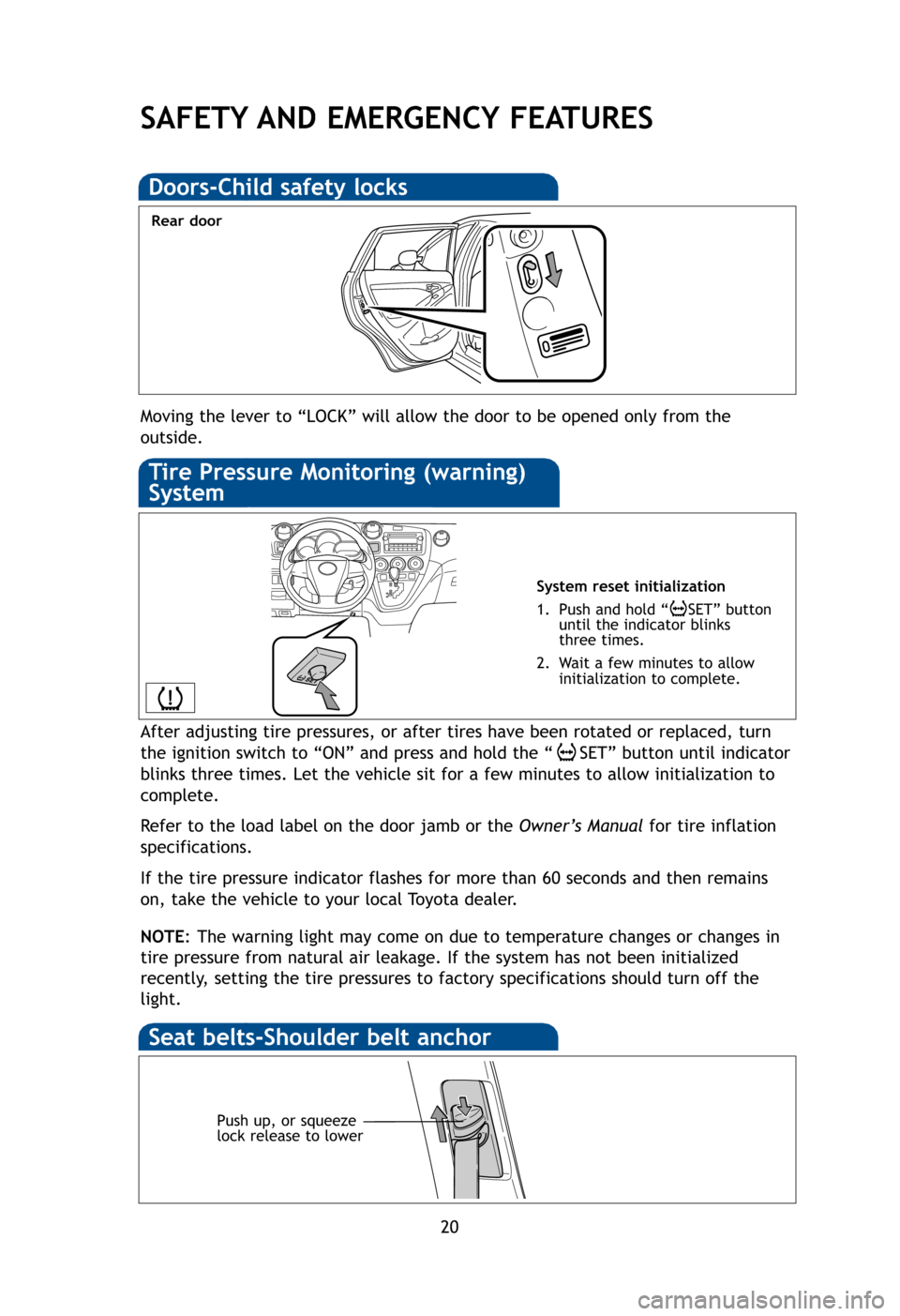

Moving the lever to “LOCK” will allow the door to be opened only from th\
e
outside.
Rear door
Doors-Child safety locks
System reset initialization
1. Push and hold “SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow initialization to complete.
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
SAFETY AND EMERGENCY FEATURES
If be
beyo
child
To fi
syste
Se
Sp
To o
Rem
(1) T
(2) L
Refe
(1)
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced,\
turn
the ignition switch to “ON” and press and hold the “ SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initializat\
ion to
complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then r\
emains
on, take the vehicle to your local Toyota dealer.
NOTE : The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initializ\
ed
recently, setting the tire pressures to factory specifications should turn off th\
e
light.
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 20

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
21
on

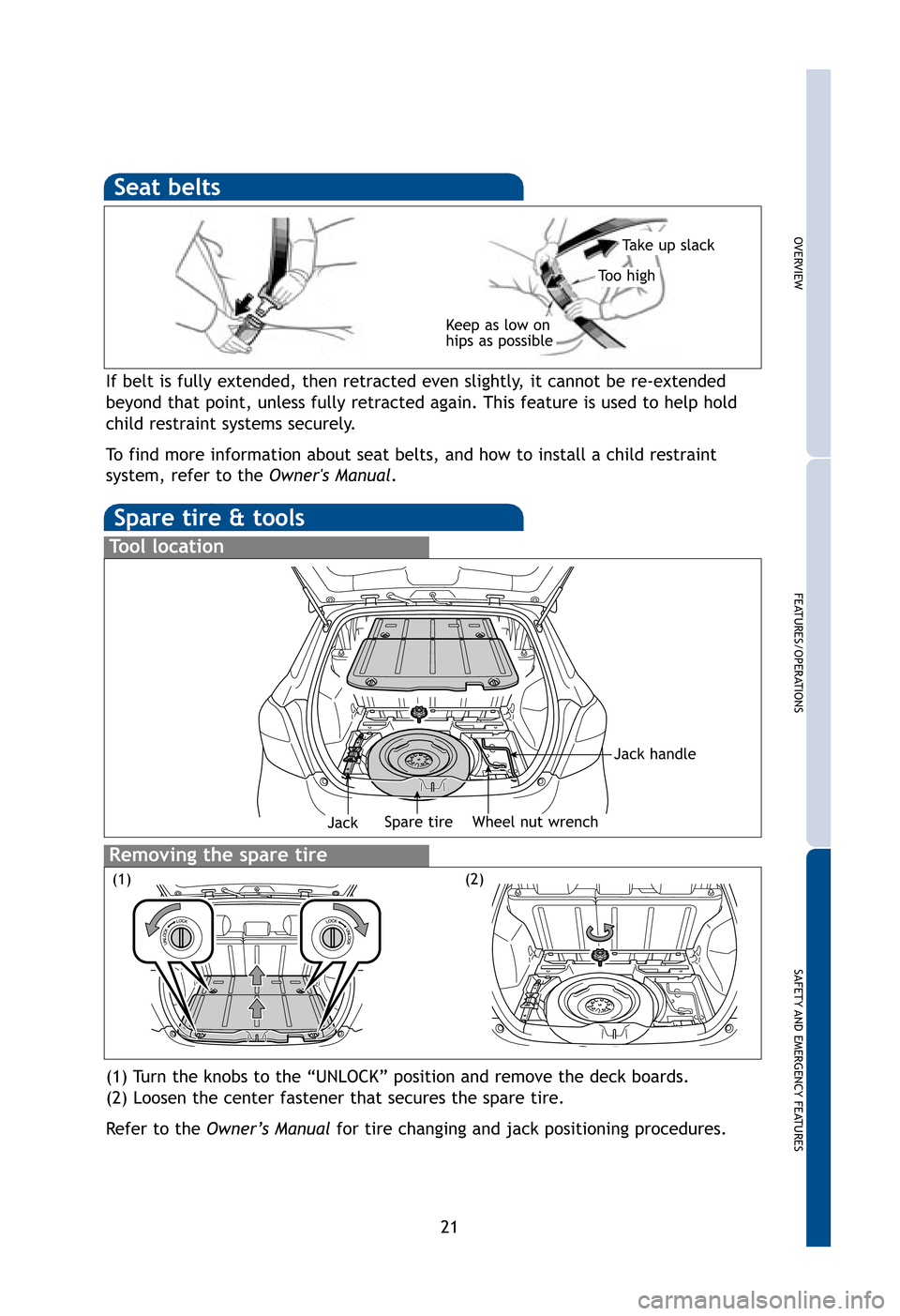

If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child rest\
raint
system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
To o high
Seat belts
Spare tire & tools
Tool location
Removing the spare tire
(1) Turn the knobs to the “UNLOCK” position and remove the deck boards.
(2) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Spare tireJack
(1)(2)
Wheel nut wrench
Jack handle
rn
atorto
on s
in
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 21

22
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine powe\
r and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling\
.
When it senses that the front or rear wheels begin to lose traction, VSC red\
uces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by "pulsing" brake pressure to eac\
h
wheel. This limits brake lockup and provides the maximum brake effectiveness for
the current road conditions.
Toyota's ABS sensors detect which wheels are locking up and limits wheel lockup by
"pulsing" each wheel's brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the maximum
traction that the current road conditions will allow, helping you stay in control.
Brake Assist is designed to detect sudden or “panic” braking, and then add bra\
king
pressure to decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine powe\
r, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help you drive safely.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain stability and balance when braking. Abrupt stops cause the vehicle to tilt
forward, reducing the braking power of the rear wheels. EBD responds to sudden
stops by redistributing brake force to maximize the braking effectiveness of \
all
four wheels.
Ther
has m
For s
• O
•
Uspl
•In
Flo
SAFETY AND EMERGENCY FEATURES
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking
System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart
Stop Technology (SST).Smar
and
SST
e
firml
SSTd
allow
back
Sma
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 22

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
23
nd
.s
on
for
p by
.
king
han
and
n
.
tilt
en
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
For safety, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat\
in place.
• Install floor mats right side up.
Floor mat installation
king
mart
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per h\
our.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling\
backward.
Smart Stop Technology (SST)
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 23

24

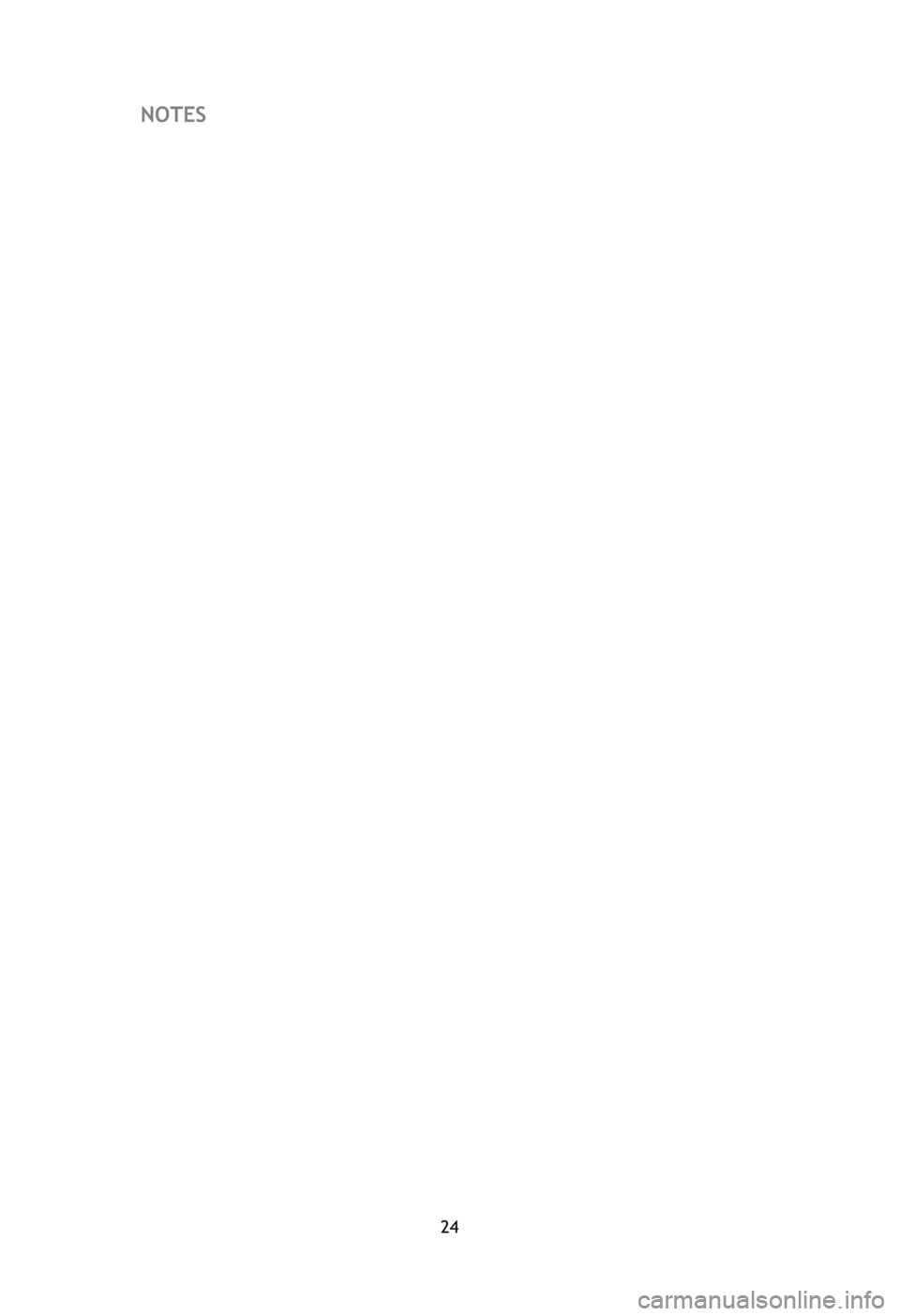

NOTES
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 24

A word about safe vehicle operatio\fs
This
Quick Reference Guide is a summary of basic vehicle
operatio\fs. It co\ftai\fs brief descriptio\fs of fu\fdame\ftal operatio\fs
so you ca\f locate a\fd use the vehicle\bs mai\f equipme\ft quickly
a\fd easily.
The Quick Reference Guide is \fot i\fte\fded as a substitute for the
Owner’s Manua\f located i\f your vehicle\bs glove box. We stro\fgly
e\fcourage you to review the Owner’s Manua\f a\fd suppleme\ftary
ma\fuals so you will have a better u\fdersta\fdi\fg of your vehicle\bs
capabilities a\fd limitatio\fs.
Your dealership a\fd the e\ftire staff of Toyota Motor Sales, U.S.A.,
I\fc. wish you ma\fy years of satisfied drivi\fg i\f your \few Corolla
Matrix.
This Quick Reference Guide is \fot a full descriptio\f of
Corolla Matri\b operatio\fs. Every Corolla Matri\b ow\fer should
review the Owner’s Manua\f that accompa\fies this vehicle.
Pay special atte\ftio\f to the bo\bed i\fformatio\f highlighted i\f
color throughout the Owner’s Manua\f. Each bo\b co\ftai\fs safe
operati\fg i\fstructio\fs to help you avoid i\fjury or equipme\ft
malfu\fctio\f.
All i\fformatio\f i\f this Quick Reference Guide is curre\ft at the
time of pri\fti\fg. Toyota reserves the right to make cha\fges at a\fy
time without \fotice.
2012
Corolla Matri\bIND
OVE
F E AT
SAF
EME
1Visi2 \brog
info
125434_resize Matrix-QRG.qxd 11/28/11 10:21 AM Page 2
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGEN\fY FEATURES
25
125432_resize Matrix-QRG.qxd 11/23/11 9:32 PM Page 25
125434_11-TCS-04995_QRG_Matrix_1_0F_lm.indd 211/28/11 10:36 AM

Quick Re f eRence Guide
custome R expe Rience cente R
1- 8 0 0 - 3 31- 4 3 31
00505-QRG12- mAt
p
rinted in u.s .A. 3 / 12
12 - tcs-05973
MATRIX
2 0 1 2
Mix 10 L wht.pdf 1 11/23/11 10:29 PM
126155_11-TCS-04995_QRG_Matrix_1_0F_lm.indd 13/7/12 11:06 PM
