key TOYOTA MATRIX 2013 E140 / 2.G Owner's Manual

270 3-4. Using the hands-free phone system (for cellular phone)
Changing the passkey
Select “Passkey” using .
Select a 4 to 8-digit passkey using .
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the passkey to be registered has 8 digits, pressing again
is not necessary.
Setting automatic connection of the device on or off
If “BT Power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position.
Select “BT Power” using .
Select “ON” or “OFF” using .
STEP1
STEP2
STEP3
STEP1
STEP2

272 3-4. Using the hands-free phone system (for cellular phone)
Initialization
Select “Initialize” using .
●Initializing the sound settings
Select “Sound setting” using and press (YES).
For details about sound settings (P. 242)
●Initializing the device information
Select “Car Device Info” using and press (YES).
Automatic connection of a portable device, automatic connection confir-
mation display and the passkey will be initialized.
●Initializing all the settings
Select “All Initialize” using and press (YES).
■The number of Bluetooth® devices that can be registered
Up to 5 Bluetooth
® devices can be registered in the system.

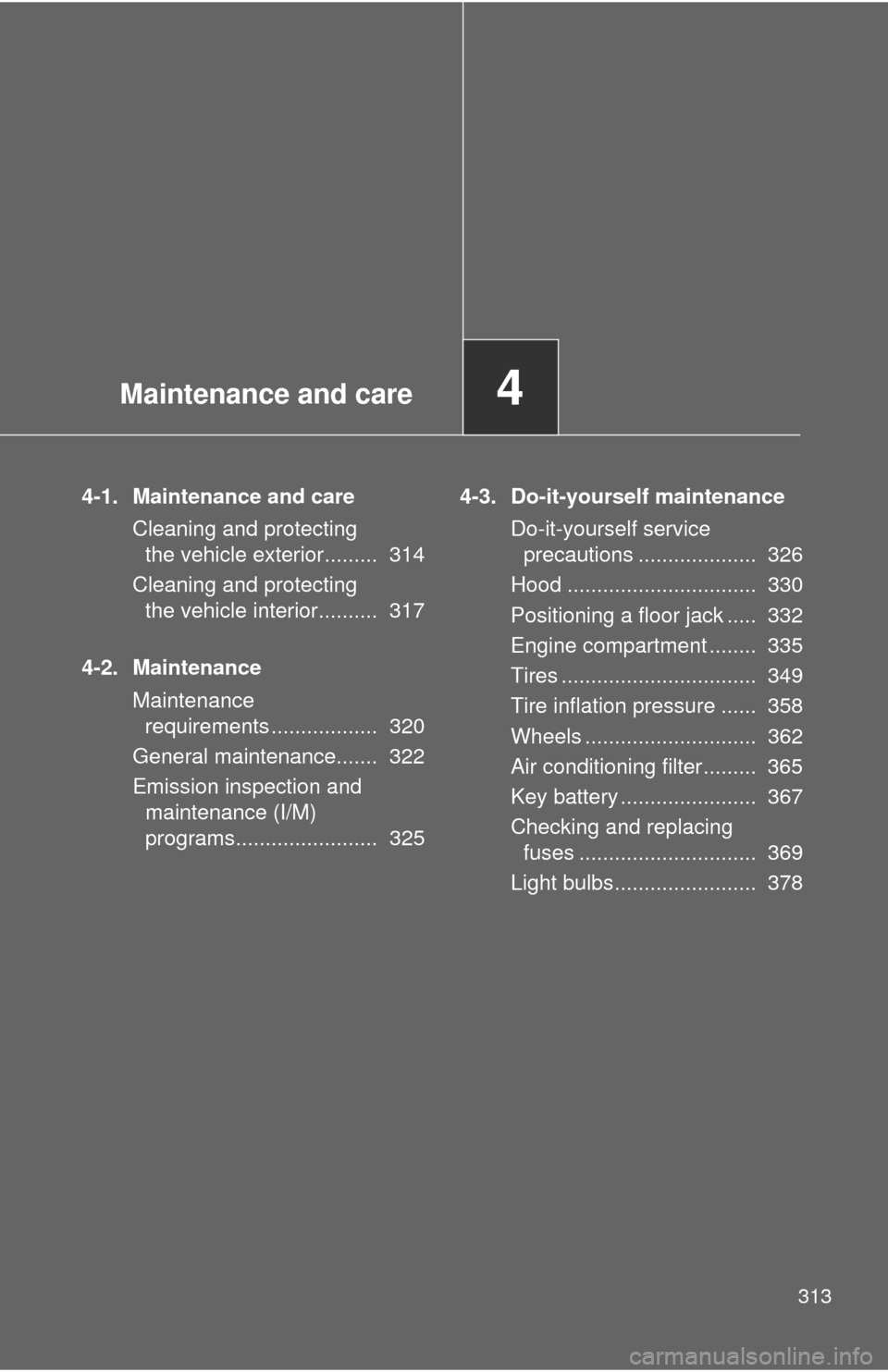

Maintenance and care4
313
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior......... 314
Cleaning and protecting
the vehicle interior.......... 317
4-2. Maintenance
Maintenance
requirements .................. 320
General maintenance....... 322
Emission inspection and
maintenance (I/M)
programs........................ 3254-3. Do-it-yourself maintenance
Do-it-yourself service
precautions .................... 326
Hood ................................ 330
Positioning a floor jack ..... 332
Engine compartment ........ 335
Tires ................................. 349
Tire inflation pressure ...... 358
Wheels ............................. 362
Air conditioning filter......... 365
Key battery ....................... 367
Checking and replacing
fuses .............................. 369
Light bulbs........................ 378

367
4-3. Do-it-yourself maintenance
4
Maintenance and care

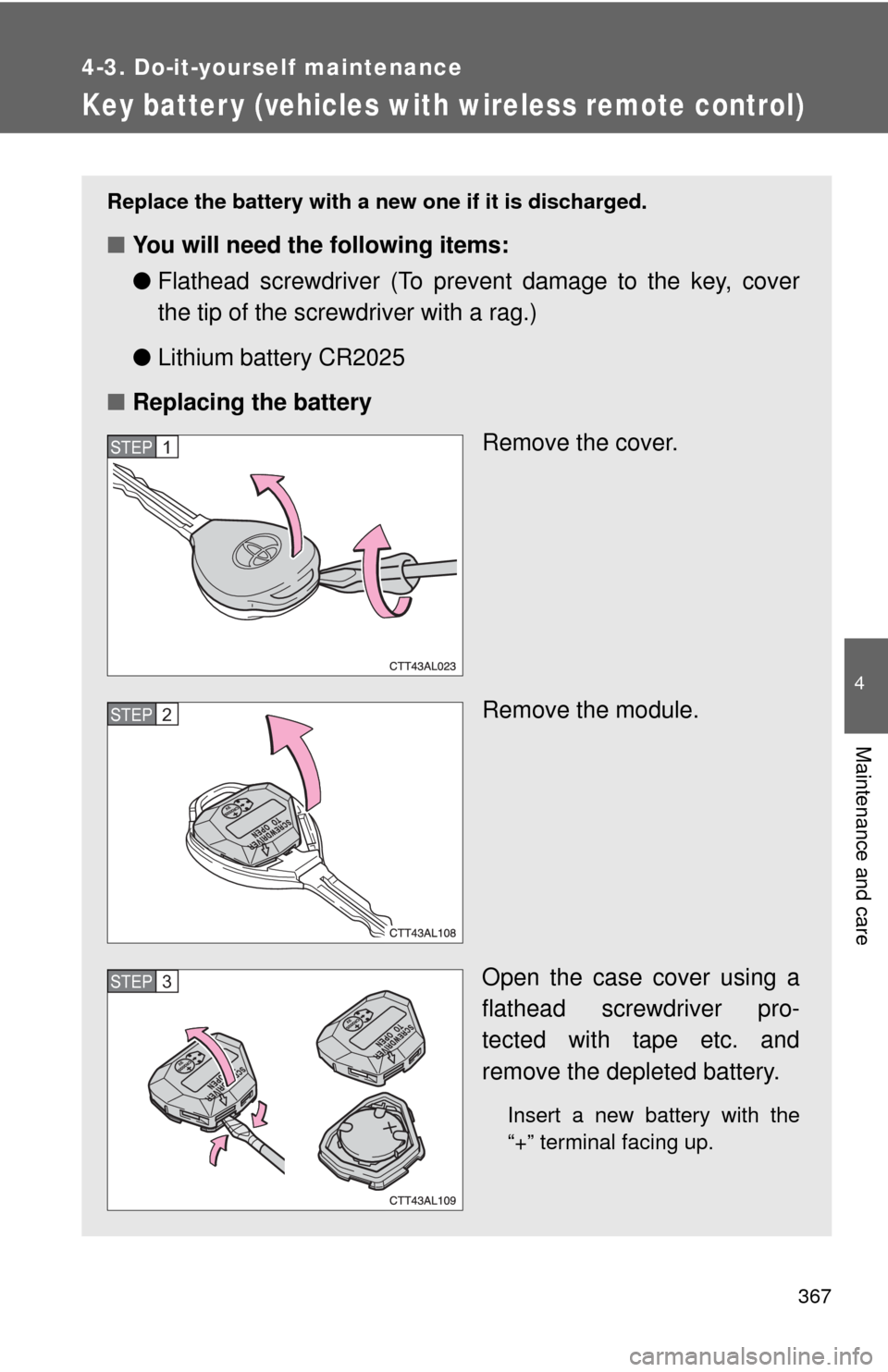

Key batter y (vehicles with wireless remote control)
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with a rag.)
●Lithium battery CR2025
■Replacing the battery
Remove the cover.
Remove the module.
Open the case cover using a
flathead screwdriver pro-
tected with tape etc. and
remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
STEP3

368 4-3. Do-it-yourself maintenance
■If the key battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
●The operational range is reduced.
■Use CR2025 lithium battery
●Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
●Replace only with the same or equivalent type recommended by your
To y o t a dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

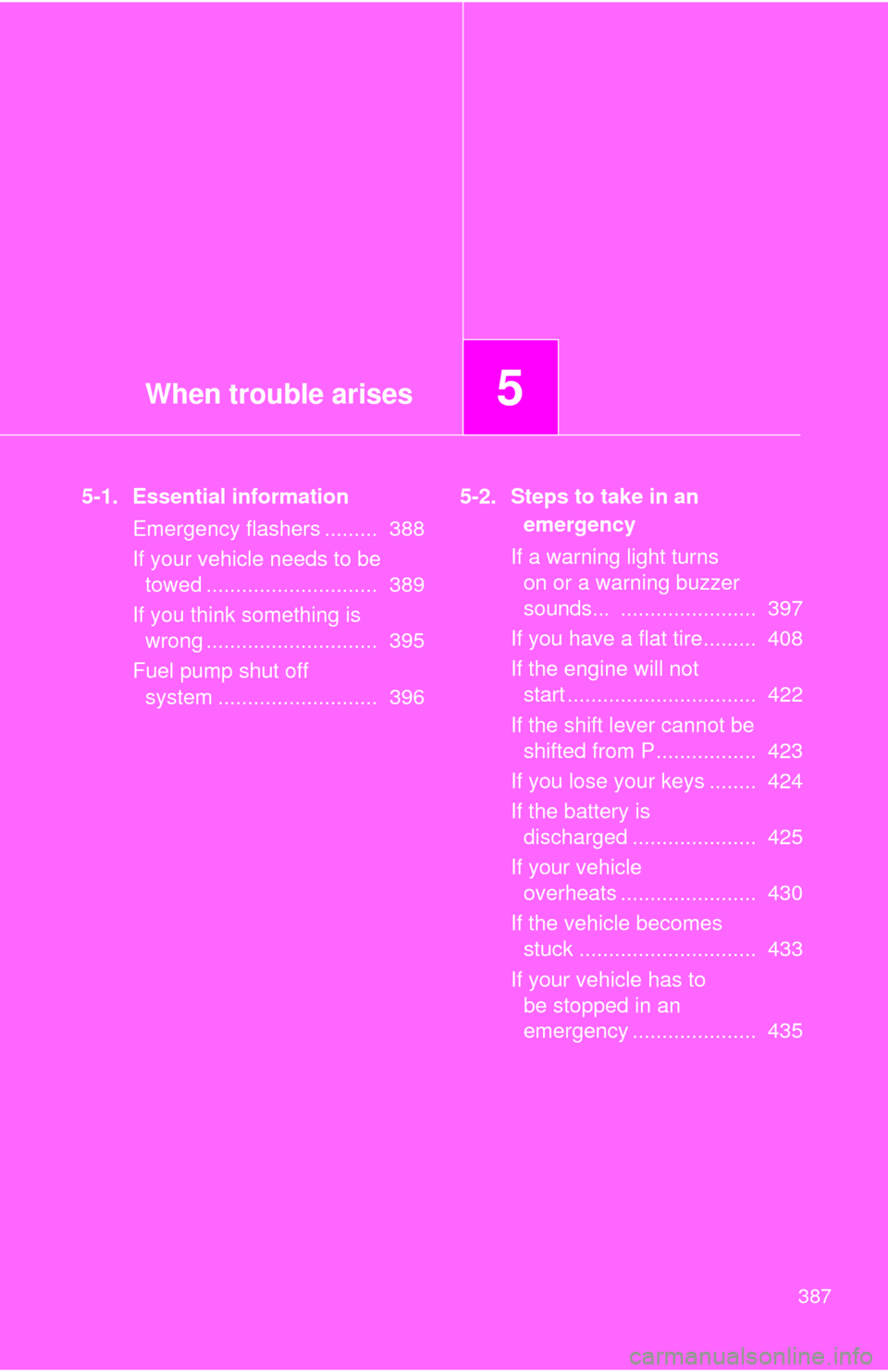

When trouble arises5
387
5-1. Essential information
Emergency flashers ......... 388
If your vehicle needs to be
towed ............................. 389
If you think something is
wrong ............................. 395
Fuel pump shut off
system ........................... 3965-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ....................... 397
If you have a flat tire......... 408
If the engine will not
start ................................ 422
If the shift lever cannot be
shifted from P................. 423
If you lose your keys ........ 424
If the battery is
discharged ..................... 425
If your vehicle
overheats ....................... 430
If the vehicle becomes
stuck .............................. 433
If your vehicle has to
be stopped in an
emergency ..................... 435

394 5-1. Essential information
NOTICE
■To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent causing serious damage to the transmission and Active
Torque Control 4WD system (AWD models) when towing using a
wheel-lift type truck (vehicles with an automatic transmission)
■To prevent damaging the vehicle when towing using a wheel-lift type
truck
●When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
●Vehicles with a manual transmission: Do not tow the vehicle when the
engine switch is in the “LOCK” position or the key is removed.
The steering lock mechanism is not strong enough to hold the front wheels
straight.
■Recreational towing (behind motor home, etc.)
Vehicles with an automatic transmission: Never dinghy tow your vehicle to
prevent causing serious damage to the Active Torque Control 4WD system
(AWD models) and transmission. (P. 181)
2WD models: Never tow this vehicle from
the rear with the front wheels on the
ground. This may cause serious damage
to the transmission. If towing from the
rear, use a towing dolly.
AWD models: Never tow this vehicle with
any of the wheels on the ground. This
may cause serious damage to the trans-
mission and Active Torque Control 4WD
system. Use a towing dolly.

424
5-2. Steps to take in an emergency
If you lose your keys
New genuine keys can be made by your Toyota dealer. Bring a mas-
ter key and the key number stamped on the key number plate.

436 5-2. Steps to take in an emergency
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
●Never attempt to remove the key, as doing so will lock the steering wheel.

470 6-2. Customization
Door lock
(vehicles
with power
door lock
system)
(
P. 31)Unlocking using a keyDriver's door
unlocked in one
step, all doors
unlocked in two
stepsAll doors
unlocked in one
step
Opening driver's door
unlocks all doorsOff On
Shifting gears to P
unlocks all doors. (vehi-
cles with an automatic
transmission)On Off
Shifting gears to posi-
tion other than P locks
all doors. (vehicles with
an automatic transmis-
sion)On Off
Illumination
(
P. 279)Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked
(vehicles with power
door lock system)On Off
Operation after the
engine switch is turned
to the “LOCK” positionOn Off
Seat belt
reminder
(
P. 400)Vehicle speed linked
seat belt reminder
buzzerOn Off
ItemFunctionDefault settingCustomized
setting
