display TOYOTA MATRIX 2013 E140 / 2.G Service Manual

272 3-4. Using the hands-free phone system (for cellular phone)
Initialization
Select “Initialize” using .
●Initializing the sound settings
Select “Sound setting” using and press (YES).
For details about sound settings (P. 242)
●Initializing the device information
Select “Car Device Info” using and press (YES).
Automatic connection of a portable device, automatic connection confir-
mation display and the passkey will be initialized.
●Initializing all the settings
Select “All Initialize” using and press (YES).
■The number of Bluetooth® devices that can be registered
Up to 5 Bluetooth
® devices can be registered in the system.

292
3-7. Other interior features

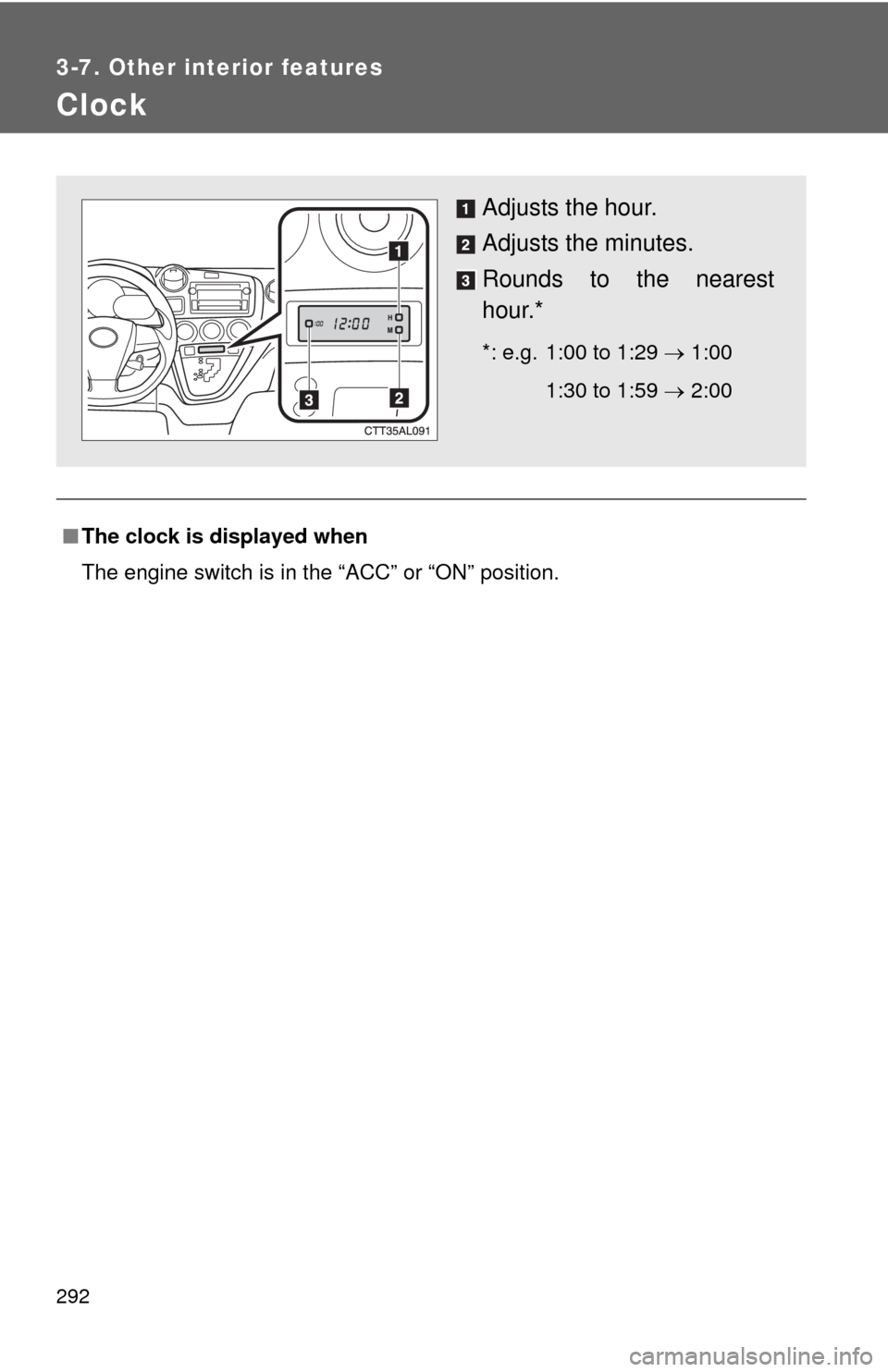

Clock
■The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00

309
3-7. Other interior features
3
Interior features

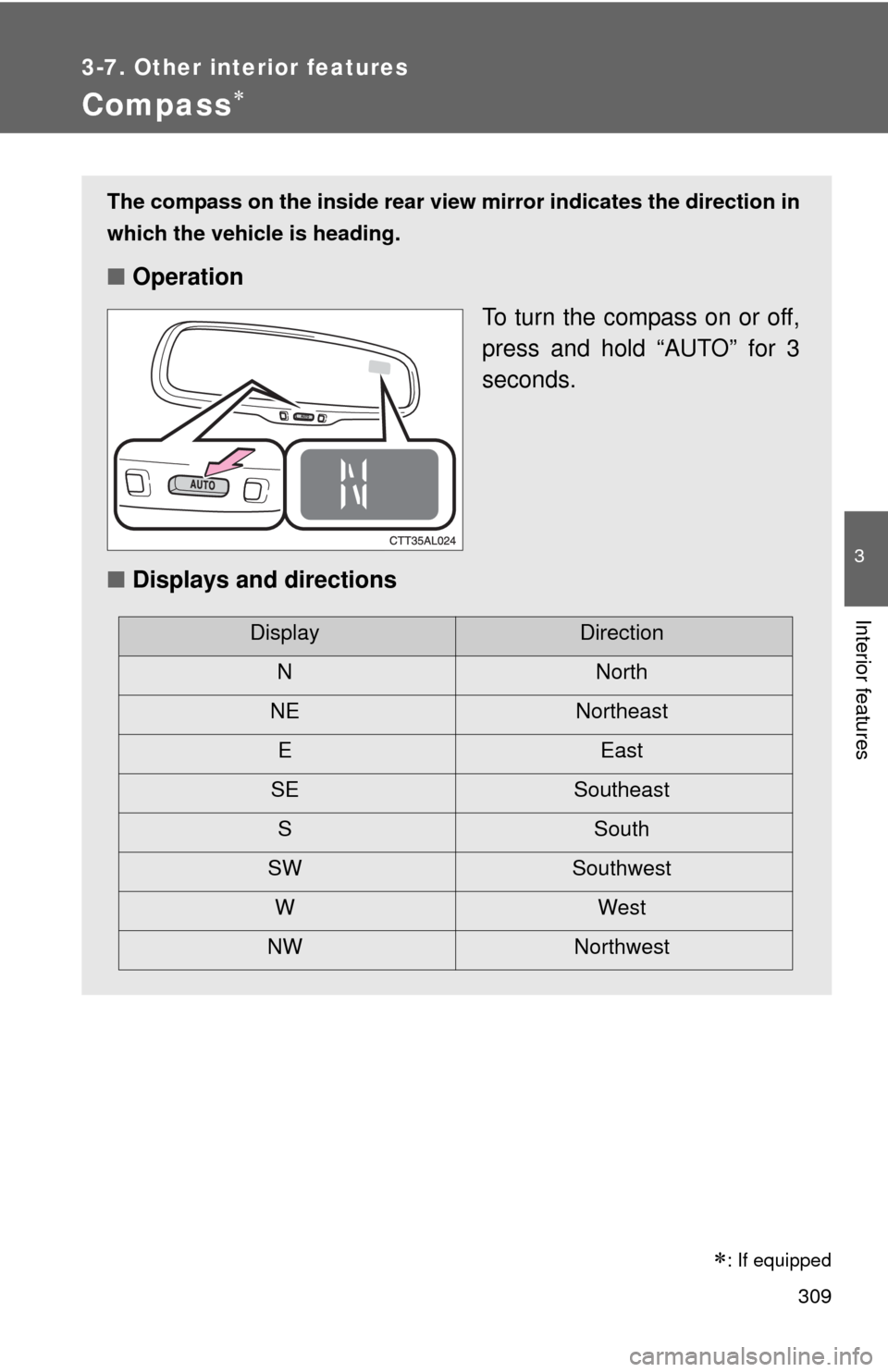

Compass
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■Operation
To turn the compass on or off,
press and hold “AUTO” for 3
seconds.
■Displays and directions
DisplayDirection
NNorth
NE Northeast
EEast
SE Southeast
S South
SW Southwest
WWest
NW Northwest

: If equipped

310 3-7. Other interior features
Calibrating the compass
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amount of deviation varies according
to the geographic position of the vehicle.
If you cross over a map boundary shown in the illustration, the compass
will deviate.
To obtain higher precision or perfect calibration, refer to the following.
■Deviation calibration
Stop the vehicle.
Press and hold “AUTO” for 6
seconds.
A number (1 to 15) appears on
the compass display.
Press “AUTO” and, referring to the map above, select the
number of the zone where you are.
If the direction is displayed several seconds after adjustment, the
calibration is complete.
STEP1
STEP2
STEP3

311 3-7. Other interior features
3
Interior features
■Circling calibration
Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold “AUTO” for 9
seconds.
C appears on the compass dis-
play.
Drive the vehicle at 5 mph (8
km/h) or less in a circle until a
direction is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
STEP1
STEP2
STEP3
■Conditions unfavorable for correct operation
The compass may not show the correct direction in the following situations:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth's magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the anti-glare inside rear view
mirror.)
●The battery has been disconnected.
●A door is open.

312 3-7. Other interior features
CAUTION
■While driving the vehicle
Do not adjust the display. Be sure to adjust the display only when the vehicle
is stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the
neighborhood. Do not violate any local traffic rules while performing circling
calibration.
NOTICE
■To avoid compass malfunctions
Do not place magnets or any metal objects near the anti-glare inside rear
view mirror.
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the
earth's magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.

321 4-2. Maintenance
4
Maintenance and care
■Reset the maintenance data (U.S.A. only)
After the required maintenance is performed according to the maintenance
schedule, please reset the maintenance data.
To reset the data, follow the procedures described below:
Turn the engine switch OFF with the trip meter A reading shown.
While pressing the trip meter reset button (P. 132), turn the
engine switch to the “ON” position.
Continue to press and hold the button until the trip meter displays
000000.
■Allow inspection and repairs to be performed by a Toyota dealer
●Toyota technicians are well-trained specialists and are kept up to date
with the latest service information. They are well informed about the
operations of all systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly
take care of it.
CAUTION
■Warning in handling of battery
●Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Avoid exposure and wash any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands
after handling. (P. 345)
STEP1
STEP2
STEP3

490 Alphabetical index
Child safety
Airbag precautions ..................80
Battery precautions ....... 346, 429
Child restraint system..............90
Child-protectors .......................32
How your child should wear
the seat belt ..........................50
Installing child restraints ..........94
Moon roof precautions ............63
Power window lock switch.......59
Power window precautions .....60
Removed key battery
precautions ......................... 368
Seat belt extender
precautions ...........................52
Seat belt precautions ..............51
Child-protectors .........................32
Cleaning
Exterior .................................. 314
Interior ................................... 317
Seat belts .............................. 318
Clock ......................................... 292
Compass ................................... 309
Condenser ................................ 342
Console box ............................. 284
Cooling system
Engine overheating ............... 430
Cruise control........................... 148
Cup holder ................................ 285
Curtain shield airbags ...............73
Customizable features............. 469Daytime running light
system .................................... 140
Defogger
Rear window ......................... 193
Side mirror ............................ 193
Dimension ................................ 438
Dinghy towing .................. 181, 182
Display
Trip meter.............................. 132
Do-it-yourself maintenance .... 326
Doors
Door lock ........................... 28, 31
Door windows ......................... 59
Side mirrors............................. 57
Driver's seat belt reminder
light ......................................... 400
Driving
Break-in tips .......................... 109
Correct posture ....................... 71
Procedures............................ 106
Winter driving tips ................. 162D

494 Alphabetical index
Maintenance
Do-it-yourself
maintenance ....................... 326
General maintenance ............ 322
Maintenance data.................. 438
Maintenance requirements.... 320
Manual transmission
Manual transmission ............. 127
Meter
Instrument panel light
control ................................. 134
Meters ................................... 132
Mirrors
Inside rear view mirror.............55
Side mirror heater ................. 193
Side mirrors .............................57
Vanity mirrors ........................ 291
Moon roof ...................................61
MP3 disc ................................... 215
Noise from under vehicle ..........18
Odometer .................................. 132
Oil
Engine oil .............................. 337
Opener
Fuel filler door .........................64
Hood...................................... 330
Outside rear view mirrors
Adjusting and folding ...............57
Outside temperature
display .................................... 132
Overheating, Engine ................430Parking brake ........................... 130
Parking lights
Replacing light bulb............... 378
Switch ................................... 138
Wattage................................. 453
Personal lights
Switch ........................... 281, 282
Wattage................................. 453
Power outlet ............................. 295
Power windows .......................... 59
Radiator .................................... 342
Radio ......................................... 203
Rear seats
Folding down........................... 44
Rear side marker lights
Replacing light bulb............... 378
Switch ................................... 138
Wattage................................. 453
Rear turn signal lights
Replacing light bulbs ............. 378
Switch ................................... 129
Wattage................................. 453
Rear view mirror
Compass ............................... 309
Rear window defogger ............ 193
Rear window wiper .................. 146
Replacing
Fuses .................................... 369
Key battery ............................ 367
Light bulbs............................. 378
Tires ...................................... 408
Reporting safety defects for
U.S.A. owners ........................ 474
Reset the maintenance
data ......................................... 321M
N
O
P
R
