headlights TOYOTA MATRIX 2013 E140 / 2.G Quick Reference Guide

10
FEATURES/OPERATIONS
Parking brake
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release leverAngle
Length
Hold wheel, push lever down,
set angle and length, and
return lever.
Clock
Hour set
Minute set
Round off minutes

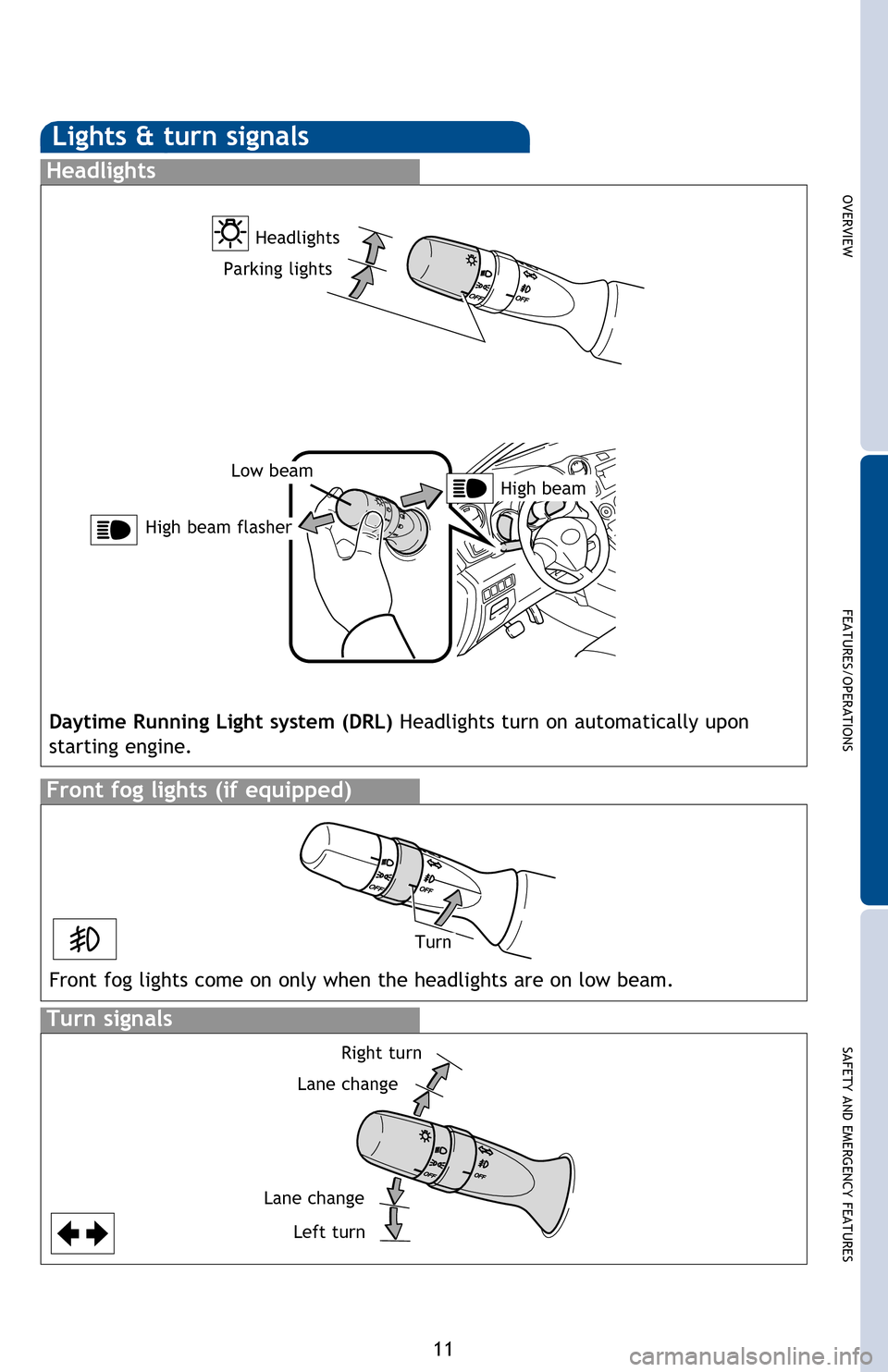

Lights & turn signals
Turn signals
Headlights
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically upon
starting engine.
Front fog lights come on only when the headlights are on low beam.
126923_2013Matrix.indd 107/21/12 1:37 AM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
(1) Pull slightly
NOTE: Do not attempt to adjust while the vehicle is in motion.Hold wheel, push lever down,
set angle and length, and
return lever.
Hour set
Minute set
Round off minutes
Lights & turn signals
Turn signals
Headlights
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically upon
starting engine.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn
High beam
High beam flasher
Headlights
Parking lights
Turn
Low beam
126923_2013Matrix.indd 117/21/12 1:37 AM
