Page 270 of 500

270 3-4. Using the hands-free phone system (for cellular phone)
Changing the passkey
Select “Passkey” using .
Select a 4 to 8-digit passkey using .
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the passkey to be registered has 8 digits, pressing again
is not necessary.
Setting automatic connection of the device on or offIf “BT Power” is set to on, the r egistered device will be connected
automatically when the engine switch is turned to the “ACC” position.
Select “BT Power” using .
Select “ON” or “OFF” using .
STEP1
STEP2
STEP3
STEP1
STEP2
Page 272 of 500

272 3-4. Using the hands-free phone system (for cellular phone)
Initialization
Select “Initialize” using .
● Initializing the sound settings
Select “Sound setting” using and press (YES).
For details about sound settings ( P. 242)
●Initializing the device information
Select “Car Device Info” using and press (YES).
Automatic connection of a portable device, automatic connection confir-
mation display and the passkey will be initialized.
●Initializing a ll the settings
Select “All Initialize” using and press (YES).
■The number of Bluetooth® devices that can be registered
Up to 5 Bluetooth
® devices can be registered in the system.
Page 313 of 500

Maintenance and care4
313
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 314
Cleaning and protecting the vehicle interior.......... 317
4-2. Maintenance Maintenance requirements .................. 320
General maintenance....... 322
Emission inspection and maintenance (I/M)
programs........................ 325 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions .................... 326
Hood ................................ 330
Positioning a floor jack ..... 332
Engine compartment ........ 335
Tires ................................. 349
Tire inflation pressure ...... 358
Wheels ............................. 362
Air conditioning filter......... 365
Key battery ....................... 367
Checking and replacing fuses .............................. 369
Light bulbs........................ 378
Page 367 of 500

367
4-3. Do-it-yourself maintenance
4
Maintenance and care

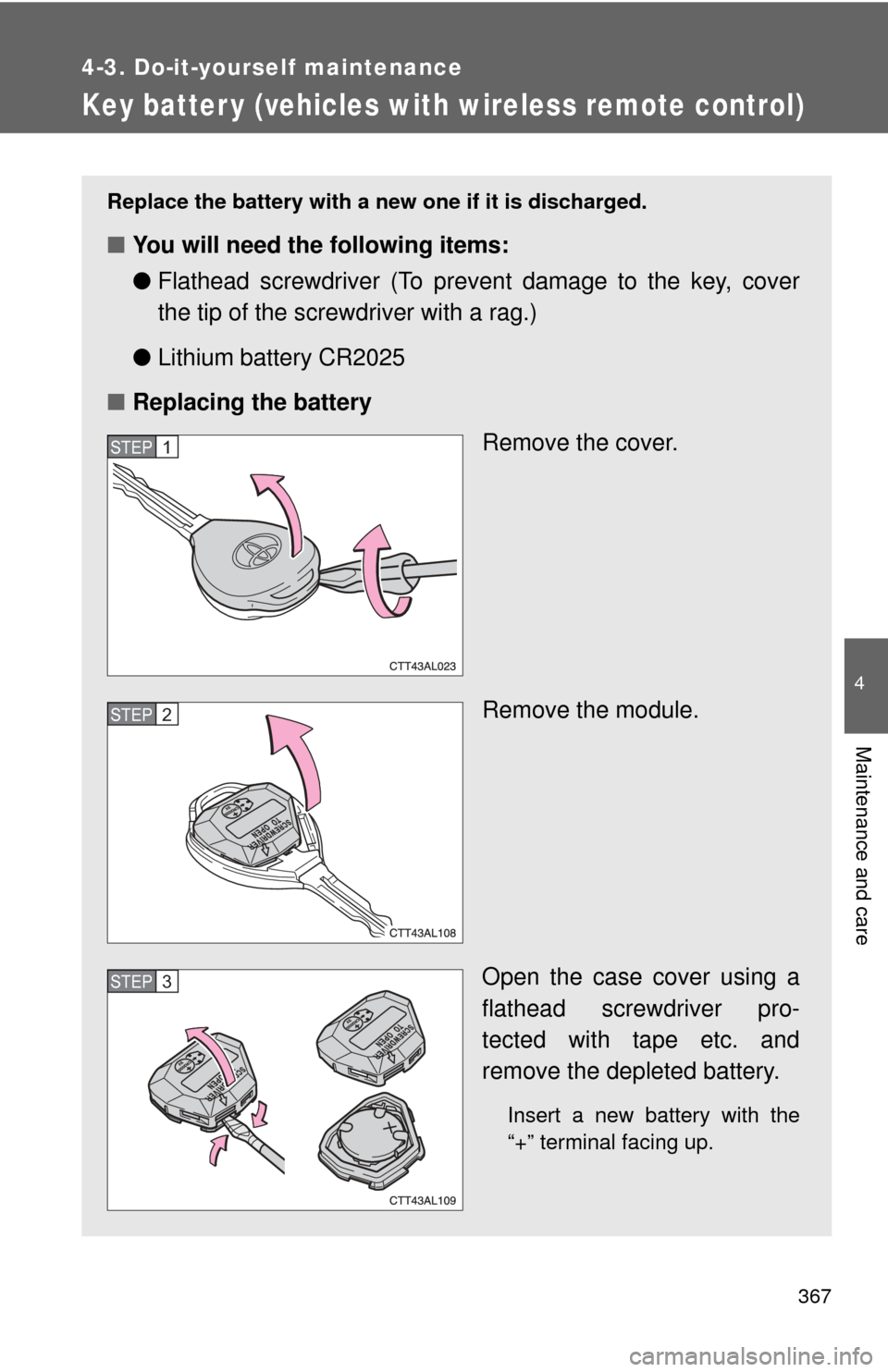

Key batter y (vehicles with wireless remote control)
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with a rag.)
● Lithium battery CR2025
■ Replacing the battery
Remove the cover.
Remove the module.
Open the case cover using a
flathead screwdriver pro-
tected with tape etc. and
remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
STEP3
Page 368 of 500

368 4-3. Do-it-yourself maintenance
■If the key battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
● The operational range is reduced.
■ Use CR2025 lithium battery
●Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by your
To y o t a dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.
Page 387 of 500

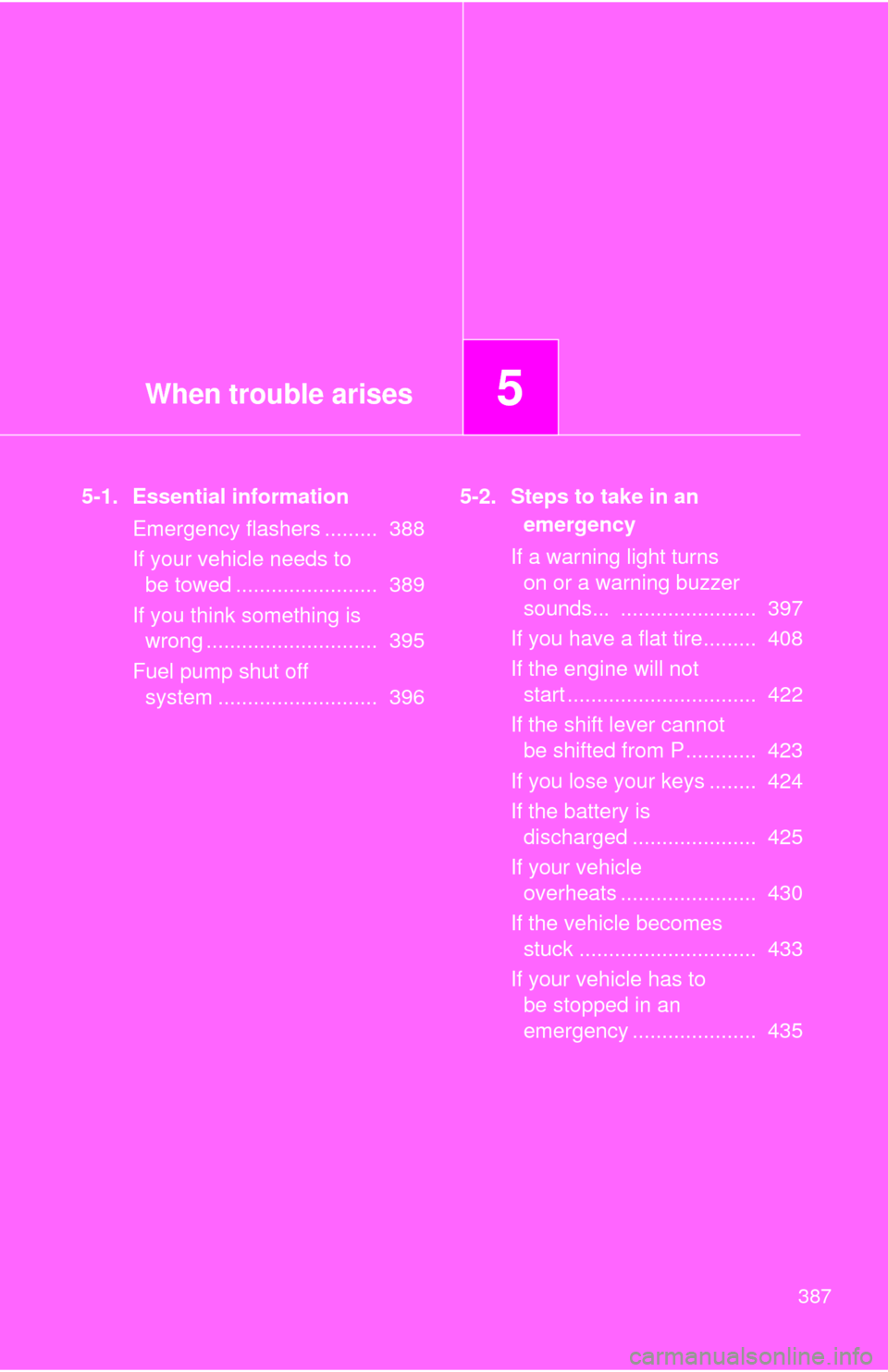

When trouble arises5
387
5-1. Essential informationEmergency flashers ......... 388
If your vehicle needs to be towed ........................ 389
If you think something is wrong ............................. 395
Fuel pump shut off system ........................... 396 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 397
If you have a flat tire......... 408
If the engine will not start ................................ 422
If the shift lever cannot be shifted from P............ 423
If you lose your keys ........ 424
If the battery is discharged ..................... 425
If your vehicle overheats ....................... 430
If the vehicle becomes stuck .............................. 433
If your vehicle has to be stopped in an
emergency ..................... 435
Page 394 of 500

394 5-1. Essential information
NOTICE
■To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■ To prevent causing serious damage to the transmission and Active
Torque Control 4WD system (AWD models) when towing using a
wheel-lift type truck (vehicles with an automatic transmission)
■ To prevent damaging the vehicle wh en towing using a wheel-lift type
truck
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
● Vehicles with a manual transmission: Do not tow the vehicle when the
engine switch is in the “LOCK” position or the key is removed.
The steering lock mechanism is not strong enough to hold the front wheel\
s
straight.
■ Recreational towing (behind motor home, etc.)
Vehicles with an automatic transmission: Never dinghy tow your vehicle to
prevent causing serious damage to the Active Torque Control 4WD system
(AWD models) and transmission. ( P. 181)
2WD models: Never tow this vehicle from
the rear with the front wheels on the
ground. This may cause serious damage
to the transmission. If towing from the
rear, use a towing dolly.
AWD models: Never tow this vehicle with
any of the wheels on the ground. This
may cause serious damage to the trans-
mission and Active Torque Control 4WD
system. Use a towing dolly.
Page 424 of 500

424
5-2. Steps to take in an emergency

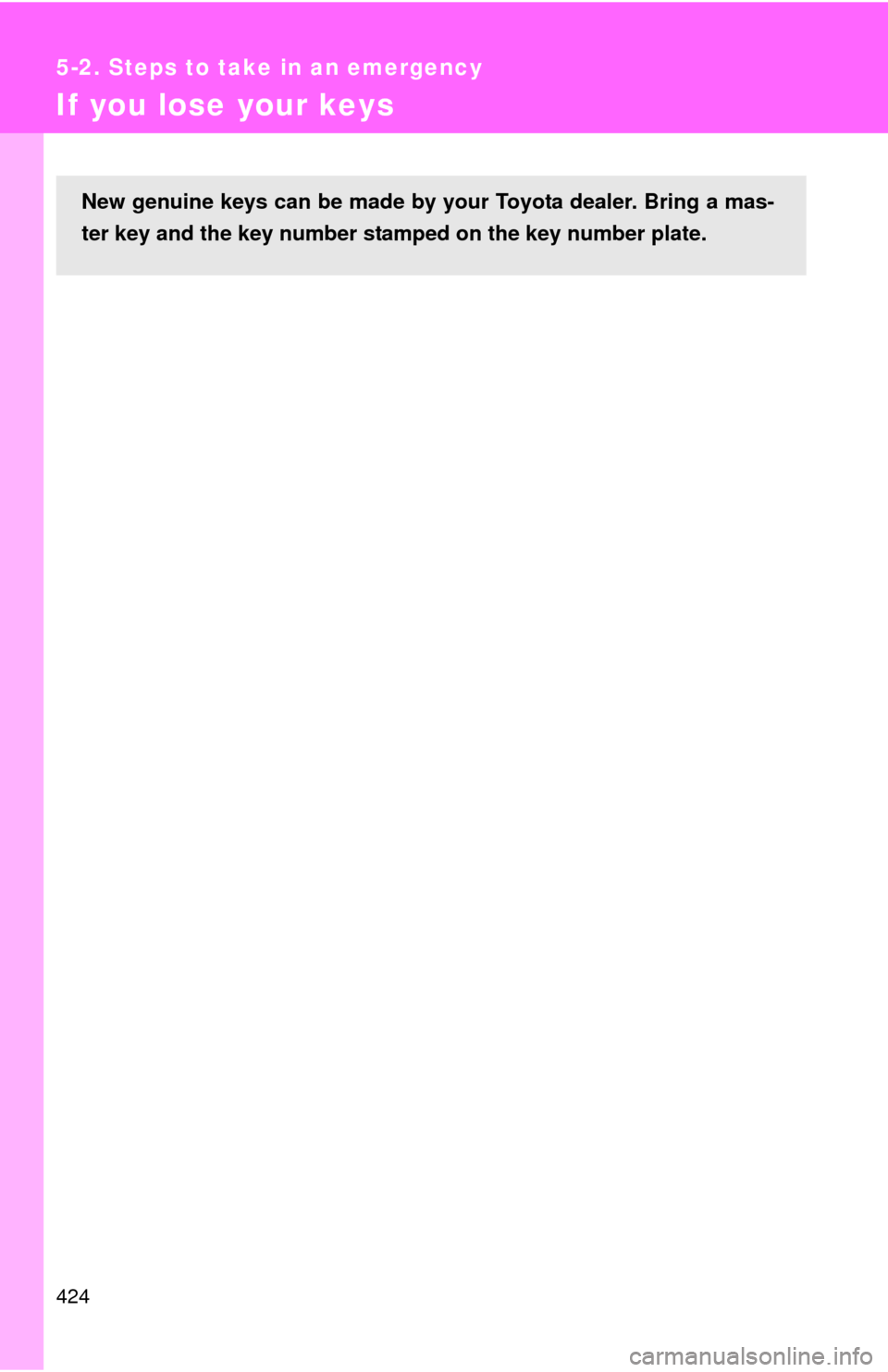

If you lose your keys
New genuine keys can be made by your Toyota dealer. Bring a mas-
ter key and the key number stam ped on the key number plate.
Page 436 of 500

436 5-2. Steps to take in an emergency
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.
Page 470 of 500

470 6-2. Customization
Door lock
(vehicles
with power
door lock
system)
(
P. 31)Unlocking using a key
Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Opening driver's door
unlocks all doors Off On
Shifting gears to P
unlocks all doors. (vehi-
cles with an automatic
transmission) On Off
Shifting gears to posi-
tion other than P locks
all doors. (vehicles with
an automatic transmis-
sion) On Off
Illumination
(
P. 279) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked
(vehicles with power
door lock system) On Off
Operation after the
engine switch is turned
to the “LOCK” position On Off
Seat belt
reminder
(
P. 400) Vehicle speed linked
seat belt reminder
buzzer
On Off
ItemFunctionDefault settingCustomized
setting
