TOYOTA MATRIX 2014 E140 / 2.G Owners Manual

301
3-7. Other interior features
3
Interior features
Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver's floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver's seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehic le. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

302
3-7. Other interior features

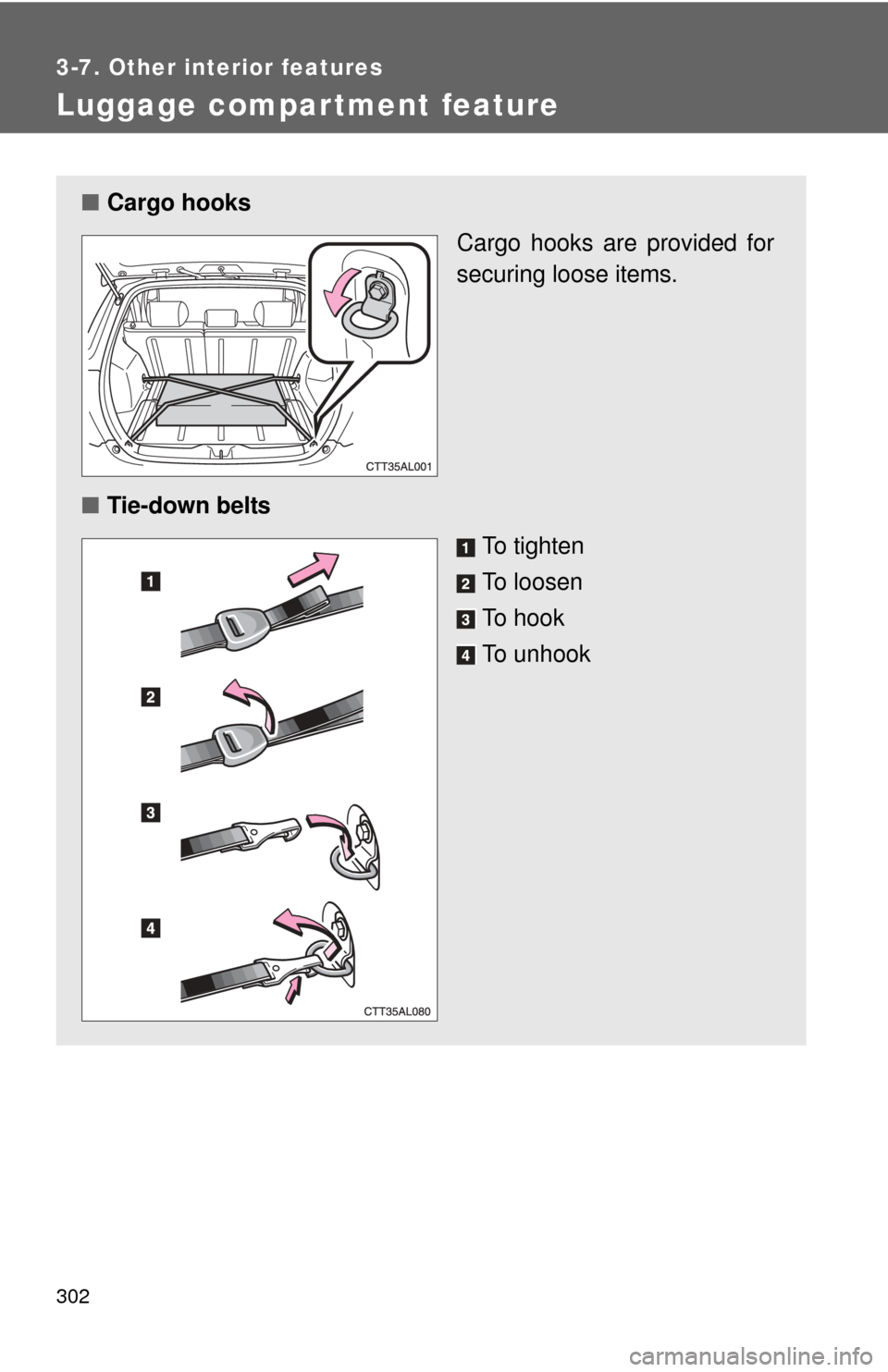

Luggage compartment feature
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Tie-down belts
To tighten
To loosen
To hook
To unhook

303
3-7. Other interior features
3
Interior features
■

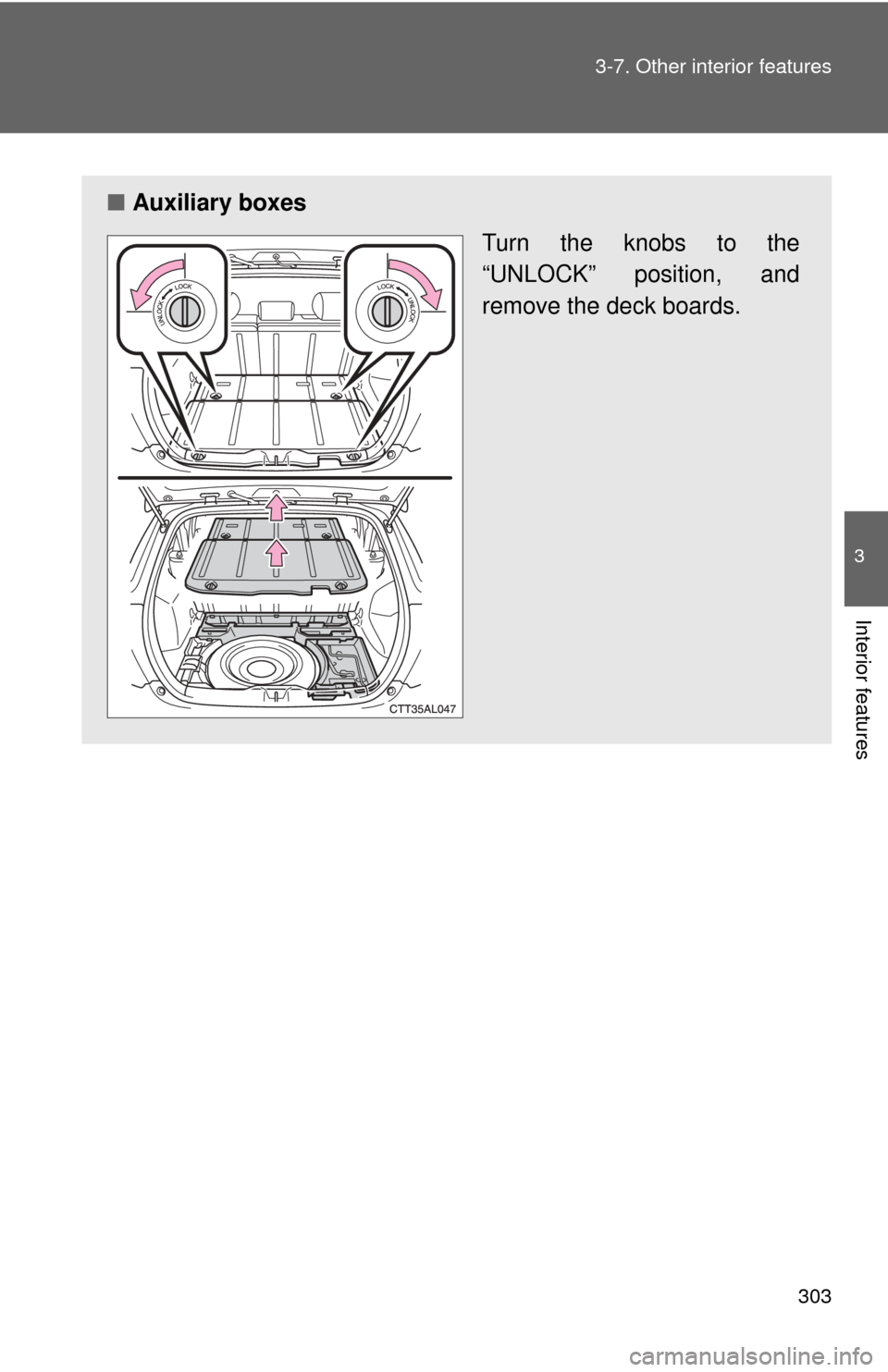

Auxiliary boxes
Turn the knobs to the
“UNLOCK” position, and
remove the deck boards.

304 3-7. Other interior features

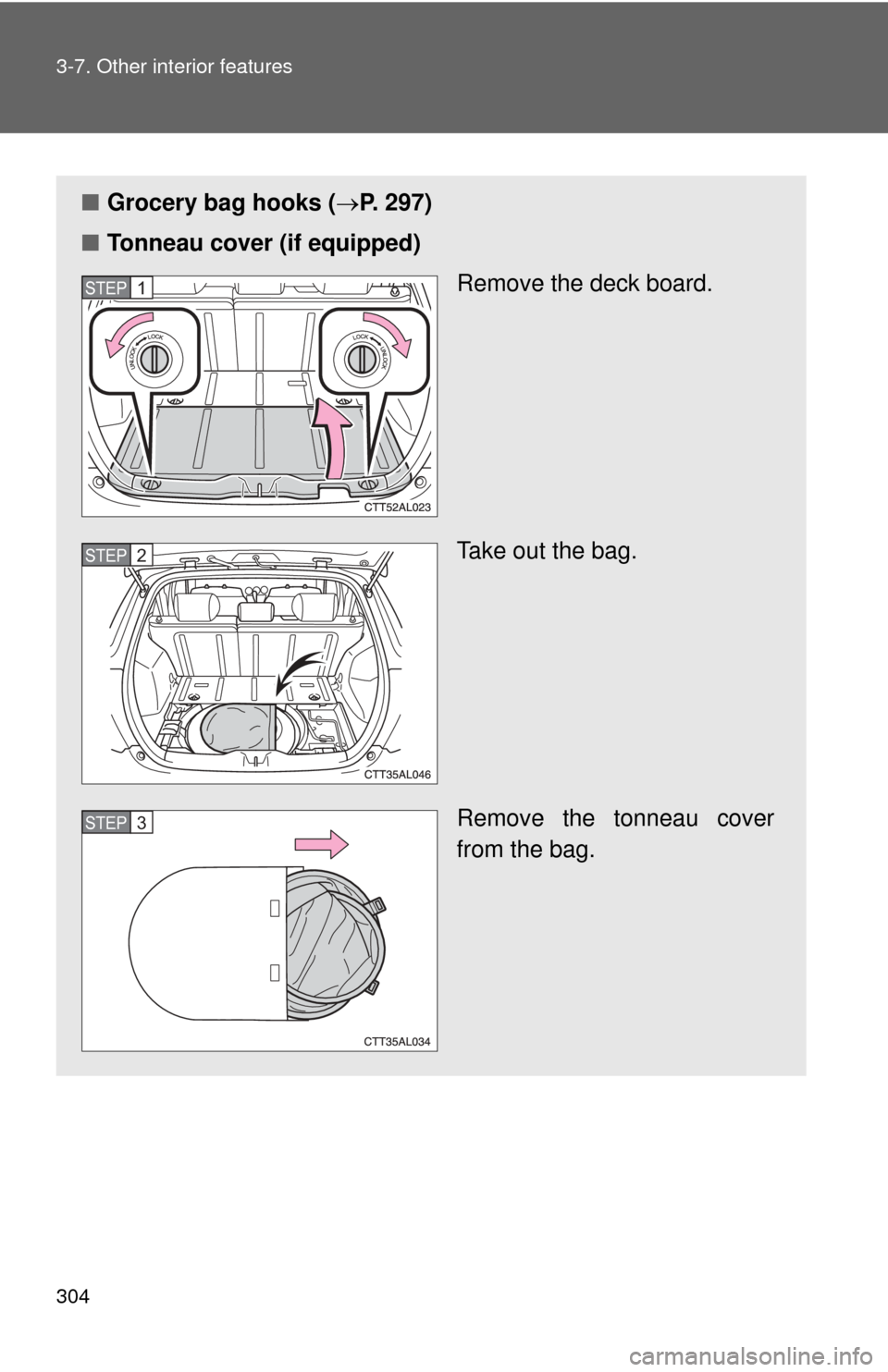

■Grocery bag hooks ( P. 297)
■ Tonneau cover (if equipped)
Remove the deck board.
Take out the bag.
Remove the tonneau cover
from the bag.
STEP1
STEP2
STEP3

305
3-7. Other interior features
3
Interior features

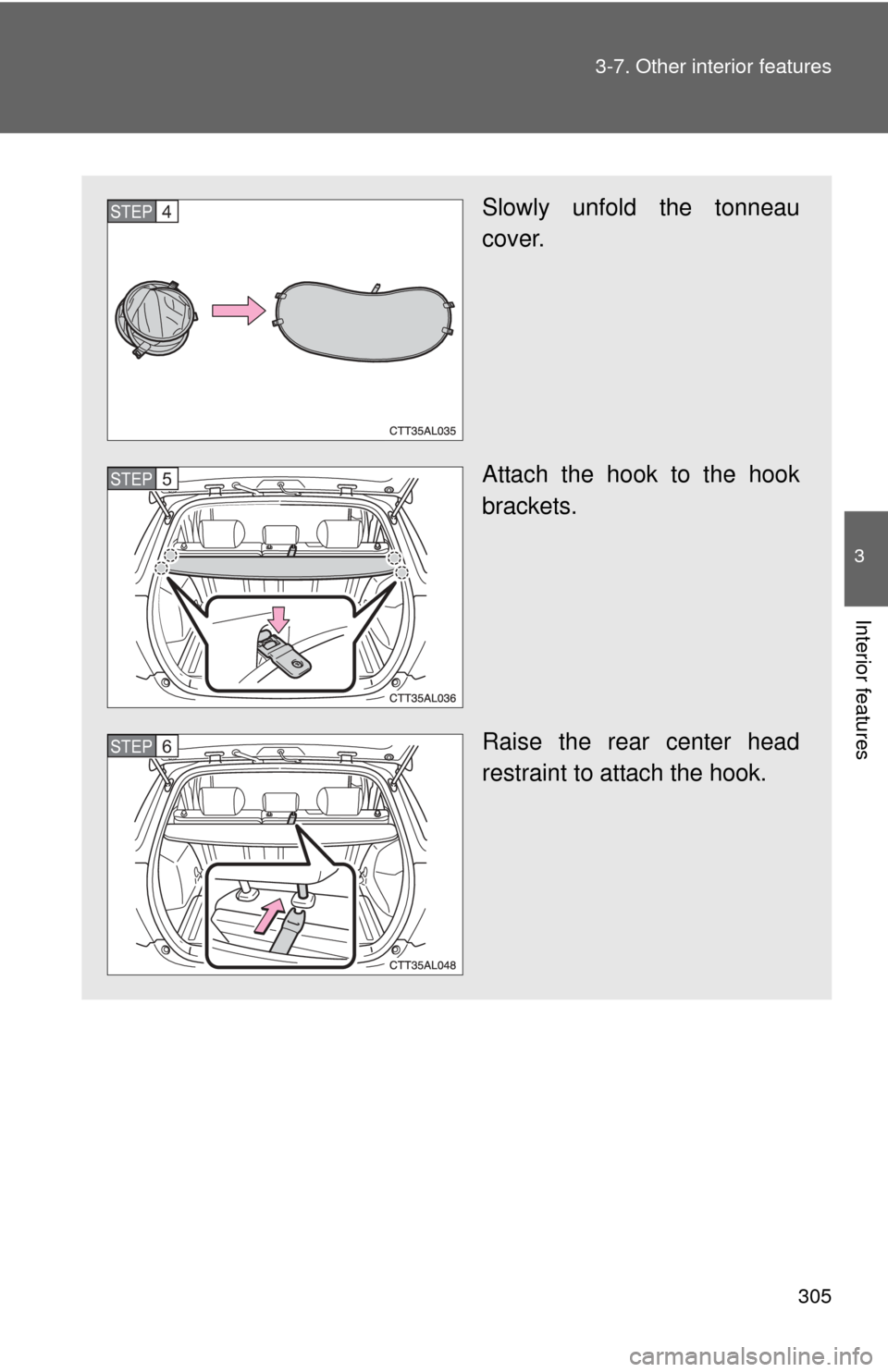

Slowly unfold the tonneau
cover.
Attach the hook to the hook
brackets.
Raise the rear center head
restraint to attach the hook.STEP4
STEP5
STEP6

306 3-7. Other interior features
Folding the tonneau coverHold the tonneau cover with both
hands. Point your thumbs in
opposite directions.
Bend one side of the cover
towards you.
Twist the other side in the oppo-
site direction, as shown in the
illustration.
STEP1
STEP2
STEP3

307
3-7. Other interior features
3
Interior features
Make a small circ
le, then fold it
inward.
Make sure the three circles are
side by side.
Put it in the bag.STEP4
STEP5
STEP6

308 3-7. Other interior features
CAUTION
■When unfolding the tonneau cover
Be careful not to hit yourself when unfolding the tonneau cover.
■ Caution while driving
Keep the deck boards locked.
Injuries may result in the event of an accident or sudden braking.

309
3-7. Other interior features
3
Interior features
Compass
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■ Operation
To turn the compass on or off,
press and hold “AUTO” for 3
seconds.
■ Displays and directions
DisplayDirection
NNorth
NE Northeast EEast
SE Southeast S South
SW Southwest
WWest
NW Northwest

: If equipped

310 3-7. Other interior features
Calibrating the compassThe direction display deviates fr om the true direction determined by
the earth’s magnetic field. The amoun t of deviation varies according
to the geographic position of the vehicle.
If you cross over a map boundary shown in the illustration, the compass
will deviate.
To obtain higher precision or perfect calibration, refer to the following.
■Deviation calibration
Stop the vehicle.
Press and hold “AUTO” for 6
seconds.
A number (1 to 15) appears on
the compass display.
Press “AUTO” and, referring to the map above, select the
number of the zone where you are.
If the direction is displayed several seconds after adjustment, the
calibration is complete.
STEP1
STEP2
STEP3
