TOYOTA MIRAI 2017 1.G Quick Reference Guide

OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
19
Blind Spot Monitor (BSM) with Rear
Cross Traffic Alert (RCTA) (if equipped)
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the \
decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when bac\
king up)
The system uses radar sensors and is designed to detect vehicles that ar\
e traveling
in the area that is not reflected in the outside rearview mirror (the b\
lind spot). The
system advises the driver of the vehicles’ existence via the outside \
rearview mirror
indicator.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
To turn ON (activate)/OFF (deactivate) from multi-information displa\
y,
select
.
Outside rear view mirror indicators
Rear cross Traffic Alert buzzer
TURN THE BSM SYSTEM ON

20
FEATURES & OPERATIONS
OPERATING WIPER LEVER
MIST Temporary operation
AUTO Rain-sensing operation
LO Low speed operation
HI High speed operation
OFF
Pull to wash and wipe
Select AUTO to increase or
decrease sensor sensitivity.
* When AUTO is selected, wipers will operate
automatically when sensor detects falling
rain.
Increase
Decrease
Windshield wipers & washer
Automatic High Beams (AHB)
The Automatic High Beam uses an in-vehicle camera sensor to assess the
brightness of streetlights, the lights of oncoming and preceding vehicle\
s, etc., and
automatically turns high beams on or off as necessary.
To turn the high beams on/off manually, pull the lever to the original p\
osition or
press the switch.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
1) Activate the system 2) Press the Automatic High Beam switch

OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
21
TURN SIGNALS
Right turn
Lane change
Lane change Left turn Headlights
Parking lights Auto or OFF
DRL OFF
Push
(1)
(1) In AUTO or position, push
lever away from you
(2) Push
to activate automatic
highbeam
(2)
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds, or when lock switch on remote is pushed after all doors are loc\
ked.
Windows-Power
Up
Window lock switch
Automatic operation Push the switch completely down or pull it completely
up and release to fully open or close. To stop the window partway, opera\
te the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Down
Lights & turn signals

22
Automatic air conditioning system
FEATURES & OPERATIONS
Touch and slide up/down to adjust
Airflow mode
When adjusting the temperature setting a sound buzzes and automatically \
sets
temperature, fan outlet and speed.

*Turns off automatically after 30 minutes
Automatic air
Fan speed (Slower) Fan speed (Faster)
Airflow mode
Rear defogger
System OFF
Air conditioning ON/OFF
Synchronize
temperature
Driver seat heater
Heated steering wheel* Windshield wiper de-icer
Passenger seat heater
Eco heat/cool mode
Windshield defogger Outside air (indicator off)/
Recirculated mode

23
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Audio
USB/AUX port
Power outlet
Entune™ Premium JBL Audio with Integrated Navigation and App Suite
Eject CD
Seek station/
CD trackCD player
Push to display audio screen
Push to access Entune systemTouch screen display
Push to turn ON/OFF
Turn for volume
Designed for car accessories. Power switch must be set at “ACCESSORY”\
or “ON”
in order to use power outlets.
(1) Push to open cover(2) Pull open port cover
(3) Connect device
By inserting a USB or an auxiliary cable plug into the USB/AUX port, you\
can listen
to music from a portable audio device through the vehicle’s speaker s\
ystem while in
USB/AUX mode.
Refer to the Navigation System Owner’s Manual and 2016 Entune™ Aud\
io Quick
Reference Guide for more details.

24
Wireless charger
Steering wheel switches
Clock
Volume:
Mode:
Select:
Designed for car accessories. Power switch must be set at “ACCESSORY”\
or “ON” in
order to use power outlets.
(1) Open console box
Odometer/trip meter and reset Audio/Multimedia remote control
TalkOff-hookOn-hook
(3) Place charging side of
portable device down and
light indicates when it is
charging. (orange)
(2) Press power button,
indicator light turns on when
in operation. (green)
Clock
Using steering wheel switches, select “Home” from multi-informatio\
n screen, then
select “
” to set clock:
(1) Round to the nearest hour, press
or , select and press .
(2) Time adjustment, press
or , select and press .
(3) Press
or , select hours and minutes or press or , to select 12-24 hour
clock and adjust.
(4) Press
when finished.
FEATURES & OPERATIONS

25
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Select category and items
Select/SetReturn to the previous screen
Drive information
• Energy monitor
• Fuel cell system indicator and ECO meter
• Fuel consumption history display
• Drive monitor
• ECO diary
• Suspension of the settings display

Navigation system-linked display
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display using the
meter control switches.
Driving assist systems display
Displays when each driving assistance system is used.
• Dynamic Radar Cruise Control (DRCC)
• Lane Departure Alert (LDA)
• Intuitive parking assist
• Pre-Collision System (PCS)
Warning message display
Select to display warning messages and measures to be taken if a malfunc\
tion is
detected.

26
Dynamic Radar Cruise Control (DRCC)
FEATURES & OPERATIONS
Vehicle-to-vehicle distance buttonSet speed
Dynamic radar control switch Indicators
Display
Refer to the Owner’s Manual for more details and complete safety prec\
autions
before attempting to use “Dynamic Radar Cruise Control.”
In distance control mode, vehicle is designed to cruise at a set speed, \
decelerate to
maintain a selected distance from a slower vehicle traveling in front, a\
nd accelerate
back up to the selected speed if the vehicle in front changes lanes or s\
peeds up.
(1) Push the ON-OFF button to activate/deactivate the system.
(2) To set, pull the lever down.
(3) To increase and set speed, push the lever up.

To decrease, push lever down. Move the lever slightly to adjust in 1 mph\

increments. Move all way up/down to adjust in 5 mph increments.
(4) To resume set speed, push up and hold.
To cancel pull the lever toward you, or depress the brake pedal.
(1) (2) (3)Increase/Resume
Decrease
Cancel
Push the vehicle-to-vehicle distance button to change distance.
DISTANCE CONTROL MODE
Push Long
Medium Short
160 ft.* 130 ft.*100 ft.*
Preceding
vehicle mark
*Approximately

27
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES

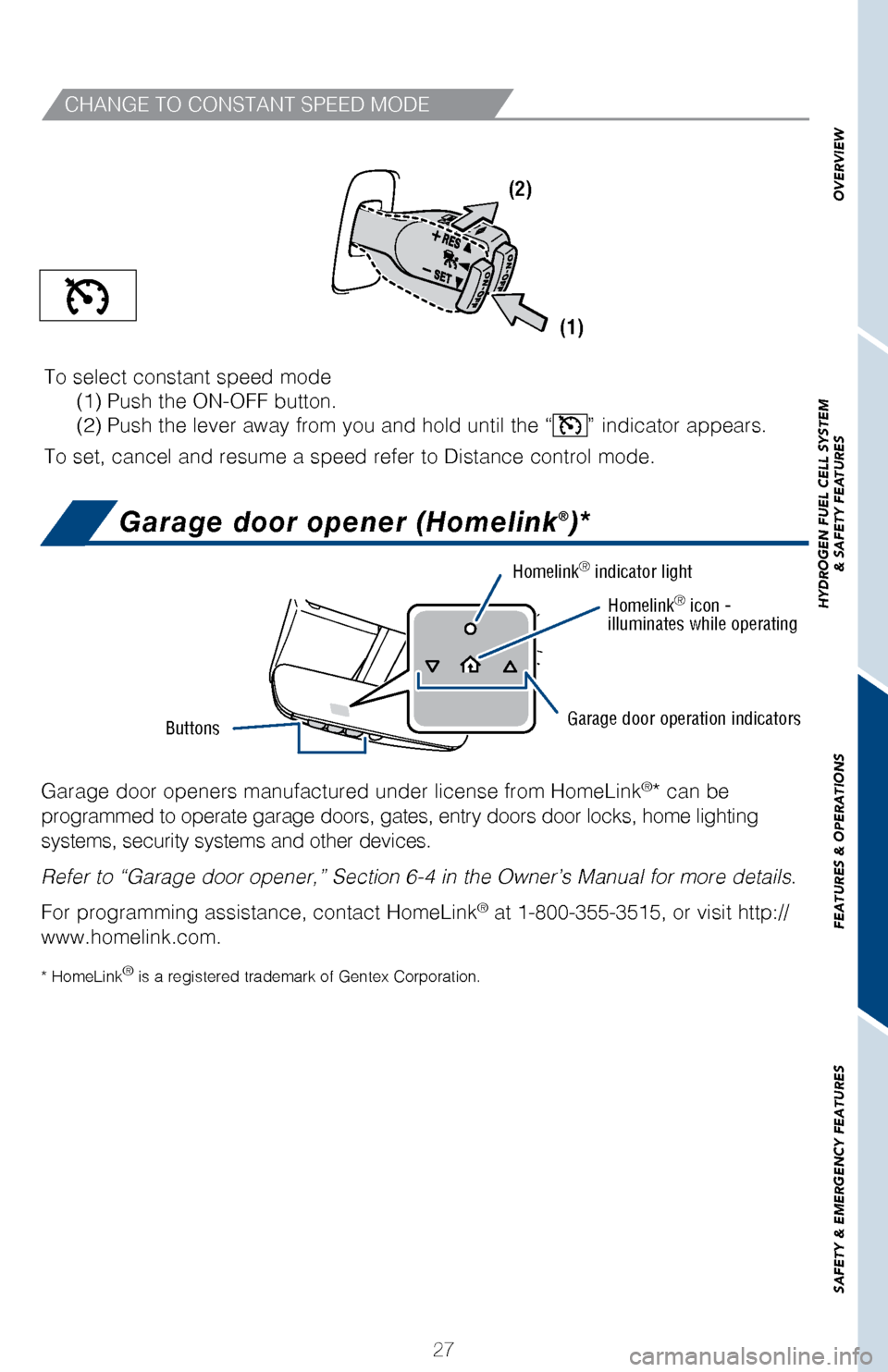

CHANGE TO CONSTANT SPEED MODE
To select constant speed mode
(1) Push the ON-OFF button.
(2) Push the lever away from you and hold until the “
” indicator appears.
To set, cancel and resume a speed refer to Distance control mode. (1)
(2)
Garage door opener (Homelink®)*
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, gates, entry doors door locks, home \
lighting
systems, security systems and other devices.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit http://
www.homelink.com.
* HomeLink® is a registered trademark of Gentex Corporation.
Homelink® indicator light
Homelink® icon -
illuminates while operating
Garage door operation indicatorsButtons

28
Emergency tire puncture repair kit
Tire Pressure Monitoring (warning) System (TPMS)
SAFETY & EMERGENCY FEATURES
Your vehicle is not equipped with a spare tire, but instead is equipped \
with an
emergency tire puncture repair kit (bottle of sealant and compressor.)\

After temporarily repairing the tire with the repair kit, have the tire \
repaired or
replaced by your Toyota dealer.
Refer to the Owner’s Manual for more details.
If the Tire Pressure Warning indicator “
” illuminates without blinking, adjust tire
pressures to factory-specified levels.* The light will turn off after a \
few minutes. The
warning light is designed to turn on when tire pressure is critically lo\
w, but it may
also come on due to temperature changes or changes in tire pressure from\
natural
air leakage.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
Refer to the Owner’s Manual for more details.
* Refer to load label on door jamb or the Owner’s Manual for tire inflation
specifications.
LOCATION
Towing eyeletJack handleJack
Emergency tire puncture repair kit
Wheel nut wrench
