Fuel cell vehicles efficiently use electricity, which is generated by a \
chemical
reaction between hydrogen and oxygen in a fuel cell stack. Excess electr\
icity is
stored in a traction battery that is used to power high voltage systems \
and assist on
initial acceleration.
The fuel is H
2 (compressed hydrogen gas), so the exhaust, when running, is
only water and water vapor. As they do not emit CO
2 (Carbon Dioxide) and NOx
(Nitrogen Oxides) at the tailpipe, fuel cell vehicles are considered z\
ero emission
vehicles.
NOTE: Fuel consumption and energy information of the Hydrogen Fuel Cell
System are shown on the Multi-Information Display.
Fill with fuel at hydrogen stations compliant with SAE J2601.
If you have questions about hydrogen station compliance, consult your Au\
thorized
Mirai Fuel Cell Toyota Dealer.
Observe the notices and cautions shown at the hydrogen station.
The filling time and amount may differ depending on the equipment of the\
hydrogen
station. It may make the possible driving distance shorter. - Ensure tire pressures are maintained at levels specified in the Owner’\
s Manual.
- Drive vehicle smoothly. Avoid abrupt acceleration and deceleration.
- Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
When you arrive at the station, prepare for fueling:
1) Ensure vehicle is OFF and in Park with parking brake set.
2) Press the fuel door release button and refer to instructions in ‘\
Fuel door release button and cap section’ to prepare the vehicle to accept hydrogen fue\
l.
Note: Fuel door will not release the lock if power switch is ON or if READY
indicator is on. The fuel door will automatically re-lock if you don’t open within
30 seconds.
3) Now you are ready to refuel. Outside the vehicle at the pump, use th\
e station’s best practice guidelines and instructions on how to refuel using their n\
ozzle.
For assistance, call Customer Support toll free at 1-800-331-4331.
Hydrogen Fuel Cell System
TIPS FOR IMPROVED FUEL ECONOMY
BEFORE FUELING

10
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES

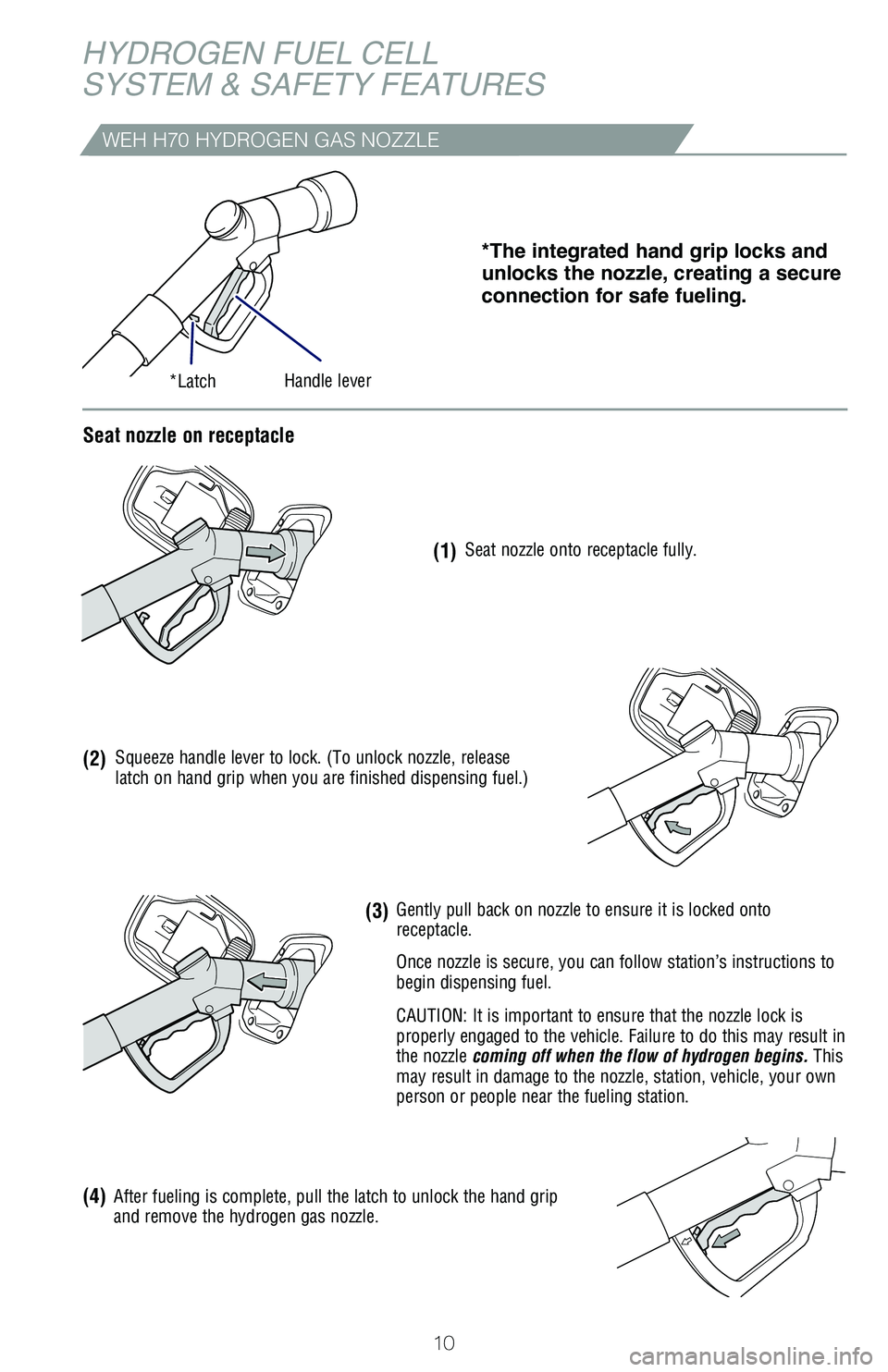

*The integrated hand grip locks and
unlocks the nozzle, creating a secure
connection for safe fueling.
Seat nozzle onto receptacle fully.
Once nozzle is secure, you can follow station’s instructions to
begin dispensing fuel.
CAUTION: It is important to ensure that the nozzle lock is
properly engaged to the vehicle. Failure to do this may result in
the nozzle coming off when the flow of hydrogen begins. This
may result in damage to the nozzle, station, vehicle, your own
person or people near the fueling station.
Gently pull back on nozzle to ensure it is locked onto
receptacle.
After fueling is complete, pull the latch to unlock the hand grip
and remove the hydrogen gas nozzle.
Squeeze handle lever to lock. (To unlock nozzle, release
latch on hand grip when you are finished dispensing fuel.)
(1)
(4)
(2)
(3)
*LatchHandle lever
Seat nozzle on receptacle
WEH H70 HYDROGEN GAS NOZZLE

11
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS

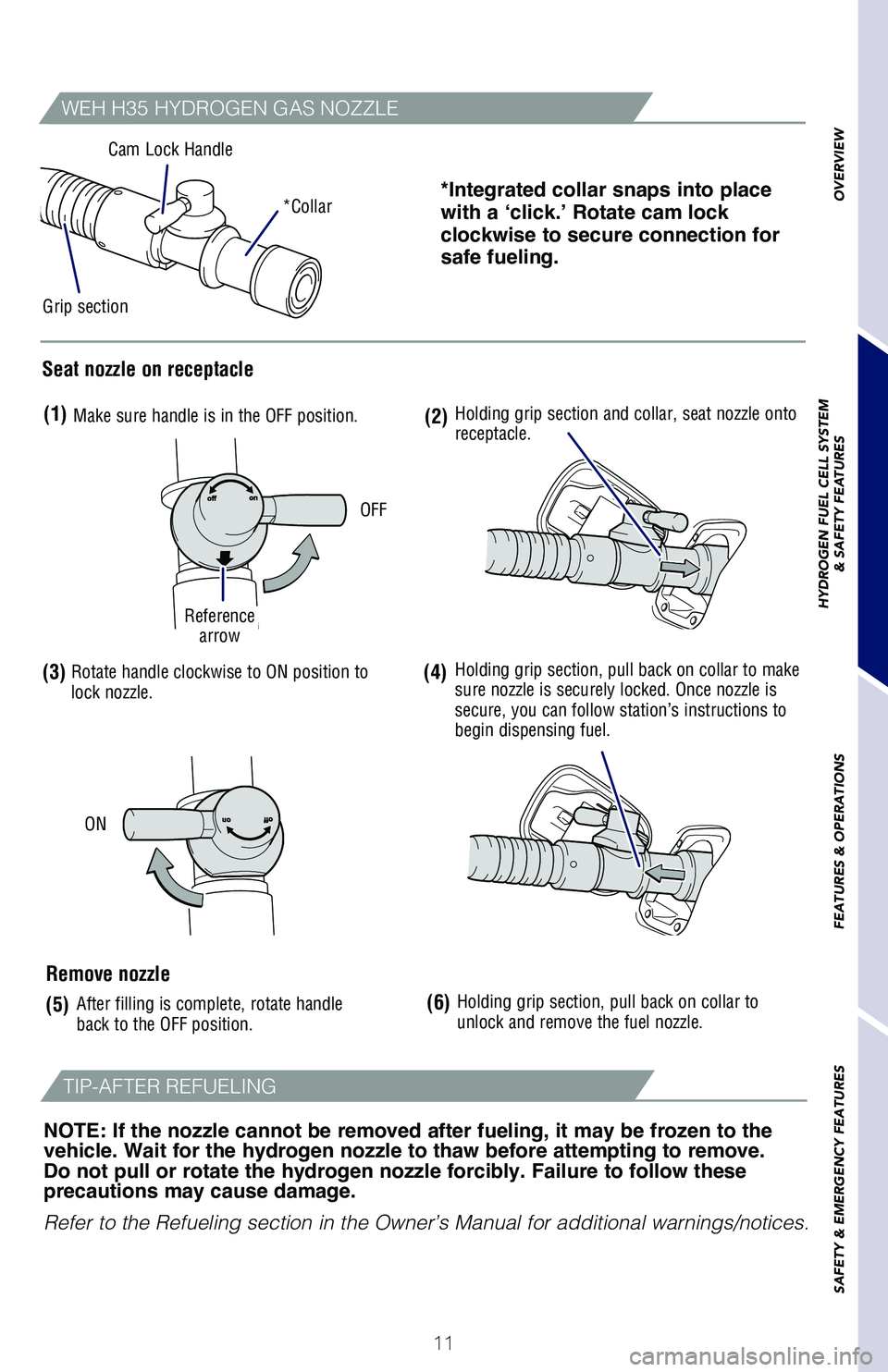

SAFETY & EMERGENCY FEATURES*Integrated collar snaps into place
with a ‘click.’ Rotate cam lock
clockwise to secure connection for
safe fueling.*Collar
OFF
ON
Cam Lock Handle
Seat nozzle on receptacle
Grip section
Remove nozzle
Reference
arrow Holding grip section and collar, seat nozzle onto
receptacle.
Holding grip section, pull back on collar to make
sure nozzle is securely locked. Once nozzle is
secure, you can follow station’s instructions to
begin dispensing fuel.
Make sure handle is in the OFF position.
Rotate handle clockwise to ON position to
lock nozzle.
(1)
(3)
(2)
(4)
Holding grip section, pull back on collar to
unlock and remove the fuel nozzle.
NOTE: If the nozzle cannot be removed after fueling, it may be frozen to the
vehicle. Wait for the hydrogen nozzle to thaw before attempting to remove.
Do not pull or rotate the hydrogen nozzle forcibly. Failure to follow these
precautions may cause damage.
Refer to the Refueling section in the Owner’s Manual for additional w\
arnings/notices.
After filling is complete, rotate handle
back to the OFF position.(5)(6)
WEH H35 HYDROGEN GAS NOZZLE
TIP-AFTER REFUELING

12
Water is a natural by-product of the fuel cell process. The system is de\
signed to
automatically purge water from the drain pipe at the rear of the vehicle\
while driving
and sometimes while it is shut off.
Water can be maually purged before parking in certain situations by pres\
sing the
“H
20” switch with the vehicle in “READY” mode. The system will reg\
ulate water
levels automatically. Drivers should typically let the vehicle handle th\
is as opposed
to using this switch.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Water release (H20) switch
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES

13
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
FEATURES & OPERATIONS

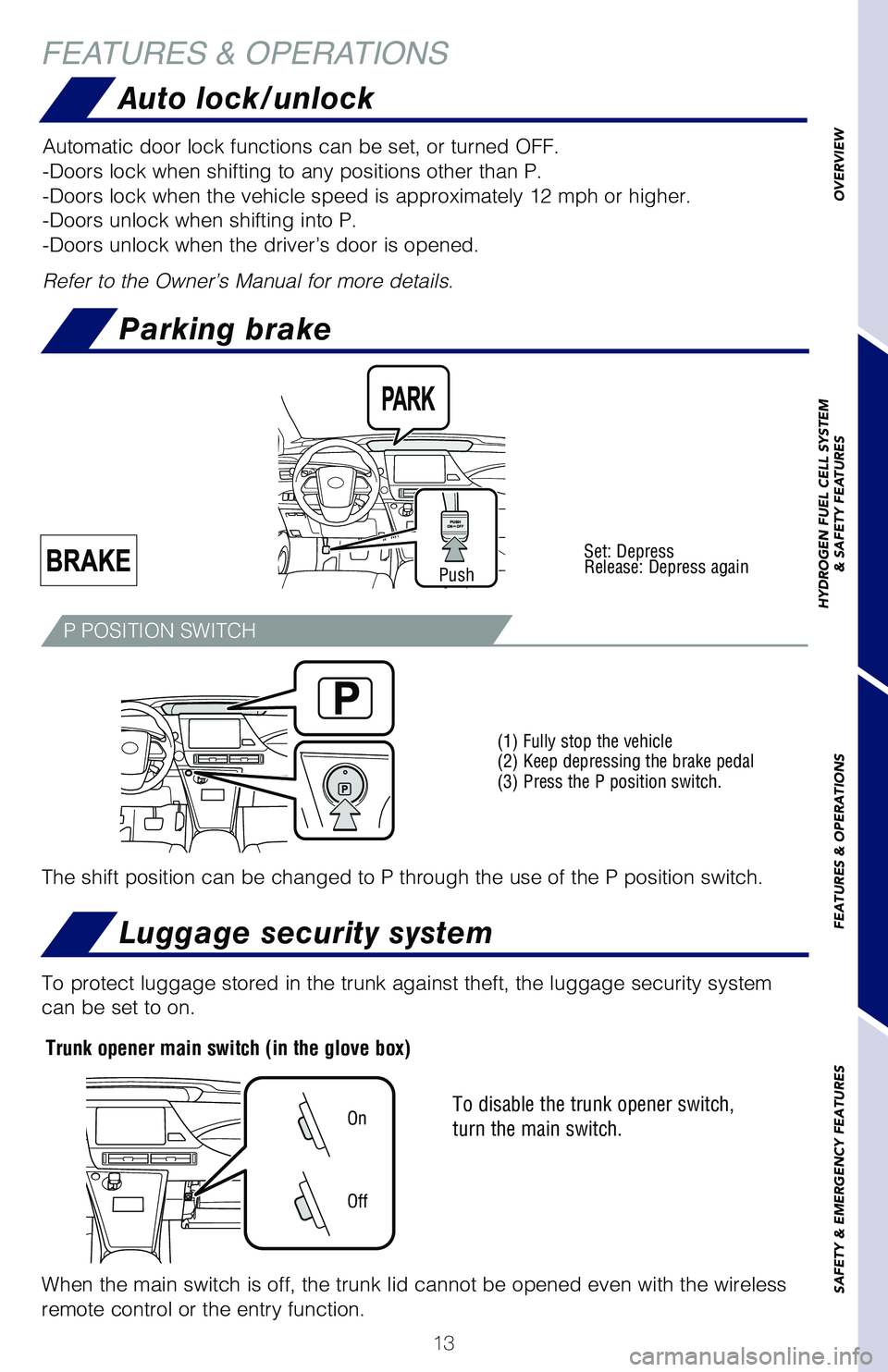

Luggage security system
Auto lock/unlock
To disable the trunk opener switch,
turn the main switch.
Automatic door lock functions can be set, or turned OFF.
-Doors lock when shifting to any positions other than P.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into P.
-Doors unlock when the driver’s door is opened.
Refer to the Owner’s Manual for more details.
Parking brake
P POSITION SWITCH
The shift position can be changed to P through the use of the P position\
switch.
To protect luggage stored in the trunk against theft, the luggage securi\
ty system
can be set to on.
When the main switch is off, the trunk lid cannot be opened even with th\
e wireless
remote control or the entry function.
Set: Depress
Release: Depress again
Push
(1) Fully stop the vehicle
(2) Keep depressing the brake pedal
(3) Press the P position switch.
On
Off
Trunk opener main switch (in the glove box)

14
FEATURES & OPERATIONSAutomatic transmission
* The engine brake is the equivalent of downshifting. Shift to “Br”\
when strong
regenerative braking is desired (i.e. downhill driving, coasting to a s\
top, etc.).
Park
Reverse
Neutral
Drive
Engine brake*
Use when a higher level of response is desired, such as when driving in \
mountainous regions or overtaking.
Push
Push
ECO Mode helps achieve low fuel consumption during trips that involve fr\
equent
accelerating and braking.
ECO MODE
POWER MODE

15
Push lever to move steering wheel:
- up, down to adjust angle,
- left, right to adjust length (toward driver and away from driver.)
NOTE: Do not attempt to adjust while the vehicle is in motion.
Length
Angle
Tilt & telescopic steering wheel
Door locks
Unlock
Lock
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Suitable for driving that requires strong regenerative braking, such as \
down-hill
driving, etc. To select Br mode, shift the shift lever down.
Pull
BR (ENGINE BRAKE) MODE

16

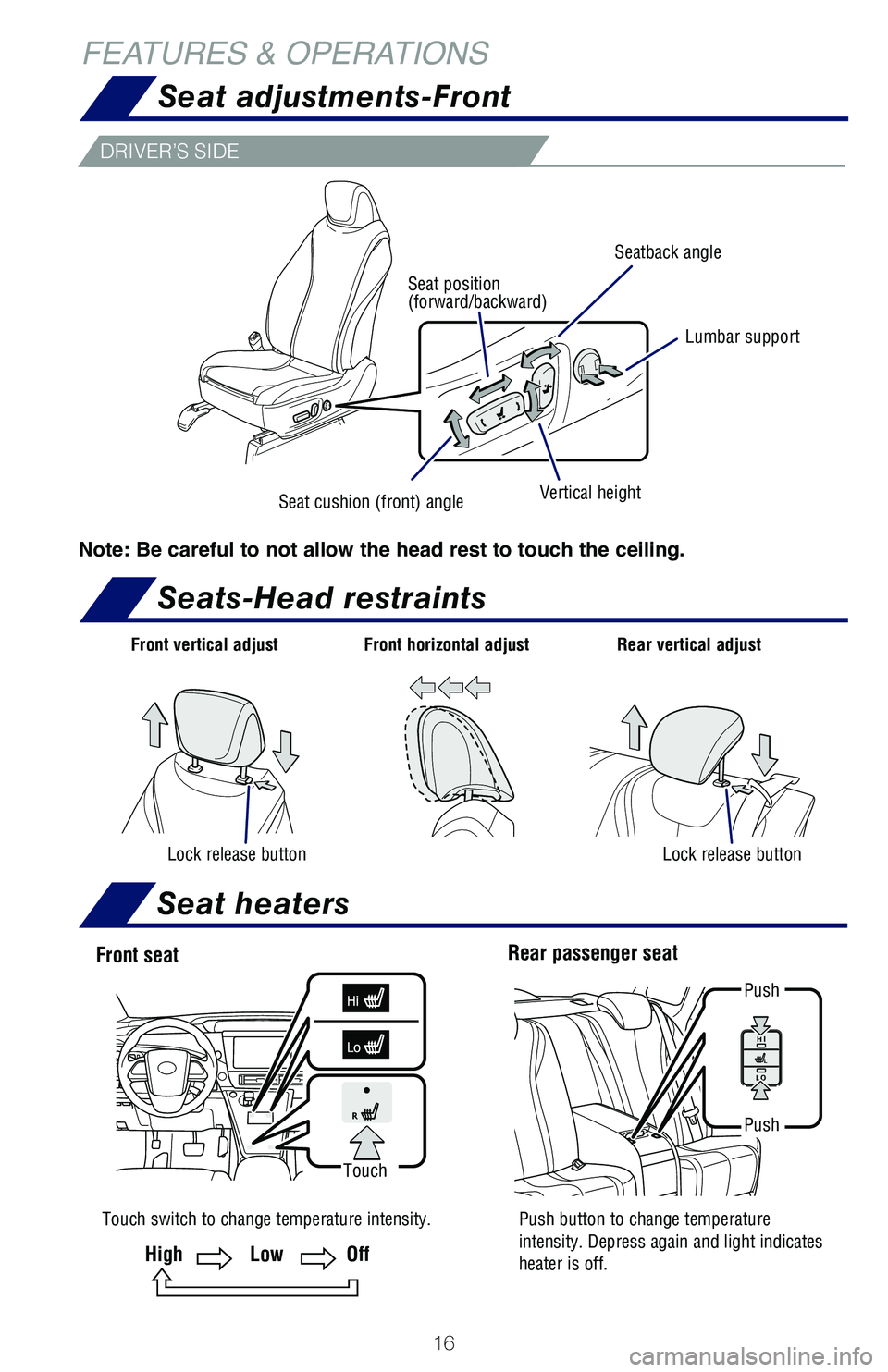

FEATURES & OPERATIONSSeat adjustments-Front
Seats-Head restraints
DRIVER’S SIDE
Note: Be careful to not allow the head rest to touch the ceiling.
Seatback angle
Lumbar support
Vertical heightSeat cushion (front) angle
Seat position
(forward/backward)
Front vertical adjust Front horizontal adjust
Lock release button
Rear vertical adjust
Lock release button
Rear passenger seat
Touch switch to change temperature intensity. Push button to change temperature intensity. Depress again and light indicates
heater is off.
Push
Push
Front seat
Touch
HighLowOff
Seat heaters

17
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Lane Departure Alert (LDA)
While driving on a road that has visible lane markers, this system is de\
signed to
recognize lane markers using a camera sensor and alerts the driver when \
the
vehicle deviates from its lane.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Press the LDA switch (in steering wheel) to turn the LDA system ON, th\
e indicator
will illuminate. Press again to turn OFF.
When the inside of both lane lines turn white:
- Indicates that both right and left lane markers are recognized.
When the inside of either lane line turns white:
- Indicates that the lane marker on the white-marked side is recognized.\
When the inside of both lane lines are black:
- Indicates that no lane markers are recognized or the LDA system is tem\
porarily
canceled.
Camera sensor
Press to ON Multi-Information Display
TURNING THE LDA SYSTEM ON
INDICATION ON THE MULTI-INFORMATION DISPLAY (MID)

18
FEATURES & OPERATIONSPre-Collision System (PCS)
When a high possibility of a frontal collision is detected by the radar \
sensor, a
buzzer sounds and a message urging the driver to take evasive action app\
ears on
the multi-information display. If the driver then applies brakes, the s\
ystem applies
greater brake force in relation to how strongly the brake pedal is depre\
ssed. If
the system determines that a collision is unavoidable, the brakes are au\
tomatically
applied to reduce the collision speed. The system is enabled each time t\
he power
switch is turned to ON mode.
Refer to the Owner‘s Manual for more details on this system before at\
tempting to
use it.
Each time the Pre-Collision System switch is pressed, the response to th\
e distance
changes as follows:
Press the PCS switch for 3 seconds or more.
Far
Near
Middle
(default setting)
CHANGING THE PRE-COLLISION WARNING TIMING
DISABLING THE PRE-COLLISION SYSTEM
