TOYOTA MIRAI 2019 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2019, Model line: MIRAI, Model: TOYOTA MIRAI 2019Pages: 56, PDF Size: 3.06 MB
Page 1 of 56
2 0 1 9 www.toyota.com/owners
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
Printed in U.S.A. 10/18
18 -MKG -12352
QUICK REFERENCE GUIDE
MIRAI
Page 2 of 56

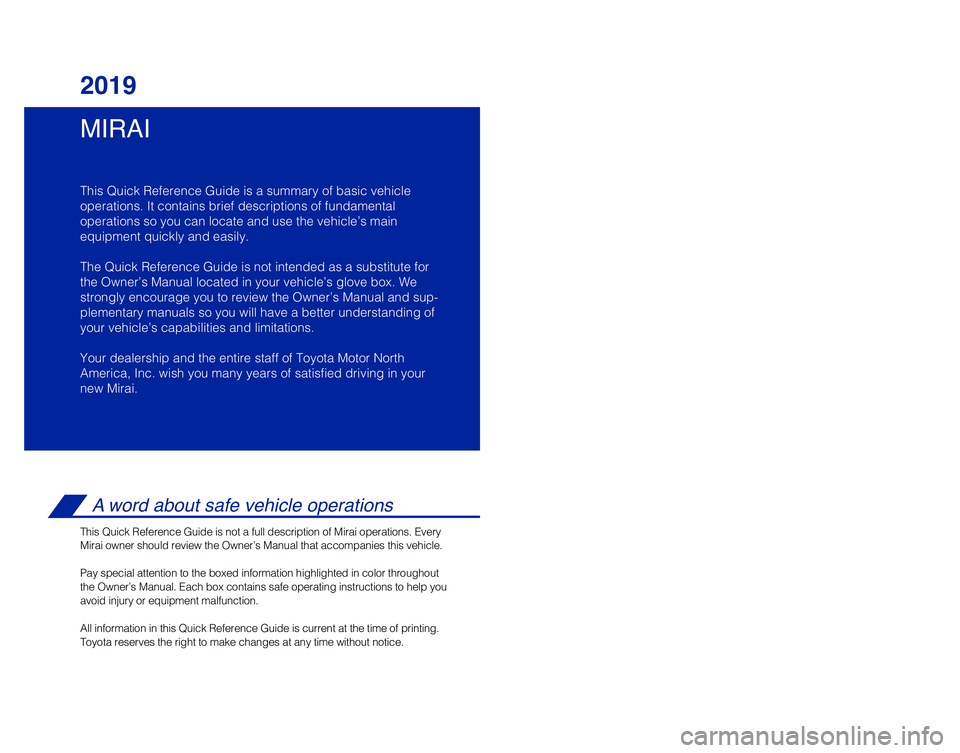

MIRAI 2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
" N F S J D B
* O D X J T I Z P V N B O Z Z F B S T P G T B U J T m F E E S J W J O H J O Z P V S
new Mirai.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Mirai operations\
. Every
Mirai owner should review the Owner’s Manual that accompanies this ve\
hicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
50037_18-MKG-12352_QRG_Cover_MIRAI_1_tg_R1.indd 210/22/18 1:21 PM
Page 3 of 56
1
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Audio 22
Auto lock/unlock1,2 13
Automatic air conditioning system 20
Automatic transmission 14-15
Blind Spot Monitor with Rear
$ S P T T 5 S B G m D " M F S U # 4 . X 3 $ 5 "
Clock 19
Door locks 15
Garage door opener (Homelink
®)3 27
Intuitive parking assist 26
Lights
1 & turn signals 18
Luggage security system 19
. V M U J * O G P S N B U J P O % J T Q M B Z . * %
Parking brake 13
Parking Support Brake function
G P S T U B U J D P C K F D U
Power outlet-12V DC 21
Qi wireless charger 23
4 F B U B E K V T U N F O U T ' S P O U
Seat heaters 21
Seats-Head restraints 16
Steering wheel switches
U F M F Q I P O F D P O U S P M T # M V F U P P U I
®
24
INDEX
' V F M E P P S S F M F B T F C V U U P O B O E D B Q
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
* O T U S V N F O U Q B O F M M J H I U D P O U S P M
Keyless entry
1,2 6-7
Smart Key System1,2 7
) Z E S P H F O ' V F M $ F M M 4 Z T U F N
8 B U F S S F M F B T F )
2 0
T X J U D I
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Tilt & telescopic steering wheel 15
USB charge-ports 21
6 4 # N F E J B " 6 9 Q P S U
7 F I J D M F 4 U B C J M J U Z $ P O U S P M 7 4 $
5 3 " $ 0 ' ' T X J U D I
Windows-Power 17
Windshield wipers & washer 17
Emergency tire puncture repair kit 44
' M P P S N B U J O T U B M M B U J P O
Rear door child safety locks 43
Safety Connect
® 43
Seat belts 45
Seat belts-Shoulder belt anchor 45
Star Safety System
™ 46-47
Tire Pressure Monitoring
X B S O J O H
4 Z T U F N 5 1 . 4
TOYOTA SAFETY SENSE™ (TSS)
" V U P N B U J D ) J H I # F B N T " ) #
Dynamic Radar Cruise
$ P O U S P M % 3 $ $
Lane Departure Alert with
4 U F F S J O H " T T J T U - % " X 4 "
34-37
Pre-Collision System with Pedestrian
% F U F D U J P O 1 $ 4 X 1 %
31-33
3 P B E 4 J H O " T T J T U 3 4 "
Quick overview-
Toyota Safety Sense
™ 5 4 4
30
Sensors 31
BLUETOOTH® DEVICE
PAIRING SECTION
50037_MY19_Mirai_QRG_V3_ML_1011_Text_R1.indd 110/22/18 1:27 PM
Page 4 of 56
2

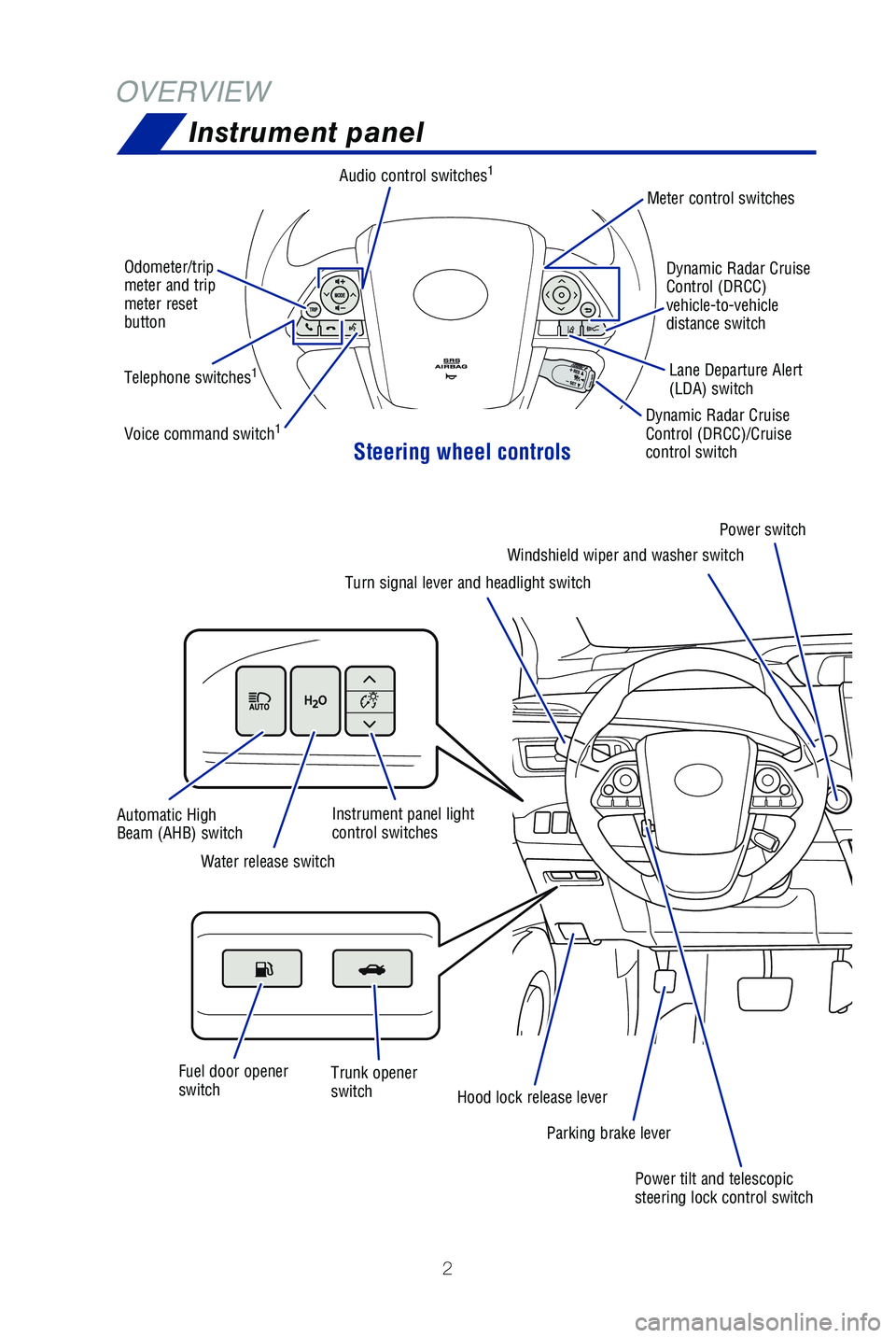

OVERVIEWInstrument panel
Steering wheel controls
Odometer/trip
meter and trip
meter reset
button
Telephone switches
1
Voice command switch1
Audio control switches1
Dynamic Radar Cruise
Control (DRCC)/Cruise
control switch
Power switch
Parking brake lever
Hood lock release lever
Trunk opener
switch
Fuel door opener
switch Water release switch
Automatic High
Beam (AHB) switch
Power tilt and telescopic
steering lock control switch
Instrument panel light
control switches
Meter control switches
Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance switchLane Departure Alert
(LDA) switch
Turn signal lever and headlight switch Windshield wiper and washer switch
50037_MY19_Mirai_QRG_V3_ML_1011_Text_R1.indd 210/22/18 1:27 PM
Page 5 of 56
3
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

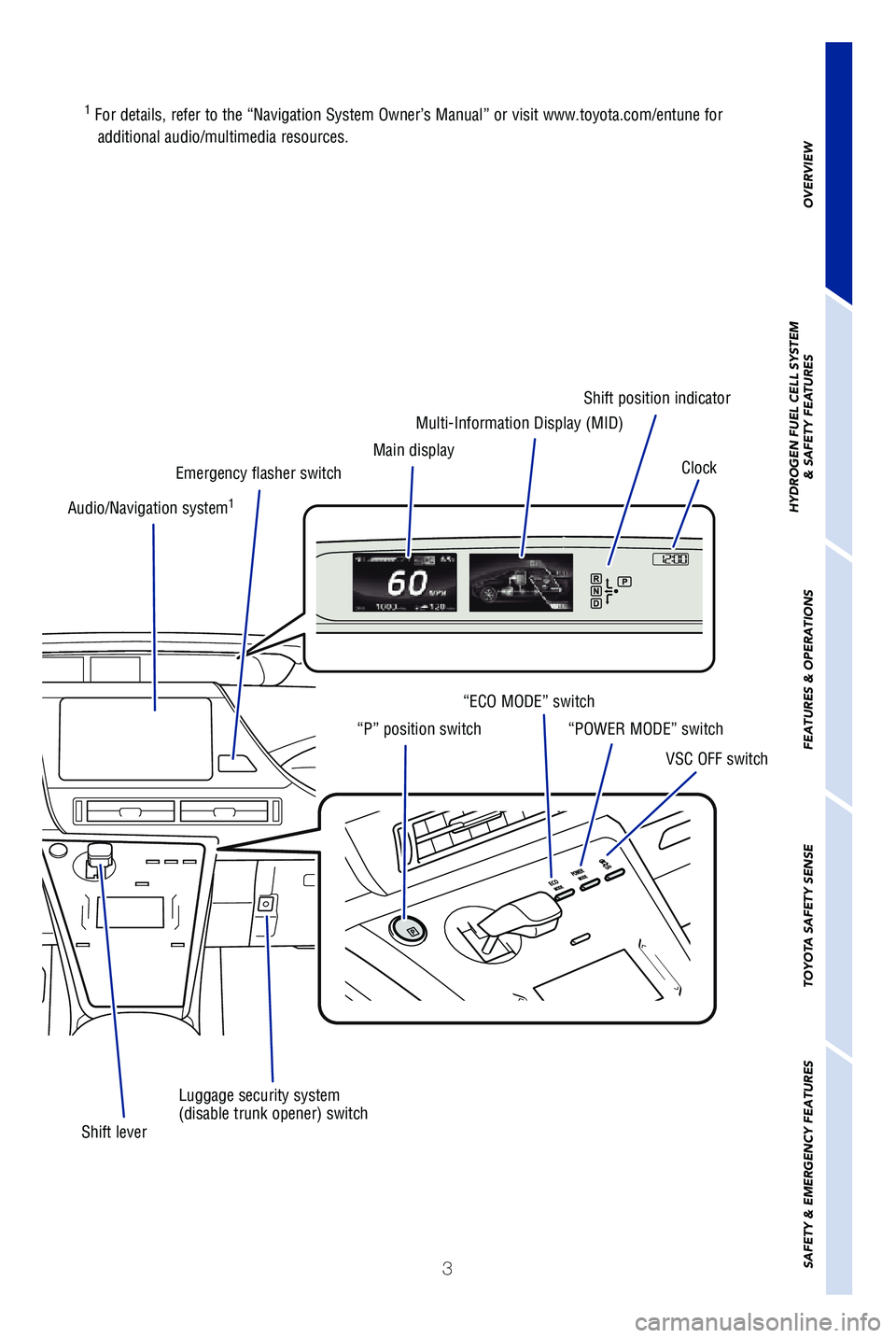

Main display Multi-Information Display (MID)
Shift position indicator
Clock
VSC OFF switch
“POWER MODE” switch
“ECO MODE” switch
“P” position switch
Shift lever Luggage security system
(disable trunk opener) switch
Audio/Navigation system
1
Emergency flasher switch
1
For details, refer to the “Navigation System Owner’s Manual” or\
visit www.toyota.com/entune for
additional audio/multimedia resources.
50037_MY19_Mirai_QRG_V3_ML_1011_Text_R1.indd 310/22/18 1:27 PM
Page 6 of 56
4

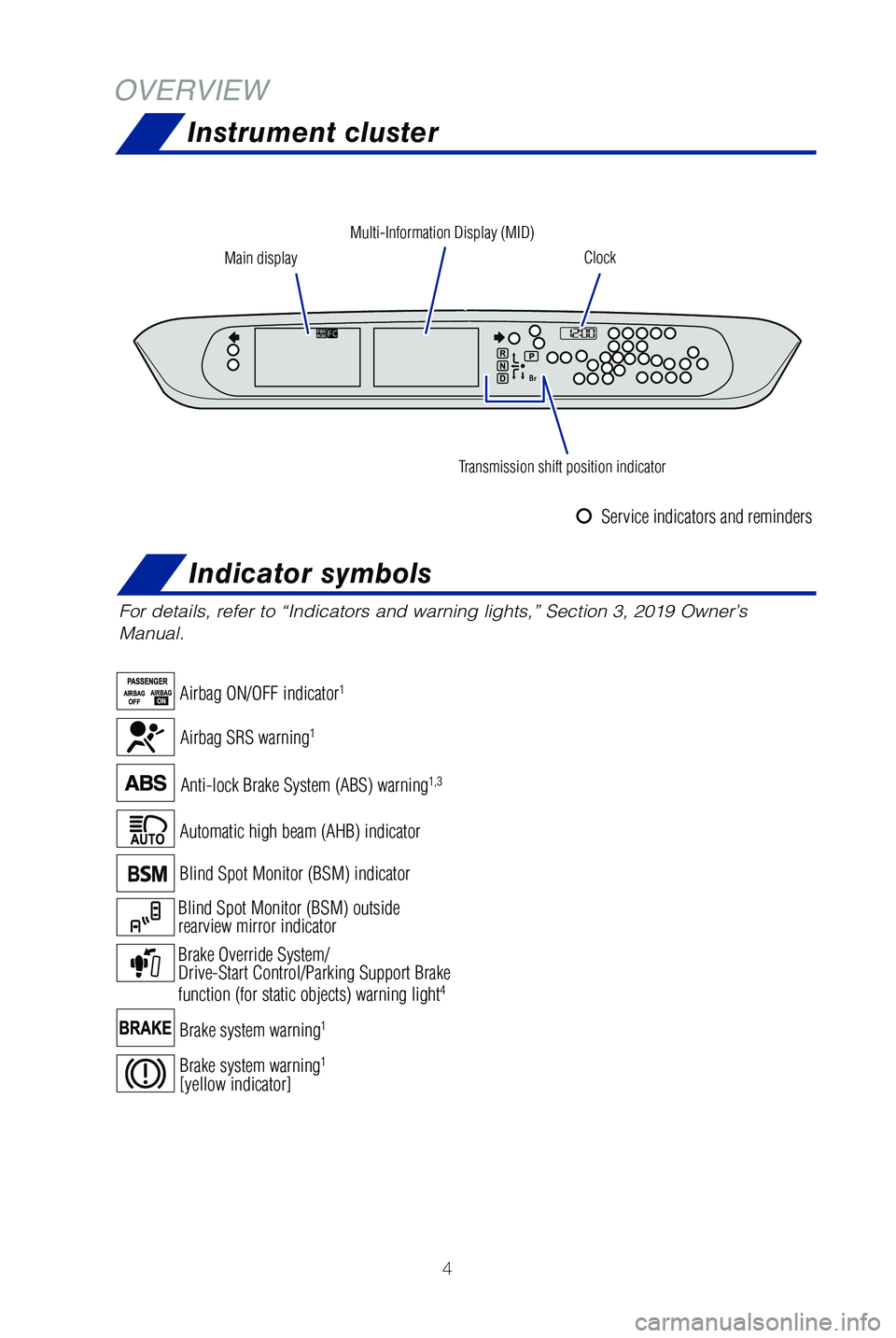

OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 3, 2019 Owner’s
Manual.
Main display Clock
Transmission shift position indicator
Multi-Information Display (MID)
Automatic high beam (AHB) indicator
Airbag SRS warning1
Airbag ON/OFF indicator1
Blind Spot Monitor (BSM) indicator
Blind Spot Monitor (BSM) outside
rearview mirror indicator
Anti-lock Brake System (ABS) warning
1,3
Brake system warning1
Brake Override System/
Drive-Start Control/Parking Support Brake
function (for static objects) warning light
4
Brake system warning1
[yellow indicator]
Indicator symbols
Service indicators and reminders
50037_MY19_Mirai_QRG_V3_ML_1011_Text_R1.indd 410/22/18 1:27 PM
Page 7 of 56
5

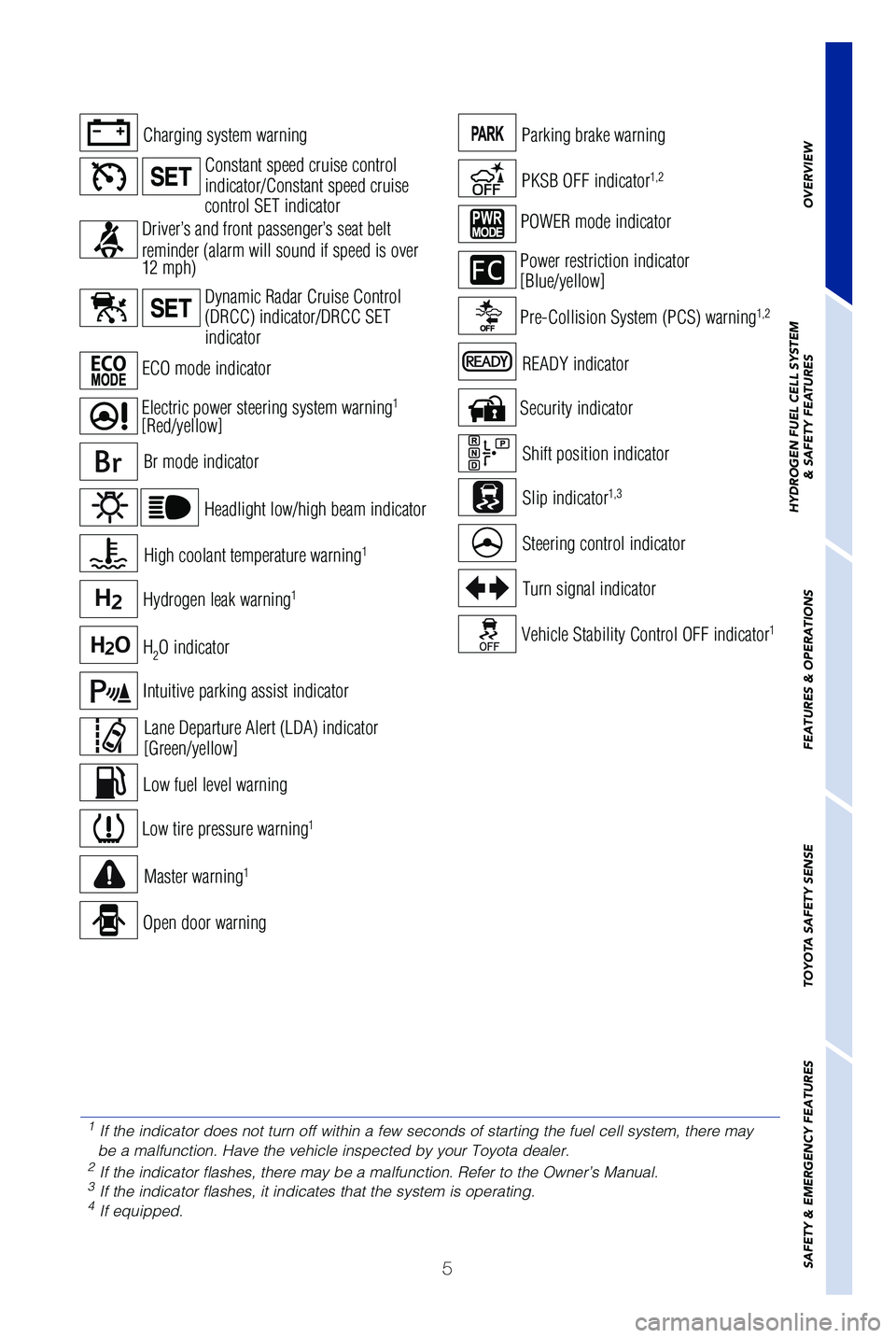

Hydrogen leak warning
1
High coolant temperature warning1
Slip indicator1,3
Steering control indicator
Vehicle Stability Control OFF indicator1
Low tire pressure warning1
Security indicator
Master warning1
Low fuel level warning
READY indicator
Headlight low/high beam indicator
Turn signal indicator
Shift position indicator
Open door warning
Driver’s and front passenger’s seat belt
reminder
(alarm will sound if speed is over
12 mph)
Charging system warning
H2O indicator
Br mode indicator
ECO mode indicator
POWER mode indicator
Pre-Collision System (PCS) warning1,2
Intuitive parking assist indicator
Constant speed cruise control
indicator/Constant speed cruise
control SET indicator
Dynamic Radar Cruise Control
(DRCC) indicator/DRCC SET
indicator
Electric power steering system warning1
[Red/yellow]
Lane Departure Alert (LDA) indicator
[Green/yellow]
Power restriction indicator
[Blue/yellow]
Parking brake warning
PKSB OFF indicator1,2
1 If the indicator does not turn off within a few seconds of starting the \
fuel cell system, there may
be a malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
50037_MY19_Mirai_QRG_V3_ML_1011_Text_R1.indd 510/22/18 1:27 PM
Page 8 of 56
6

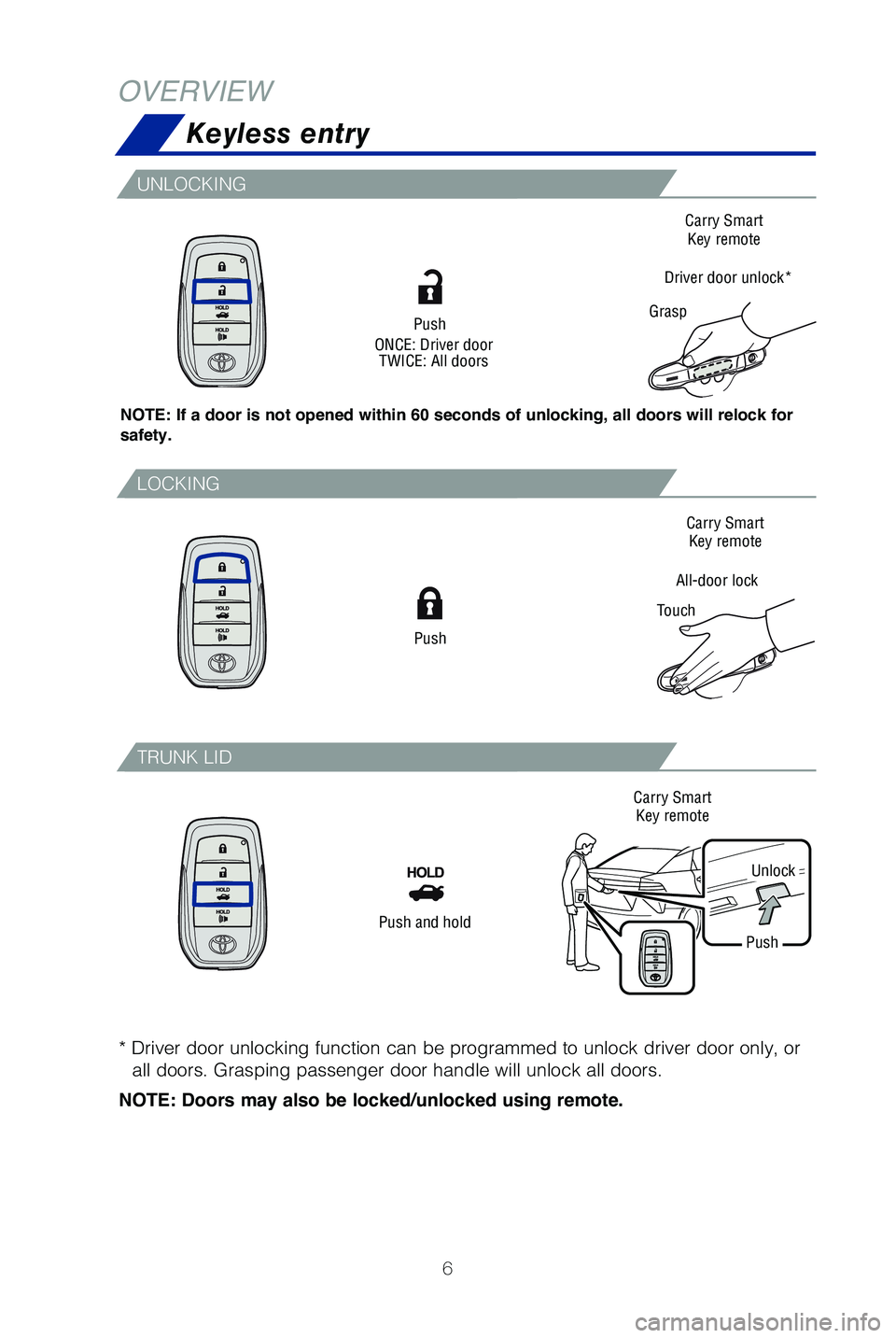

Keyless entry
OVERVIEW
Push
Push and hold
Push
ONCE: Driver door TWICE: All doors
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Carry Smart Key remote
Grasp
Driver door unlock*
TRUNK LID
Carry Smart Key remote
Unlock
Push
UNLOCKING
LOCKING
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Carry Smart Key remote
All-door lock
Touch
50037_MY19_Mirai_QRG_V3_ML_1011_Text_R1.indd 610/22/18 1:27 PM
Page 9 of 56
7

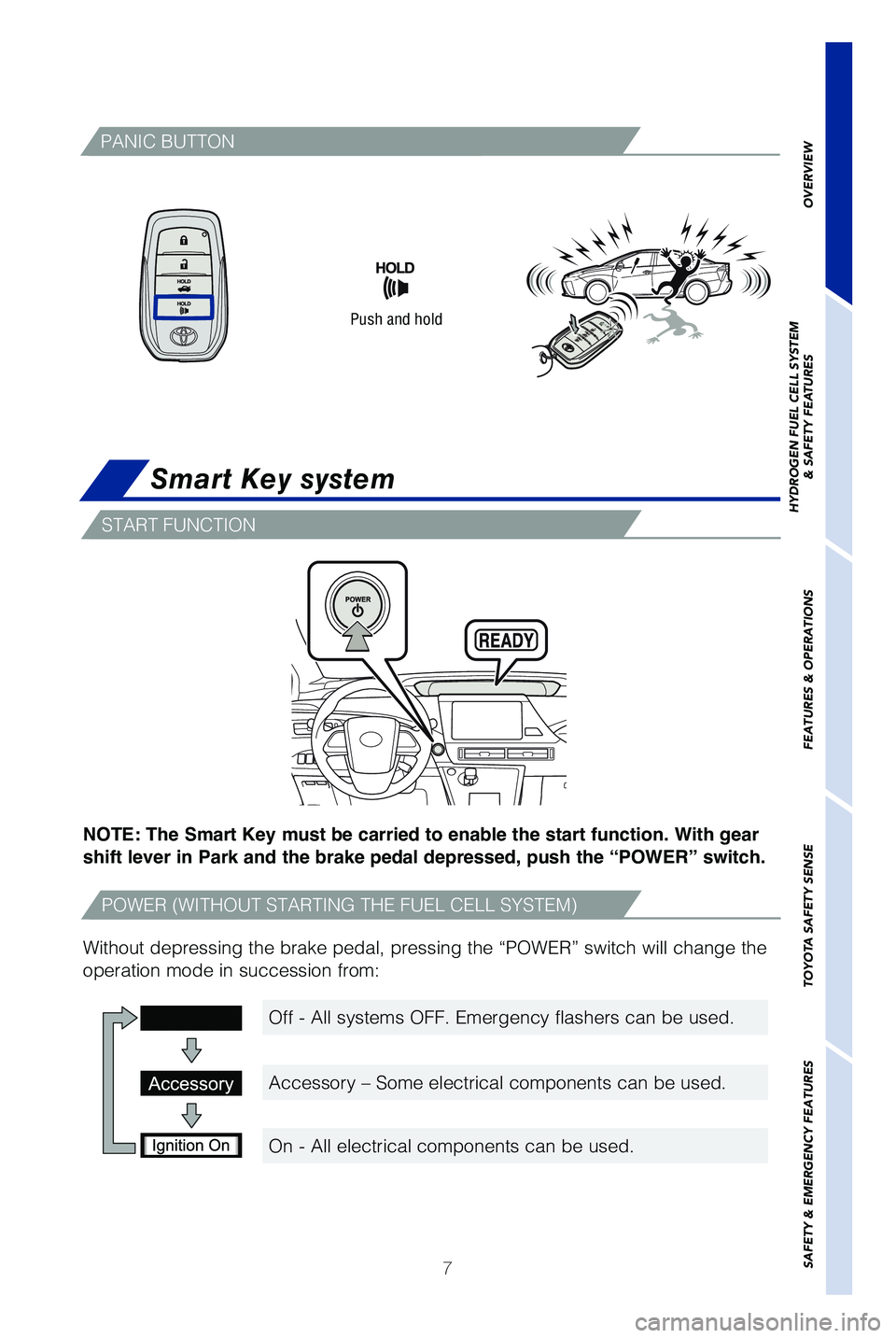

Smart Key system
Push and hold
Without depressing the brake pedal, pressing the “POWER” switch wi\
ll change the
operation mode in succession from:
PANIC BUTTON
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
4 5 " 3 5 ' 6 / $ 5 * 0 /
1 0 8 &
