TOYOTA MIRAI 2019 Owners Manual (in English)

4618-2. Steps to take in an emergency
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)
8
When trouble arises
Start the fuel cell system and turn the air conditioning system on
to check that the radiator coo ling fans operate and to check fo r
coolant leaks from t he radiator or hoses.
The fans operate when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fans are operating b y checking
the fan sound and air flow. If it is difficult to check these, turn the air con-
ditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the fuel cell system immed iately and contact your Toyota
dealer.
If the fans are operating:
Have the vehicle inspected at the neare st Toyota dealer.
WARNING
■When inspecting under th e hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the ho od until
the steam has subsided. The motor compartment may be very hot.
● After the fuel cell system has been turned off, check that the “READY”
indicator is off.
When the fuel cell system is operating, the cooling fans may suddenly
operate even if the fuel cell system stops. Do not touch or app roach rotat-
ing parts such as the fans, which may lead to fingers or clothing (espe-
cially a tie, a scarf or a muffler) getting caught, resulting i n serious injury.
● Do not loosen the coolant reservoir caps or radiator cap, while the fuel cell
system and radiator are hot.
High temperature steam or coolant could spray out.
6
7

4628-2. Steps to take in an emergency
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)
NOTICE
■When adding inverter coolant
Add coolant slowly after the fuel cell system has cooled down s ufficiently.
Adding inverter cool coolant to a hot fuel cell system too quic kly can cause
damage to the fuel cell system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sa nd or dust
etc.).
● Do not use any coolant additive with inverter coolant.
● For replacement of the fuel cell stack coolant, contact your Toyota dealer.
● Do not use water or any other coolant when refilling the fuel c ell stack
coolant. Also, do not use any additive agents for the coolant.

4638-2. Steps to take in an emergency
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)
8
When trouble arises

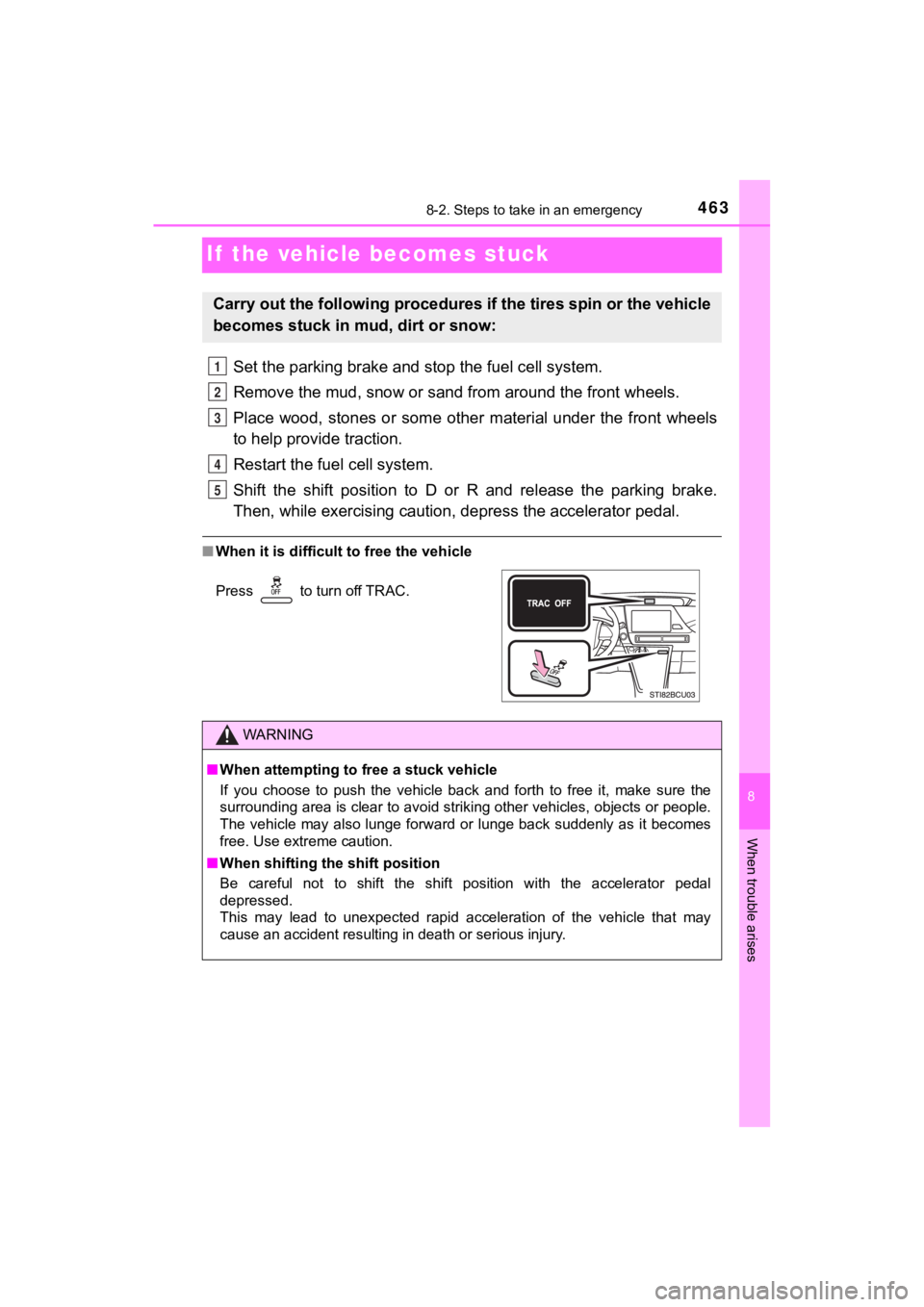

If the vehicle becomes stuck
Set the parking brake and stop the fuel cell system.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheel s
to help provide traction.
Restart the fuel cell system.
Shift the shift position to D or R and release the parking brak e.
Then, while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
2
3
4
5
Press to turn off TRAC.
WARNING
■When attempting to f ree a stuck vehicle
If you choose to push the vehicle back and forth to free it, ma ke sure the
surrounding area is clear to avoid striking other vehicles, obj ects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift position
Be careful not to shift the shift position with the accelerator pedal
depressed.
This may lead to unexpected rapid acceleration of the vehicle t hat may
cause an accident resulting in death or serious injury.

4648-2. Steps to take in an emergency
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)
NOTICE
■To avoid damaging the transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are pe rformed,
the vehicle may require towing to be freed.

465
9Vehicle specifications
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)9-1. Specifications
Maintenance data (fuel, fluid level, etc.) ....... 466
Tire information ................. 472
9-2. Customization Customizable features ...... 484
9-3. Items to initialize Items to initialize ............... 494

4669-1. Specifications
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)

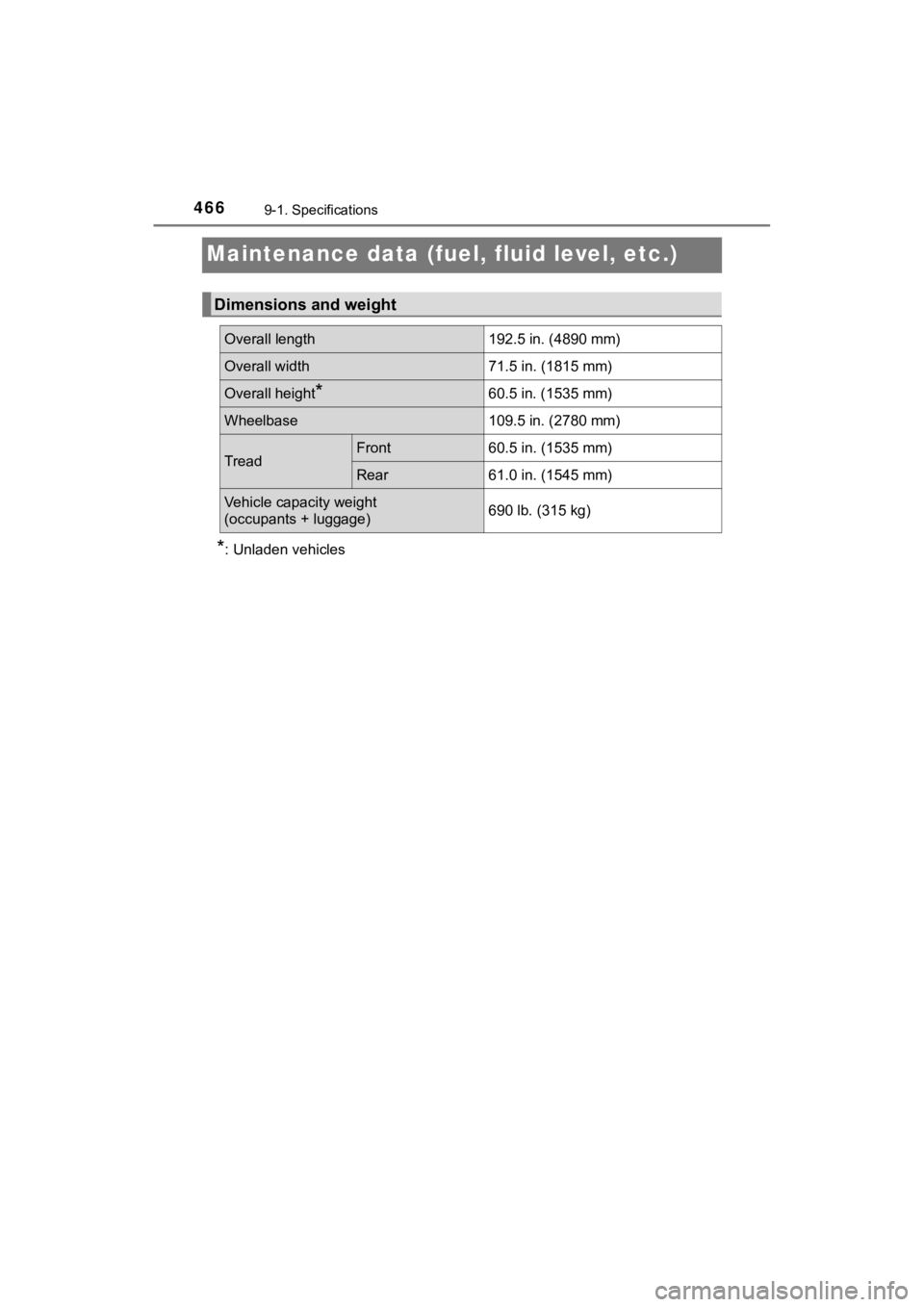

Maintenance data (fuel, fluid level, etc.)
*: Unladen vehicles
Dimensions and weight
Overall length192.5 in. (4890 mm)
Overall width 71.5 in. (1815 mm)
Overall height*60.5 in. (1535 mm)
Wheelbase109.5 in. (2780 mm)
TreadFront60.5 in. (1535 mm)
Rear61.0 in. (1545 mm)
Vehicle capacity weight
(occupants + luggage) 690 lb. (315 kg)

4679-1. Specifications
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)
9
Vehicle specifications

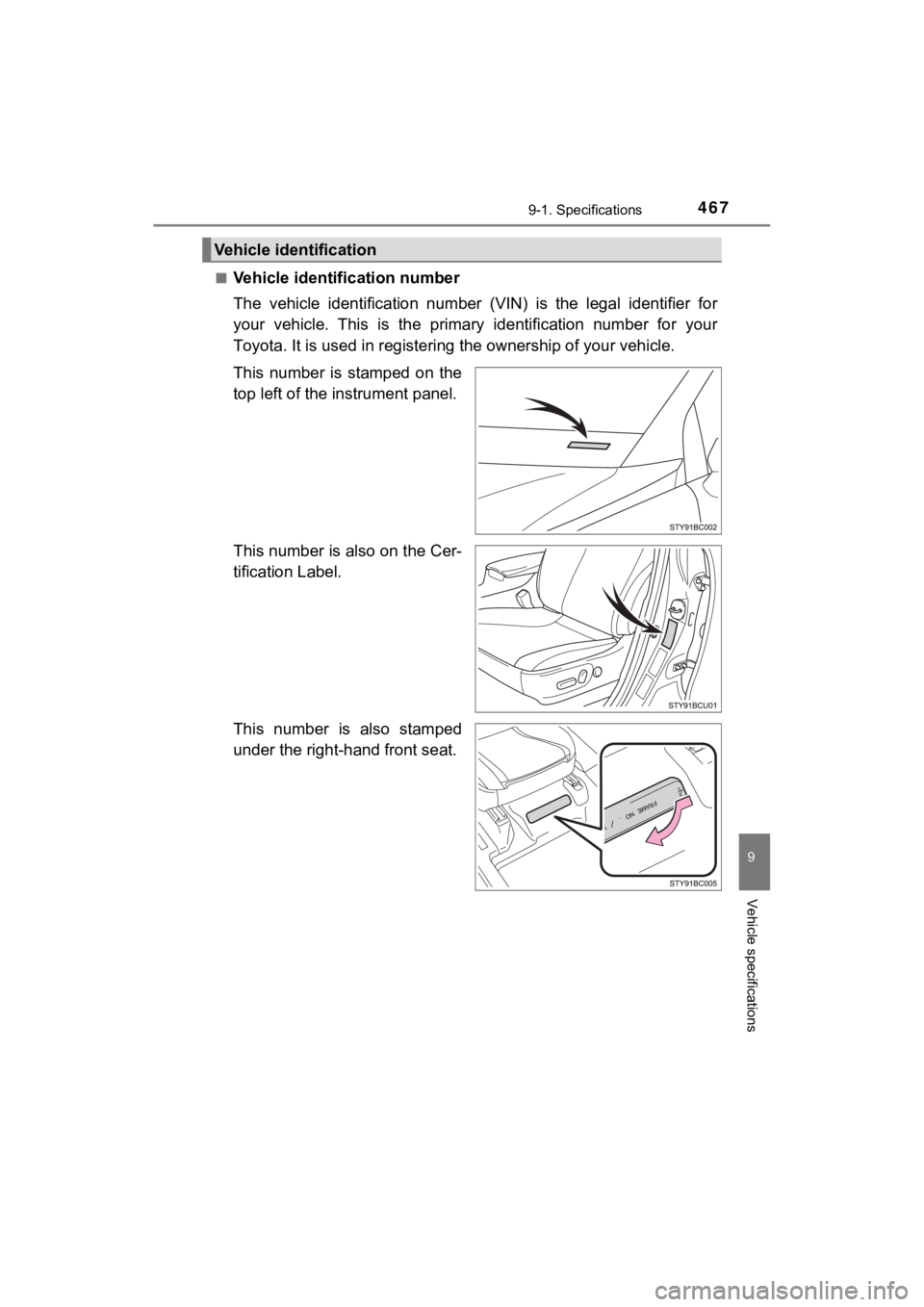

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

4689-1. Specifications
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)*: This is the maximum possible fill amount. The actual fuel amount achieved
at hydrogen stations may be lower due to station capacity or station set-
tings.
Fuel
Fuel type Compressed hydrogen gas
Nominal working
pressure10150 psi (70 MPa, 714 kgf/cm2, 700 bar)
Hydrogen tanks’ fuel
capacity
(Reference)32.3 gal. (122.4 L, 26.9 Imp.gal.)
(Approximately 11.0 lb. [5 kg]
*)
Electric motor (traction motor)
Type
Permanent magnet synchronous motor
Maximum output 113 kW
Maximum torque 247 ft•lbf (335 N•m, 34.2 kgf•m)
Traction battery
TypeNickel-metal hydride battery
Voltage7.2 V/module
Capacity 6.5 Ah (3HR)
Quantity 34 modules
Overall voltage 244.8 V

4699-1. Specifications
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)
9
Vehicle specifications
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.

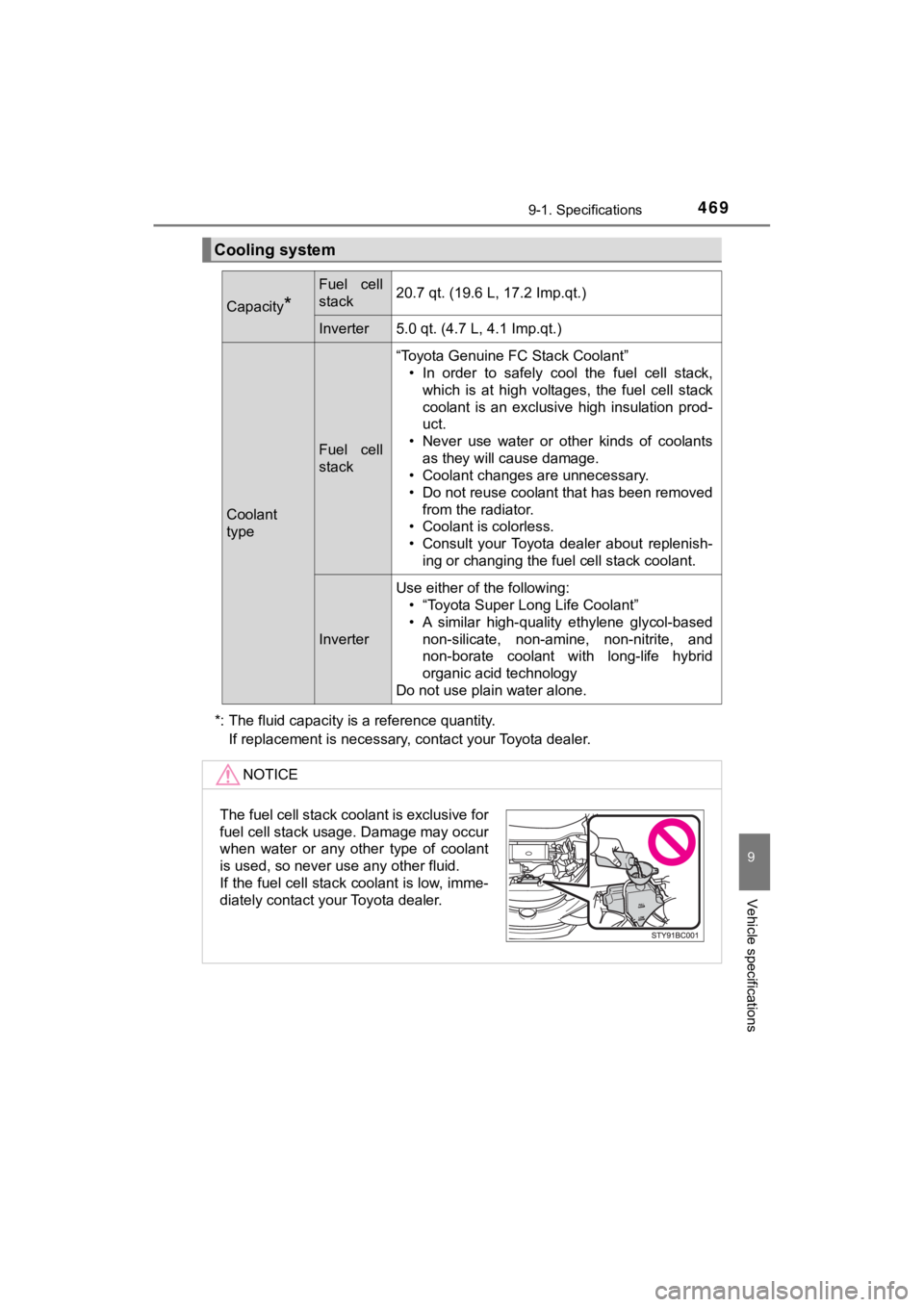

Cooling system
Capacity*
Fuel cell
stack 20.7 qt. (19.6 L, 17.2 Imp.qt.)
Inverter 5.0 qt. (4.7 L, 4.1 Imp.qt.)
Coolant
type
Fuel cell
stack“Toyota Genuine FC Stack Coolant”
• In order to safely cool the fuel cell stack,
which is at high voltages, the fuel cell stack
coolant is an exclusive high insulation prod-
uct.
• Never use water or other kinds of coolants as they will cause damage.
• Coolant changes are unnecessary.
• Do not reuse coolant that has been removed from the radiator.
• Coolant is colorless.
• Consult your Toyota dealer about replenish- ing or changing the fuel cell stack coolant.
Inverter Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
NOTICE
The fuel cell stack coolant is exclusive for
fuel cell stack usage. Damage may occur
when water or any other type of coolant
is used, so never use any other fluid.
If the fuel cell stack coolant is low, imme-
diately contact your Toyota dealer.

4709-1. Specifications
MIRAI_OM_USA_OM62054U(18MY)_O
M62048U(19MY)
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Toyota dealer.
*1: Minimum pedal clearance when depressed with a force of 44.1 lb f (196 N,
20.0 kgf) while the fuel cell system is operating
*2: Parking brake pedal travel when depressed with a force of 67.5 lbf (300 N,
31.0 kgf).

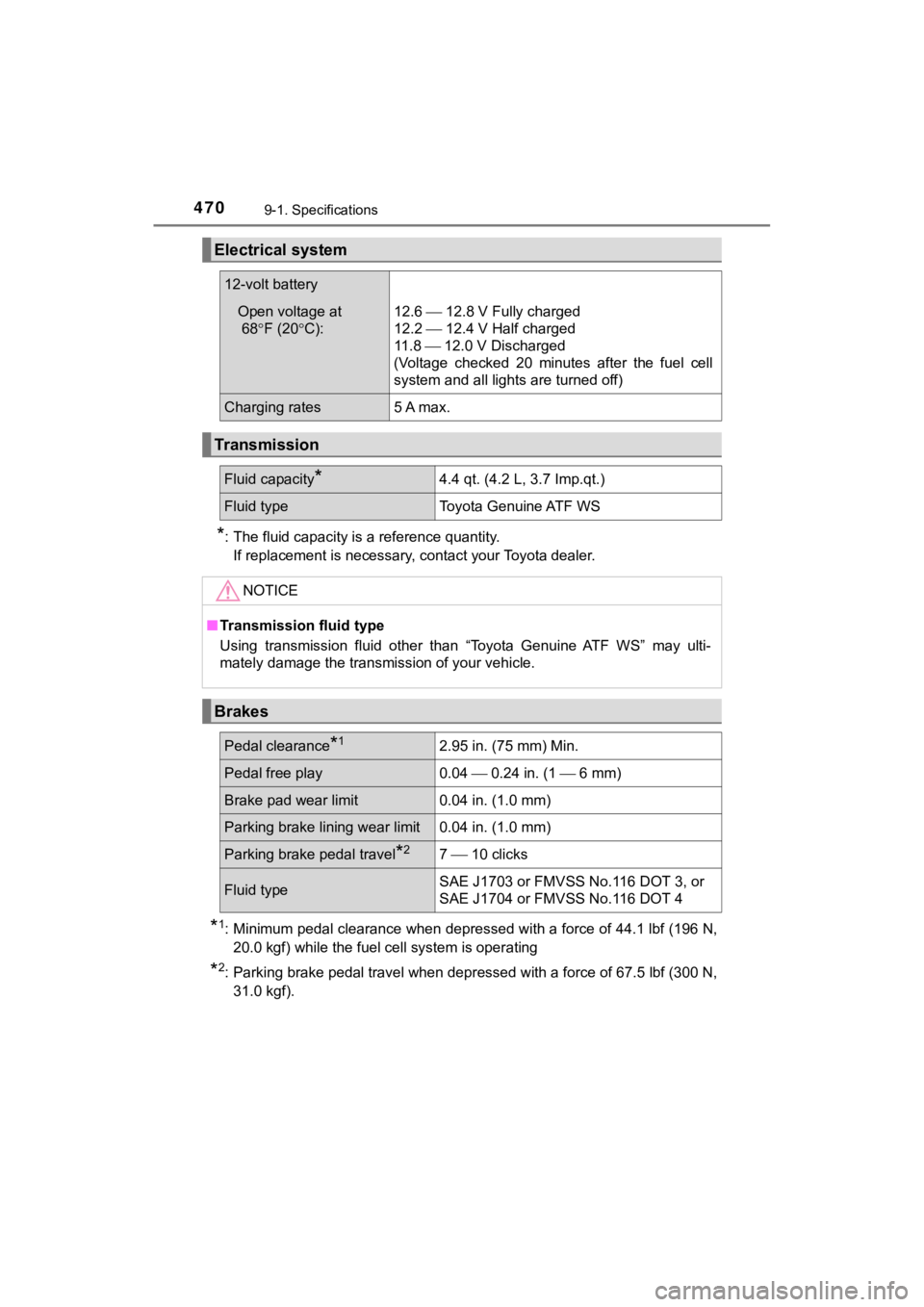

Electrical system
12-volt battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage checked 20 minutes after the fuel cell
system and all lights are turned off)
Charging rates5 A max.
Transmission
Fluid capacity*4.4 qt. (4.2 L, 3.7 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ulti-
mately damage the transmission of your vehicle.
Brakes
Pedal clearance*12.95 in. (75 mm) Min.
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*27  10 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3, or
SAE J1704 or FMVSS No.116 DOT 4
