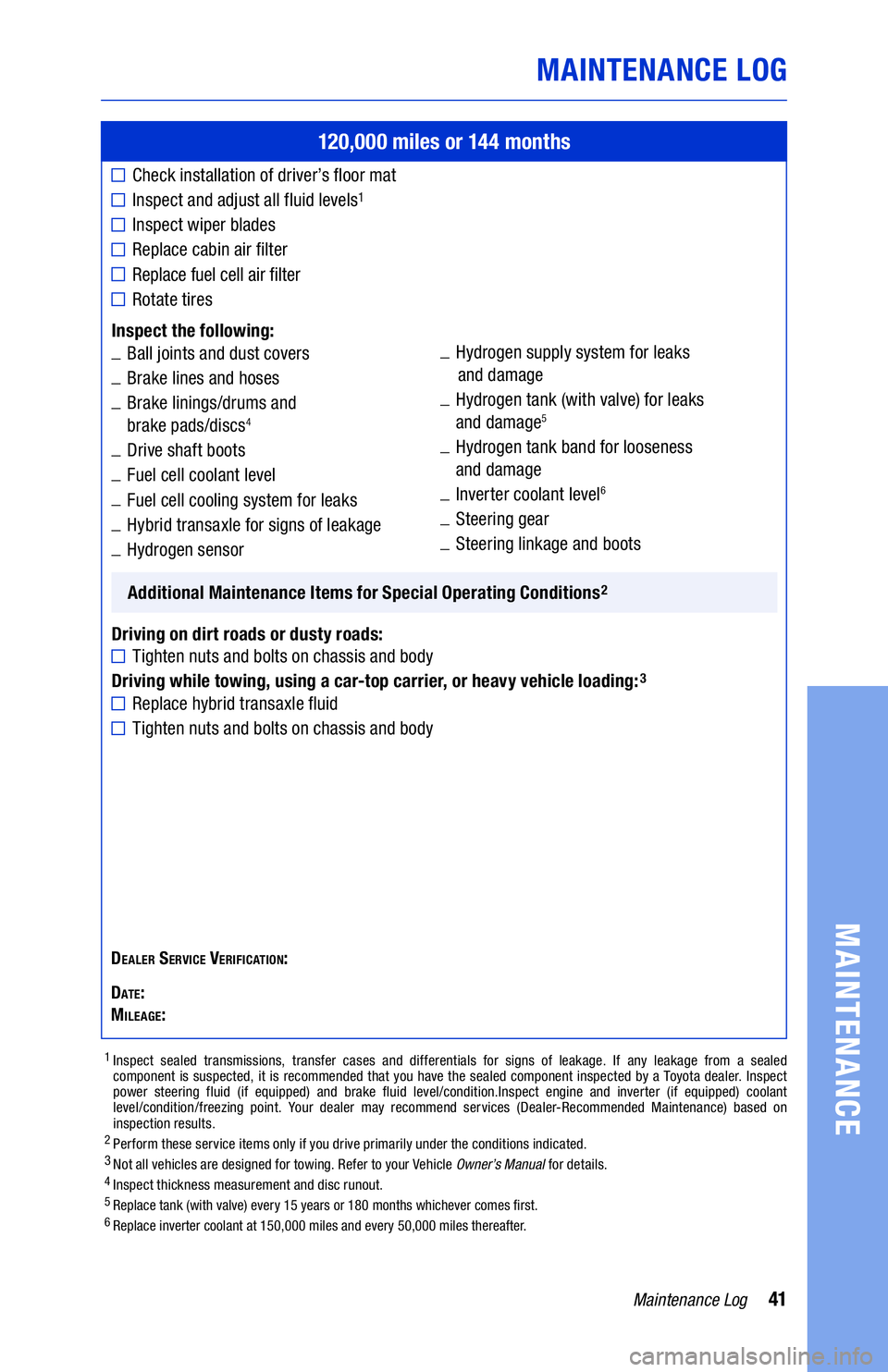

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
120,000 miles or 144 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace fuel cell air filter
Rotate tires
Inspect the following: _Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
4
_Drive shaft boots
_ Fuel cell coolant level
_ Fuel cell cooling system for leaks
_ Hybrid transaxle for signs of leakage
_ Hydrogen sensor
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:3
Replace hybrid transaxle fluid
Tighten nuts and bolts on chassis and body
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition.Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Perform these service items only if you drive primarily under the conditions indicated.3 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.4 Inspect thickness measurement and disc runout.5 Replace tank (with valve) every 15 years or 180 months whichever comes first.6 Replace inverter coolant at 150,000 miles and every 50,000 miles thereafter.
_
Hydrogen supply system for leaks
and damag
e
_ Hydrogen tank (with valve) for leaks
and damage5
_ Hydrogen tank band for looseness
and damage
_ Inverter coolant level
6
_Steering gear
_ Steering linkage and boots

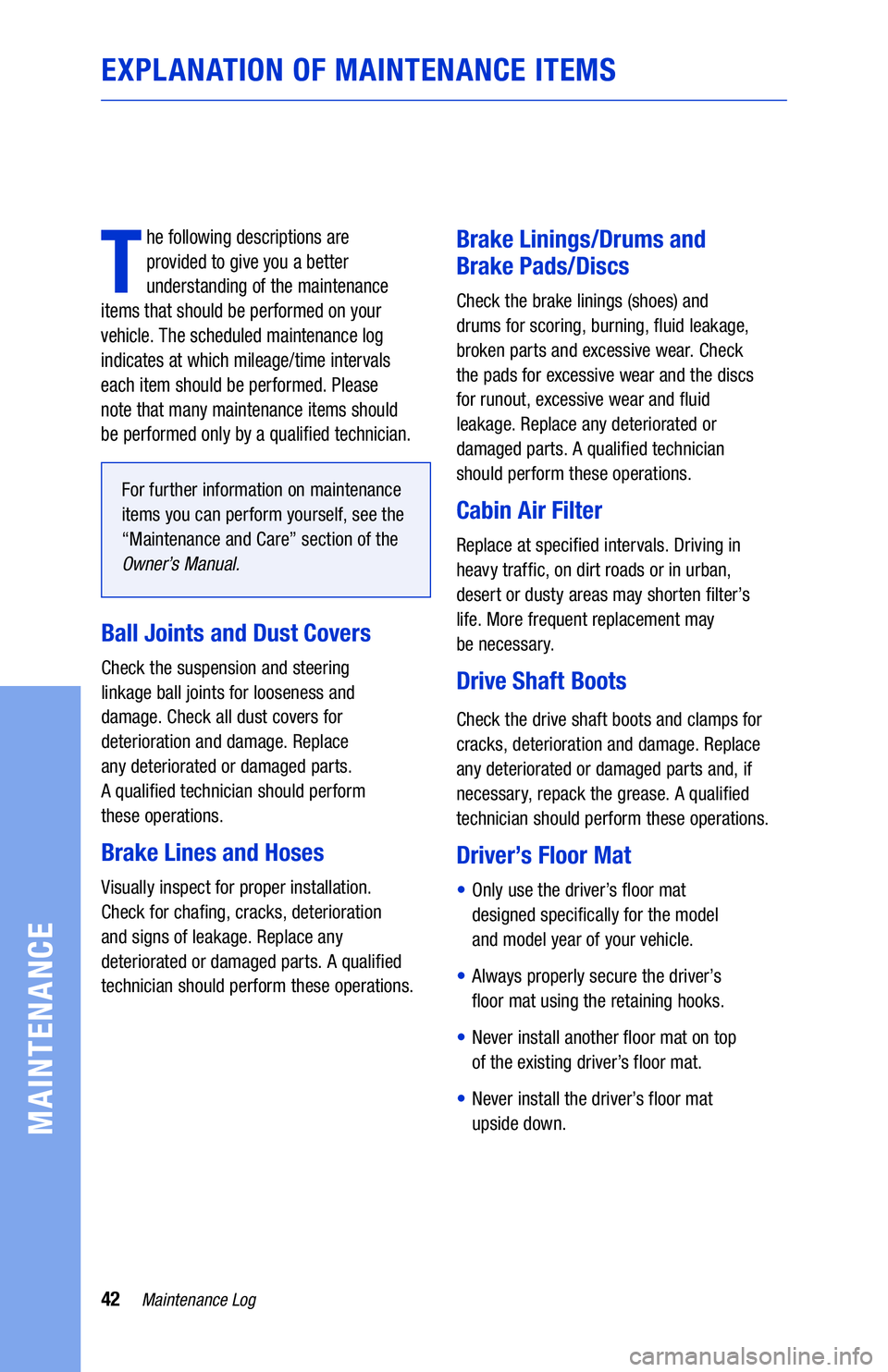

42Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualied technician.
For further information on maintenance
items you can perform yourself, see the
“Maintenance and Care” section of the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage. Check all dust covers for
deterioration and damage. Replace
any deteriorated or damaged parts.
A qualied technician should perform
these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chang, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualied
technician should perform these operations.
Brake Linings/Drums and
Brake Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, uid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and uid
leakage. Replace any deteriorated or
damaged parts. A qualied technician
should perform these operations.
Cabin Air Filter
Replace at specied intervals. Driving in
heavy trafc, on dirt roads or in urban,
desert or dusty areas may shorten lter’s
life. More frequent replacement may
be necessary.
Drive Shaft Boots
Check the drive shaft boots and clamps for
cracks, deterioration and damage. Replace
any deteriorated or damaged parts and, if
necessary, repack the grease. A qualied
technician should perform these operations.
Driver’s Floor Mat
• Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
• Always properly secure the driver’s
floor mat using the retaining hooks.
• Never install another floor mat on top
of the existing driver’s floor mat.
• Never install the driver’s floor mat
upside down.

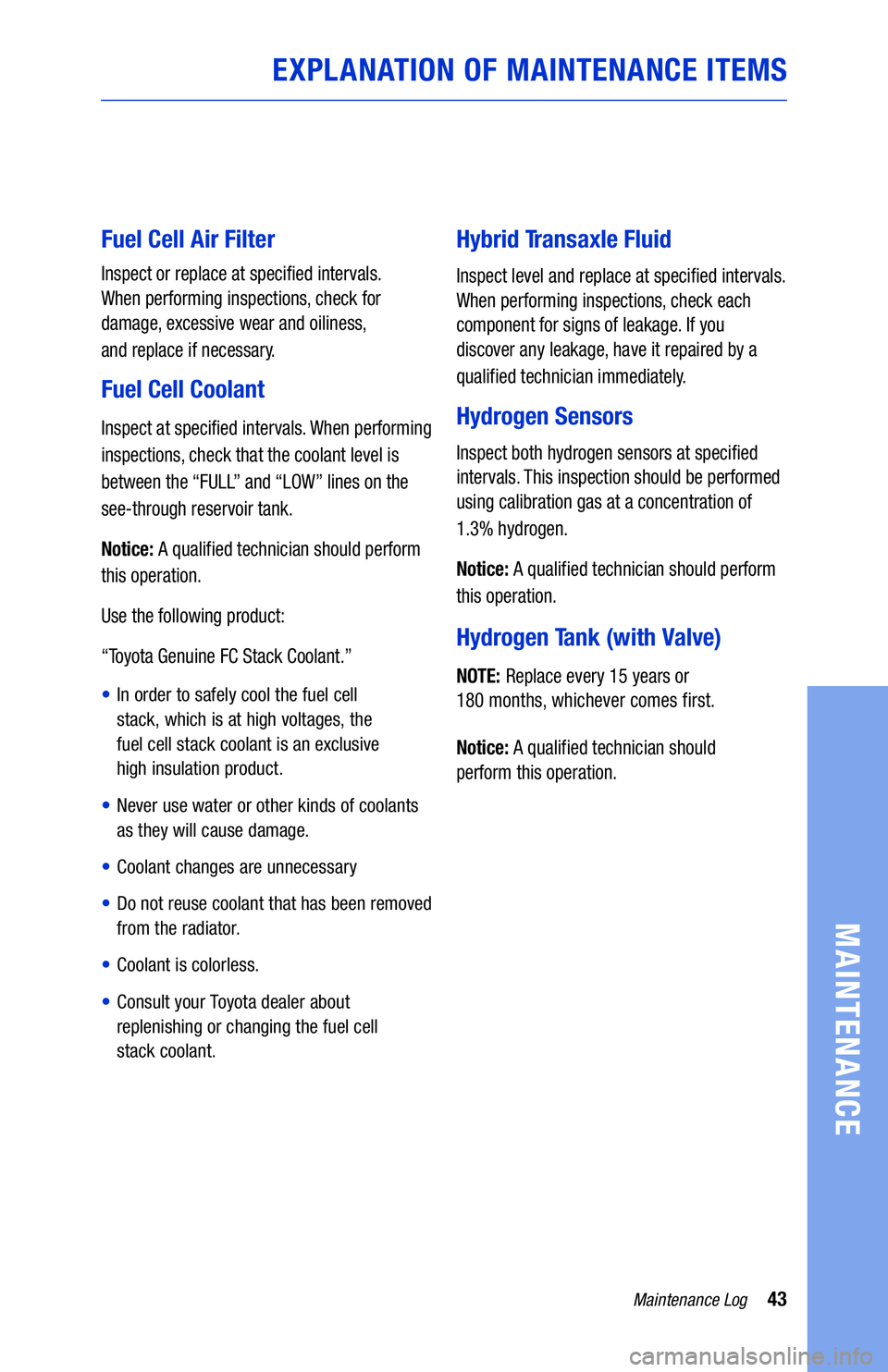

43Maintenance Log
MAINTENANCE
Fuel Cell Air Filter
Inspect or replace at specified intervals.
When performing inspections, check for
damage, excessive wear and oiliness,
and replace if necessary.
Fuel Cell Coolant
Inspect at specified intervals. When performing
inspections, check that the coolant level is
between the “FULL” and “LOW” lines on the
see-through reservoir tank.
Notice: A qualified technician should perform
this operation.
Use the following product:
“Toyota Genuine FC Stack Coolant.”
• In order to safely cool the fuel cell
stack, which is at high voltages, the
fuel cell stack coolant is an exclusive
high insulation product.
• Never use water or other kinds of coolant s
as they will cause damage.
• Coolant changes are unnecessary
• Do not reuse coolant that has been removed
from the radiato r.
• Coolant is colorless.
• Consult your Toyota dealer about
replenishing or changing the fuel cell
stack coolant.
Hybrid Transaxle Fluid
Inspect level and replace at specified intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Hydrogen Sensors
Inspect both hydrogen sensors at specified
intervals. This inspection should be performed
using calibration gas at a concentration of
1.3% hydrogen.
Notice: A qualified technician should perform
this operation.
Hydrogen Tank (with Valve)
NOTE: Replace every 15 years or
180 months, whichever comes first.
Notice: A qualified technician should
perform this operation.

EXPLANATION OF MAINTENANCE ITEMS

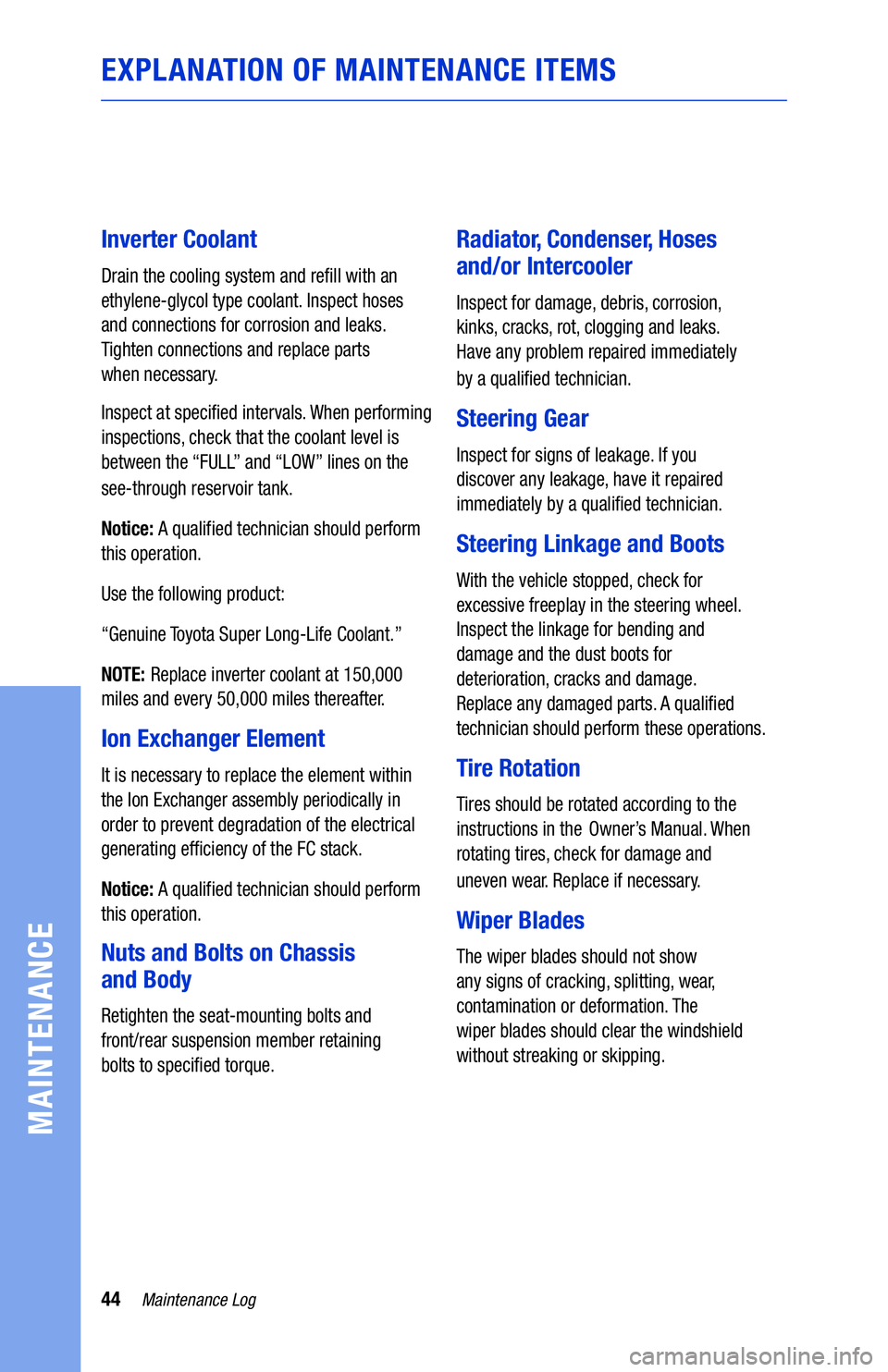

44Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
Inverter Coolant
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect hoses
and connections for corrosion and leaks.
Tighten connections and replace parts
when necessary.
Inspect at specified intervals. When performing
inspections, check that the coolant level is
between the “FULL” and “LOW” lines on the
see-through reservoir tank.
Notice: A qualified technician should perform
this operation.
Use the following product:
“Genuine Toyota Super Long-Life Coolant.”
NOTE: Replace inverter coolant at 150,000
miles and every 50,000 miles thereafter.
Ion Exchanger Element
It is necessary to replace the element within
the Ion Exchanger assembly periodically in
order to prevent degradation of the electrical
generating efficiency of the FC stack.
Notice: A qualified technician should perform
this operation.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Radiator, Condenser, Hoses
and/or Intercooler
Inspect for damage, debris, corrosion,
kinks, cracks, rot, clogging and leaks.
Have any problem repaired immediately
by a qualified technician.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage.
Replace any damaged parts. A qualified
technician should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Wiper Blades
The wiper blades should not show
any signs of cracking, splitting, wear ,
contamination or deformation. The
wiper blades should clear the windshield
without streaking or skipping.

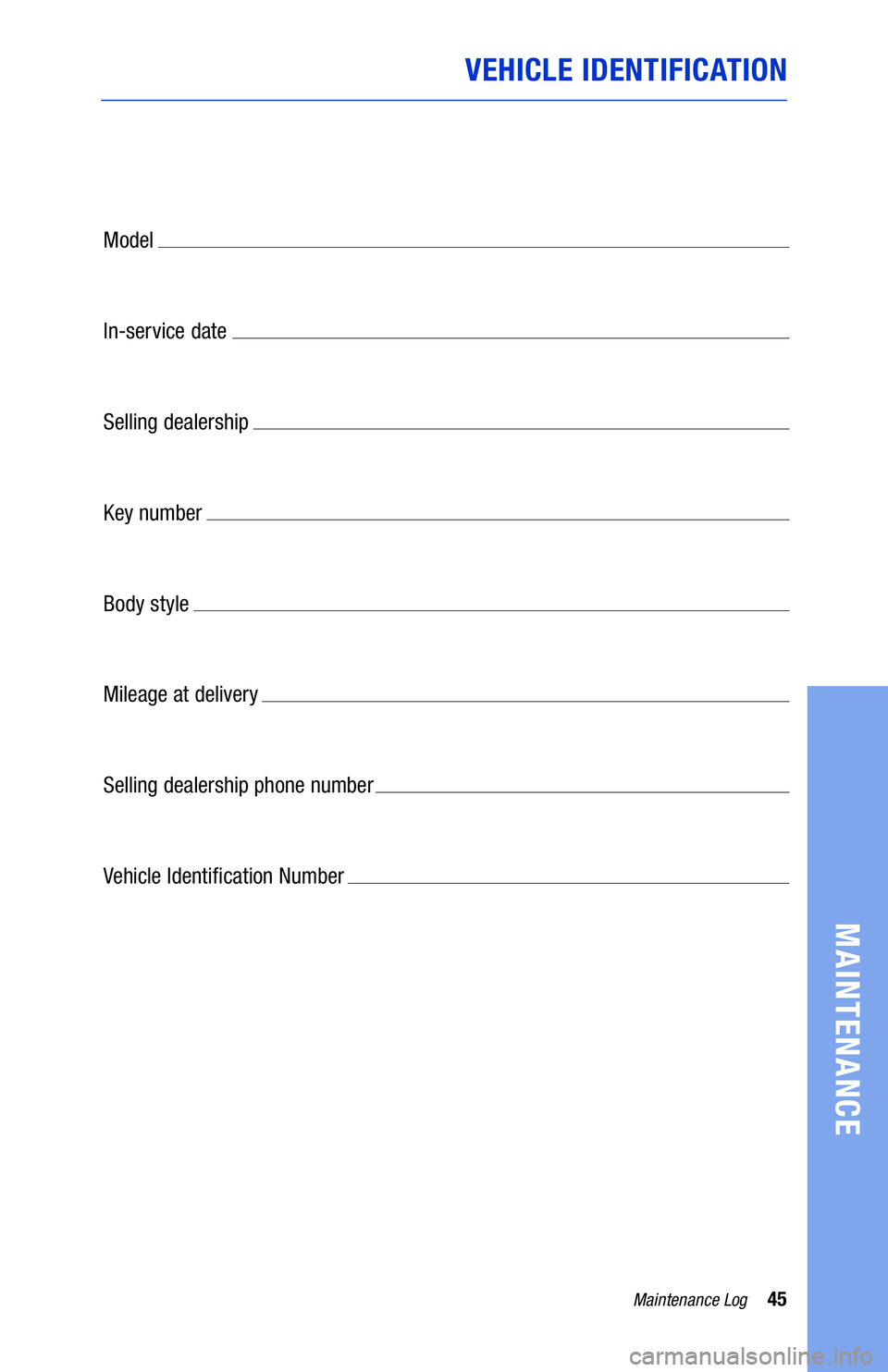

45Maintenance Log
MAINTENANCE
VEHICLE IDENTIFICATION
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identication Number

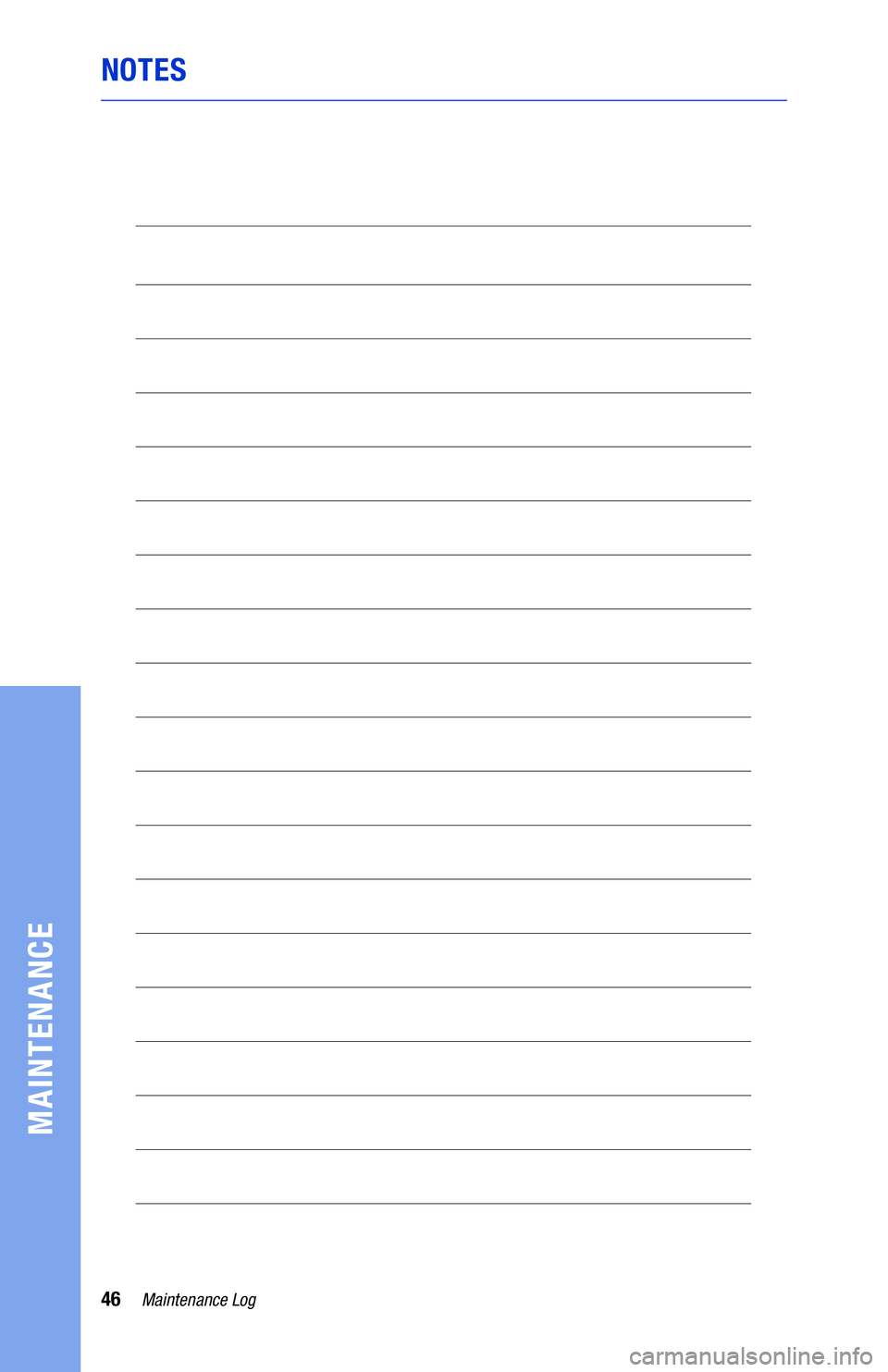

46Maintenance Log
MAINTENANCE
NOTES

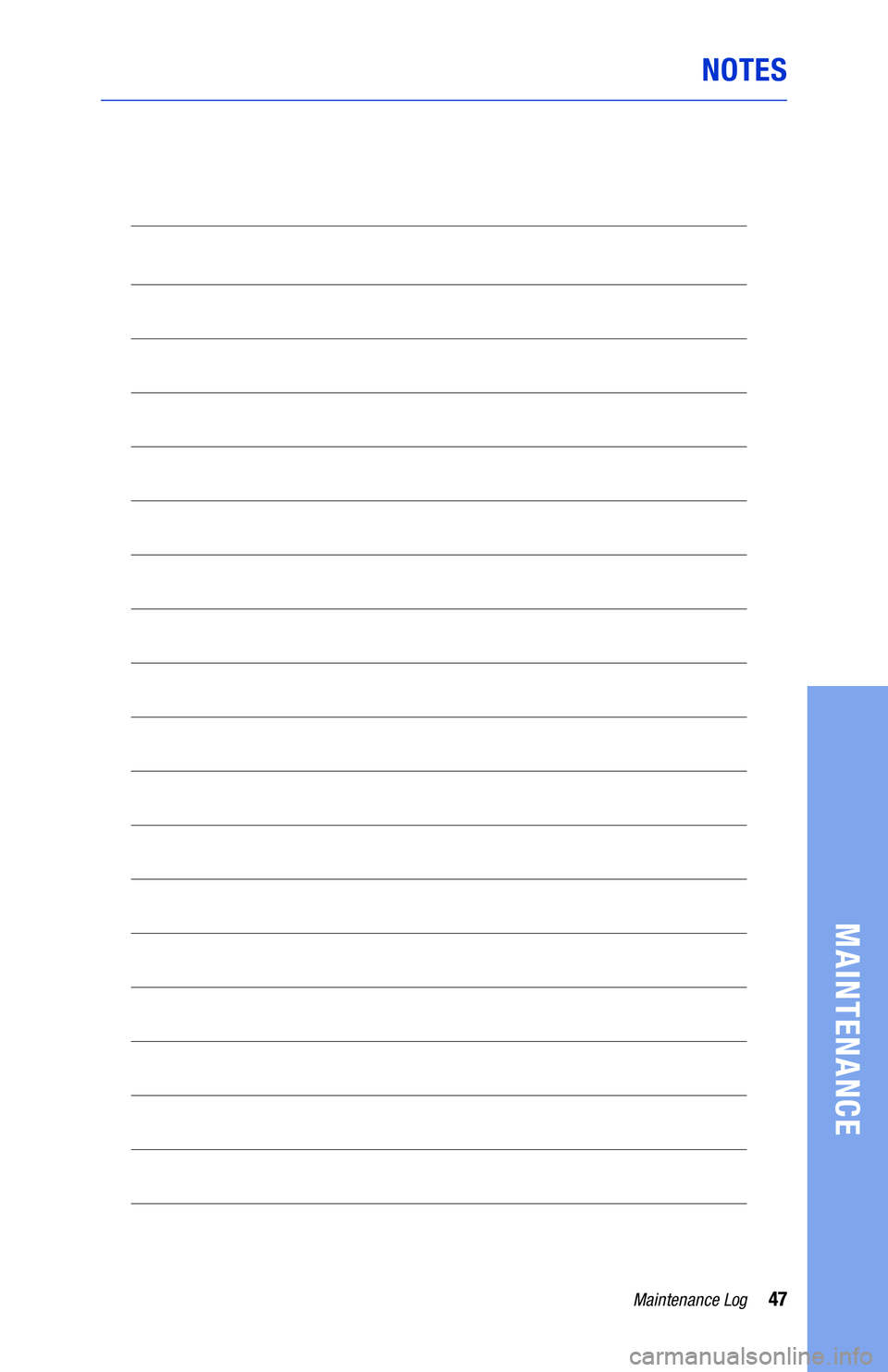

47Maintenance Log
MAINTENANCE
NOTES

48Maintenance Log
MAINTENANCE
NOTES

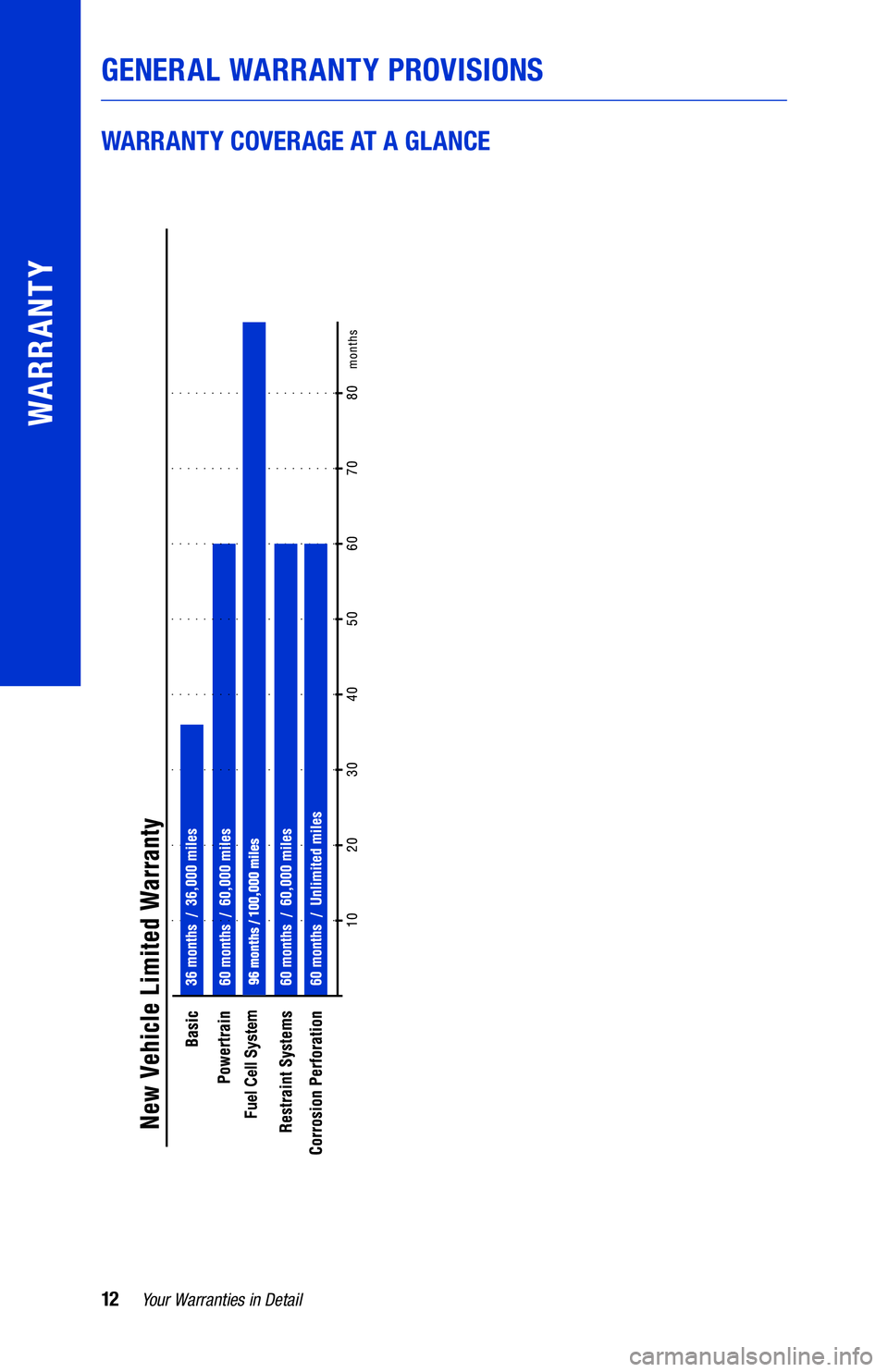

12Your Warranties in Detail
GENERAL WARRANTY PROVISIONS
WARRANTY
WARRANTY COVERAGE AT A GLANCE

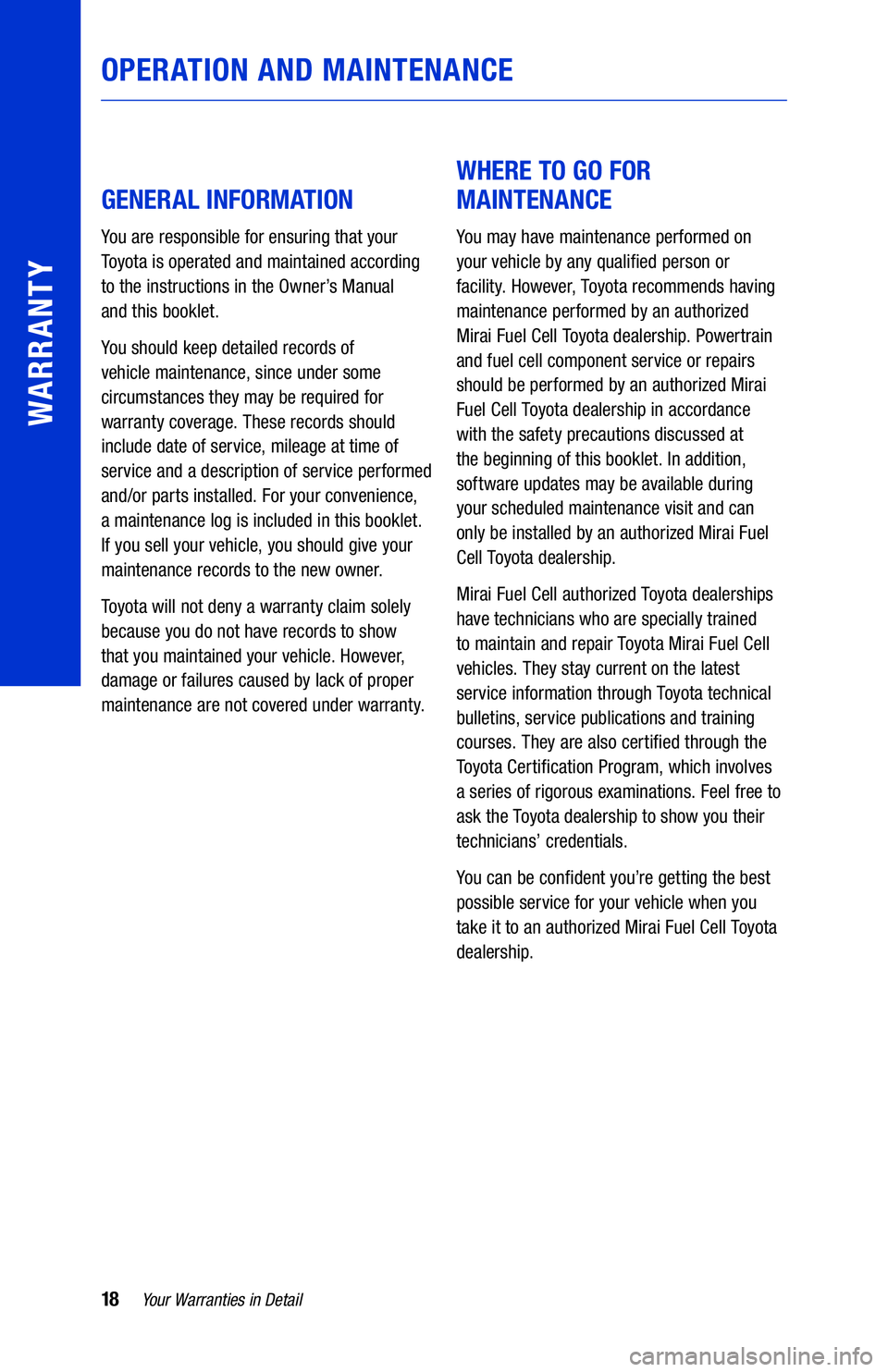

18Your Warranties in Detail
WARRANTY
GENERAL INFORMATION
You are responsible for ensuring that your
Toyota is operated and maintained according
to the instructions in the Owner’s Manual
and this booklet.
You should keep detailed records of
vehicle maintenance, since under some
circumstances they may be required for
warranty coverage. These records should
include date of service, mileage at time of
service and a description of service performed
and/or parts installed. For your convenience,
a maintenance log is included in this booklet.
If you sell your vehicle, you should give your
maintenance records to the new owner.
Toyota will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
damage or failures caused by lack of proper
maintenance are not covered under warranty.

WHERE TO GO FOR
MAINTENANCE
You may have maintenance performed on
your vehicle by any qualied person or
facility. However, Toyota recommends having
maintenance performed by an authorized
Mirai Fuel Cell Toyota dealership. Powertrain
and fuel cell component service or repairs
should be performed by an authorized Mirai
Fuel Cell Toyota dealership in accordance
with the safety precautions discussed at
the beginning of this booklet. In addition,
software updates may be available during
your scheduled maintenance visit and can
only be installed by an authorized Mirai Fuel
Cell Toyota dealership.
Mirai Fuel Cell authorized Toyota dealerships
have technicians who are specially trained
to maintain and repair Toyota Mirai Fuel Cell
vehicles. They stay current on the latest
service information through Toyota technical
bulletins, service publications and training
courses. They are also certied through the
Toyota Certication Program, which involves
a series of rigorous examinations. Feel free to
ask the Toyota dealership to show you their
technicians’ credentials.
You can be condent you’re getting the best
possible service for your vehicle when you
take it to an authorized Mirai Fuel Cell Toyota
dealership.
OPERATION AND MAINTENANCE
