TOYOTA MR2 SPYDER 2002 W30 / 3.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2002, Model line: MR2 SPYDER, Model: TOYOTA MR2 SPYDER 2002 W30 / 3.GPages: 245, PDF Size: 4.43 MB
Page 221 of 245
02 MY MR2 SMT(U) L/O 0108
212
01 06 12
2002 MR2 (OM17493U)
Page 222 of 245
02 MY MR2 SMT(U) L/O 0108
213
01 06 12
2002 MR2 (OM17493U)
SPECIFICATIONS
Dimensions and weight214
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 214
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 214
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 218
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8
Page 223 of 245
02 MY MR2 SMT(U) L/O 0108
214
01 06 12
2002 MR2 (OM17493U)
Dimensions and weight
Overall length mm (in.) 3885 (153.0)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1240 (48.8)
∗
Wheelbase mm (in.) 2450 (96.5)
Front tread mm (in.) 1475 (58.1)
Rear tread mm (in.) 1460 (57.5)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 193 (425)
∗: Unladen vehicle
Engine
Model: 1ZZ FE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 79.0 91.5 (3.11 3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 48 (12.7, 10.6)
Page 224 of 245
02 MY MR2 SMT(U) L/O 0108
215
01 06 12
2002 MR2 (OM17493U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm (in.): 1.1 (0.043) ENGINE LUBRICATION
\f\b \b \f
!
" #! $ #%
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
Oil grade: API grade SJ “Energy Conserving”, SL
“Energy Conserving” or ILSAC multi-
grade engine oil is recommended.
Recommended oil viscosity (SAE):COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): 10.4 (11.0, 9.2)
Coolant type: “TOYOTA Long Life Coolant” or equiva-
lent
With ethylene glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 °C (68 °F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
Page 225 of 245
02 MY MR2 SMT(U) L/O 0108
216
01 06 12
2002 MR2 (OM17493U)
CLUTCH (manual transmission only)
Pedal free play, mm (in.):5—15 (0.2—0.6)
% &'( )*+, \f -.&& /0
1 ,
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): Vehicle with limited slip differential1.8 (1.9, 1.6)
Vehicle without limited slip differential 1.9 (2.0, 1.7)
Oil type: Gear oil API GL 4 or GL 5
Recommended oil viscosity: SAE 75W 90 SEQUENTIAL MANUAL TRANSMISSION
SYSTEM
Fluid type:
Sequential M/T Fluid
NOTICE: Using Fluid other than Toyota
Genuine Sequential M/T Fluid may
cause deterioration in shift performance
and durability, and ultimately damage
the sequential manual transmission of
your vehicle. BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
85 (3.4)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 5—8 clicks
% &'( )*+, \f -.&& /0
1 ,
Page 226 of 245
02 MY MR2 SMT(U) L/O 0108
217
01 06 12
2002 MR2 (OM17493U)
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Toyota P.S fluid EH or equivalent
Page 227 of 245
02 MY MR2 SMT(U) L/O 0108
218
01 06 12
2002 MR2 (OM17493U)
Tires
Tire size and pressure:
Except compact spare tire
Tire sizeTire pressure
kPa (kgf/cm2 or bar, psi)Wheel size
Front185/55R15 81V180 (1.8, 26)15 6JJ
Rear205/50R15 85V220 (2.2, 32)15 61/2JJ
Compact spare tire
Tire size
Tire pressure kPa (kgf/cm2 or bar, psi)Wheel size
T125/70D16420 (4.2, 60)164T
Wheel nut torque, N·m (kgf·m, ft·Ibf):
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire pressure” through “Alum inum
wheel precautions”, page 192 through 197 in Section 7 2.
Page 228 of 245
02 MY MR2 SMT(U) L/O 0108
219
01 06 12
2002 MR2 (OM17493U)

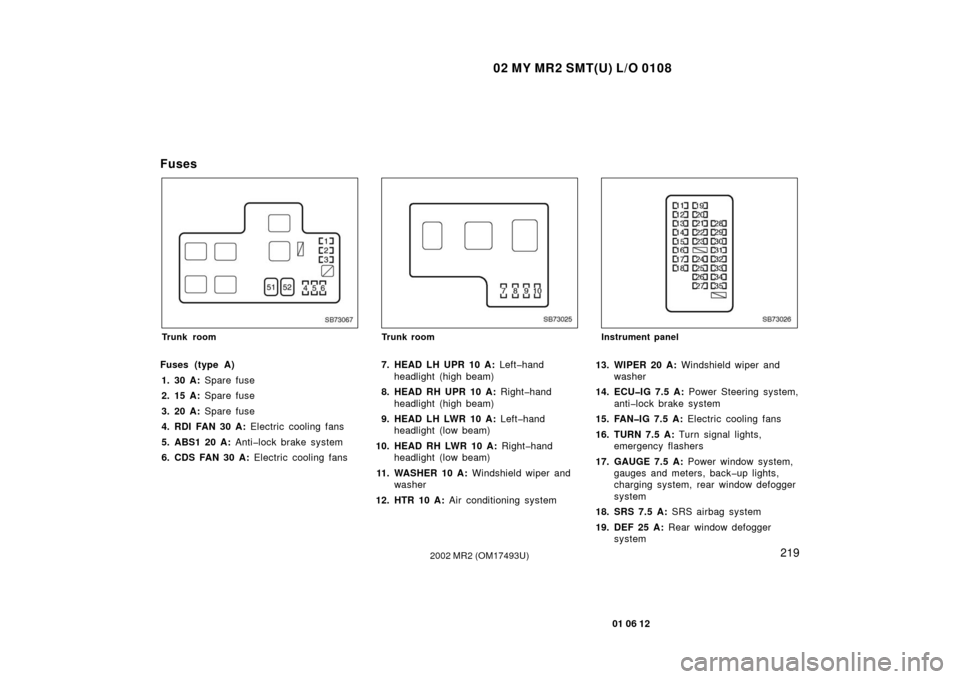

Fuses
SB73067
Trunk room
Fuses (type A)1. 30 A: Spare fuse
2. 15 A: Spare fuse
3. 20 A: Spare fuse
4. RDI FAN 30 A: Electric cooling fans
5. ABS1 20 A: Anti lock brake system
6. CDS FAN 30 A: Electric cooling fans
SB73025
Trunk room
7. HEAD LH UPR 10 A: Left hand
headlight (high beam)
8. HEAD RH UPR 10 A: Right hand
headlight (high beam)
9. HEAD LH LWR 10 A: Left hand
headlight (low beam)
10. HEAD RH LWR 10 A: Right hand
headlight (low beam)
11. WASHER 10 A: Windshield wiper and
washer
12. HTR 10 A: Air conditioning system
SB73026
Instrument panel
13. WIPER 20 A: Windshield wiper and
washer
14. ECU IG 7.5 A: Power Steering system,
anti lock brake system
15. FAN IG 7.5 A: Electric cooling fans
16. TURN 7.5 A: Turn signal lights,
emergency flashers
17. GAUGE 7.5 A: Power window system,
gauges and meters, back up lights,
charging system, rear window defogger
system
18. SRS 7.5 A: SRS airbag system
19. DEF 25 A: Rear window defogger
system
