TOYOTA MR2 SPYDER 2002 W30 / 3.G Owners Manual

02 MY MR2 SMT(U) L/O 0108
202
01 06 12
2002 MR2 (OM17493U)
Checking and replacing fuses
SB73035
GoodBlown
Ty p e A
SB73036
Good Blown
Ty p e B
SB73037
Good Blown
Ty p e C
SB73066
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 182 in Sec-
tion 71 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 219 in Section 8 of this manual for
the functions controlled by each circuit.
Type A fuses can be pulled out by the
pullout tool. The location of the pullout
tool is shown in the illustration.

02 MY MR2 SMT(U) L/O 0108
203
01 06 12
2002 MR2 (OM17493U)
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “D P/W”,
“P P/W” or “CIG” fuse, which may be
dispensable for normal driving, and use it
if its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
SB73003
If any washer does not work, the wash-
er tank may be empty. Check the wash-
er fluid level on the level gauge. If the
washer fluid level is below “LOW”, add
washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.

02 MY MR2 SMT(U) L/O 0108
204
01 06 12
2002 MR2 (OM17493U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent yourself from burning,
do not replace the light bulbs while
they are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the wind-
shield fogged up in the rain. However, if
there is large drop of water on the inside
of the lens, or if there is water pooled
inside the light, contact your Toyota deal-
er.

02 MY MR2 SMT(U) L/O 0108
205
01 06 12
2002 MR2 (OM17493U)
Light bulbsBulbNo.WTy p e
Headlights—60/55A
Parking lights—5B
Front turn signal
lights—21B
Front side marker
lights—3.8B
Rear turn signal
lights—21C
Stop/tail lights—21/5B
Stop lights—21B
Backup lights—21B
License plate lights—5B
Interior light—8D
High mounted stop
light—5B
A: HB2 halogen bulbs
B: Wedge base bulbs
C: Single end bulbs
D: Double end bulbs BEFORE REPLACING LIGHT BULBS
Replacing headlights, parking lights and
front turn signal lights.
SB73069
1. Remove the front box cover.

02 MY MR2 SMT(U) L/O 0108
206
01 06 12
2002 MR2 (OM17493U)

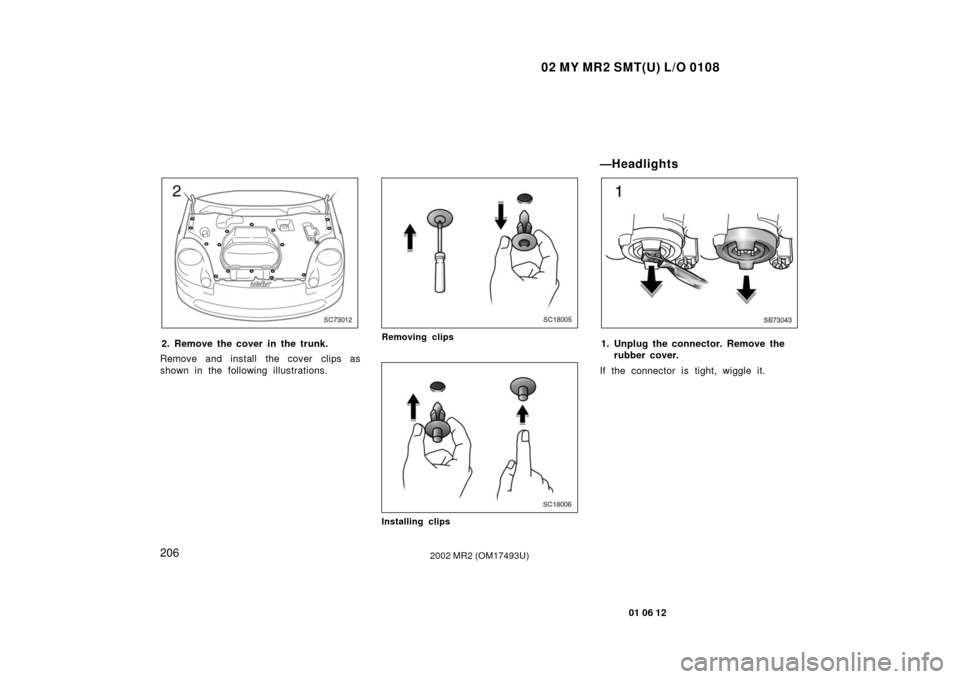

SC73012
2. Remove the cover in the trunk.
Remove and install the cover clips as
shown in the following illustrations.
SC18005
Removing clips
SC18006
Installing clips
—Headlights
SB73043
1. Unplug the connector. Remove the rubber cover.
If the connector is tight, wiggle it.

02 MY MR2 SMT(U) L/O 0108
207
01 06 12
2002 MR2 (OM17493U)

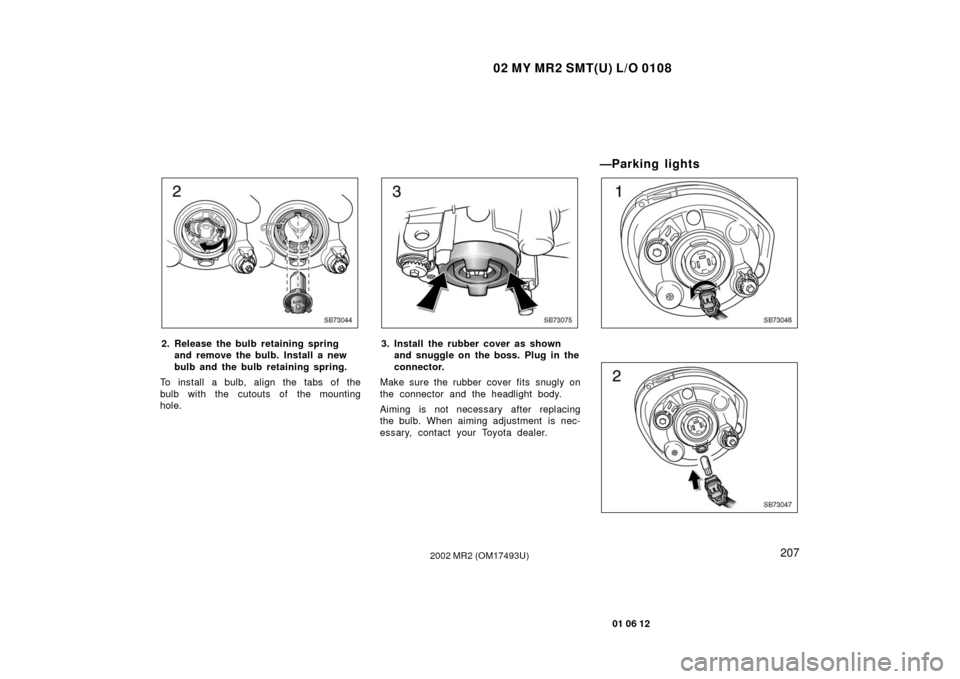

SB73044
2. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
SB73075
3. Install the rubber cover as shown and snuggle on the boss. Plug in the
connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Parking lights
SB73046
SB73047

02 MY MR2 SMT(U) L/O 0108
208
01 06 12
2002 MR2 (OM17493U)

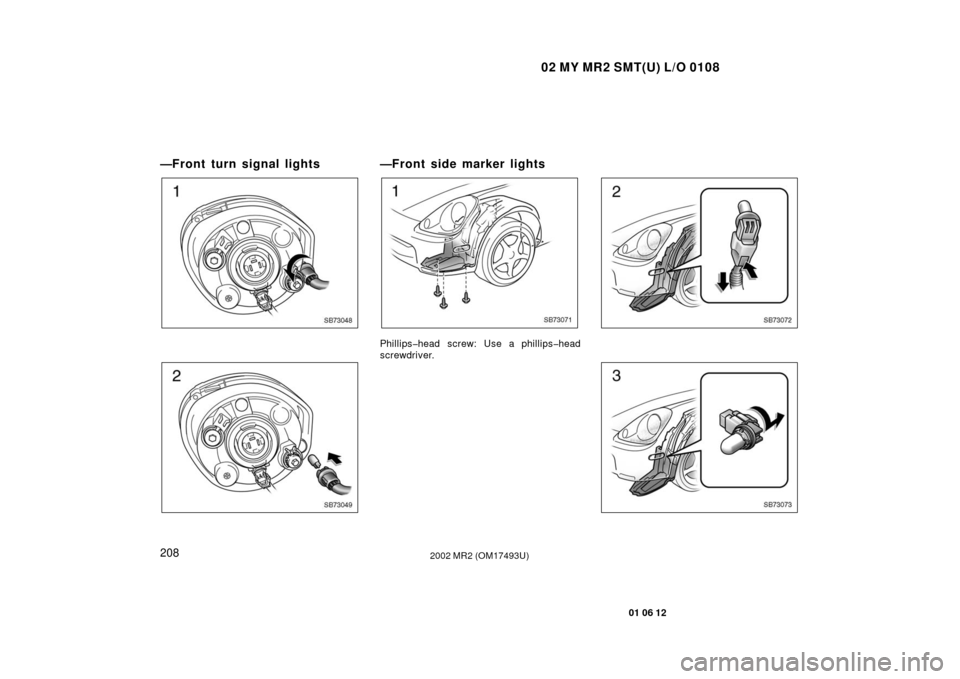

—Front turn signal lights
SB73048
SB73049
—Front side marker lights
SB73071
Phillipshead screw: Use a phillips head
screwdriver.
SB73072
SB73073

02 MY MR2 SMT(U) L/O 0108
209
01 06 12
2002 MR2 (OM17493U)

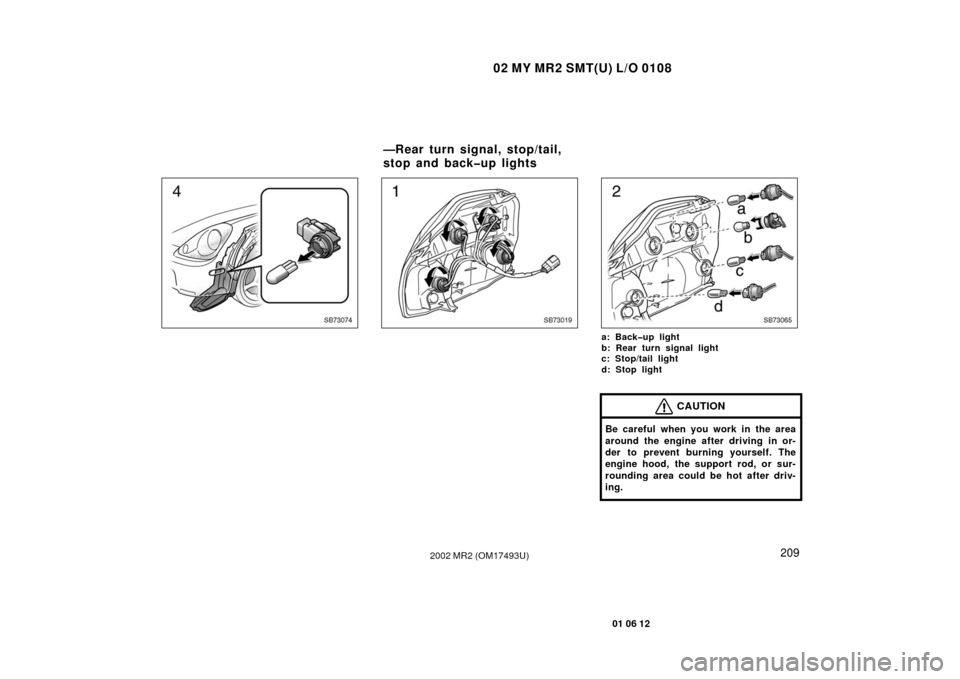

SB73074SB73019SB73065
a: Backup light
b: Rear turn signal light
c: Stop/tail light
d: Stop light
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.
—Rear turn signal, stop/tail,
stop and backup lights

02 MY MR2 SMT(U) L/O 0108
210
01 06 12
2002 MR2 (OM17493U)

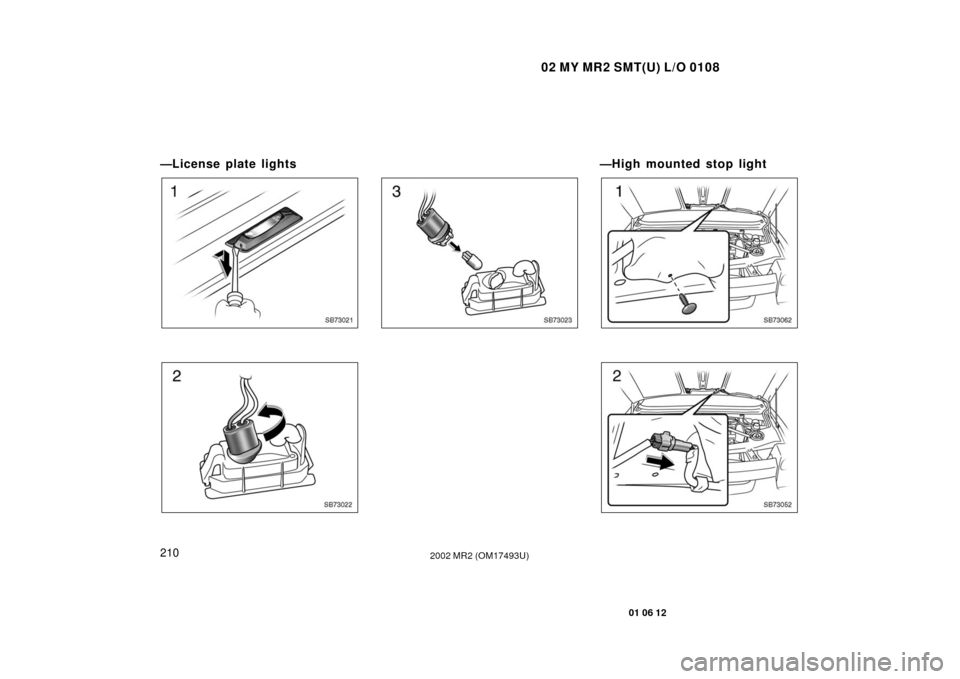

—License plate lights
SB73021
SB73022
SB73023
—High mounted stop light
SB73062
SB73052

02 MY MR2 SMT(U) L/O 0108
211
01 06 12
2002 MR2 (OM17493U)

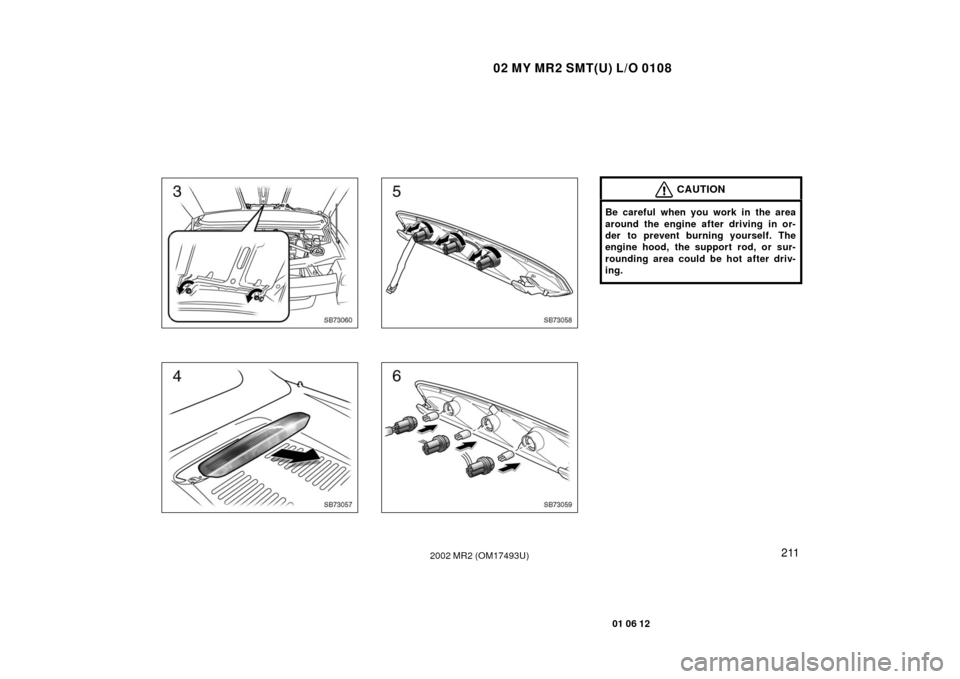

SB73060
SB73057
SB73058
SB73059
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.
