TOYOTA MR2 SPYDER 2002 W30 / 3.G Owner's Guide
Manufacturer: TOYOTA, Model Year: 2002, Model line: MR2 SPYDER, Model: TOYOTA MR2 SPYDER 2002 W30 / 3.GPages: 245, PDF Size: 4.43 MB
Page 31 of 245
02 MY MR2 SMT(U) L/O 0108
22
01 06 12
2002 MR2 (OM17493U)

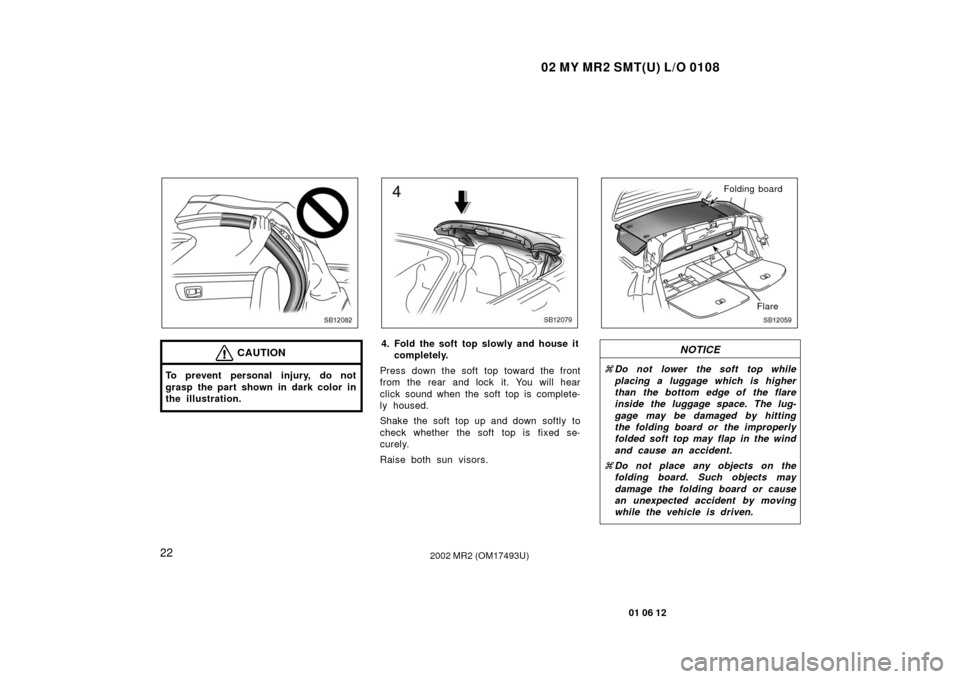

SB12082
CAUTION
To prevent personal injury, do not
grasp the part shown in dark color in
the illustration.
SB12079
4. Fold the soft top slowly and house itcompletely.
Press down the soft top toward the front
from the rear and lock it. You will hear
click sound when the soft top is complete-
ly housed.
Shake the soft top up and down softly to
check whether the soft top is fixed se-
curely.
Raise both sun visors.
SB12059
Folding board
Flare
NOTICE
Do not lower the soft top while
placing a luggage which is higher
than the bottom edge of the flare
inside the luggage space. The lug-
gage may be damaged by hitting
the folding board or the improperly
folded soft top may flap in the wind
and cause an accident.
Do not place any objects on the
folding board. Such objects may
damage the folding board or cause
an unexpected accident by moving
while the vehicle is driven.
Page 32 of 245
02 MY MR2 SMT(U) L/O 0108
23
01 06 12
2002 MR2 (OM17493U)

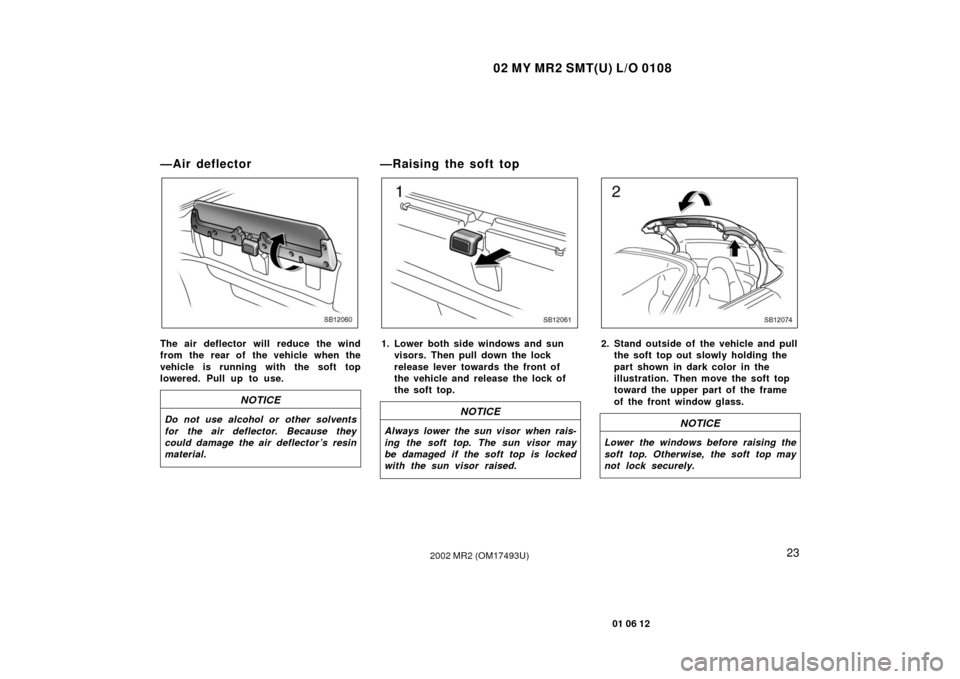

—Air deflector
SB12060
The air deflector will reduce the wind
from the rear of the vehicle when the
vehicle is running with the soft top
lowered. Pull up to use.
NOTICE
Do not use alcohol or other solvents
for the air deflector. Because they
could damage the air deflector’s resin
material.
—Raising the soft top
SB12061
1. Lower both side windows and sunvisors. Then pull down the lock
release lever towards the front of
the vehicle and release the lock of
the soft top.
NOTICE
Always lower the sun visor when rais-
ing the soft top. The sun visor may
be damaged if the soft top is locked
with the sun visor raised.
SB12074
2. Stand outside of the vehicle and pullthe soft top out slowly holding the
part shown in dark color in the
illustration. Then move the soft top
toward the upper part of the frame
of the front window glass.
NOTICE
Lower the windows before raising the
soft top. Otherwise, the soft top may
not lock securely.
Page 33 of 245
02 MY MR2 SMT(U) L/O 0108
24
01 06 12
2002 MR2 (OM17493U)

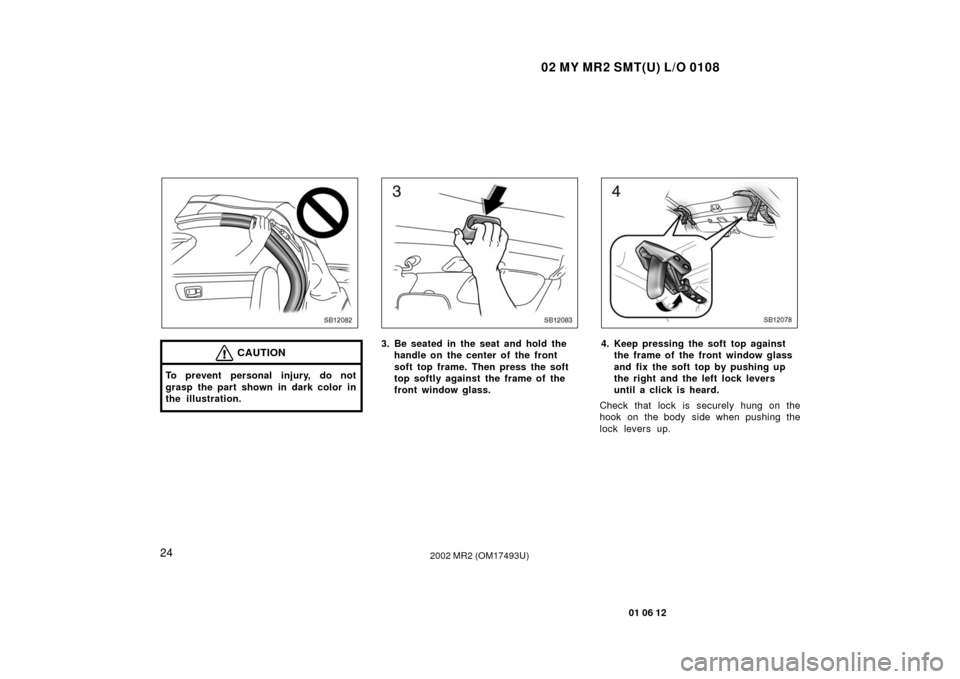

SB12082
CAUTION
To prevent personal injury, do not
grasp the part shown in dark color in
the illustration.
SB12083
3. Be seated in the seat and hold thehandle on the center of the front
soft top frame. Then press the soft
top softly against the frame of the
front window glass.
SB12078
4. Keep pressing the soft top againstthe frame of the front window glass
and fix the soft top by pushing up
the right and the left lock levers
until a click is heard.
Check that lock is securely hung on the
hook on the body side when pushing the
lock levers up.
Page 34 of 245
02 MY MR2 SMT(U) L/O 0108
25
01 06 12
2002 MR2 (OM17493U)

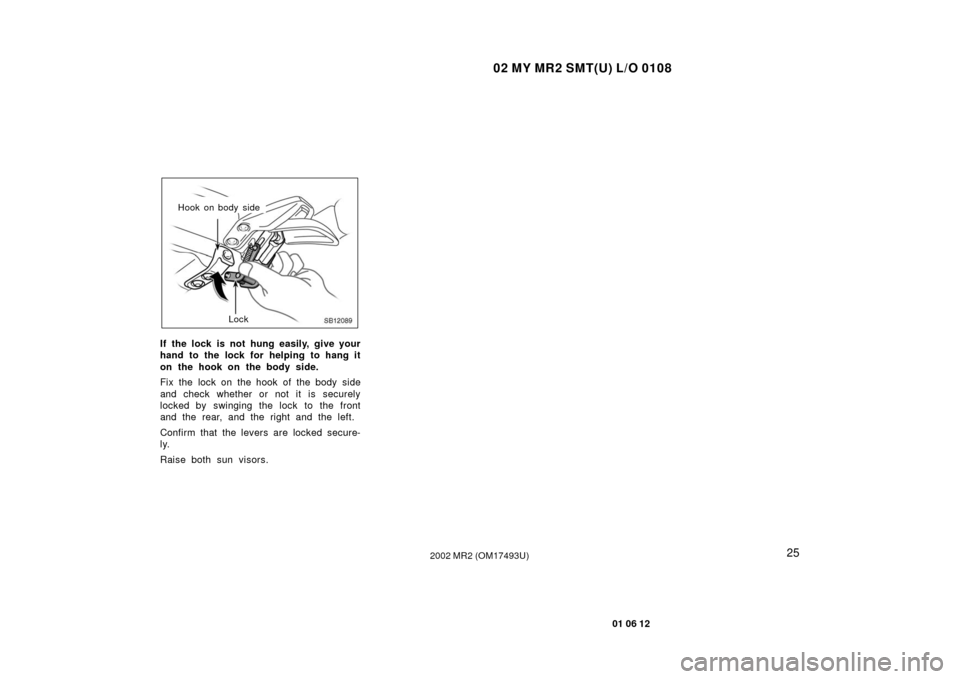

SB12089
Hook on body sideLockHook on body side
If the lock is not hung easily, give your
hand to the lock for helping to hang it
on the hook on the body side.
Fix the lock on the hook of the body side
and check whether or not it is securely
locked by swinging the lock to the front
and the rear, and the right and the left.
Confirm that the levers are locked secure-
ly.
Raise both sun visors.
Page 35 of 245
02 MY MR2 SMT(U) L/O 0108
26
01 06 12
2002 MR2 (OM17493U)
Page 36 of 245
02 MY MR2 SMT(U) L/O 0108
27
01 06 12
2002 MR2 (OM17493U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Seat belts 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver and passenger airbags 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passenger airbag manual on off switch 45
. . . . . . . . . . . . . . . . . . . . . . . .
Child restraint 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Outside rear view mirrors 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti glare inside rear view mirror 59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 3
Page 37 of 245
02 MY MR2 SMT(U) L/O 0108
28
01 06 12
2002 MR2 (OM17493U)
Seats—
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers sitting in
the luggage space. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
While the vehicle is moving, do not
allow any passenger to stand up in
the vehicle. Severe injuries can oc-
cur in the event of emergency brak-
ing or a collision.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seat lock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may jam
your hands or fingers.
—Seat adjustment precautions
Page 38 of 245
02 MY MR2 SMT(U) L/O 0108
29
01 06 12
2002 MR2 (OM17493U)

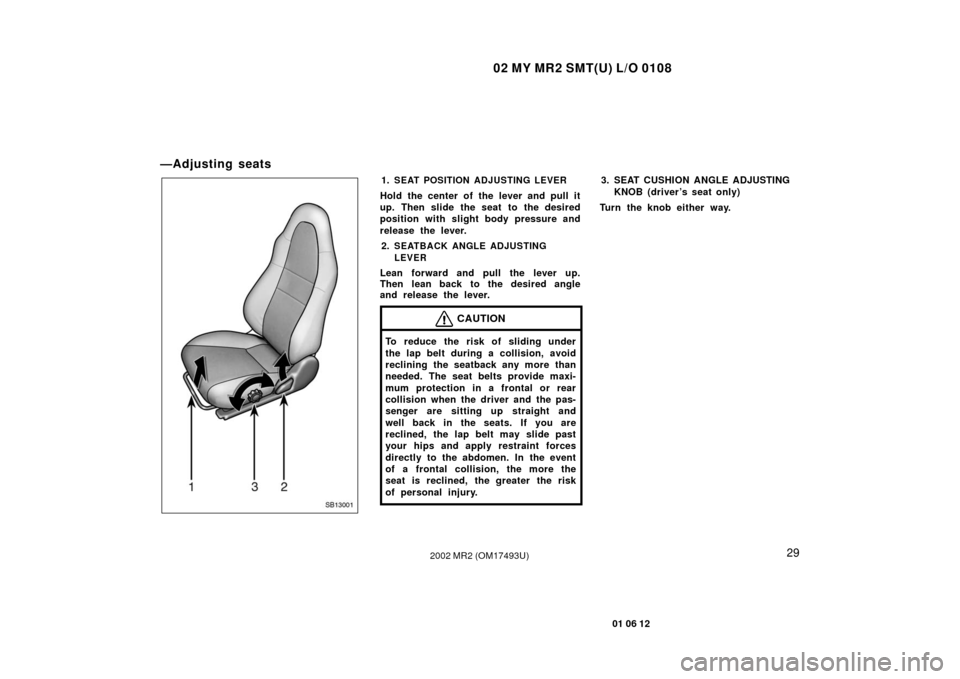

—Adjusting seats
SB13001
1.SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.2.
SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT CUSHION ANGLE ADJUSTING KNOB (driver ’s seat only)
Turn the knob either way.
Page 39 of 245
02 MY MR2 SMT(U) L/O 0108
30
01 06 12
2002 MR2 (OM17493U)
Toyota strongly urges that the driver and
passenger in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint—”
on page 46 in this section for details.
If a child is too large for a child restraint
system, the child must be restrained using
the vehicle’s seat belt.
If a child must sit in the seat, the seat
belts should be worn properly. If an acci-
dent occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Do not allow the child to stand up or
kneel on the seat. An unrestrained child
could suffer serious injury or death during
emergency braking or a co llision. Also, do
not let the child sit on your lap. It does
not provide sufficient restraint. Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers—they may severely weaken the
belts. (See “Cleaning the interior”
on page 170 in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Seat belts—
—Seat belt precautions
Page 40 of 245
02 MY MR2 SMT(U) L/O 0108
31
01 06 12
2002 MR2 (OM17493U)
—Seat belts

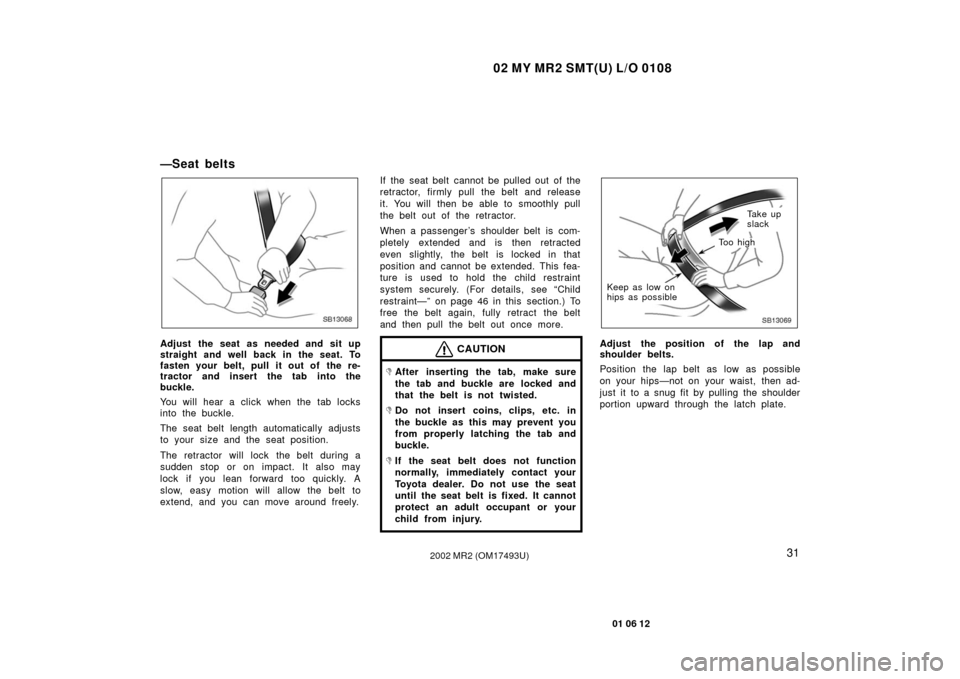

SB13068
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint—” on page 46 in this section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
SB13069
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possibleTa k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the s houlder
portion upward through the latch plate.
