parking brake TOYOTA MR2 SPYDER 2002 W30 / 3.G Owners Manual

02MY MR2 SMT(U) L/O 0108
vii2002 MR2 (OM17493U)
1 OPERATION OF INSTRUMENTS AND CONTROLSPage
1 Overview of instruments and controls
1
. . . . . . . . . . . . . . . . . . . . . . . . . .
2 Keys and Doors7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
3 Seats, Seat belts, Steering wheel and Mirrors27
. . . . . . . . . . . . . . . . . .
4 Lights, Wipers and Defogger61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Gauges, Meters and Service reminder indicators67
. . . . . . . . . . . . . . .
6 Ignition switch, Transmission and Parking brake75
. . . . . . . . . . . . . . . .
7 Car audio system93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
8 Air conditioning system107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Other equipment11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
2 INFORMATION BEFORE DRIVING YOUR TOYOTA 123 . . . . . . . . . . . . .
3 STARTING AND DRIVING 137 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 IN CASE OF AN EMERGENCY 145 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 CORROSION PREVENTION AND APPE ARANCE CARE 165. . . . .
6 VEHICLE MAINTENANCE AND CARE 173 . . . . . . . . . . . . . . . . . . . . . . .
7 DOITYOURSELF MAINTENANCE
1 Introduction179
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
2 Engine and Chassis187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
3 Electrical components199
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

8 SPECIFICATIONS 213 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
9 REPORTING SAFETY DEFECTS FOR U.S. OWNERS AND
UNIFORM TIRE QUALITY GRADING 223 . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 INDEX 227 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Table of Contents

02 MY MR2 SMT(U) L/O 0108
2
01 06 12
2002 MR2 (OM17493U)
Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Interior light
5. Glove box
6. Manual transmission gear shift lever orsequential manual transmission selector
lever
7. Parking brake lever
8. Power window switches
9. Power rear view mirror control switches
10. Instrument panel light control switch 11. Power door lock switch
12. Power window lock switch
SB11025

02 MY MR2 SMT(U) L/O 0108
20
01 06 12
2002 MR2 (OM17493U)
Sequential manual transmission: Before
raising or lowering the soft top, lower both
side windows, apply the parking brake, put
the selector lever in the “S(1)” position
and stop the engine.
Manual transmission: Before raising or
lowering the soft top, lower both side win-
dows, apply the parking brake, stop the
engine and put the transmission lever in
the first position.
CAUTION
When raising or lowering the soft
top, keep hands off from the hinges
of the top side rails and any part
of the top linkage.
To prevent personal injury, do not
raise or lower the soft top when the
wind is strong.
The vehicle should never be driven
with the soft top partially lowered.
Make sure the top has been either
fully latched to the windshield
frame or fully lowered before driv-
ing.
NOTICE
 Make sure there are no items or
packages in the folding board when
lowering in the soft top. Even small
items may interfere with the soft
top operation and can cause dam-
age.
 Do not sit or place excessive
weight on the soft top when the top
is up or down. Damage to the top
may occur.
 Do not raise or lower the soft top
when the temperature is below 5 C
(41 F). Damage to the top or rear
window may result. If necessary to
do so, warm the vehicle in a heated
garage prior to operating the soft
top mechanism.
 Do not lower the soft top if the top
is damp or wet. Possible interior
water damage, water stains or mil-
dew on the top material may result.
When the soft top is completely
lowered, keep the rear window de-
fogger turned off to avoid damage
to the top.
 It may be hard to fix the soft top
when raising it after having kept it
open for a long time.
Soft top—
—Soft top precautions

02 MY MR2 SMT(U) L/O 0108
62
01 06 12
2002 MR2 (OM17493U)

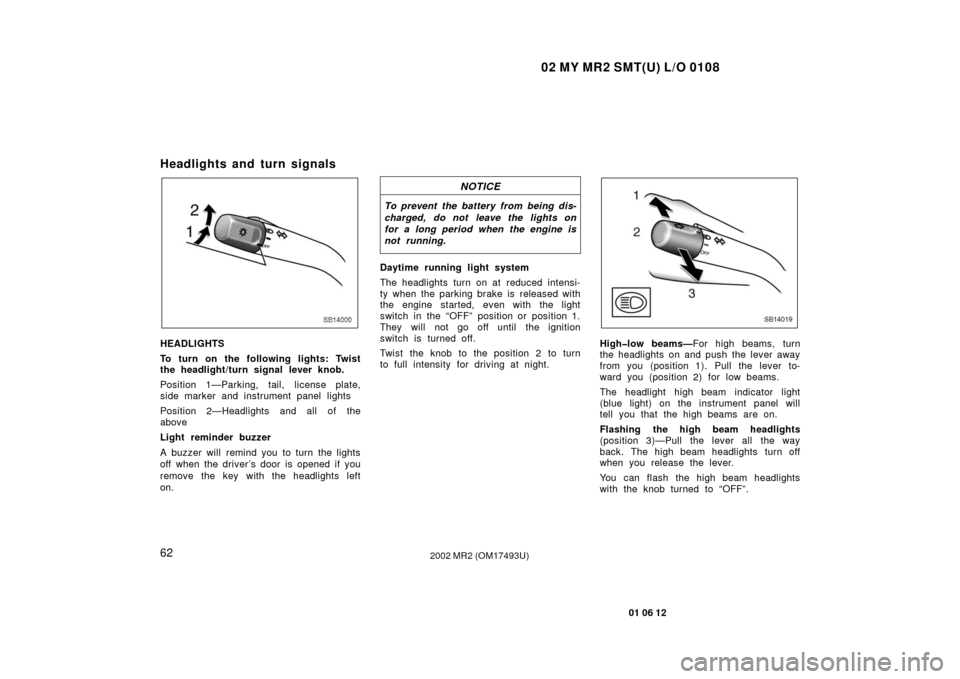

Headlights and turn signals
SB14009
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlights left
on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position or position 1.
They will not go off until the ignition
switch is turned off.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
SB14019
Highlow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

02 MY MR2 SMT(U) L/O 0108
70
01 06 12
2002 MR2 (OM17493U)
3. Trip meter reset knob—Resets the twotrip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the trip meter A reading, then
push and hold the knob until the meter
is set to zero. The same process can
be applied for resetting the trip meter
B.If the indicator Do this.
or buzzer
comes on...
(a) If parking brake is off,
stop immediately
and contact
Toyota dealer.
(d) Stop and check.
(c) Fasten
passenger ’s seat
belt.
(e) Stop and check.
(f)Take vehicle to
Toyota dealer.
(b) Fasten driver ’s
seat belt.
(g) Fill up tank.
Low fuel
level warning
light
(k)Take vehicle to
Toyota dealer
immediately.
(j)
Close both the
doors
(l) Take vehicle to
Toyota dealer.
(i) Take vehicle to
Toyota dealer.
(m) Remove key.
Key reminder
buzzer
(h)
Take vehicle to
Toyota dealer
immediately. If
the vehicle
cannot be driven,
contact your
Toyota dealer.
If the indicator Do this.
or buzzer
comes on...
Service reminder indicators
an d warn in g bu zzers

02 MY MR2 SMT(U) L/O 0108
71
01 06 12
2002 MR2 (OM17493U)
If the indicator Do this.
or buzzer
comes on...
(o)
See “Sequential
manual
transmission” on
page 77 in Section
16.Warning
function of the
sequential
manual
transmission
(n)
Turn off lights.
Light reminder-
buzzer (a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following case:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
CAUTION
If the light does not turn off even
after the parking brake is released
while the engine is running, immedi-
ately stop your vehicle at a safe
place and contact your Toyota dealer.
In this case, the brakes may not work
properly and your stopping distance
will become longer. Depress the brake
pedal firmly and bring the vehicle to
an immediate stop.
(b) Driver’s Seat Belt Reminder Light
and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light keeps flashing and the
buzzer stops after about 4 to 8 seconds.

02 MY MR2 SMT(U) L/O 0108
74
01 06 12
2002 MR2 (OM17493U)
A warning light turning on briefly during
operation does not indicate a problem.
(j) Open Door Warning Light
This light remains on until both the doors
are completely closed.
(k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the systems of the air-
bag and seat belt pretensioners are op-
erating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, occupant detection sensor, seat belt
buckle switch, seat belt pretensioner as-
semblies, inflators, warning light, intercon-
necting wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.(l) Power Steering System Warning
Light
This light warns that there is a problem
in your power steering system.
If the light comes on while you are driv-
ing, have your vehicle checked by your
Toyota dealer as soon as possible.
(m) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the “ACC” or “LOCK”
position.
(n) Light reminder buzzer
The buzzer will sound if the headlight
switch is left on and the driver’s door is
opened with the key removed from the
ignition switch.
(o) Warning function of the Sequential Manual Transmission (sequential
manual transmission only)
When driving, if any incorrect operation
that may cause damage to this system is
performed or if the gear is not shifted as
desired by the driver, the warning buzzer
will sound and the gear position indicator
will flash to warn the driver in some
cases. For details, see “(k) Warning
functions” on page 86 in Section 16. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light)
1. Apply the parking brake.
2. Open either side door. The open door warning light should
come
on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on. The “ABS” and power steer-
ing system warning lights go off after
a few seconds. The SRS warning light
goes off after about 6 seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

02 MY MR2 SMT(U) L/O 0108
75
01 06 12
2002 MR2 (OM17493U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sequential manual transmission 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Parking brake 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Cruise control 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 6

02 MY MR2 SMT(U) L/O 0108
81
01 06 12
2002 MR2 (OM17493U)
CAUTION
Be careful when accelerating, up-
shifting, downshifting or braking on
a slippery surface. Sudden accelera-
tion or engine braking could cause
the vehicle to spin or skid.
To drive down a long or steep hill,
reduce your speed and downshift.
Remember, if you ride the brakes
excessively, they may overheat and
fail.
Do not place the selector lever in
the “N” position while driving.
Otherwise the engine brake may not
work, and you may get involved in
an unexpected accident.
Do not apply the parking brake
while driving. Otherwise, it could
cause a skid and you may get in-
volved in an unexpected accident.
NOTICE
The system will not allow shifting
up or down to a gear that would
cause engine overrevving or un-
derrevving. When engine overrev-
ving occurs, a warning buzzer
(short pulse sound) will sound. In
either case, the demand will be can-
celled.
 If frequently driving at low speed
using a high gear position, a warn-
ing buzzer (long pulse sound) will
sound. Such driving will cause the
reduction of clutch life.
 Frequent downshifting (more than 3
positions continuously) causes the
reduction of transmission life.
 Do not drive with your foot on the
brake pedal. Otherwise, it will cause
the “Sequential manual
transmission” warning light to come
on.
(e) Starting off
1. Start the engine as instructed in “How to start the engine” on page 138 in
Section 3. 2. With your foot holding down the brake
pedal, shift the selector lever to the “S”
position properly. When the selector le-
ver is shifted to “S” position, the gear
will be shifted to 1st. On a slippery
surface, it is possible to start off with
the gear in 2nd. To start off with the
gear in 2nd, shift the selector lever
from “N” to “S” position, then operate
the lever to “+” direction. The gear will
be shifted to 2nd. Before starting off,
always make sure that the gear is en-
gaged by the gear position indicator,
then depress the accelerator pedal.
If the gear cannot be engaged to 1st
when the selector lever is shifted from
the “N” to “S” position, the “N” indica-
tor will flash and a warning buzzer
(long pulse sound) will sound. In this
case, the system will retry shifting or
the driver can operate the selector le-
ver to shift, as follows.
The system will retry shifting automat-
ically. This will take some time, noise
may be heard from the gears, and shift
shock may occur. However, they do not
indicate malfunction.
The driver may shift the selector lever
to the “N” position once, then shift to
the “S” position.


02 MY MR2 SMT(U) L/O 0108
82
01 06 12
2002 MR2 (OM17493U)
3. Release the parking brake and brakepedal. Depress the accelerator pedal
slowly for smooth staring.
CAUTION
Unlike automatic transmission mod-
els, the sequential manual transmis-
sion models do not creep.
NOTICE
On a slippery surface, it is possible
to start off with the gear in 2nd,
but to protect the clutch, try to
start using the 1st gear whenever
possible.
 If the gear cannot be engaged to
1st when the selector lever is
shifted from the “N” to “S” posi-
tion, try to shift the selector lever
to the “N” position once, then shift
it to “S” position a few seconds
later.
(f) Starting off on an uphill/downhill
—Uphill
1. Apply the parking brake firmly so that the vehicle does not roll backwards. 2. Shift the selector lever to the “S” posi-
tion while holding down the brake pe-
dal. Make sure that the gear position
indicator in the instrumental cluster dis-
plays 1st gear.
3. Release the brake pedal and depress the accelerator pedal gradually, and
when the vehicle starts to move, re-
lease the parking brake and depress
the accelerator pedal to start off.
—Downhill
1. Hold down the brake pedal and shift the selector lever to the “S” position.
Make sure by using the gear position
indicator that the gear is in 1st.
2. Release the brake pedal, and depress the accelerator pedal slowly. Even
though the accelerator pedal is not de-
pressed, when the vehicle speed in-
creases, the clutch will be engaged
and the engine brake will be applied.
CAUTION
Unlike automatic transmission mod-
els, the sequential manual transmis-
sion models will not creep.
NOTICE
Do not hold the vehicle on an uphill
with the accelerator pedal applied.
Doing so may damage the clutch. Al-
ways use the brake pedal or parking
brake.
