towing TOYOTA MR2 SPYDER 2002 W30 / 3.G Owners Manual

02 MY MR2 SMT(U) L/O 0108
132
01 06 12
2002 MR2 (OM17493U)
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occur, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or remains on.
The light comes on while you are driv-
ing.
A warning light fuming on briefly during
operation does not indicate a problem.

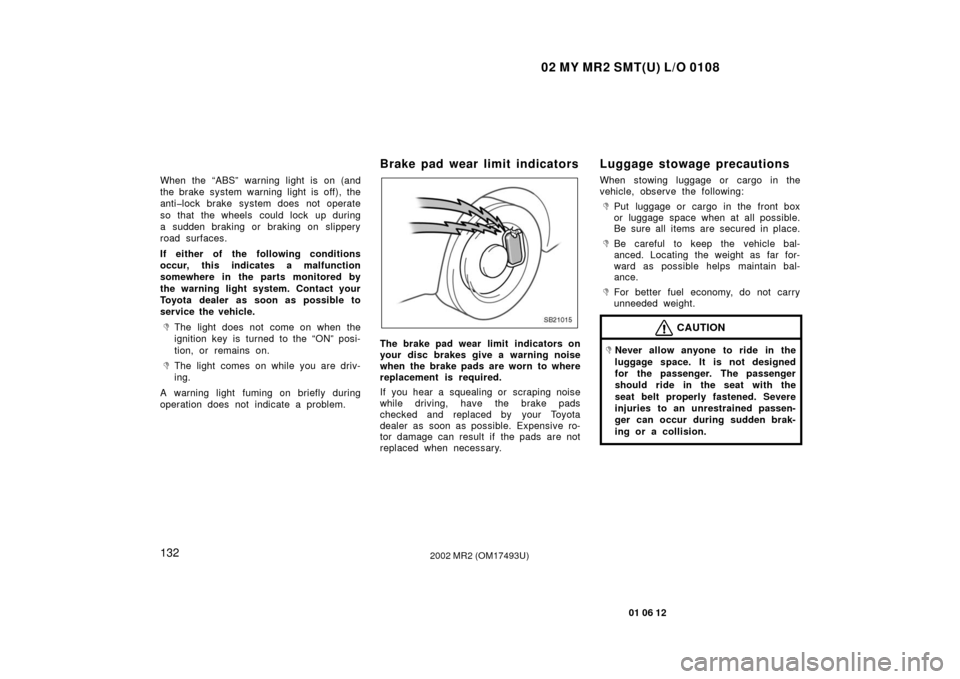

Brake pad wear limit indicators
SB21015
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary.
Luggage stowage pr ecautions
When stowing luggage or cargo in the
vehicle, observe the following:
Put luggage or cargo in the front box
or luggage space when at all possible.
Be sure all items are secured in place.
Be careful to keep the vehicle bal-
anced. Locating the weight as far for-
ward as possible helps maintain bal-
ance.
For better fuel economy, do not carry
unneeded weight.
CAUTION
Never allow anyone to ride in the
luggage space. It is not designed
for the passenger. The passenger
should ride in the seat with the
seat belt properly fastened. Severe
injuries to an unrestrained passen-
ger can occur during sudden brak-
ing or a collision.

02 MY MR2 SMT(U) L/O 0108
137
01 06 12
2002 MR2 (OM17493U)
STARTING AND DRIVING
Before starting the engine138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Tips for driving in various conditions 139
. . . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Dinghy towing 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trailer towing 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
How to save fuel and make your vehicle last longer, too 142
. . . . . . . . .
SECTION 3

02 MY MR2 SMT(U) L/O 0108
141
01 06 12
2002 MR2 (OM17493U)
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“S(1)” or “R” (sequential manual transmis-
sion) or into first or reverse (manual
transmission) and block the front wheels.
Do not use the parking brake, or snow or
water accumulated in and around the
parking brake mechanism may freeze,
making it hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.

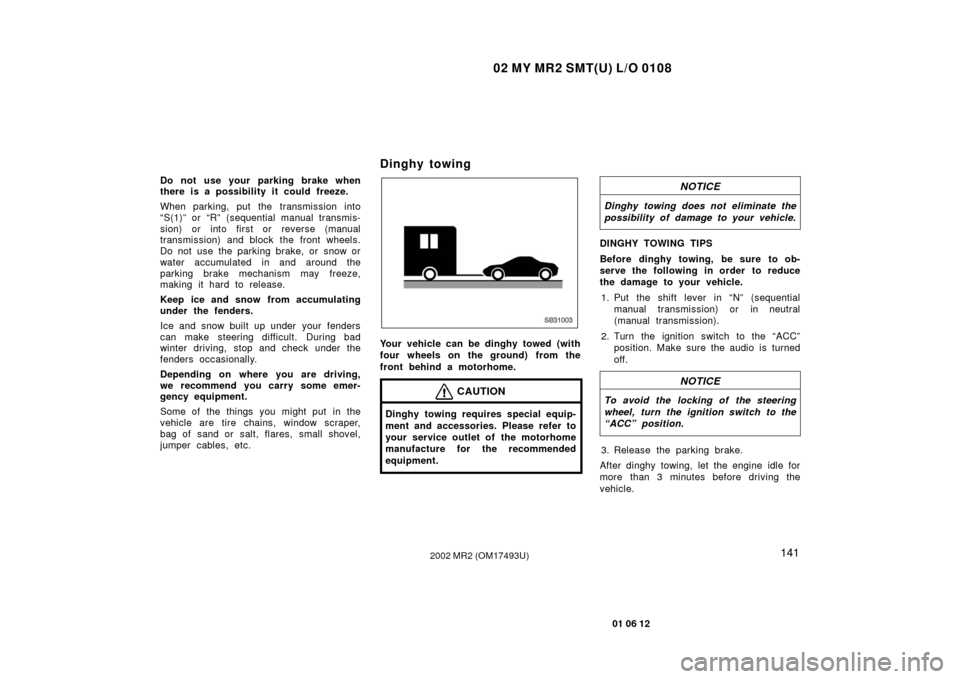

Dinghy towing
SB31003
Your vehicle can be dinghy towed (with
four wheels on the ground) from the
front behind a motorhome.
CAUTION
Dinghy towing requires special equip-
ment and accessories. Please refer to
your service outlet of the motorhome
manufacture for the recommended
equipment.
NOTICE
Dinghy towing does not eliminate the
possibility of damage to your vehicle.
DINGHY TOWING TIPS
Before dinghy towing, be sure to ob-
serve the following in order to reduce
the damage to your vehicle.1. Put the shift lever in “N” (sequential manual transmission) or in neutral
(manual transmission).
2. Turn the ignition switch to the “ACC” position. Make sure the audio is turned
off.
NOTICE
To avoid the locking of the steering
wheel, turn the ignition switch to the
“ACC” position.
3. Release the parking brake.
After dinghy towing, let the engine idle for
more than 3 minutes before driving the
vehicle.

02 MY MR2 SMT(U) L/O 0108
142
01 06 12
2002 MR2 (OM17493U)

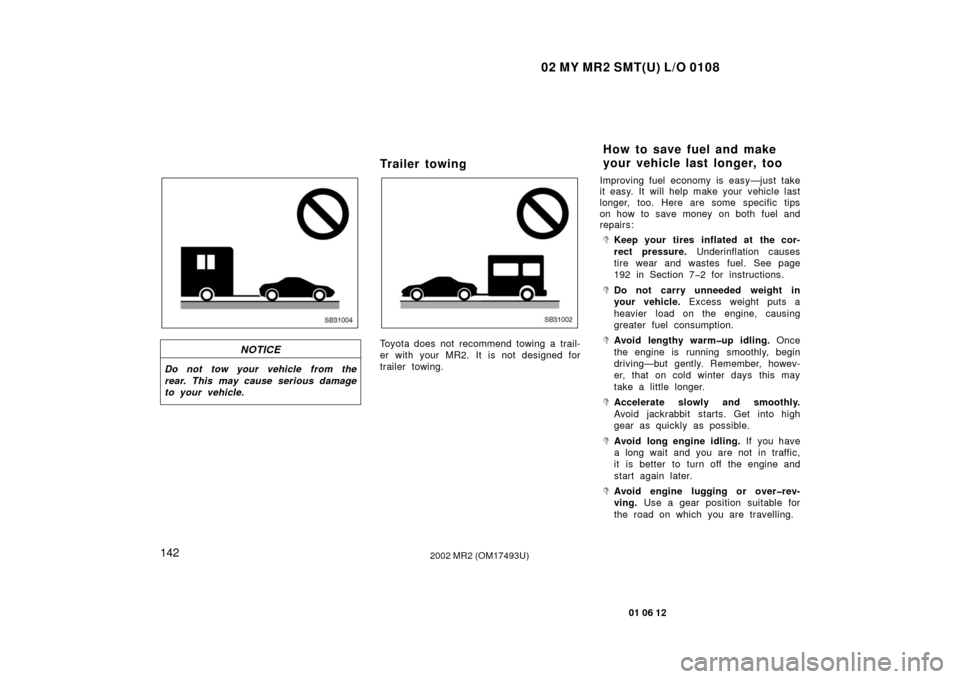

SB31004
NOTICE
Do not tow your vehicle from the
rear. This may cause serious damage
to your vehicle.
Trailer towing
SB31002
Toyota does not recommend towing a trail-
er with your MR2. It is not designed for
trailer towing.Improving fuel economy is easy—just take
it easy. It will help make your vehicle last
longer, too. Here are some specific tips
on how to save money on both fuel and
repairs:
Keep your tires inflated at the cor-
rect pressure.
Underinflation causes
tire wear and wastes fuel. See page
192 in Section 72 for instructions.
Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the engine, causing
greater fuel consumption.
Avoid lengthy warmup idling. Once
the engine is running smoothly, begin
driving—but gently. Remember, howev-
er, that on cold winter days this may
take a little longer.
Accelerate slowly and smoothly.
Avoid jackrabbit starts. Get into high
gear as quickly as possible.
Avoid long engine idling. If you have
a long wait and you are not in traffic,
it is better to turn off the engine and
start again later.
Avoid engine lugging or overrev-
ving. Use a gear position suitable for
the road on which you are travelling.
How to save fuel and make
your vehicle last longer, too

02 MY MR2 SMT(U) L/O 0108
147
01 06 12
2002 MR2 (OM17493U)
(c) Jump starting
To avoid serious personal injury and
damage to your vehicle which might re-
sult from battery explosion, acid burns,
electrical burns, or damaged electronic
components, these instructions must be
followed precisely.
If you are unsure about how to follow this
procedure, we strongly recommend that
you seek the help of a competent me-
chanic or towing service.
CAUTION
Batteries contain sulfuric acid
which is poisonous and corrosive.
Wear protective safety glasses when
jump starting, and avoid spilling
acid on your skin, clothing, or ve-
hicle.
If you should accidentally get acid
on yourself or in your eyes, remove
any contaminated clothing and flush
the affected area with water imme-
diately. Then get immediate medical
attention. If possible, continue to
apply water with a sponge or cloth
while en route to the medical office.
The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and do
not smoke or light a match while
jump starting.
Warning: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to
the State of California to cause can-
cer and reproductive harm. Wash
hands after handling.
NOTICE
The battery used for boosting must
be 12 V. Do not jump start unless you
are sure that the booster battery is
correct.
JUMP STARTING PROCEDURE 1. If the booster battery is installed in another vehicle, make sure the vehicles
are not touching. Turn off all unneces-
sary lights and accessories.
2. If required, remove all the vent plugs from the booster and discharged batter-
ies. Lay a cloth over the open vents
on the batteries. (This helps reduce the
explosion hazard, personal injuries and
burns.)
3. If the engine in the vehicle with the booster battery is not running, start it
and let it run for a few minutes. During
jump starting, run the engine at about
2000 rpm with the accelerator pedal
lightly depressed.

02 MY MR2 SMT(U) L/O 0108
159
01 06 12
2002 MR2 (OM17493U)
CAUTION
Before driving, make sure all the
tools, jack and flat tire are securely
in place in their storage location to
reduce the possibility of personal in-
jury during a collision or sudden
braking.
SB41025
Remove the wheel ornament from the flat
tire before restowing the flat tire.
SB41037
NOTICE
The size of the front wheel and the
rear wheel is different. In order to
prevent the wrong installation, there
is a pin on the assembly surface in-
side the rear wheel as shown above.
Therefore, the rear wheels cannot be
installed on the front.

02 MY MR2 SMT(U) L/O 0108
160
01 06 12
2002 MR2 (OM17493U)
SB41062
—From rear
(b) Using flat bed truck (a) Towing with wheel lift type truck— —From front
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency
towing” on page 161 in this section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly. (a) Towing with wheel lift type truck
From front—
We recommend using a tow-
ing dolly under the rear wheels. If you do
not use a towing dolly, release the parking
brake and put the transmission in “N” (se-
quential manual transmission) or in neutral
(manual transmission). The key must be
in “ACC” (sequential manual transmission).
Sequential manual transmission only:
After shifting the selector lever to the “N”
position, always make sure that the gear
is actually disengaged and is in neutral by
pushing the vehicle by hand or other
means. In case the gear can not be put
in neutral, turn the ignition switch from the
“OFF” to “ON” position, and operate the
selector lever once from “N” to “S” or “R”,
then back to “N” again. Then turn the
ignition switch from the “ON” to “OFF”
position. These procedures may help put
the gear in neutral. If the gear still can
not be put in neutral, you can not tow
without a towing dolly.
From rear— Place the ignition key in the
“ACC” position.
If your vehicle needs to be
towed—

02 MY MR2 SMT(U) L/O 0108
161
01 06 12
2002 MR2 (OM17493U)
CAUTION
Do not tow without a towing dolly
when the ignition switch is in the
“ON” position and/or when the trans-
mission is not in the neutral gear
position. Otherwise, you may be in-
volved in an unexpected accident.
NOTICE
When lifting wheels, take care to
ensure adequate ground clearance
for towing at the opposite end of
the raised vehicle. Otherwise, the
bumper and/or underbody of the
towed vehicle will be damaged dur-
ing towing.
 Do not tow with the key removed or
in the “LOCK” position, as the
steering lock mechanism is not
strong enough to hold the front
wheels straight while towing.
(b) Using flat bed truck
SB41057

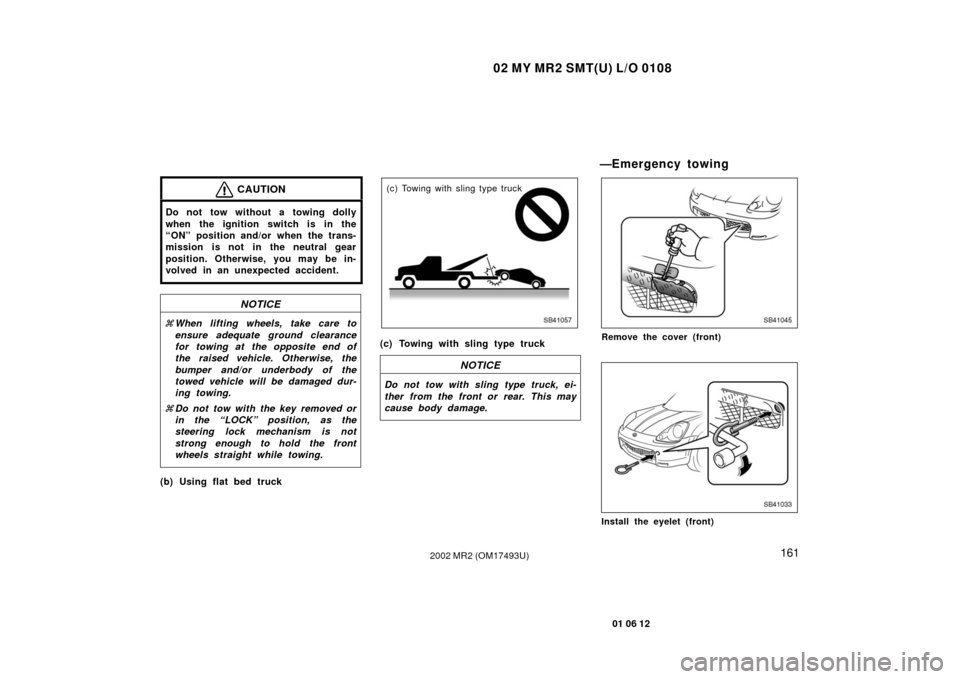

(c) Towing with sling type truck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
—Emergency towing
SB41045
Remove the cover (front)
SB41033
Install the eyelet (front)

02 MY MR2 SMT(U) L/O 0108
162
01 06 12
2002 MR2 (OM17493U)

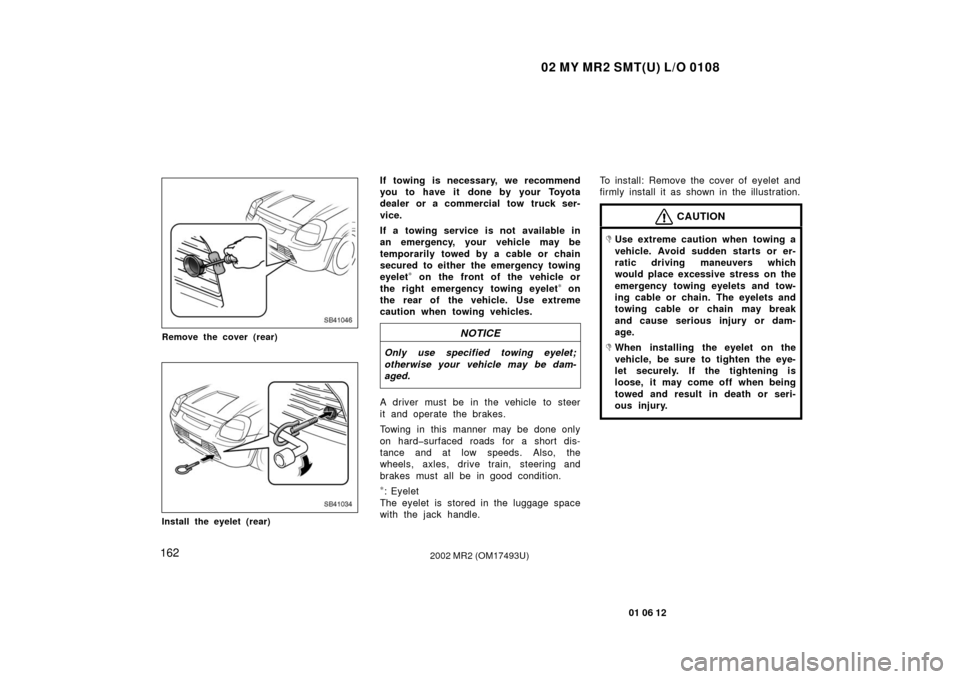

SB41046
Remove the cover (rear)
SB41034
Install the eyelet (rear)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If a towing service is not available in
an emergency, your vehicle may be
temporarily towed by a cable or chain
secured to either the emergency towing
eyelet
∗ on the front of the vehicle or
the right emergency towing eyelet∗ on
the rear of the vehicle. Use extreme
caution when towing vehicles.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hardsurfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
∗: Eyelet
The eyelet is stored in the luggage space
with the jack handle. To install: Remove the cover of eyelet and
firmly install it as shown in the illustration.
CAUTION
Use extreme caution when towing a
vehicle. Avoid sudden starts or er-
ratic driving maneuvers which
would place excessive stress on the
emergency towing eyelets and tow-
ing cable or chain. The eyelets and
towing cable or chain may break
and cause serious injury or dam-
age.
When installing the eyelet on the
vehicle, be sure to tighten the eye-
let securely. If the tightening is
loose, it may come off when being
towed and result in death or seri-
ous injury.

02 MY MR2 SMT(U) L/O 0108
163
01 06 12
2002 MR2 (OM17493U)
NOTICE
Use only a cable or chain specifi-
cally intended for use in towing ve-
hicles. Securely fasten the cable or
chain to the towing eyelets pro-
vided.
 Do not use the left rear eyelet. It is
not designed for towing.
Before towing, release the parking brake
and put the transmission in “N” (sequential
manual transmission) or in neutral (manual
transmission).
Sequential manual transmission: The
key must be in “ACC”.
Manual transmission: The key must be
in “ACC” (engine off) or “ON” (engine run-
ning).
Sequential manual transmission only:
After shifting the selector lever to the “N”
position, always make sure that the gear
is actually disengaged and is in neutral by
pushing the vehicle by hand or other
means. In case the gear can not be put
in neutral, turn the ignition switch from the
“OFF” to “ON” position, and operate the
selector lever once from “N” to “S” or “R”,
then back to “N” again. Then turn the
ignition switch from the ”ON” to “OFF”
position. These procedures may help put
the gear in neutral. If the gear still can
not be put in neutral, you can not tow
with cables or chains.CAUTION
If the engine is not running, the
power assist for the brakes and
steering will not work so steering
and braking will be much harder
than usual.
Do not tow with a cable or chain
when the ignition switch is in the
“ON” position and/or when the
transmission is not in the neutral
gear position. Otherwise, you may
be involved in an unexpected acci-
dent.
