TOYOTA MR2 SPYDER 2003 W30 / 3.G Owners Manual

2422003 MR2 from Aug. ’03 Prod. (OM17511U)
Tires
Tire size and cold tire inflation pressure:
Except spare tire
Ti r e siz eTi r e inf lat ion pr es s ur e
kPa (kgf/cm2 or bar, psi)Wheel size
Front185/55R15 81V180 (1.8, 26)15 6JJ
Rear215/45R16 86W220 (2.2, 32)16 7JJ
Spare tire
Ti r e siz e
Tire inflation pressure kPa (kgf/cm2 or bar, psi)Wheel size
185/55R15 81V180 (1.8, 26)156JJ
Wheel nut torque, N·m (kgf·m, ft·Ibf):
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pres- sure” through “Aluminum wheel precautions”, page 211 through 219 in Section 72.
03 07.07

2432003 MR2 from Aug. ’03 Prod. (OM17511U)
Fuses
SB73067
Trunk room
Fuses (type A)1. 30 A: Spare fuse
2. 15 A: Spare fuse
3. 20 A: Spare fuse
4. RDI FAN 30 A: Electric cooling fans
5. ABS1 30 A: Antilock brake system
6. CDS FAN 30 A: Electric cooling fans
7. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
8. HEAD RH UPR 10 A: Righthand
headlight (high beam)
9. WASHER 10 A: Windshield wiper and
washer
SB73025a
Trunk room
10. HTR 10 A: Air conditioning system
11. WIPER 20 A: Windshield wiper and
washer
12. ECUIG 7.5 A: Power Steering system,
antilock brake system
13. FANIG 7.5 A: Electric cooling fans
14. TURN 7.5 A: Turn signal lights, emer-
gency flashers
15. GAUGE 7.5 A: Power window system,
gauges and meters, backup lights,
charging system, rear window defogger
system
16. SRS 7.5 A: SRS airbag system
SB73026b
Instrument panel
17. DEF 25 A: Rear window defogger sys-
tem
18. OBD 7.5 A: Onboard diagnosis sys-
tem
19. AM1 7.5 A: “GAUGE” “ACC” “TURN”
“ECUIG” “WIPER” “WASHER” “SRS”
“HTR 10A” “FANIG” fuses
20. ACC 25 A: “RADIO2” “CIG” fuses
21. DOOR 15 A: Power door lock system
22. FR FOG 15A: Front fog light
23. STOP 15 A: Stop lights, high mounted
stop light, sequential manual transmis-
sion system
03 07.07

2442003 MR2 from Aug. ’03 Prod. (OM17511U)

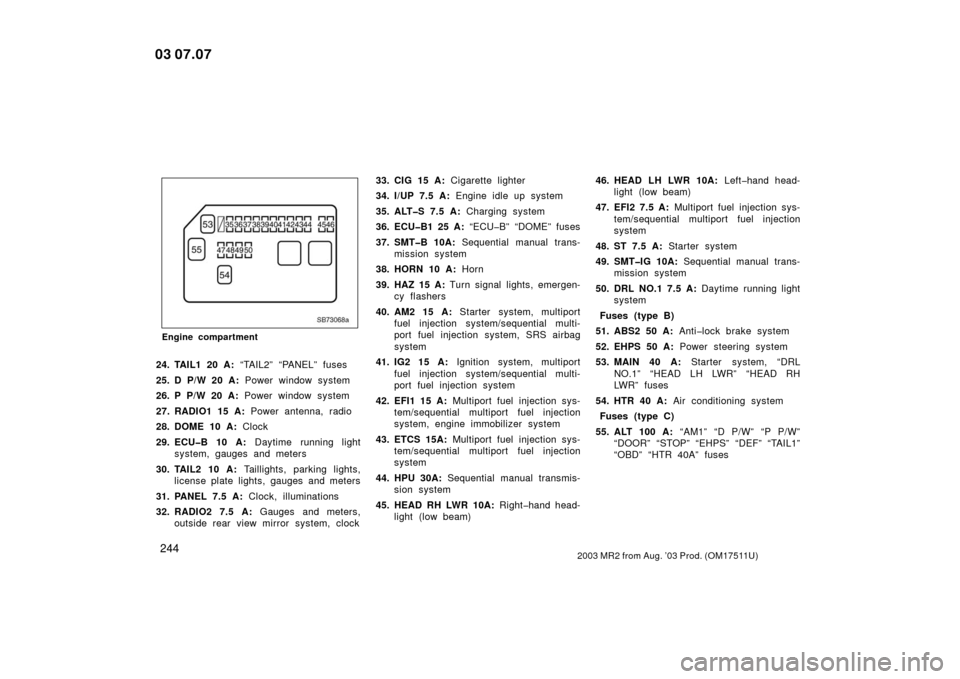

SB73068a
Engine compartment
24. TAIL1 20 A: “TAIL2” “PANEL” fuses
25. D P/W 20 A: Power window system
26. P P/W 20 A: Power window system
27. RADIO1 15 A: Power antenna, radio
28. DOME 10 A: Clock
29. ECUB 10 A: Daytime running light
system, g auges and meters
30. TAIL2 10 A: Taillights, parking lights,
license plate lights, gauges and meters
31. PANEL 7.5 A: Clock, illuminations
32. RADIO2 7.5 A: Gauges and meters,
outside rear view mirror system, clock 33. CIG 15 A:
Cigarette lighter
34. I/UP 7.5 A: Engine idle up system
35. ALTS 7.5 A: Charging system
36. ECUB1 25 A: “ECUB” “DOME” fuses
37. SMTB 10A: Sequential manual trans-
mission system
38. HORN 10 A: Horn
39. HAZ 15 A: Turn signal lights, emergen-
cy flashers
40. AM2 15 A: Starter system, multiport
fuel injection system/sequential multi-
port fuel injection system, SRS airbag
system
41. IG2 15 A: Ignition system, multiport
fuel injection system/sequential multi-
port fuel injection system
42. EFI1 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, engine immobilizer system
43. ETCS 15A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
44. HPU 30A: Sequential manual transmis-
sion system
45. HEAD RH LWR 10A: Righthand head-
light (low beam) 46. HEAD LH LWR 10A:
Lefthand head-
light (low beam)
47. EFI2 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
48. ST 7.5 A: Starter system
49. SMTIG 10A: Sequential manual trans-
mission system
50. DRL NO.1 7.5 A: Daytime running light
system
Fuses (type B)
51. ABS2 50 A: Antilock brake system
52. EHPS 50 A: Power steering system
53. MAIN 40 A: Starter system, “DRL
NO.1” “HEAD LH LWR” “HEAD RH
LW R ” f u s e s
54. HTR 40 A: Air conditioning system
Fuses (type C)
55. ALT 100 A: “AM1” “D P/W” “P P/W”
“DOOR” “STOP” “EHPS” “DEF” “TAIL1”
“OBD” “HTR 40A” fuses
03 07.07

2452003 MR2 from Aug. ’03 Prod. (OM17511U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owners246
. . . . . . . . . . . . . . . . . . . . . .
03 07.07
SECTION 9

2462003 MR2 from Aug. ’03 Prod. (OM17511U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Tollfree: 18003314331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
tollfree at 18004249393 (or
3660123 in Washington, D.C.
area) or write to: NHTSA, U.S.
Department of Transportation,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hot-
line.
03 07.07
Reporting safety defects for
U.S. owners

2472003 MR2 from Aug. ’03 Prod. (OM17511U)
INDEX
Index
03 07.07
SECTION 10

2482003 MR2 from Aug. ’03 Prod. (OM17511U)
A
Adding washer fluid225
. . . . . . . . . . . . . . . .
Adjustment
Seats 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belt 31
. . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning system 113
. . . . . . . . . . . . .
Airbags 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions 219 . . . . . . . .
Antiglare inside rear view mirror 66 . . . . .
Antilock brake system warning light 77
. . . . . . . . . . . . . . . . . . . . . .
Antitheft steering column lock 84 . . . . . . .
Appearance care Cleaning the interior 188
. . . . . . . . . . . . . .
Protecting your Toyota from
corrosion 184
. . . . . . . . . . . . . . . . . . . . . .
Washing and waxing 185
. . . . . . . . . . . . . .
Auxiliary box 124
. . . . . . . . . . . . . . . . . . . . . .
Auxiliary catch, Trunk lid 15
. . . . . . . . . . . . .
B
Battery
Checking battery condition 222 . . . . . . . .
Gas caution 222 . . . . . . . . . . . . . . . . . . . . .
Handling safety 222 . . . . . . . . . . . . . . . . . .
Recharging precautions 223 . . . . . . . . . . .
Winter driving tips 156 . . . . . . . . . . . . . . . .
Before starting the engine 154 . . . . . . . . . . .
Brake pad wear limit indicators 138 . . . . . .
Brake system 135 . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 77 . . . . . . . . . . Brakes
Fluid level 209 . . . . . . . . . . . . . . . . . . . . . . .
Pad wear limit indicators 138 . . . . . . . . . .
Parking 97 . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakin tips 130 . . . . . . . . . . . . . . . . . . . . . .
Brightness control 70 . . . . . . . . . . . . . . . . . . .
C
Car audio system 101
. . . . . . . . . . . . . . . . . .
Carbon monoxide caution 133
. . . . . . . . . . .
Cargo and luggage Capacity 149
. . . . . . . . . . . . . . . . . . . . . . . .
Distribution 150
. . . . . . . . . . . . . . . . . . . . . .
Stowage precautions 149
. . . . . . . . . . . . .
Cassette player 102
. . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 224 . . . . . . . .
Checking and replacing tires 213 . . . . . . . .
Checking brake fluid 209
. . . . . . . . . . . . . . . .
Checking the engine oil level 206 . . . . . . . .
Checking power steering fluid 210 . . . . . . .
Child restraint Child restraint system 47
. . . . . . . . . . . . .
Installation with seat belt 49
. . . . . . . . . . .
Precautions 46
. . . . . . . . . . . . . . . . . . . . . .
Types of child restraint system 48 . . . . . .
Cigarette lighter and ashtray 122
. . . . . . . . .
Cleaning the interior 188
. . . . . . . . . . . . . . . .
Clock 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cold weather operation 156
. . . . . . . . . . . . .
Compact disc player 102
. . . . . . . . . . . . . . . .
Cooling system Coolant level 208
. . . . . . . . . . . . . . . . . . . . Engine overheating
166
. . . . . . . . . . . . . . .
Radiator and condenser 209
. . . . . . . . . . .
Radiator and reservoir 208
. . . . . . . . . . . .
Radiator cap 166
. . . . . . . . . . . . . . . . . . . . .
Winter driving tips 156
. . . . . . . . . . . . . . . .
Corrosion prevention 184
. . . . . . . . . . . . . . .
Cruise control 98
. . . . . . . . . . . . . . . . . . . . . .
Cup holders 127
. . . . . . . . . . . . . . . . . . . . . . . D
Defogger, Rear window 71
. . . . . . . . . . . . . .
Dimensions and weight 238
. . . . . . . . . . . . .
Dimmer switch, Headlight 68
. . . . . . . . . . . .
Dinghy towing 157
. . . . . . . . . . . . . . . . . . . . .
Directional signals 68
. . . . . . . . . . . . . . . . . .
Discharge warning light 77
. . . . . . . . . . . . . .
Doityourself maintenance
Parts and tools 203
. . . . . . . . . . . . . . . . . . .
Service precautions 201
. . . . . . . . . . . . . .
Does your vehicle need
repairing? 195
. . . . . . . . . . . . . . . . . . . . . . .
Driver ’s seat belt light 77
. . . . . . . . . . . . . . .
Driver ’s seat belt reminder buzzer 77 . . . . .
Driving Driving tips 155,156
. . . . . . . . . . . . . . . . . .
Manual transmission 96
. . . . . . . . . . . . . .
Sequential manual transmission 85 . . . .
Driving tips Driving tips in various
conditions 155
. . . . . . . . . . . . . . . . . . . . .
Driving with a manual transmission 96
. . . . . . . . . . . . . . . . . . . .
03 07.07

2492003 MR2 from Aug. ’03 Prod. (OM17511U)
Economical driving158
. . . . . . . . . . . . . . .
Good driving practice 96
. . . . . . . . . . . . . .
Winter driving tips 156
. . . . . . . . . . . . . . . .
During
Breakin 130
. . . . . . . . . . . . . . . . . . . . . . . .
E
Economical driving
Saving money on both fuel
and repairs 158 . . . . . . . . . . . . . . . . . . . .
Electrical system Battery 222,223 . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 200 . . . . . . . . . . . . . . . . . . .
Fuses 224 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 69 . . . . . . . . . . . .
Emergency, In case of Blown fuse 224 . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 69 . . . . . . . . . .
Flat tire 167 . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase the
engine speed 166 . . . . . . . . . . . . . . . . . .
If you cannot shift the sequential manual transmission
selector lever 181 . . . . . . . . . . . . . . . . . .
If you lose your keys 182 . . . . . . . . . . . . . .
If your engine stalls
while driving 165 . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 177 . . . . . . . . . . . . . . . . . . . .
If your vehicle will not start 162 . . . . . . . .
Jump starting 163 . . . . . . . . . . . . . . . . . . . .
Overheating 166 . . . . . . . . . . . . . . . . . . . . . Towing 177
. . . . . . . . . . . . . . . . . . . . . . . . . .
Emissions Inspection and Maintenance (I/M) programs 195 . . . . . . .
Engine
Before starting the engine 154 . . . . . . . . .
Checking the coolant level 208 . . . . . . . .
Emission control device 132 . . . . . . . . . . .
Engine compartment 198 . . . . . . . . . . . . . .
Exhaust gas caution 133 . . . . . . . . . . . . . .
Hood release 16 . . . . . . . . . . . . . . . . . . . . .
Identification Number 139 . . . . . . . . . . . . . . . . . . . . . . .
Oil consumption 134 . . . . . . . . . . . . . . . . . .
Oil level 206 . . . . . . . . . . . . . . . . . . . . . . . . .
Overheating 166 . . . . . . . . . . . . . . . . . . . . .
Starting procedure 154 . . . . . . . . . . . . . . .
Threeway catalytic converter 132 . . . . .
Engine coolant Temperature gauge 74 . . . . . . . . . . . . . . . .
Winter driving tips 156 . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 74 . . . .
Engine immobilizer system 10 . . . . . . . . . . .
Engine oil Winter driving tips 156 . . . . . . . . . . . . . . . .
Exhaust gas cautions 133 . . . . . . . . . . . . . . .
F
Facts about engine oil
consumption 134 . . . . . . . . . . . . . . . . . . . . .
Flasher, Headlight 68 . . . . . . . . . . . . . . . . . . .
Flat tire After changing wheels 175 . . . . . . . . . . . . Changing tire 173
. . . . . . . . . . . . . . . . . . . .
If you have a flat tire 167 . . . . . . . . . . . . . .
Jack point 172 . . . . . . . . . . . . . . . . . . . . . . .
Jacking precautions 167 . . . . . . . . . . . . . .
Jacking up 172 . . . . . . . . . . . . . . . . . . . . . .
Loosening wheel nuts 171 . . . . . . . . . . . . .
Lowering vehicle 174 . . . . . . . . . . . . . . . . .
Wheel block 171 . . . . . . . . . . . . . . . . . . . . .
Wheel nuts 173 . . . . . . . . . . . . . . . . . . . . . .
Floor mat 128 . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid level Brake 209 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power steering 210 . . . . . . . . . . . . . . . . . . .
Washer fluid 225 . . . . . . . . . . . . . . . . . . . . .
Foreign countries, Operation in 132 . . . . . .
Front box 123 . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog light switch 70 . . . . . . . . . . . . . . . .
Fuel Filler door o pener 18. . . . . . . . . . . . . . . . .
Fuel economy 158 . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 132 . . . . . . . . .
Gauge 74 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 132 . . . . .
Tank cap 18 . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel information 130 . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 132 . . . . . . . . . .
Fuses Fuse box 199 . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 200 . . . . . . . . . . . . . . . . . . . . .
03 07.07

2502003 MR2 from Aug. ’03 Prod. (OM17511U)
G
GaugeEngine temperature 74 . . . . . . . . . . . . . . .
Fuel 74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 193 . . . . . . . . . . . . . . .
Glove box 123 . . . . . . . . . . . . . . . . . . . . . . . . .
Good driving practice Manual transmission 96 . . . . . . . . . . . . . .
H
Hazard switch 69
. . . . . . . . . . . . . . . . . . . . . .
Headlight switch 68
. . . . . . . . . . . . . . . . . . . .
High speed operation
During breakin 130
. . . . . . . . . . . . . . . . . .
Hood release, Engine 16
. . . . . . . . . . . . . . . .
How to start the engine 154
. . . . . . . . . . . . .
I
Identification
Engine 139 . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle 139 . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 84 . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 5 . . . . . . . . . . . . . . . . . . . .
Instrument panel Cigarette lighter and ashtray 122 . . . . . . .
Clock 122 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 5 . . . . . . . . . . . . . . . . . .
Odometer 75 . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 75 . . . . . . . . . . . . . . . . . . . . . . .
Trip meter 75 . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 70 . . . . . . . . . Instrument panel overview 2
. . . . . . . . . . . .
Interior light 70 . . . . . . . . . . . . . . . . . . . . . . . .
Iridiumtipped spark plugs 135 . . . . . . . . . .
J
Jack
Location 169 . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 204 . . . . . . . . . . . . . . .
Jump starting 163 . . . . . . . . . . . . . . . . . . . . . .
K
Key reminder buzzer 82
. . . . . . . . . . . . . . . .
Keys 8,182
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
L
Light bulbs
Backup lights 232 . . . . . . . . . . . . . . . . . . .
Front fog lights 230 . . . . . . . . . . . . . . . . . . .
Front turn signal lights 231 . . . . . . . . . . . .
Front side marker lights 231 . . . . . . . . . . .
Headlights 228 . . . . . . . . . . . . . . . . . . . . . . .
License plate lights 233 . . . . . . . . . . . . . . .
Parking lights 231 . . . . . . . . . . . . . . . . . . . .
Rear turn signal lights 232 . . . . . . . . . . . .
Rear turn signal, stop/tail, stop and backup lights 232 . . . . . . . . .
Light, Interior Interior light 70 . . . . . . . . . . . . . . . . . . . . . .
Light bulbs, replacing 226 . . . . . . . . . . . . . . .
Light reminder buzzer 77 . . . . . . . . . . . . . . .
Limitedslip differential 138 . . . . . . . . . . . . . Load limits 149
. . . . . . . . . . . . . . . . . . . . . . . .
Lock Side doors 11 . . . . . . . . . . . . . . . . . . . . . . . .
Steering column 84 . . . . . . . . . . . . . . . . . . .
Low fuel level warning light 77 . . . . . . . . . . .
Low engine oil pressure warning light 77 . . . . . . . . . . . . . . . . . . . . . .
Luggage space 125 . . . . . . . . . . . . . . . . . . . .
M
Maintenance
Doityourself maintenance 201 . . . . . . .
Does your vehicle need repairing? 195 . . . . . . . . . . . . . . . .
General maintenance 193 . . . . . . . . . . . . .
Maintenance requirements 192 . . . . . . . .
Parts and tools 203 . . . . . . . . . . . . . . . . . . .
Where to go for service 192 . . . . . . . . . . .
Malfunction indicator lamp 77 . . . . . . . . . . .
Manual transmission
Driving with amanual transmission 96 . . . . . . . . . . . . .
Shift pattern 96 . . . . . . . . . . . . . . . . . . . . . .
Shifting speed 96 . . . . . . . . . . . . . . . . . . . .
Maximum allowable speed Manual transmission 96 . . . . . . . . . . . . . .
Sequential manual transmission 85 . . . .
Mirror Antiglare inside rear view 66 . . . . . . . . .
03 07.07

2512003 MR2 from Aug. ’03 Prod. (OM17511U)
MirrorsFolding rear view 66 . . . . . . . . . . . . . . . . . .
Outside rear view 64 . . . . . . . . . . . . . . . . .
Power rear view 65 . . . . . . . . . . . . . . . . . . .
N
New vehicle breakin 130
. . . . . . . . . . . . . . .
O
Odometer 75
. . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Consumption 134
. . . . . . . . . . . . . . . . . . . .
Power steering 210
. . . . . . . . . . . . . . . . . . .
Viscosity and grade 206,239
. . . . . . . . . .
Oil power steering 210
. . . . . . . . . . . . . . . . . .
Open door warning light 77
. . . . . . . . . . . . . .
Operation in foreign countries 132 . . . . . . .
Overheating, Engine 166
. . . . . . . . . . . . . . . .
Overheating, Engine coolant 74
. . . . . . . . . .
Overview Engine compartment 198
. . . . . . . . . . . . . .
Instrument cluster 4
. . . . . . . . . . . . . . . . . .
Instrument panel 2
. . . . . . . . . . . . . . . . . . .
P
Parking brake
Operation 97 . . . . . . . . . . . . . . . . . . . . . . . .
Reminder light 97 . . . . . . . . . . . . . . . . . . . .
Parking brake reminder light 77 . . . . . . . . . .
Parts and tools 203 . . . . . . . . . . . . . . . . . . . . . Passenger airbag manual
onoff switch 45 . . . . . . . . . . . . . . . . . . . . .
Passenger ’s seat belt reminder light 77 . . . . . . . . . . . . . . . . . . . . .
Polishing 185 . . . . . . . . . . . . . . . . . . . . . . . . . .
Power door lock switch 12 . . . . . . . . . . . . . .
Power rear view mirror control 65 . . . . . . . .
Power steering fluid level 210 . . . . . . . . . . .
Power window switches 13 . . . . . . . . . . . . . .
Power window lock switch 14 . . . . . . . . . . . .
Pretensioners (seat belt pretensioners) 35 . . . . . . . . . . .
Protecting your Toyota
from corrosion 184 . . . . . . . . . . . . . . . . . . .
R
Radiator
Coolant, Engine 208 . . . . . . . . . . . . . . . . . .
Rear view mirror, Antiglare inside 66 . . . . . . . . . . . . . . . . . .
Rear view mirror, Power controlled 65 . . . . . . . . . . . . . . . . . .
Rear view mirrors, Folding 66 . . . . . . . . . . .
Rear view mirrors, Outside 64 . . . . . . . . . . .
Rear window defogger switch 71 . . . . . . . . .
Reporting safety defects
for U.S. owners 246 . . . . . . . . . . . . . . . . . .
S
Seat adjustment precautions
Front seats 28 . . . . . . . . . . . . . . . . . . . . . . .
Seat belt extender 34 . . . . . . . . . . . . . . . . . . . Seat belts
Cleaning 188 . . . . . . . . . . . . . . . . . . . . . . . .
Fastening 31 . . . . . . . . . . . . . . . . . . . . . . . .
Seat belt precautions 31 . . . . . . . . . . . . . .
Seat belt pretensioners 35 . . . . . . . . . . . .
Seating capacity 149 . . . . . . . . . . . . . . . . . . .
Seats 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sequential manual transmission Driving with a sequential manual transmission 85 . . . . . . . . . . .
Shift pattern 85 . . . . . . . . . . . . . . . . . . . . . .
Shifting speed 88 . . . . . . . . . . . . . . . . . . . .
Service and maintenance 192 . . . . . . . . . . .
Service reminder indicators 77 . . . . . . . . . .
Side door locks 11 . . . . . . . . . . . . . . . . . . . . .
Side vents 119 . . . . . . . . . . . . . . . . . . . . . . . . .
Soft top 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spare fuse 224 . . . . . . . . . . . . . . . . . . . . . . . .
Spare tire 169 . . . . . . . . . . . . . . . . . . . . . . . . .
Spark plugs lridiumtipped spark plugs 135 . . . . . . . .
Specifications 237 . . . . . . . . . . . . . . . . . . . . .
SRS driver and passenger airbags 37 . . . . . . . . . . . . . . . .
SRS warning light 77 . . . . . . . . . . . . . . . . . . .
Starting Cold weather 154 . . . . . . . . . . . . . . . . . . . .
Engine 154 . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump starting 163 . . . . . . . . . . . . . . . . . . . .
Steering Column lock 84 . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel 64 . . . . . . . . . . . . . . . . .
Suspension and chassis 140 . . . . . . . . . . . .
03 07.07
