NOTICE
Do not crank for more than 30 sec-
onds at a time. This may overheat the
starter and wiring systems.
(c) Jump starting
To avoid serious personal injury and
damage to your vehicle which might re-
sult from battery explosion, acid burns,
electrical burns, or damaged electronic
components, these instructions must be
followed precisely.
If you are unsure about how to follow this
procedure, we strongly recommend that
you seek the help of a competent me-
chanic or towing service.
CAUTION
Batteries contain sulfuric acid
which is poisonous and corrosive.
Wear protective safety glasses when
jump starting, and avoid spilling
acid on your skin, clothing, or ve-
hicle.
If you should accidentally get acid
on yourself or in your eyes, remove
any contaminated clothing and flush
the affected area with water imme-
diately. Then get immediate medical
attention. If possible, continue to
apply water with a sponge or cloth
while en route to the medical office.
The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and do
not smoke or light a match while
jump starting.
NOTICE
The battery used for boosting must
be 12 V. Do not jump start unless you
are sure that the booster battery is
correct.

1642005 MR2 from Aug. ’04Prod. (OM17527U)
JUMP STARTING PROCEDURE
1. If the booster battery is installed in
another vehicle, make sure the vehicles
are not touching. Turn off all unneces-
sary lights and accessories.
When boosting, use the battery of
matching or higher quality. Any other
battery may be difficult to jump start
with.
If jump starting is difficult, charge the
battery for several minutes.
2. If required, remove all the vent plugs
from the booster and discharged batter-
ies. Lay a cloth over the open vents
on the batteries. (This helps reduce the
explosion hazard, personal injuries and
burns.)
3. If the engine in the vehicle with the
booster battery is not running, start it
and let it run for a few minutes. During
jump starting, run the engine at about
2000 rpm with the accelerator pedal
lightly depressed.

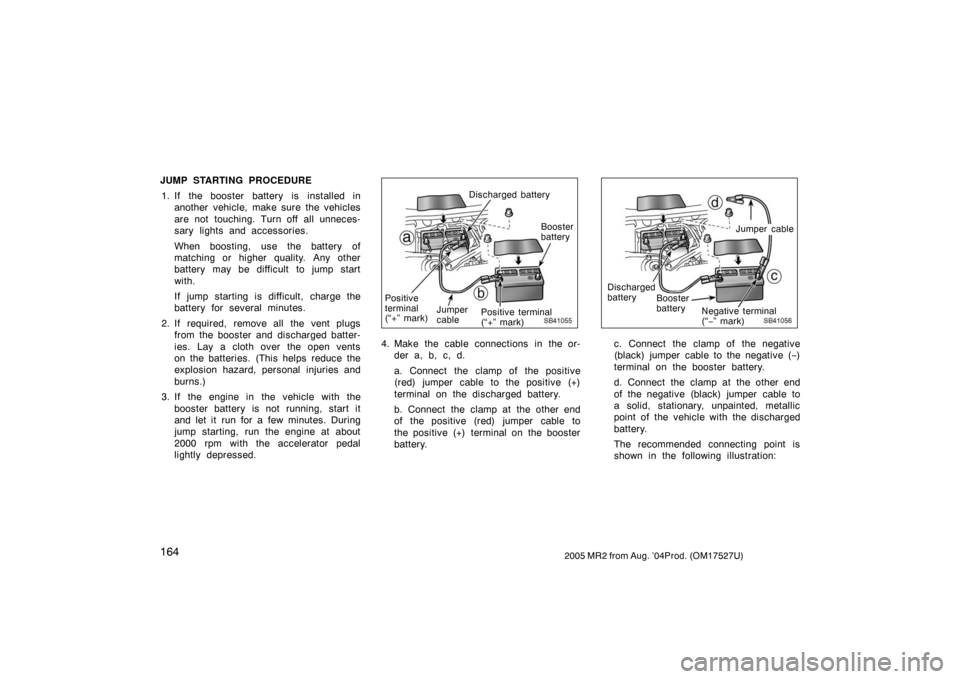

SB41055
Discharged battery
Booster
battery
Positive terminal
(“+” mark) Positive
terminal
(“+” mark)
Jumper
cable
4. Make the cable connections in the or-
der a, b, c, d.
a. Connect the clamp of the positive
(red) jumper cable to the positive (+)
terminal on the discharged battery.
b. Connect the clamp at the other end
of the positive (red) jumper cable to
the positive (+) terminal on the booster
battery.
SB41056
Jumper cable
Booster
battery
Negative terminal
(“−” mark)
Discharged
battery
c. Connect the clamp of the negative
(black) jumper cable to the negative (−)
terminal on the booster battery.
d. Connect the clamp at the other end
of the negative (black) jumper cable to
a solid, stationary, unpainted, metallic
point of the vehicle with the discharged
battery.
The recommended connecting point is
shown in the following illustration:

1652005 MR2 from Aug. ’04Prod. (OM17527U)

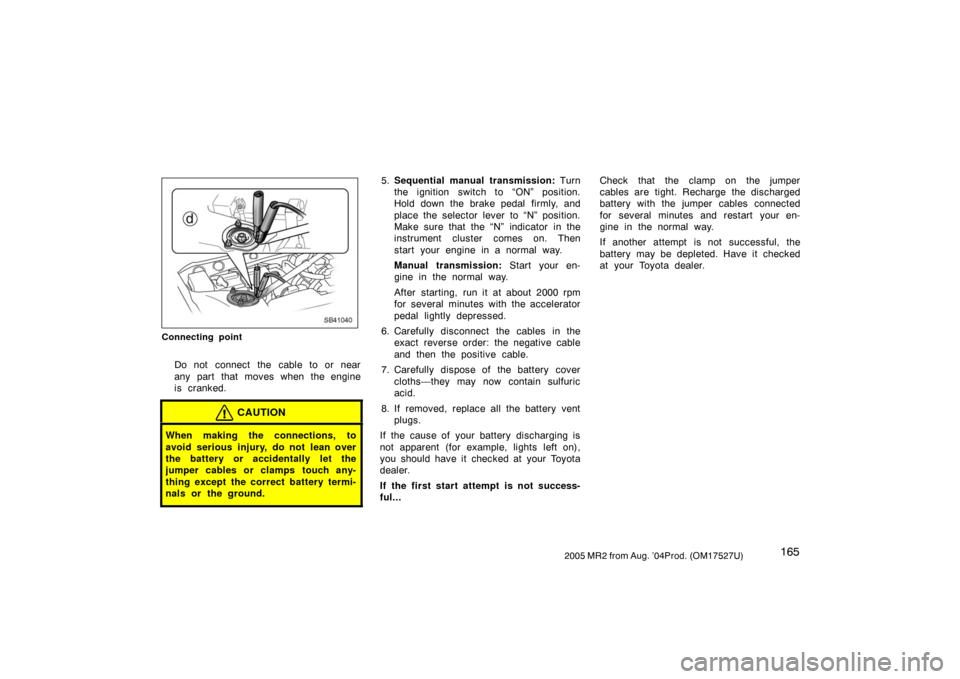

SB41040
Connecting point
Do not connect the cable to or near
any part that moves when the engine
is cranked.
CAUTION
When making the connections, to
avoid serious injury, do not lean over
the battery or accidentally let the
jumper cables or clamps touch any-
thing except the correct battery termi-
nals or the ground.
5.Sequential manual transmission: Turn
the ignition switch to “ON” position.
Hold down the brake pedal firmly, and
place the selector lever to “N” position.
Make sure that the “N” indicator in the
instrument cluster comes on. Then
start your engine in a normal way.
Manual transmission: Start your en-
gine in the normal way.
After starting, run it at about 2000 rpm
for several minutes with the accelerator
pedal lightly depressed.
6. Carefully disconnect the cables in the
exact reverse order: the negative cable
and then the positive cable.
7. Carefully dispose of the battery cover
cloths—they may now contain sulfuric
acid.
8. If removed, replace all the battery vent
plugs.
If the cause of your battery discharging is
not apparent (for example, lights left on),
you should have it checked at your Toyota
dealer.
If the first start attempt is not success-
ful...Check that the clamp on the jumper
cables are tight. Recharge the discharged
battery with the jumper cables connected
for several minutes and restart your en-
gine in the normal way.
If another attempt is not successful, the
battery may be depleted. Have it checked
at your Toyota dealer.

1662005 MR2 from Aug. ’04Prod. (OM17527U)
If your engine stalls while driving...
1. Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3.Sequential manual transmission: Turn
the ignition key to “ACC” or “LOCK”
position. Approximately 5 seconds after,
try starting the engine again.
Manual transmission: Turn the ignition
key to “ACC” or “LOCK”, and try start-
ing the engine again.
If the engine will not start, see “If your
vehicle will not start—” on page 162 in
this Section.
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to ”ACC” or
”LOCK” position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
If your vehicle overheats
If your engine coolant temperature
gauge indicates overheating, if you ex-
perience a loss of power, or if you hear
a loud knocking or pinging noise, the
engine has probably overheated. You
should follow this procedure...
1. Pull safely off the road, stop the ve-
hicle and turn on your emergency
flashers. Put the transmission in “N”
(sequential manual transmission) or in
neutral (manual transmission) and ap-
ply the parking brake. Turn off the air
conditioning if it is being used.
2. If coolant or steam is boiling out of the
radiator or reservoir, stop the engine.
Wait until the steam subsides before
opening the hood. If there is no coolant
boiling over or steam, leave the engine
running and make sure the electric
cooling fan is operating. If it is not,
turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
If your engine stalls while
drivingIf you cannot increase engine
speed

1672005 MR2 from Aug. ’04Prod. (OM17527U)
3. Look for obvious coolant leaks from the
radiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the engine is running, keep
hands and clothing away from the
moving fan and engine drive belts.
4. If the coolant is leaking, stop the en-
gine immediately. Call a Toyota dealer
for assistance.
5. If there are no obvious leaks, check
the coolant reservoir. If it is dry, add
coolant to the reservoir while the en-
gine is running. Fill it about half full.
CAUTION
Do not attempt to remove the coolant
reservoir cap or air release valve
when the engine and radiator are hot.
Serious injury could result from
scalding hot fluid and steam blown
out under pressure.
6. After the engine coolant temperature
has cooled to normal, again check the
coolant level in the reservoir. If neces-
sary, bring it up to half full again. Seri-
ous coolant loss indicates a leak in the
system. You should have it checked as
soon as possible at your Toyota dealer.
If you have a flat tire—
1. Reduce your speed gradually,
keeping a straight line. Move cau-
tiously off the road to a safe place
well away from the traffic. Avoid
stopping on the center divider of
a highway. Park on a level spot
with firm ground.
2. Stop the engine and turn on your
emergency flashers.
3. Firmly engage the parking brake
and put the transmission lever in
“R” (sequential manual transmis-
sion) or in reverse (manual trans-
mission).
4. Have everyone get out of the ve-
hicle on the side away from traffic.
5. Read the following instructions
thoroughly.

1682005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION

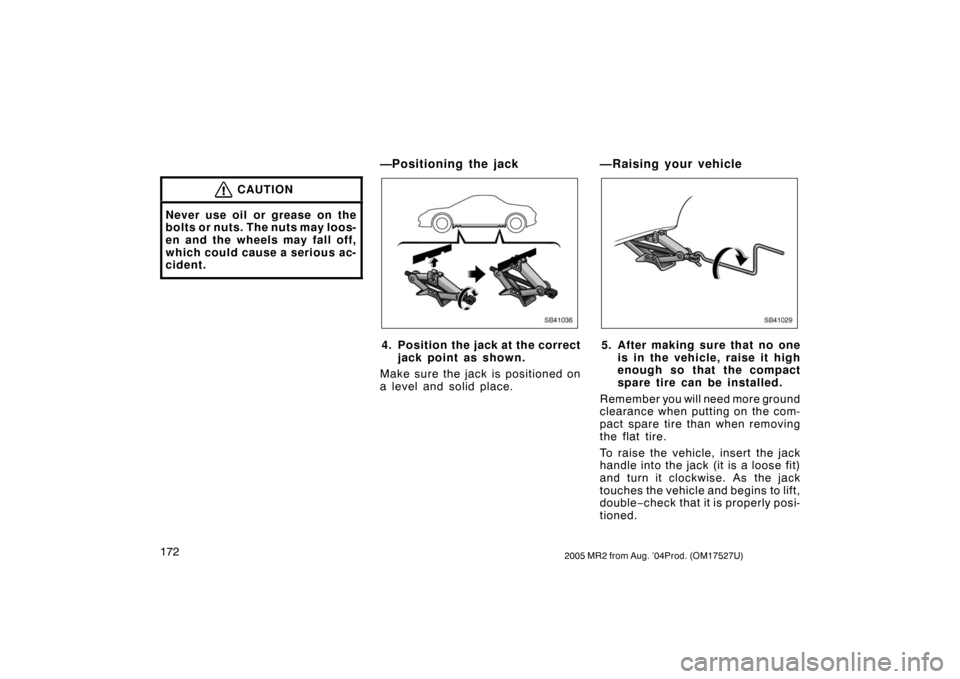

When jacking, be sure to observe
the following to reduce the possi-
bility of personal injury:
Follow jacking instructions.
Do not put any part of your
body under the vehicle sup-
ported by the jack. Personal in-
j u ry may occu r.
Do not start or run the engine
while your vehicle is supported
by the jack.
Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in “R” (sequential manual
transmission) or in reverse
(manual transmission). Block
the wheel diagonally opposite
to the one being changed if
necessary.
Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.
Never get under the vehicle
when the vehicle is supported
by the jack alone.
Use the jack only for lifting
your vehicle during wheel
changing.
Do not raise the vehicle with
someone in the vehicle.
When raising the vehicle, do
not put an object on or under
the jack.
Raise the vehicle only high
enough to remove and change
the tire.NOTICE
Do not continue driving with a
deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.

1692005 MR2 from Aug. ’04Prod. (OM17527U)

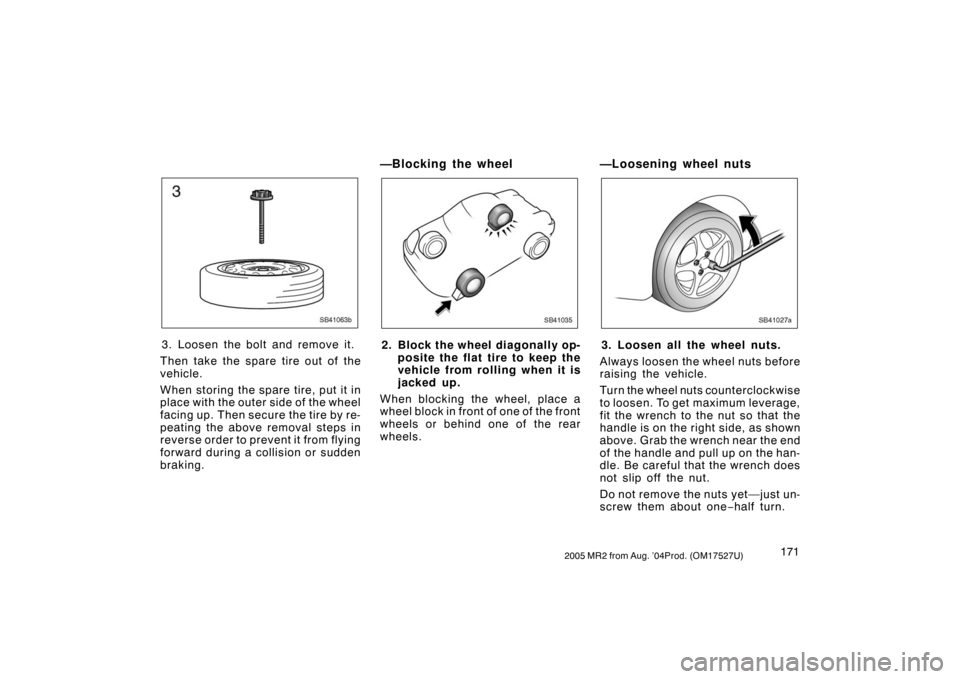

SB41069a
The spare tire with turning direc-
tion indicators is of a unidirec-
tional type and is intended for use
on the passenger side of the ve-
hicle.
This spare tire has the same size and
the same turning direction as the
standard tire of the front passenger
side. However, the spare tire must
only be used temporary because the
wheel differs from the standard tire.
CAUTION
The spare tire was designed
especially for your Toyota. Do
not use it on any other vehicle.
Do not use more than one
spare tire at the same time.
Do not exceed 80 km/h (50
mph) when driving with the
spare tire.
The standard tire should be re-
paired and reinstalled as soon
as possible.
Avoid sudden acceleration,
sudden deceleration and sharp
turns with the spare tire.
SB41053a
Spare tire
SB41054b
Tool bag
—Spare tire with turning
direction indicators—R eq u ired to o ls an d sp are
tire

1702005 MR2 from Aug. ’04Prod. (OM17527U)
1. Get the tool bag and spare tire.
You will find a jack in the tool bag.
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
SB41047
To remove the spare tire:
1. Open the front box cover in the
trunk.
SB41061a
2. Remove the spare wheel cover.

1712005 MR2 from Aug. ’04Prod. (OM17527U)
SB41063b
3. Loosen the bolt and remove it.
Then take the spare tire out of the
vehicle.
When storing the spare tire, put it in
place with the outer side of the wheel
facing up. Then secure the tire by re-
peating the above removal steps in
reverse order to prevent it from flying
forward during a collision or sudden
braking.
—Blocking the wheel
SB41035
2. Block the wheel diagonally op-
posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.
—Loosening wheel nuts
SB41027a
3. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one−half turn.

1722005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loos-
en and the wheels may fall off,
which could cause a serious ac-
cident.
—Positioning the jack
SB41036
4. Position the jack at the correct
jack point as shown.
Make sure the jack is positioned on
a level and solid place.
—Raising your vehicle
SB41029
5. After making sure that no one
is in the vehicle, raise it high
enough so that the compact
spare tire can be installed.
Remember you will need more ground
clearance when putting on the com-
pact spare tire than when removing
the flat tire.
To raise the vehicle, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double−check that it is properly posi-
tioned.
