TOYOTA PASEO 1997 User Guide

10
For front passenger's use
For driver's useOPERATING
THE PASSENGERS' WIN-
DOWS
Use the switch on the passengers'
door. The driver's door also has a
switch that controls the passenger's
window.
The window move as long as you hold the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock button on
the driver's door, the passenger's win-
dows cannot be operated.

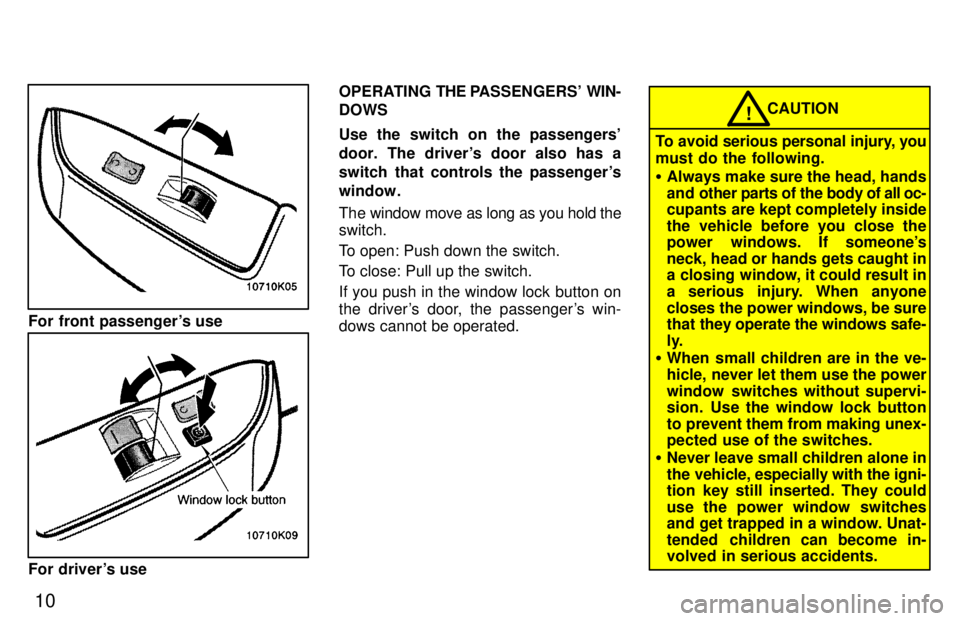

CAUTION!
To avoid serious personal injury, you
must do the following. Always make sure the head, hands
and other parts of the body of all oc-
cupants are kept completely inside
the vehicle before you close the
power windows. If someone's
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock button
to prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches
and get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.

11
To open the trunk lid from the outside, insert the master key and turn it clock- wise. See ºLuggage stowage precautionsº in
Part 2 for precautions to observe in load- ing luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely closed.

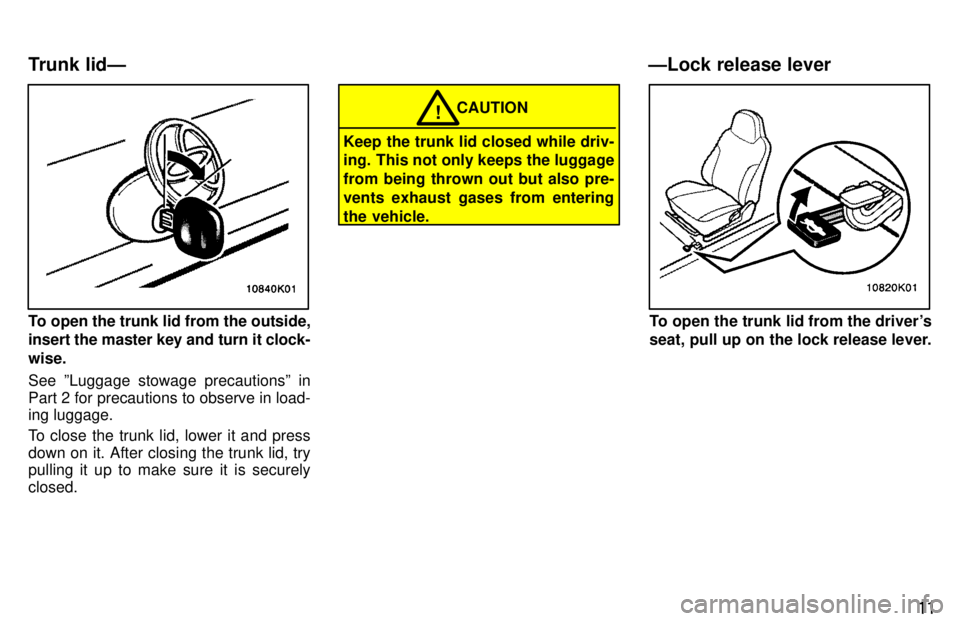

CAUTION!
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-vents exhaust gases from entering
the vehicle.
To open the trunk lid from the driver's
seat, pull up on the lock release lever.
Trunk lidÐ
ÐLock release lever

12
This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.
1. Push down the security lock levers
to lock the rear seatbacks.
After locking the rear seatbacks, try fold-
ing them down to make sure they are se- curely locked-otherwise someone couldget into the trunk by folding down a rear seat.2. After closing the trunk lid, insert the master key and turn it counter-
clockwise to deactivate the lock re-
lease lever.
After closing the trunk lid, try pulling it up to make sure it is securely closed.To open the hood, do the following.
1. Pull the hood lock release lever. The hood will spring up slightly.

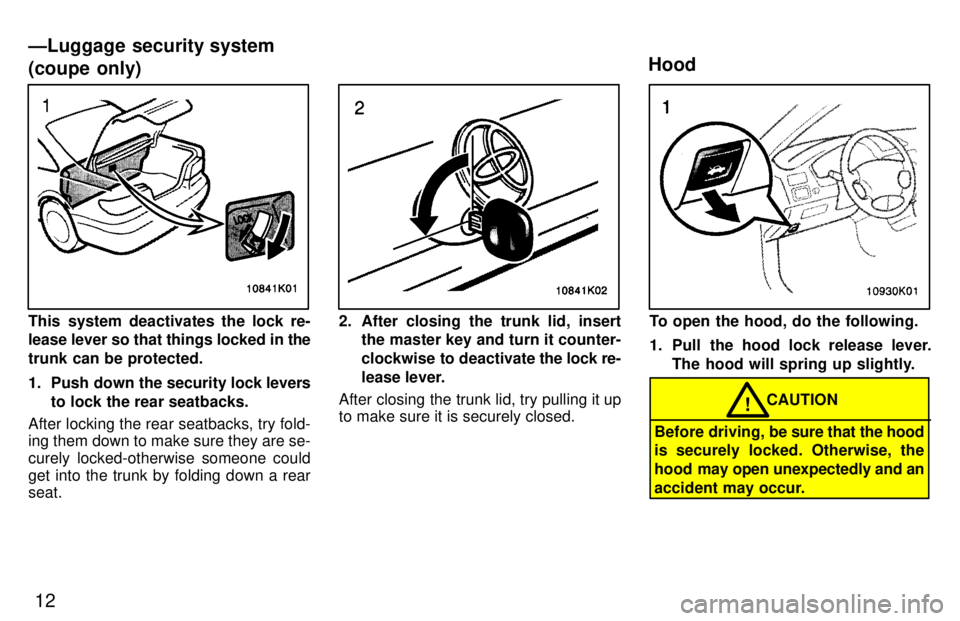

Before driving, be sure that the hood
is securely locked. Otherwise, the
hood may open unexpectedly and an
accident may occur.
CAUTION!
ÐLuggage security system (coupe only)
Hood

13
2. In front of the vehicle, pull up on theauxiliary catch lever and lift the hood.3. Hold the hood open by insertingthe support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip-
this prevents rattles. Then lower the hood
and make sure it locks into place. If neces-
sary, press down gently on the front edge
to lock it.

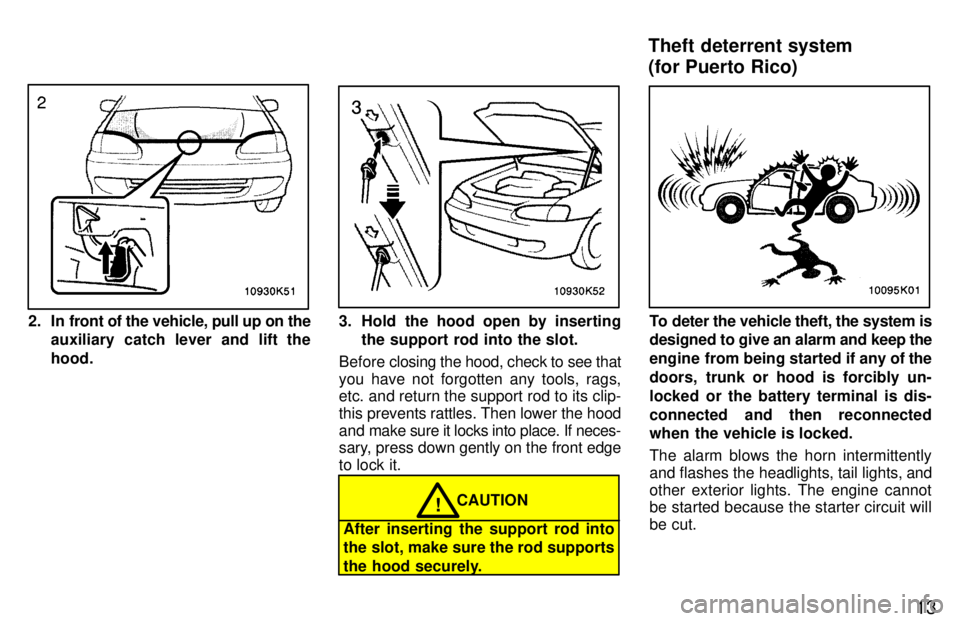

CAUTION!
After inserting the support rod into
the slot, make sure the rod supports
the hood securely.
To deter the vehicle theft, the system is
designed to give an alarm and keep the
engine from being started if any of the
doors, trunk or hood is forcibly un-
locked or the battery terminal is dis-
connected and then reconnected
when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights, andother exterior lights. The engine cannot
be started because the starter circuit will be cut.
Theft deterrent system (for Puerto Rico)

14
SETTING THE SYSTEM
1. Turn the ignition key to the ºLOCKºposition and remove it.
2. Have all passengers get out of the ve- hicle.
3. Close and lock all the side doors, trunk
and hood.
The indicator light will come on when all
the doors, trunk and hood are closed andlocked.
As all the doors are locked, the system will
give you a preparation time of 30 secondsbefore the setting, during which the doors,
trunk and hood may be opened to prepare
for the setting. Be careful not to use the key when open-
ing either front door. This will cancel the system.
4. After making sure the indicator light
starts flashing, you may leave the ve- hicle.
The system will automatically be set after the preparation time passes. The indica-
tor light will flash to show the system is
set. If any of the doors, trunk or hood is
open at that time, the setting is interrupted
until it is closed and locked. Never leave anyone in the vehicle when you set the system, because unlocking
from the inside will activate the system. WHEN THE SYSTEM IS SET Activating the system
The system will give the alarm and cut the
starter circuit under the following condi- tions: If any of the side doors, trunk or hood is unlocked without using the key
If the battery terminal is disconnectedand then reconnected
After one minute, the alarm will automati-
cally stop with the starter circuit cut kept on. Reactivating the alarm
Once
set, the system automatically resets
the alarm each time all the doors, trunk
and hood are closed after the alarm stops.
The alarm will be activated again under the following conditions. If any of the doors, trunk or hood is opened
If the battery terminal is disconnected and then reconnected
Stopping the alarm
Turn the ignition key from the ºLOCKº to
ºACCº position. The alarm w ill be stopped
with the starter circuit cut kept on. Stop-
ping the alarm in this manner will keep the
alarm from being reactivated when any of
the doors, trunk or hood is opened. Interrupting the setting
With the system set, the trunk can be
opened with the key without activating or
cancelling the system. While it is open,
the doors and hood may be opened in
addition. However, when the battery ter-
minal is disconnected and then recon-
nected, the system is activated.

15
To resume the setting, close and lock all the doors, the trunk and hood. The trunk must be closed with the key removed. CANCELLING THE SYSTEM
Unlock either front
door with the key. This
cancels the system completely and the
starter ci rcuit cut will be cancelled at once.
INDICATOR LIGHT
The indicator light gives the following three indications.
FLASHINGÐThe system is set. You
need the key to open the doors, trunk and
hood.
ONÐThe system will automatically be set
when the time comes. The doors, trunk
and hood may be opened without a key.
OFFÐThe system is inactive. You may
open any door, trunk and hood. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with
the key. Be sure to wait until the indica-
tor light starts flashing. 3. Unlock one of the doors from the in-
side. The system should activate thealarm.
4. Cancel the system by unlocking either front door with the key.
5. Repeat this operation for the other doors, trunk and hood. When testing
on the hood, also check that the sys-
tem is activated when the battery ter-
minal is disconnected and then recon-
nected.
If the system does not work properly, have
it checked by your Toyota dealer.
1. To open the fuel filler door, pull the lever up.

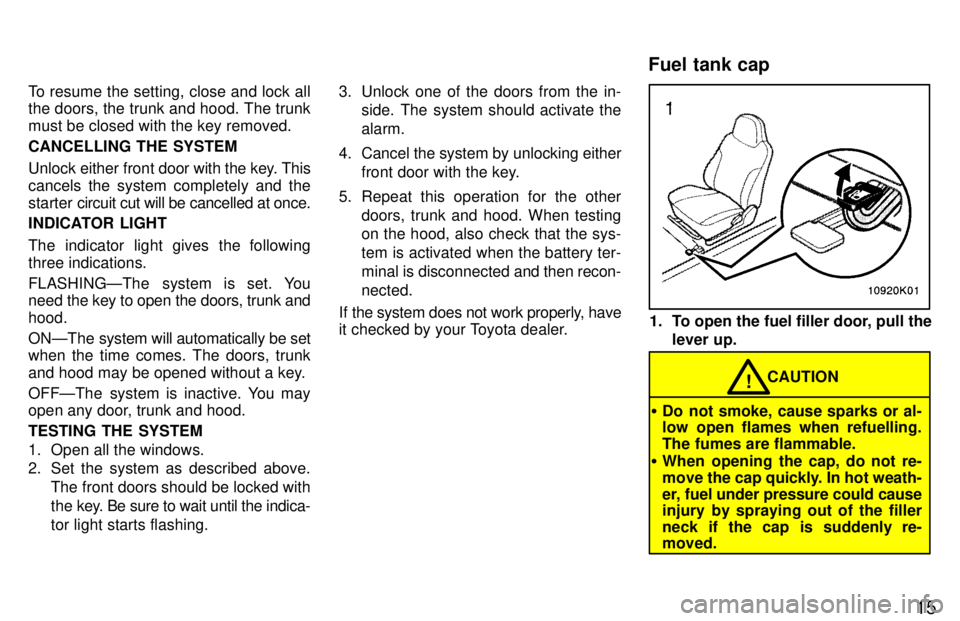

CAUTION!
Do not smoke, cause sparks or al-
low open flames when refuelling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re- moved.
Fuel tank cap

16
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before remov-
ing it. After removing the cap, hang
it on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a click.
If the cap is not tightened securely, themalfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving several times. If the indicator lamp does
not go off, contact your Toyota dealer as soon as possible.

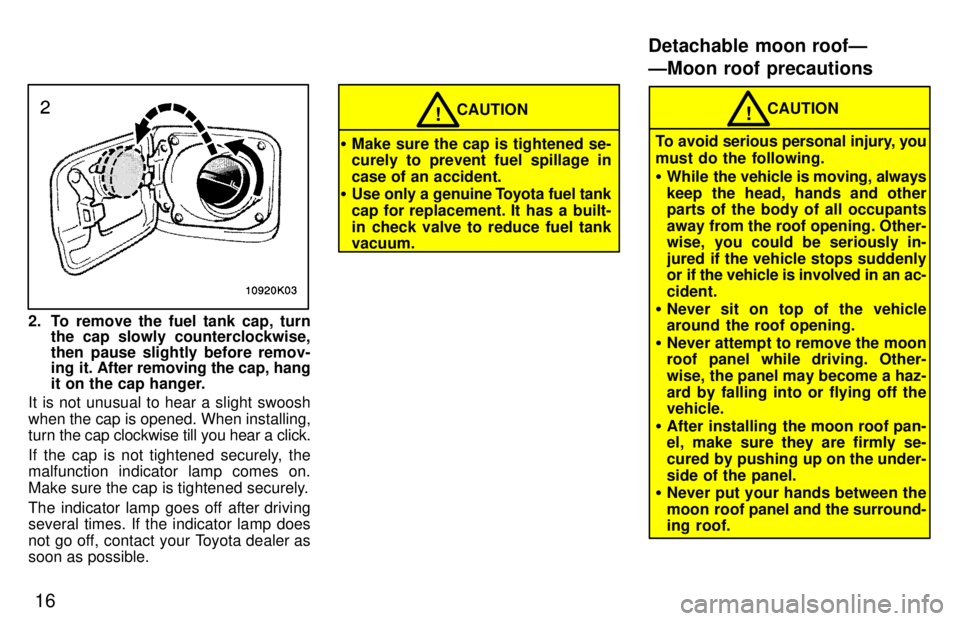

CAUTION!
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built-
in check valve to reduce fuel tank vacuum.CAUTION!
To avoid serious personal injury, you
must do the following. While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants away from the roof opening. Other-
wise, you could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an ac- cident.
Never sit on top of the vehicle
around the roof opening.
Never attempt to remove the moon
roof panel while driving. Other-
wise, the panel may become a haz-ard by falling into or flying off the vehicle.
After installing the moon roof pan-
el, make sure they are firmly se-
cured by pushing up on the under-
side of the panel.
Never put your hands between the
moon roof panel and the surround-
ing roof.
Detachable moon roofÐ ÐMoon roof precautions

17
To tilt up the moon roof, first pull down
on the handle while pushing in one of
the lock buttons. Then push up the
moon roof until it locks. After tilting up the moon roof, make sure the handle is securely in place.
When closing the moon roof, slowly pull
down the handle while supporting the roof
with your hand. Close and lock the moon
roof by pushing the handle. Be sure to use
your palm to push the handle. After clos-
ing the moon roof, make sure it is securely locked.1. Pull the handle down while push-
ing in one of the lock buttons.2. Push in the retaining springs armsas shown and push up the moon roof.
ÐRemoving
ÐTilting up and closing

18
3. Push in the retaining springs armsas shown and push up the moon roof.1. Press in the rearing spring armsand insert them in the holes to lock
the handle securely.2. Place the moon roof with sunshade on the stowage bag.
When placing them, be sure the interior
side of the moon roof facing downward.
ÐStowing

19
3. Fold the stowage bag in half andzip. Put the stowage belt through
the retaining clip.
4. Put the stowage bag in the trunkroom. Then attach the hooks to the
stowage anchor.
When putting the stowage bag in the trunk
room, be sure the side attached the cau- tion label facing upward.

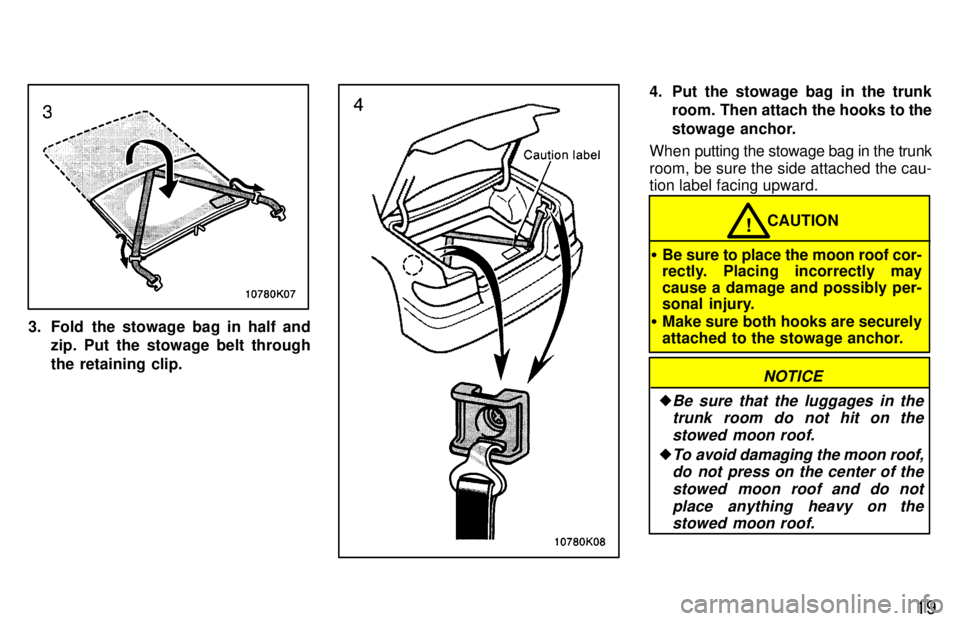

CAUTION!
Be sure to place the moon roof cor-
rectly. Placing incorrectly may cause a damage and possibly per-
sonal injury.
Make sure both hooks are securely
attached to the stowage anchor.
NOTICE
Be sure that the luggages in the
trunk room do not hit on the
stowed moon roof.
To avoid damaging the moon roof,do not press on the center of the
stowed moon roof and do not
place anything heavy on thestowed moon roof.
