TOYOTA PRIUS 2002 1.G Owners Manual

158
Theft prevention labels
Your new vehicle carries theft preven-
tion labels which are approximately 56
mm (2.20 in.) by 16 mm (0.63 in.).
The purpose of these labels is to reduce
the incidence of vehicle thefts by facilitat-
ing the tracing and recovery of parts from
stolen vehicles. The label is designed so
that once it is applied to a surface, any
attempt to remove it will result in destroy-
ing the integrity of the label. Transferring
these labels intact from one part to anoth-
er, will be impossible.
NOTICE
You should not attempt to remove the
theft prevention labels as it may vio-
late certain state or federal laws.

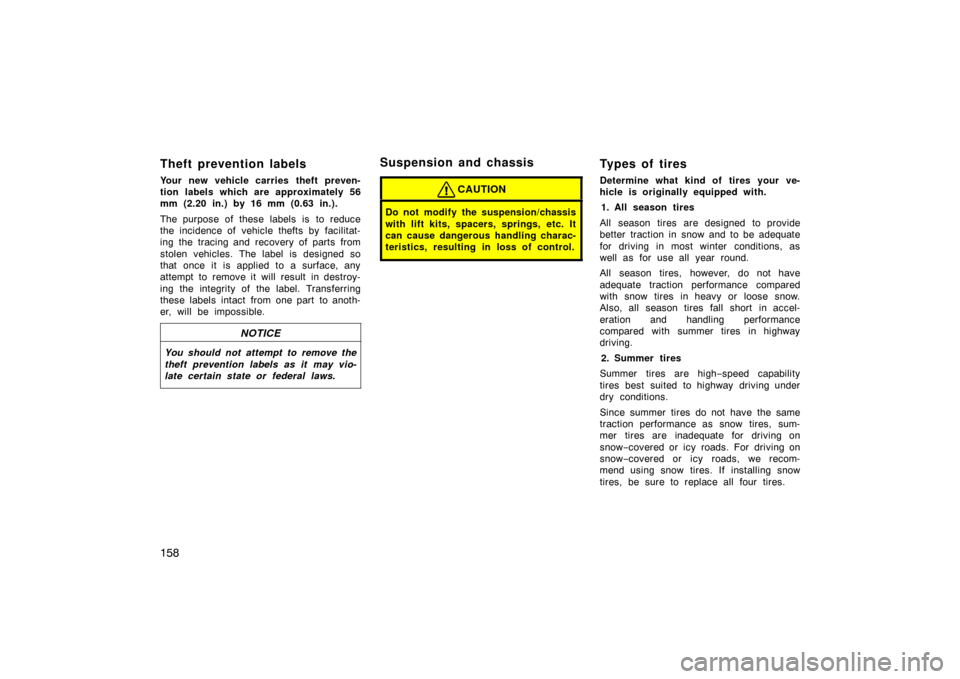

CAUTION
Do not modify the suspension/chassis
with lift kits, spacers, springs, etc. It
can cause dangerous handling charac-
teristics, resulting in loss of control.
Types of tires
Determine what kind of tires your ve-
hicle is originally equipped with.1. All season tires
All season tires are designed to provide
better traction in snow and to be adequate
for driving in most winter conditions, as
well as for use all year round.
All season tires, however, do not have
adequate traction performance compared
with snow tires in heavy or loose snow.
Also, all season tires fall short in accel-
eration and handling performance
compared with summer tires in highway
driving. 2. Summer tires
Summer tires are high −speed capability
tires best suited to highway driving under
dry conditions.
Since summer tires do not have the same
traction performance as snow tires, sum-
mer tires are inadequate for driving on
snow −covered or icy roads. For driving on
snow −covered or icy roads, we recom-
mend using snow tires. If installing snow
tires, be sure to replace all four tires.
Suspension and chassis

159

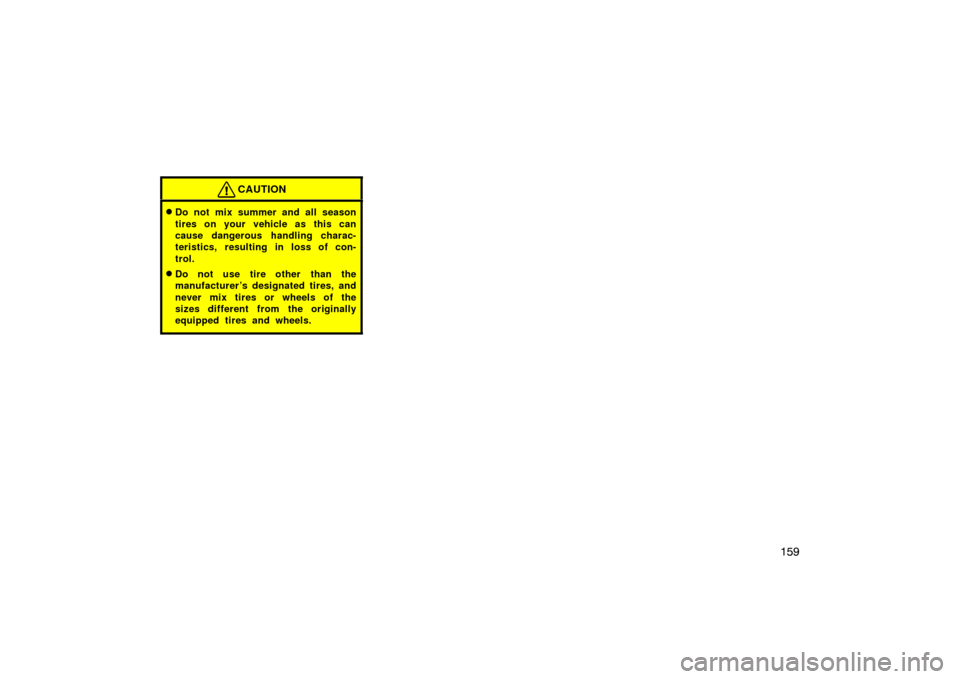

CAUTION
Do not mix summer and all season
tires on your vehicle as this can
cause dangerous handling charac-
teristics, resulting in loss of con-
trol.
Do not use tire other than the
manufacturer ’s designated tires, and
never mix tires or wheels of the
sizes different from the originally
equipped tires and wheels.

160

161
STARTING AND DRIVING
Before starting the hybrid system162
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the hybrid system 162
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving in various conditionss 163
. . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Dinghy towing 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trailer towing 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
How to save fuel and make your vehicle last longer, too 166
. . . . . . . . .
SECTION 4

162
1. Check the area around the vehicle be-fore entering it.
2. Adjust seat position, seatback angle, head restraint height and steering
wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
When you get in the vehicle, check
whether the “READY” light is on or
not.
CAUTION
Your vehicle does not produce any
noise or vibration when the vehicle is
ready to start with the “READY” light
on. Be careful not to start the vehicle
abruptly by depressing the accelera-
tor pedal inadvertently.

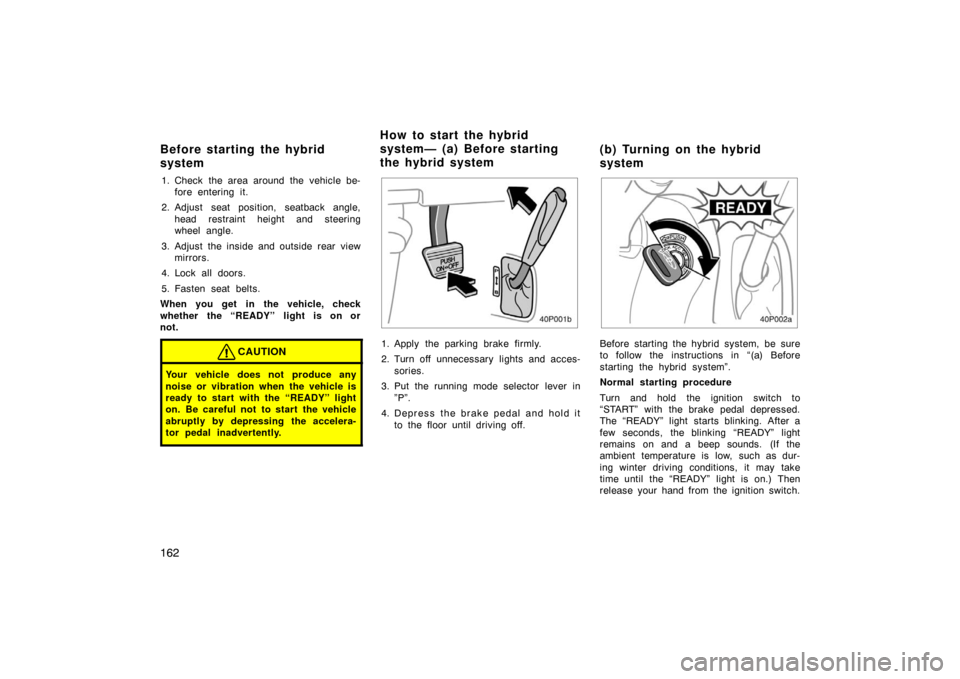

40p001b
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces- sories.
3. Put the running mode selector lever in ”P”.
4. Depress the brake pedal and hold it to the floor until driving off.
40p002a
Before starting the hybrid system, be sure
to follow the instructions in “(a) Before
starting the hybrid system”.
Normal starting procedure
Turn and hold the ignition switch to
“START” with the brake pedal depressed.
The “READY” light starts blinking. After a
few seconds, the blinking “READY” light
remains on and a beep sounds. (If the
ambient temperature is low, such as dur-
ing winter driving conditions, it may take
time until the “READY” light is on.) Then
release your hand from the ignition switch.
Before starting the hybrid
system How to start the hybrid
system— (a) Before starting
the hybrid system
( b ) Tu rn in g on th e hyb rid
system

163
When the ignition switch is turned to on
or off, you may hear a sound coming from
the hybrid vehicle battery in the trunk.
However, this does not indicate any
trouble.
NOTICE
The “READY” light does not come on
when the selector lever is put in a
position other than “P”. Depress the
brake pedal and put the selector lever
in “P” and turn the ignition switch to
“START” again.
If there is a problem somewhere in the
hybrid system, the hybrid system malfunc-
tion warning light will come on in place of
the “READY” light. If this happens, contact
Toyota dealer.
NOTICE
When you start the hybrid system at
a lowered outside temperature, it may
take longer before the blinking
“READY” light changes to stay on.
Always slow down in gusty crosswinds.
This will allow you much better control.
Drive slowly onto curbs and, if pos-
sible, at a right angle. Avoid driving
onto high, sharp−edged objects and
other road hazards. Failure to do so
can lead to severe tire damage result-
ing in tire bursts.
Drive slowly when passing over bumps
or travelling on a bumpy road. Other-
wise, the impact could cause severe
damage to the tires and/or wheels.
When parking on a hill, turn the front
wheels until they touch the curb so
that the vehicle will not roll. Apply the
parking brake, and put the selector le-
ver into “P”. If necessary, block the
wheels.
Washing your vehicle or driving through
deep water may get the brakes wet. To
see whether they are wet, check that
there is no traffic near you, and then
press the pedal lightly. If you do not
feel a normal braking force, the brakes
are probably wet. To dry them, drive
the vehicle cautiously while lightly
pressing the brake pedal with the park-
ing brake pulled. If they still do not
work safely, pull to the side of the road
and call a Toyota dealer for assistance.

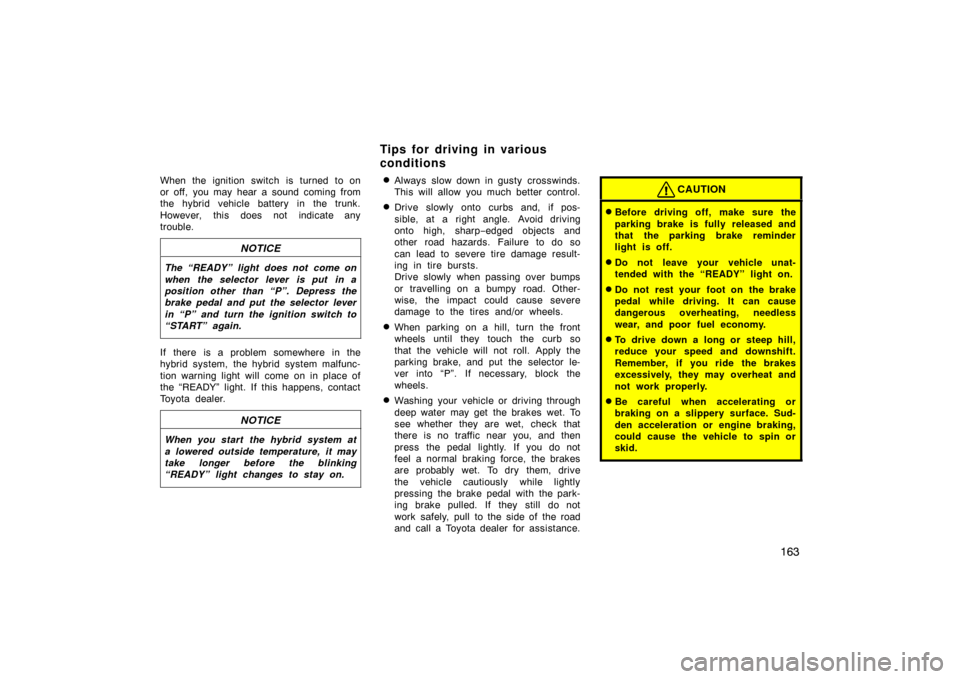

CAUTION
Before driving off, make sure the
parking brake is fully released and
that the parking brake reminder
light is off.
Do not leave your vehicle unat-
tended with the “READY” light on.
Do not rest your foot on the brake
pedal while driving. It can cause
dangerous overheating, needless
wear, and poor fuel economy.
To drive down a long or steep hill,
reduce your speed and downshift.
Remember, if you ride the brakes
excessively, they may overheat and
not work properly.
Be careful when accelerating or
braking on a slippery surface. Sud-
den acceleration or engine braking,
could cause the vehicle to spin or
skid.
Tips for driving in various
conditions

164

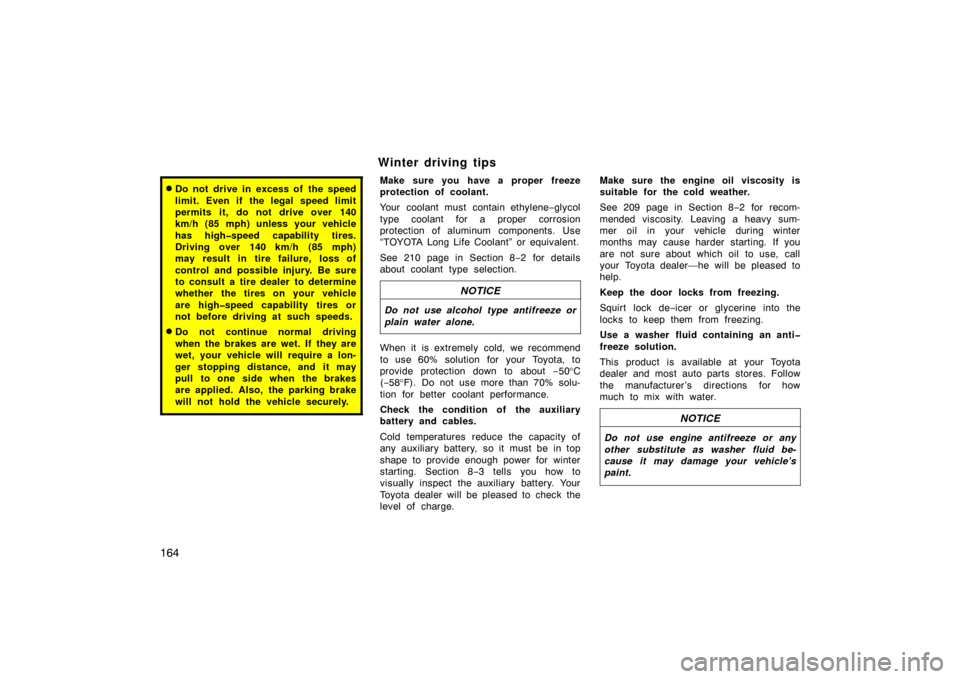

Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has highspeed capability tires.
Driving over 140 km/h (85 mph)
may result in tire failure, loss of
control and possible injury. Be sure
to consult a tire dealer to determine
whether the tires on your vehicle
are highspeed capability tires or
not before driving at such speeds.
Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a lon-
ger stopping distance, and it may
pull to one side when the brakes
are applied. Also, the parking brake
will not hold the vehicle securely.
Make sure you have a proper freeze
protection of coolant.
Your coolant must contain ethylene−glycol
type coolant for a proper corrosion
protection of aluminum components. Use
“TOYOTA Long Life Coolant” or equivalent.
See 210 page in Section 8 −2 for details
about coolant type selection.
NOTICE
Do not use alcohol type antifreeze or
plain water alone.
When it is extremely cold, we recommend
to use 60% solution for your Toyota, to
provide protection down to about −50 °C
( − 58 °F). Do not use more than 70% solu-
tion for better coolant performance.
Check the condition of the auxiliary
battery and cables.
Cold temperatures reduce the capacity of
any auxiliary battery, so it must be in top
shape to provide enough power for winter
starting. Section 8 −3 tells you how to
visually inspect the auxiliary battery. Your
Toyota dealer will be pleased to check the
level of charge. Make sure the engine oil viscosity is
suitable for the cold weather.
See 209 page in Section 8
−2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—he will be pleased to
help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing.
Use a washer fluid containing an anti
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute as washer fluid be-
cause it may damage your vehicle’s
paint.
Winter driving tips

165
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the selector lever into
“P” and block the rear wheels. Do not use
the parking brake, or snow or water accu-
mulated in and around the parking brake
mechanism may freeze, making it hard to
release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.

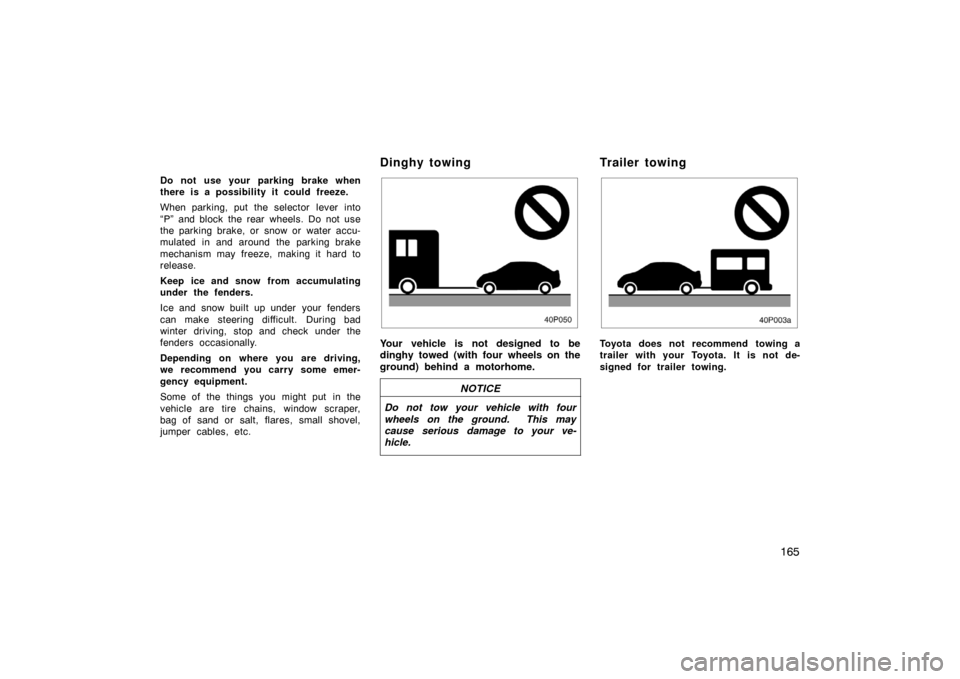

40p050
Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your ve-
hicle.
40p003a
Toyota does not recommend towing a
trailer with your Toyota. It is not de-
signed for trailer towing.
Dinghy towing Trailer towing

166
Improving fuel economy is easy−just take
it easy. It will help make your vehicle last
longer, too. Here are some specific tips
on how to save money on both fuel and
repairs:
Keep your tires inflated at the cor-
rect pressure. Underinflation causes
tire wear and wastes fuel. See page
214 in Section 8 −2 for instructions.
Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the engine, causing
greater fuel consumption.
Accelerate slowly and smoothly.
Avoid jackrabbit starts.
Avoid continuous speeding up and
slowing down. Stop−and− go driving
wastes power.
Avoid unnecessary stopping and
braking. Maintain a steady pace. Try
to time the traffic signals so you only
need to stop as little as possible or
take advantage of through streets to
avoid traffic lights. Keep a proper dis-
tance from other vehicles to avoid sud-
den braking. This will also reduce wear
on your brakes.
Avoid heavy traffic or traffic jams
whenever possible.
Do not rest your foot on brake ped-
al. This causes premature wear, over-
heating and poor fuel economy.
Maintain a moderate speed on high-
ways. The faster you drive, the greater
the fuel consumption. By reducing your
speed, you will cut down on fuel con-
sumption.
Keep the front wheels in proper
alignment. Avoid hitting the curb and
slow down on rough roads. Improper
alignment not only causes faster tire
wear but also puts an extra load on
the engine, which, in turn, wastes fuel.
Keep the bottom of your vehicle free
from mud, etc. This not only lessens
weight but also helps prevent corro-
sion.
Keep your vehicle tunedup and in
top shape . A dirty air cleaner, improp-
er valve clearance, dirty plugs, dirty oil
and grease, brakes not adjusted, etc.
all lower engine performance and con-
tribute to poor fuel economy. For longer
life of all parts and lower operating
costs, keep all maintenance work on
schedule, and if you often drive under
severe conditions, see that your ve-
hicle receives more frequent mainte-
nance.
CAUTION
Never turn off the hybrid system to
coast down hills. Your power steering
and brake booster will not function
without the hybrid system running.
Also, the emission control system op-
erates properly only when the hybrid
system is running.
How to save fuel and make
your vehicle last longer, too

167
IN CASE OF AN EMERGENCY
If your vehicle will not start168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your hybrid system stalls while driving 172
. . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheatss 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
If your vehicle needs to be towed 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift running mode selector lever 182
. . . . . . . . . . . . . . . . .
If you lose your keys 183
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
If you lose your wireless remote control transmitter 183
. . . . . . . . . . . . .
SECTION 5
