Foreword
Thank you for your purchase of the Navigation System. Please read this \
manual carefully to ensure proper use. Keep this manual
stored in your vehicle at all times.
TheToyota Navigation System is one of the most technologically advanced vehicle ac\
cessories ever developed. The system receives satellit e
signals from the Global Positioning System (GPS) operated by the U. S. Department of Defense. Using these signals and other vehicle \
sen-
sors, the system can show you where you are and assist you in locating a desi\
red destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. \
The syst em is designed
to direct you to a destination that is unfamiliar to you in an ef ficient manner. Map database is made based on the maps, 2001 edition of Denso,
whose information source comes from Nav Tech maps and GDT maps. The calculated routes are neither the shortest r\
outes nor routes without
traffic congestion. Your own personal local knowledge or ”short cut” may at times be fa\
ster than the calculated routes.
The navigation system’s database includes more than 50 points of interest categories to allow yo\
u to easily select destinations such as restau-
rants and banks. If a destination is not in the database, you can enter \
the street address or a major intersection close to it and the system
will route you there. The system will provide both a visual map and audio instructi\
ons. The audio instructions will announce the distance and
direction to go when you are approaching a fork or intersection. These voice inst\
ructions will help you keep your eyes on the r oad and are
timed to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitatio\
ns that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other \
circumstan-
ces. For more information on the limitations of the system, refer to pages 4\
9 through 51.
 2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.

ii
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against something
that may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to avoid or reduce the risk to
yourself and other people.
INFORMATION
This provides additional information.

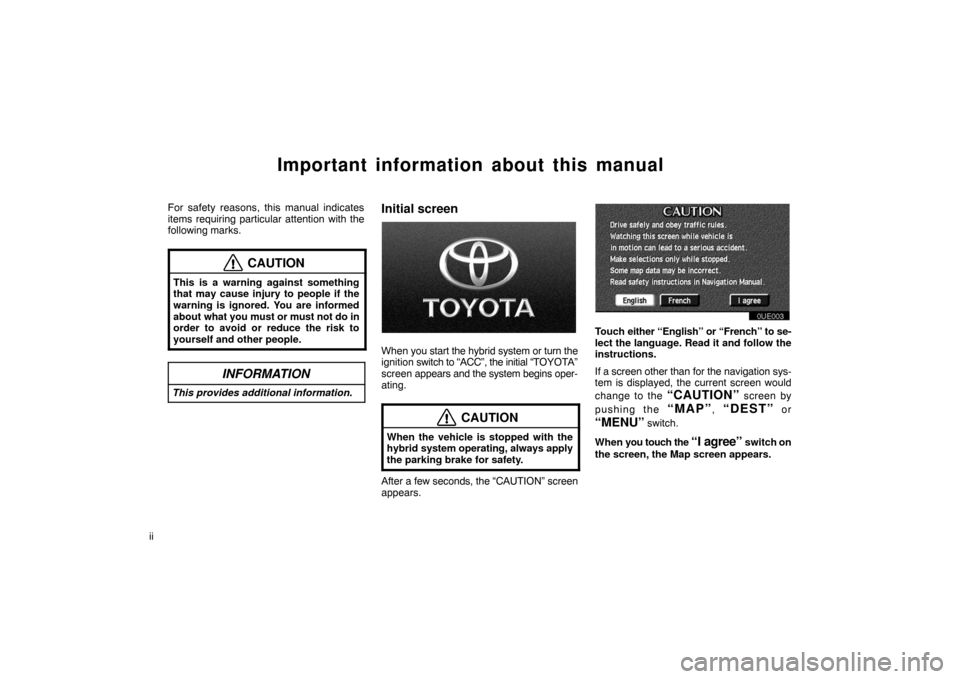

Initial screen
UN001
When you start the hybrid system or turn the
ignition switch to “ACC”, the initial “T OYOTA”
screen appears and the system begins oper-
ating.
CAUTION
When the vehicle is stopped with the
hybrid system operating, always apply
the parking brake for safety.
After a few seconds, the “CAUTION” screen
appears.
0UE003
Touch either “English” or “French” to se-
lect the language. Read it and follow the
instructions.
If a screen other than for the navigation sys-
tem is displayed, the current screen would
change to the
“CAUTION” screen by
pushing the
“MAP”, “DEST” or
“MENU” switch.
When you touch the
“I agree” switch on
the screen, the Map screen appears.

iii

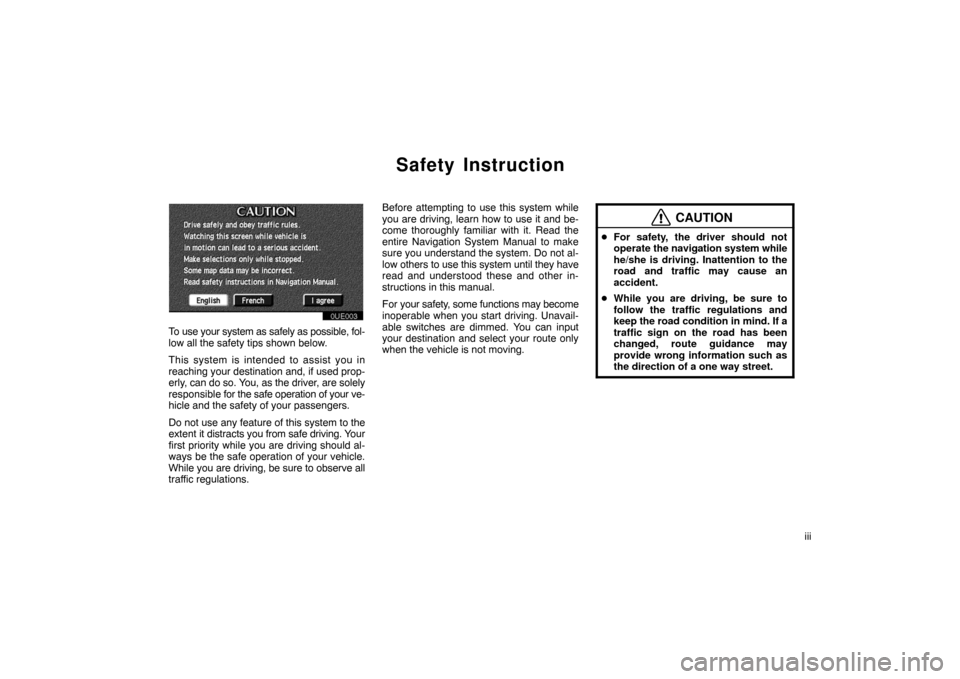

Safety Instruction
0UE003
To use your system as safely as possible, fol-
low all the safety tips shown below.
This system is intended to assist you in
reaching your destination and, if used prop-
erly, can do so. You, as the driver, are solely
responsible for the safe operation of your ve-
hicle and the safety of your passengers.
Do not use any feature of this system to the
extent it distracts you from safe driving. Your
first priority while you are driving should al-
ways be the safe operation of your vehicle.
While you are driving, be sure to observe all
traffic regulations. Before attempting to use this system while
you are driving, learn how to use it and be-
come thoroughly familiar with it. Read the
entire Navigation System Manual to make
sure you understand the system. Do not al-
low others to use this system until they have
read and understood these and other in-
structions in this manual.
For your safety, some functions may become
inoperable when you start driving. Unavail-
able switches are dimmed. You can input
your destination and select your route only
when the vehicle is not moving.
CAUTION

For safety, the driver should not
operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an
accident.
 While you are driving, be sure to
follow the traffic regulations and
keep the road condition in mind. If a
traffic sign on the road has been
changed, route guidance may
provide wrong information such as
the direction of a one way street.

ivWhile you are driving, listen to the voice in-
structions as much as
possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice gui-
dance. Use it just for your information. If the
system cannot determine your current posi-
tion correctly, there is a possibility of incor-
rect, late or non −voice guidance.
The data in the system may occasionally be
incomplete. Road conditions, including driv-
ing restrictions (no left turns, street closures,
etc.) frequently change. Therefore, before
you follow any instruction from the system,
look to see whether you can comply with the
instruction safely and legally.
This system cannot warn you about such
things as the q uality of a neighborhood, con-
dition of streets, and availability of emergen-
cy services. If you are unsure about the safe-
ty of an area, don’t drive into it. Under no
circumstances is this system a substitute
for the driver’s personal judgement. We recommend that you obtain updated
map data, when it becomes available, in or-
der to help use the system as ef
fectively and
safely as possible.
Use this system only in locations where it is
legal to do so. Some states/provinces may
have laws prohibiting video screens within
sight of the driver.

v
Overview of Touch Screen and Switches
Switch operation
This system operates mainly by the
switches on the screen. To protect the
screen, lightly touch switches on the
screen with your finger. When you touch
a switch on the screen or on the bezel, a
beep sounds.
INFORMATION
 If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface
of the display using a glass cleaning
cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.

UNP001
Current vehicle
position mark
Indicates the current
position. For details,
see page 34.
Current street name
Turn on this function
to indicate the current
street name. For
details, see page 85.
MAP switch
Push this switch to
repeat voice guidance,
cancel one touch
scroll and start
guidance. For details,
see page 34.
DEST switch
Push this switch to
display the Destination
screen. For details,
see page 4.
MENU switch
Push this switch to
display the Menu
screen. This screen
allows you to make
adjustments or correct
settings of various
options and functions.
INFO switch
Push this switch to
display the Information
menu screen. For
details, see page 86.
Northup or
Headingup symbol and Scale of map
Indicates a map view with north up or
heading up. Touching this symbol changes
map orientation. The
figure also indicates the
map scale. For details, see page 49.
GPS (Global
Positioning System) mark
Whenever your vehicle is receiving signals
from the GPS, this
mark is displayed. For
details, see page 49.
Map/Guidance
Touch this switch to change the screen
mode. For details, see page 28.
Displays the distance and the estimated travel time to
the destination. If you input more than two
destinations, it displays the distance and time to the
next destination. Touching this indication will change it
to the distance and time to the other destinations. The
direction will be indicated when your vehicle is off the
route.
Distance and time
to destination
vi
Symbols and Switches

vii
Changing the route
guidance
When you touch this switch, the Change
route screen will appear. For details, see
page 29.
Onetouch registration
of marked point
Touch this switch to register the current ve-
hicle position as a marked point. For details,
see page 71.
Displaying of points of
interest
Symbols such as restaurants and hotels, etc.
can be displayed on the screen. For details,
see page 43.
Zoom in/Zoom out
These switches magnify or reduce the map
scale. For details, see page 47.

1
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Inputting letters and numbers2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
How to move the cursor 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Destination input Explains 11 ways to input your destination 4
. . . . . . . . . . . . .
Explains 11 ways to input your destination
Setting and deleting destination 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Setting and deleting preferred road 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route guidance screen 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Route preview 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Current position display 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice guidance 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Typical voice guidance prompts 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Registering your home 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Registering preset destinations 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Detour setting 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Displaying POI 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Map appearance 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Map scale 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Screen scrolling 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Orientation of the map 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Limitations of the navigation system 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

2The navigation system operates by
switches on
the screen and the switches
located on the front face around the
screen. When you touch or push a switch,
a beep sounds. When using the switches
on the touch screen, please use only light
pressure with your finger to protect the
screen from damage. Do not use objects
other than your finger to touch the
screen.
1UE001

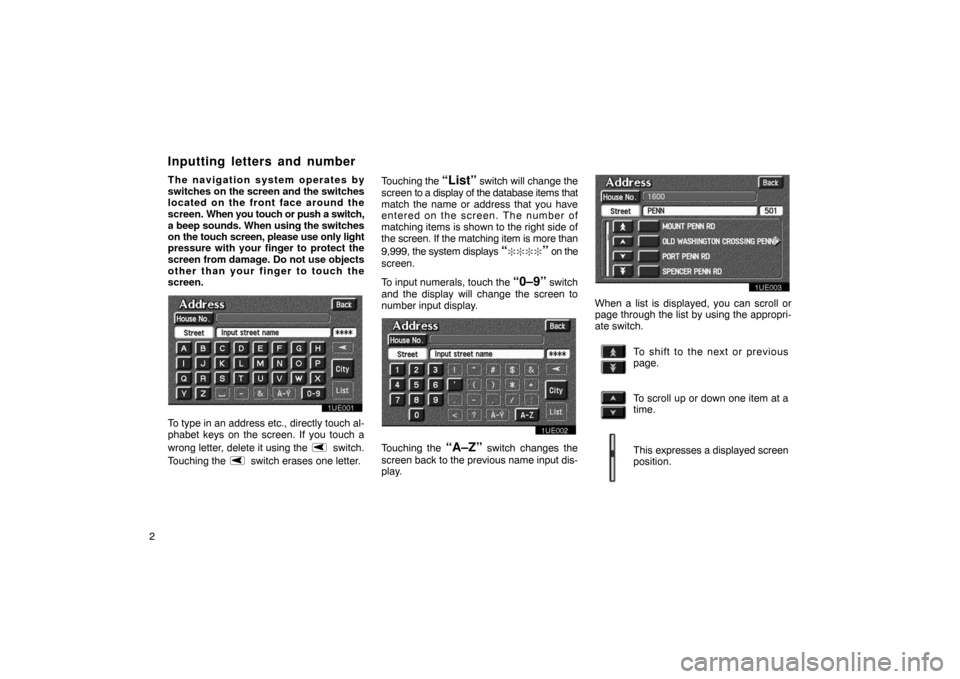

To type in an address etc., directly touch al-
phabet keys on the screen. If you touch a
wrong letter, delete it using the
switch.
Touching the
switch erases one letter. Touching
the
“List” switch will change the
screen to a display of the database items that
match the name or address that you have
entered on the screen. The number of
matching items is shown to the right side of
the screen. If the matching item is more than
9,999, the system displays
“” on the
screen.
To input numerals, touch the
“0–9” switch
and the display will change the screen to
number input display.
1UE002
Touching the “A–Z” switch changes the
screen back to the previous name input dis-
play.
1UE003
When a list is displayed, you can scroll or
page through the list by using the appropri-
ate switch.
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed screen
position.
Inputting letters and number

3
If appears on the right of the item
name, the complete name is too
long for the display. Touch , and
the name will scroll to the end of the
name.
Touching will scroll the name to
the beginning of the name.
1UE004

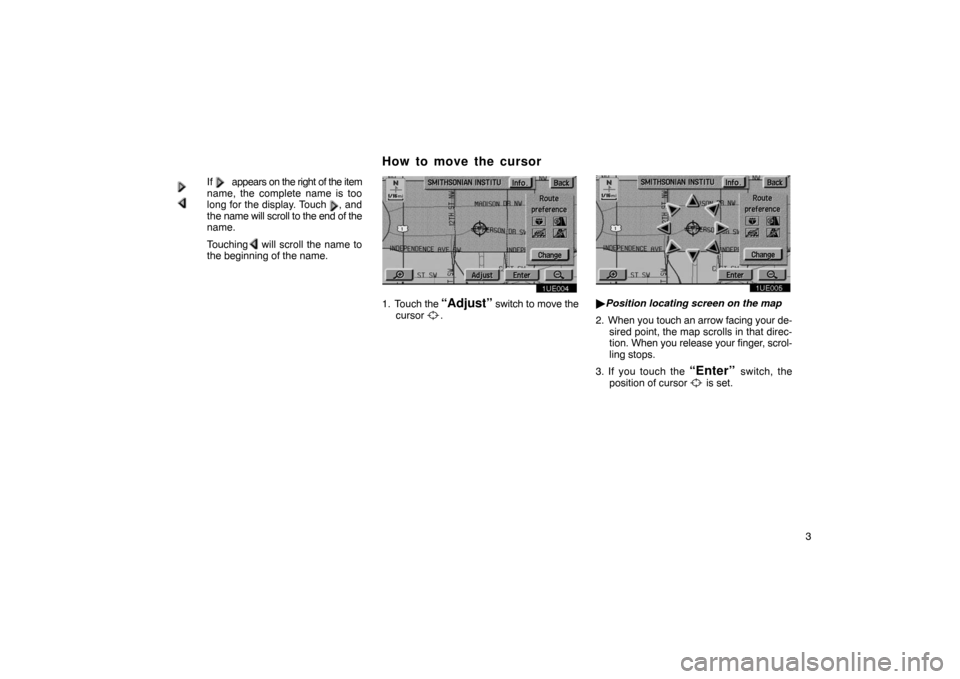

1. Touch
the “Adjust” switch to move the
cursor .
1UE005
 Position locating screen on the map
2. When you touch an arrow facing your de-
sired point, the map scrolls in that direc-
tion. When you release your finger, scrol-
ling stops.
3. If you touch the
“Enter” switch, the
position of cursor is set.
How to move the cursor
