Page 221 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 215

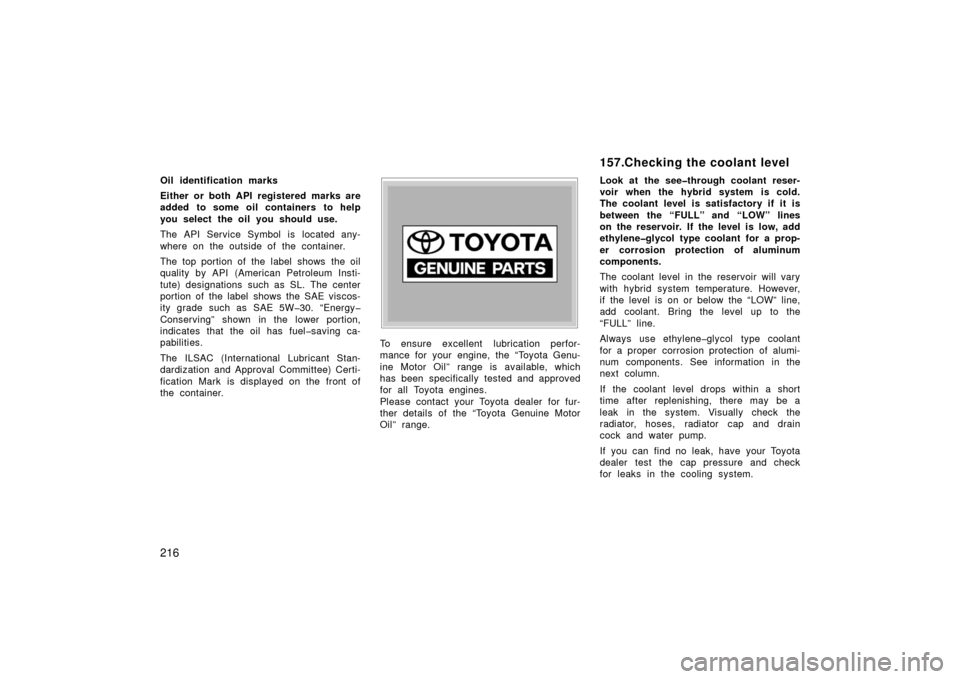

156.ENGINE OIL SELECTION
“Toyota Genuine Motor Oil” is  filled in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and visco

Page 222 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 216

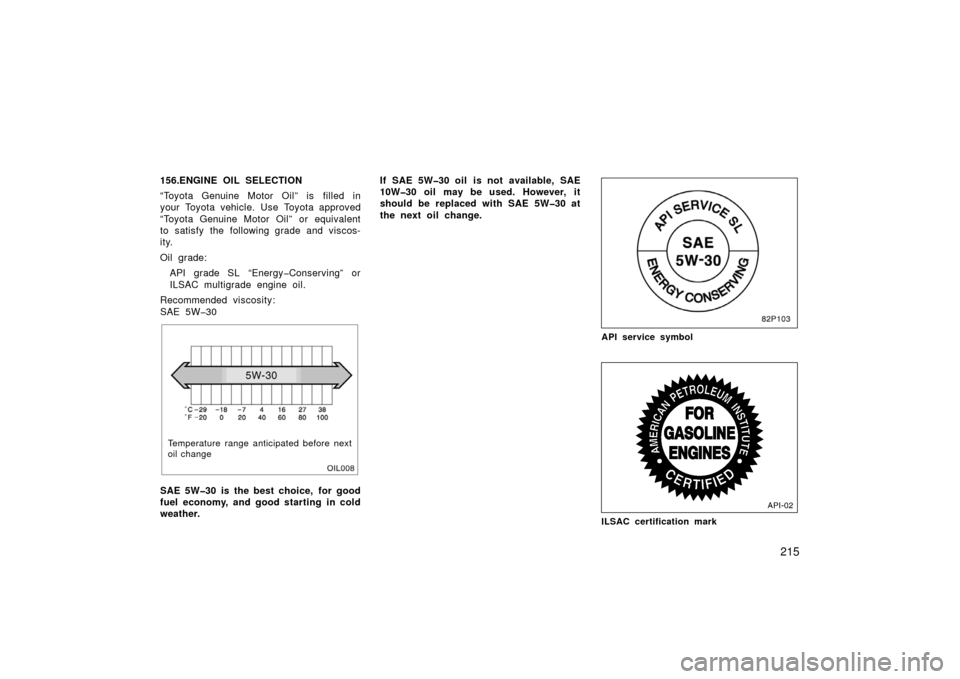

Oil identification marks
Either or both API registered marks are
added to some oil containers to help
you select the oil you should use.
The API Service Symbol is located any-
where on the outside

Page 223 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 217
CAUTION
To prevent burning yourself, do not
remove the radiator cap when the en-
gine is hot.
158.Coolant type selection
Use of improper coolants may damage
your cooling system. Your coolant must

Page 224 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 218
If any of the above parts are extremely
dirty or you are not sure of their condi-
tion, take your vehicle to Toyota dealer.
CAUTION
To prevent yourself from burning, be
careful not to touch the ra

Page 225 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 219
NOTICE
If you spill the fluid, be sure to wipe
it off to prevent it from damaging the
parts or painting.
82p006a

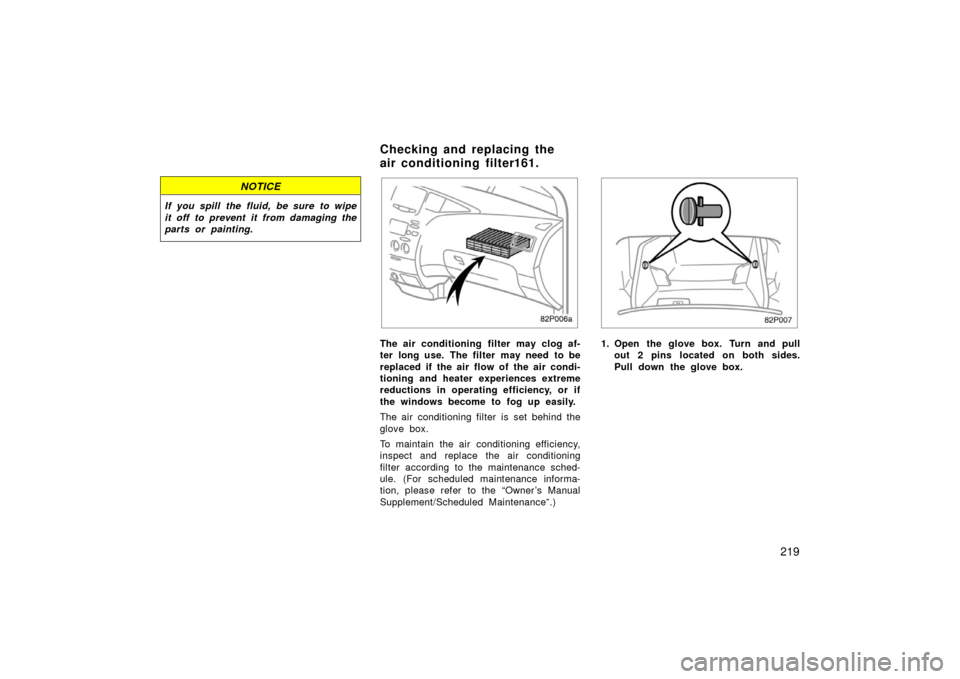

The air conditioning  filter may clog af-
ter long use.  The filter  may need  to b

Page 226 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 220

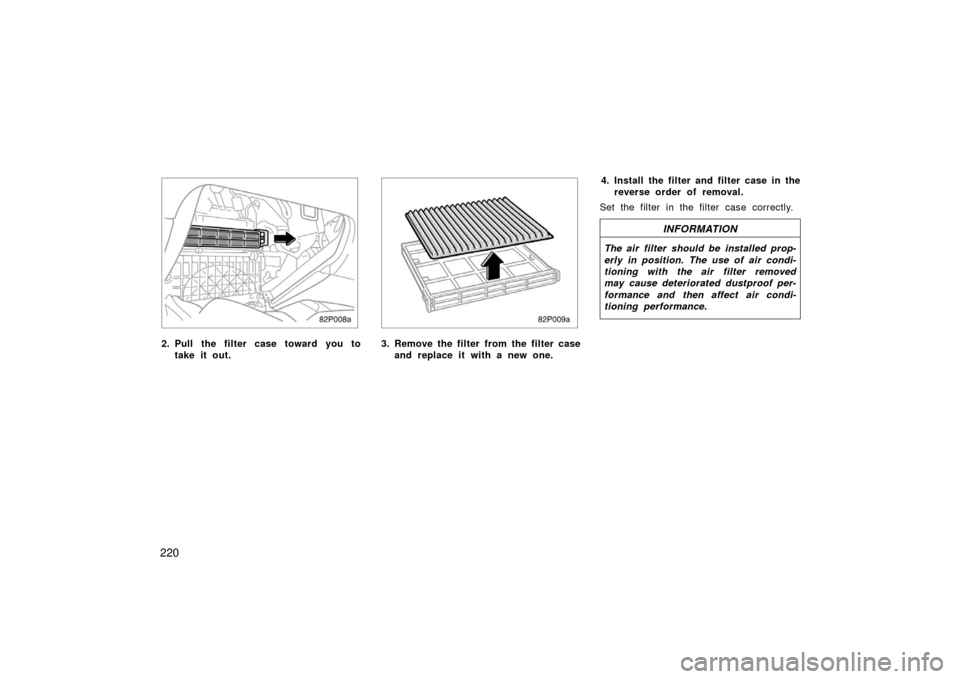

82p008a
2. Pull the filter case toward you totake it out.
82p009a
3. Remove the filter from the filter caseand replace it with a new one. 4. Install the filter and filter case in the
reverse order

Page 227 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 221
82p003

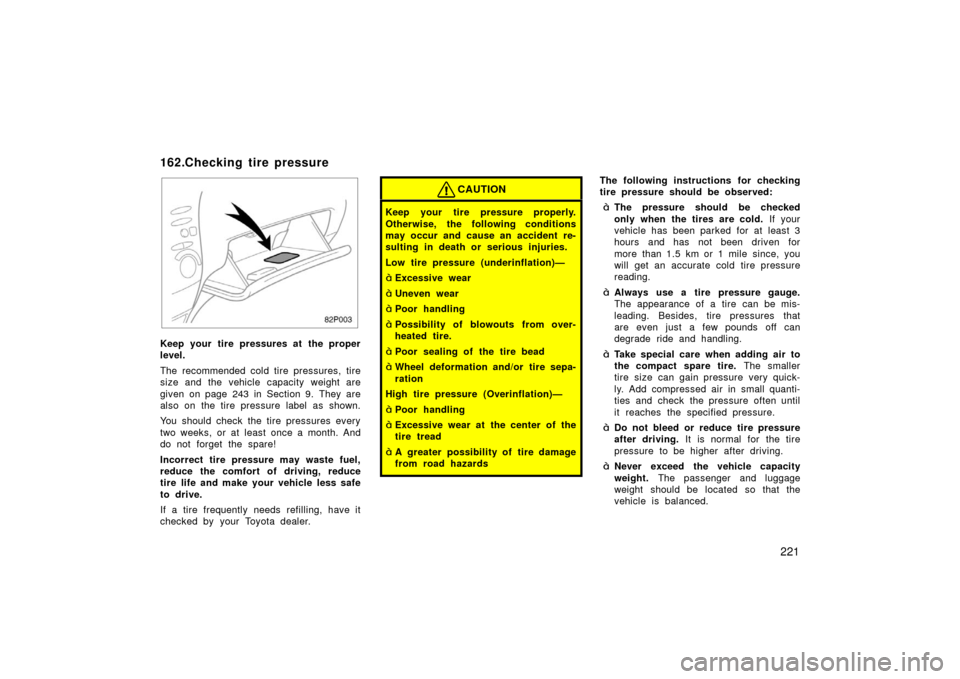

Keep your tire pressures at the proper
level.
The recommended cold tire pressures, tire
size and the vehicle capacity weight are
given on page 243 in Section 9. They are
also on the tire pr

Page 228 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 222
Be sure to reinstall the tire inflation
valve caps.
 Without the valve caps,
dirt or moisture could get into the
valve core and cause air leakage. If
the caps have been lost, have new
ones put on

Page 229 of 256

TOYOTA PRIUS 2003 1.G Owners Manual 223

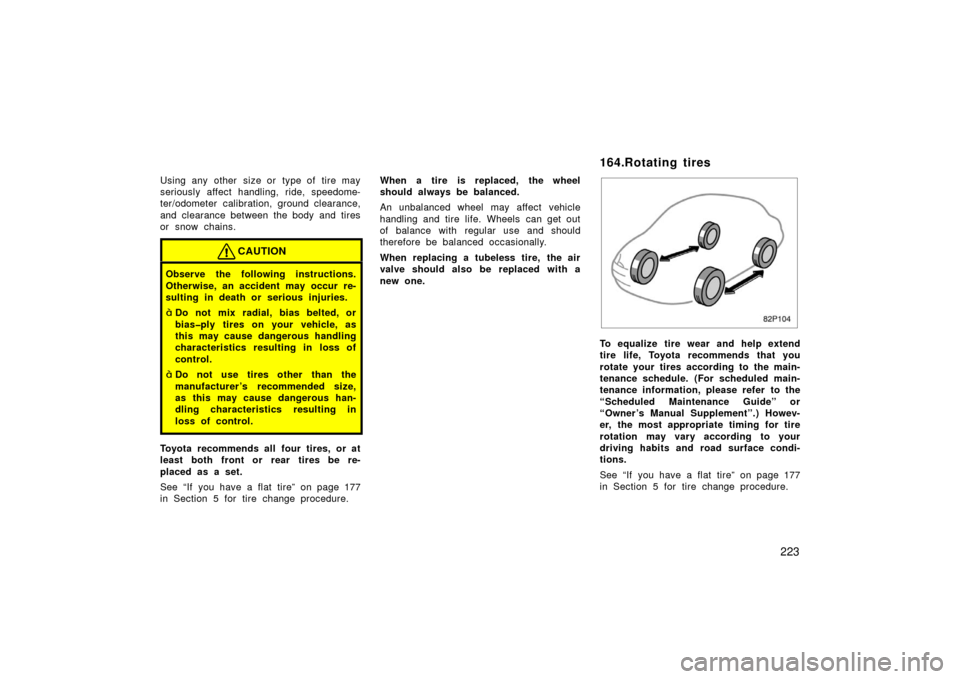

Using any other size or type of tire may
seriously affect handling, ride, speedome-
ter/odometer calibration, ground clearance,
and clearance between the body and tires
or snow chains.
CAUTION
Obs

Page 230 of 256

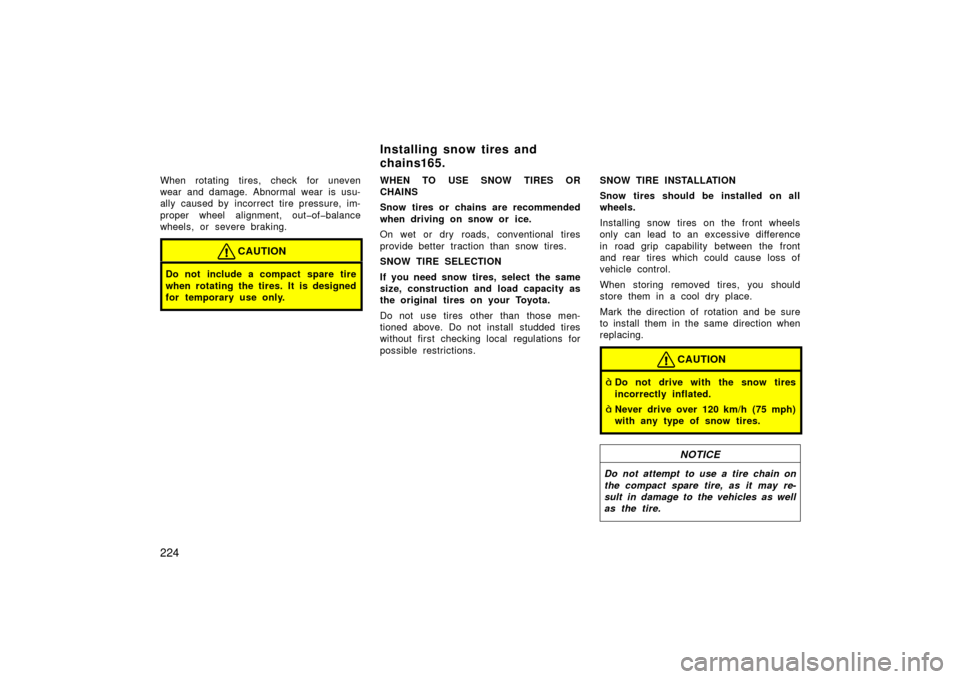

TOYOTA PRIUS 2003 1.G Owners Manual 224
When rotating tires, check for uneven
wear and damage. Abnormal wear is usu-
ally caused by incorrect tire pressure, im-
proper wheel alignment, out�of�balance
wheels, or severe braking.
CAUTION
D
