TOYOTA PRIUS 2004 2.G Navigation Manual

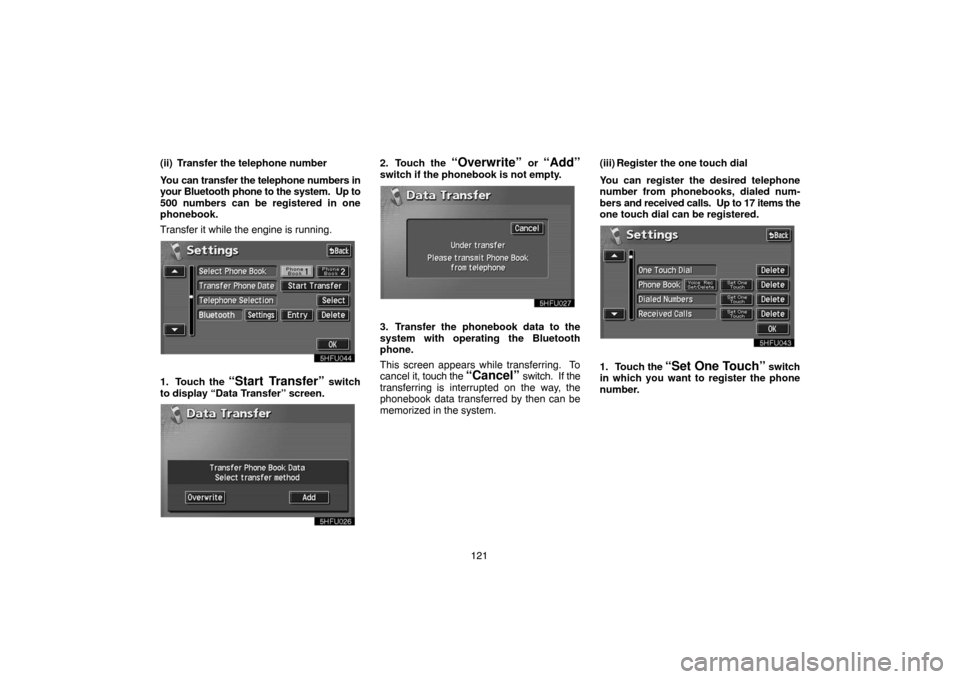

121 (ii) Transfer the telephone number
You can transfer the telephone numbers in
your Bluetooth phone to the system. Up to
500 numbers can be registered in one
phonebook.
Transfer it while the engine is running.
1. Touch the “Start Transfer” switch
to display “Data Transfer” screen.
2. Touch the “Overwrite” or “Add”
switch if the phonebook is not empty.
3. Transfer the phonebook data to the
system with operating the Bluetooth
phone.
This screen appears while transferring. To
cancel it, touch the
“Cancel” switch. If the
transferring is interrupted on the way, the
phonebook data transferred by then can be

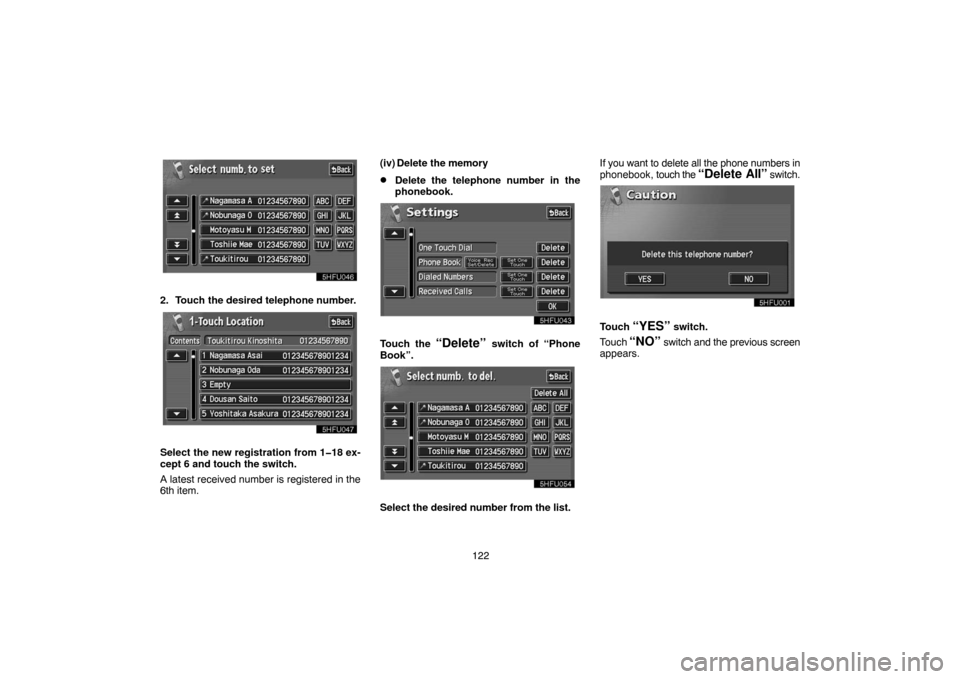

memorized in the system.(iii) Register the one touch dial
You can register the desired telephone
number from phonebooks, dialed num-
bers and received calls. Up to 17 items the
one touch dial can be registered.1. Touch the “Set One Touch” switch
in which you want to register the phone
number.

122
2. Touch the desired telephone number.
Select the new registration from 118 ex-
cept 6 and touch the switch.
A latest received number is registered in the

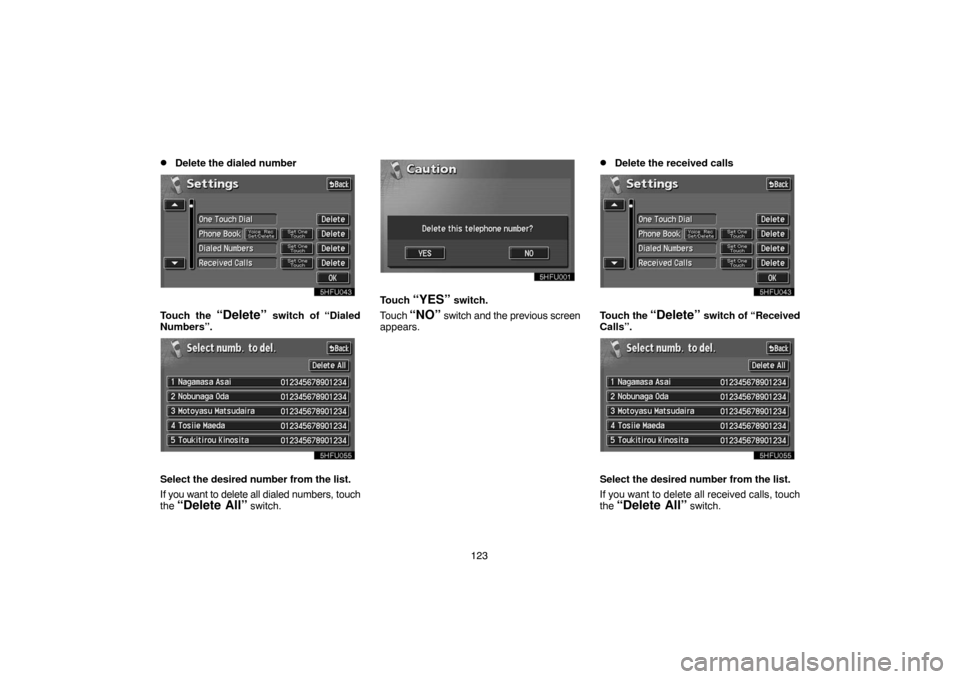

6th item.(iv) Delete the memory
Delete the telephone number in the
phonebook.
Touch the “Delete” switch of “Phone
Book”.
Select the desired number from the list.If you want to delete all the phone numbers in
phonebook, touch the
“Delete All” switch.
Touch “YES” switch.
Touch
“NO” switch and the previous screen
appears.

123

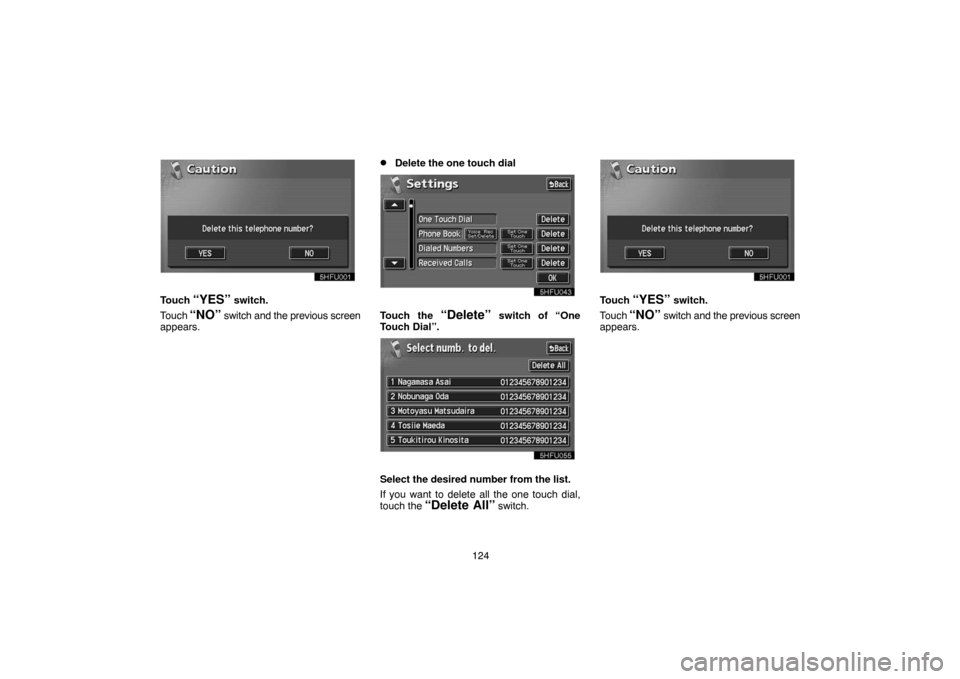

Delete the dialed number
Touch the “Delete” switch of “Dialed
Numbers”.
Select the desired number from the list.
If you want to delete all dialed numbers, touch
the
“Delete All” switch.
Touch “YES” switch.
Touch
“NO” switch and the previous screen
appears.
Delete the received calls
Touch the “Delete” switch of “Received
Calls”.
Select the desired number from the list.
If you want to delete all received calls, touch
the
“Delete All” switch.

124
Touch “YES” switch.
Touch
“NO” switch and the previous screen
appears.
Delete the one touch dial
Touch the “Delete” switch of “One
Touch Dial”.
Select the desired number from the list.
If you want to delete all the one touch dial,
touch the
“Delete All” switch.
Touch “YES” switch.
Touch
“NO” switch and the previous screen
appears.

125

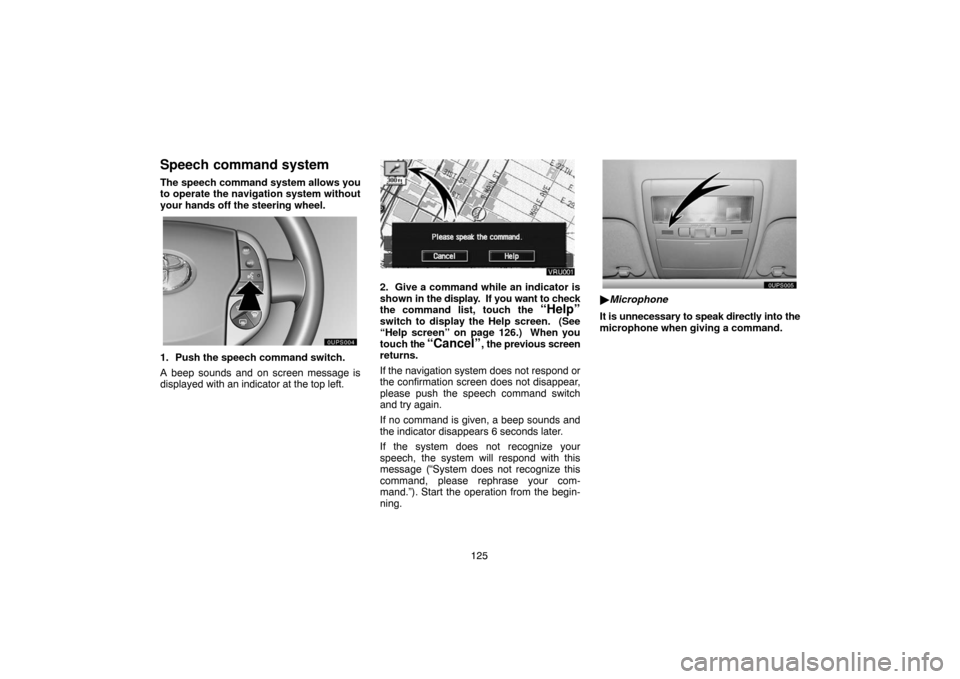

Speech command system
The speech command system allows you
to operate the navigation system without
your hands off the steering wheel.
UNL301
1. Push the speech command switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.
2. Give a command while an indicator is
shown in the display. If you want to check
the command list, touch the
“Help”
switch to display the Help screen. (See
“Help screen” on page 126.) When you
touch the
“Cancel”, the previous screen
returns.
If the navigation system does not respond or
the confirmation screen does not disappear,
please push the speech command switch
and try again.
If no command is given, a beep sounds and
the indicator disappears 6 seconds later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize this
command, please rephrase your com-
mand.”). Start the operation from the begin-
ning.
UNL303
Microphone
It is unnecessary to speak directly into the
microphone when giving a command.

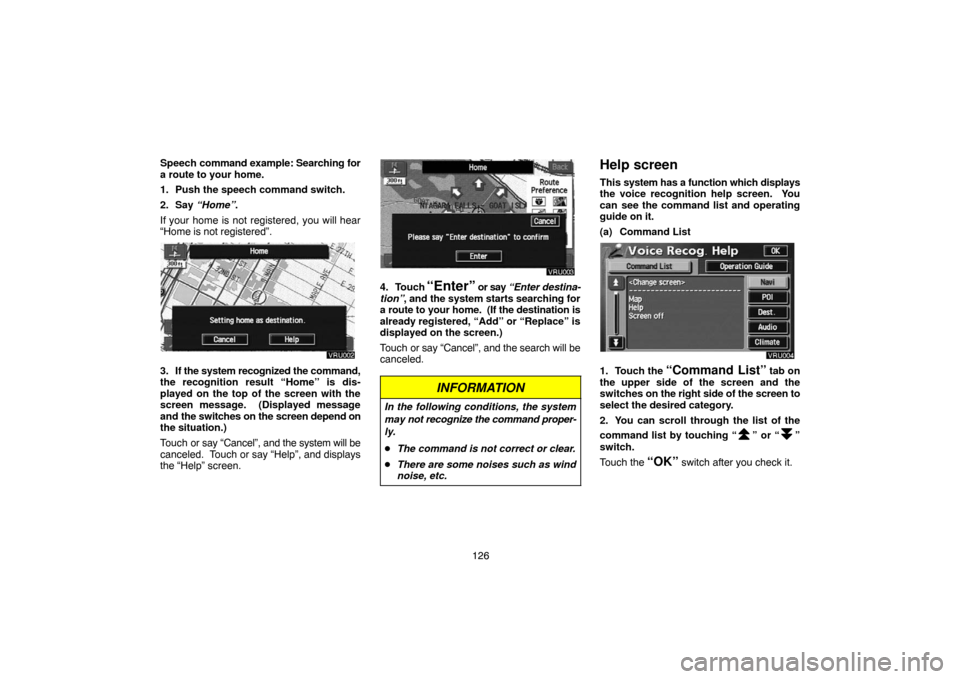

126 Speech command example: Searching for
a route to your home.
1. Push the speech command switch.
2. Say “Home”.
If your home is not registered, you will hear
“Home is not registered”.
3. If the system recognized the command,
the recognition result “Home” is dis-
played on the top of the screen with the
screen message. (Displayed message
and the switches on the screen depend on
the situation.)
Touch or say “Cancel”, and the system will be
canceled. Touch or say “Help”, and displays
the “Help” screen.
4. Touch “Enter” or say “Enter destina-
tion”, and the system starts searching for
a route to your home. (If the destination is
already registered, “Add” or “Replace” is
displayed on the screen.)
Touch or say “Cancel”, and the search will be
canceled.
INFORMATION
In the following conditions, the system
may not recognize the command proper-
ly.
The command is not correct or clear.
There are some noises such as wind
noise, etc.
Help screen
This system has a function which displays
the voice recognition help screen. You
can see the command list and operating
guide on it.
(a) Command List
1. Touch the “Command List” tab on
the upper side of the screen and the
switches on the right side of the screen to
select the desired category.
2. You can scroll through the list of the
command list by touching “
” or “”
switch.
Touch the
“OK” switch after you check it.

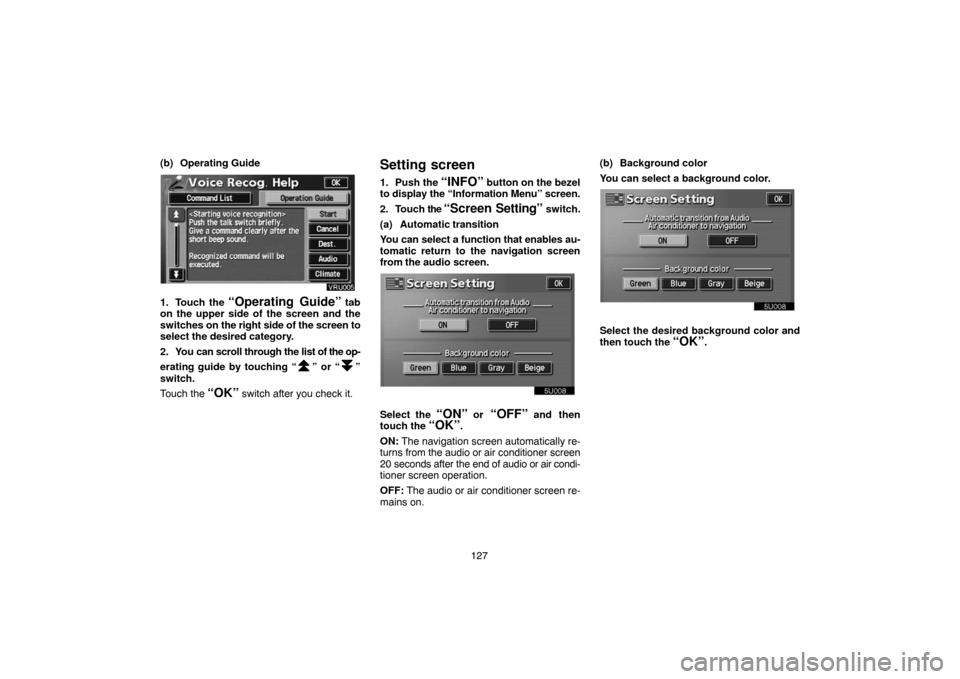

127 (b) Operating Guide
1. Touch the “Operating Guide” tab
on the upper side of the screen and the
switches on the right side of the screen to
select the desired category.
2. You can scroll through the list of the op-
erating guide by touching “
” or “”
switch.
Touch the
“OK” switch after you check it.
Setting screen
1. Push the “INFO” button on the bezel
to display the “Information Menu” screen.
2. Touch the
“Screen Setting” switch.
(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio screen.
5u008
Select the “ON” or “OFF” and then
touch the “OK”.
ON: The navigation screen automatically re-
turns from the audio or air conditioner screen
20 seconds after the end of audio or air condi-
tioner screen operation.
OFF: The audio or air conditioner screen re-
mains on.(b) Background color
You can select a background color.
Select the desired background color and
then touch the
“OK”.

128

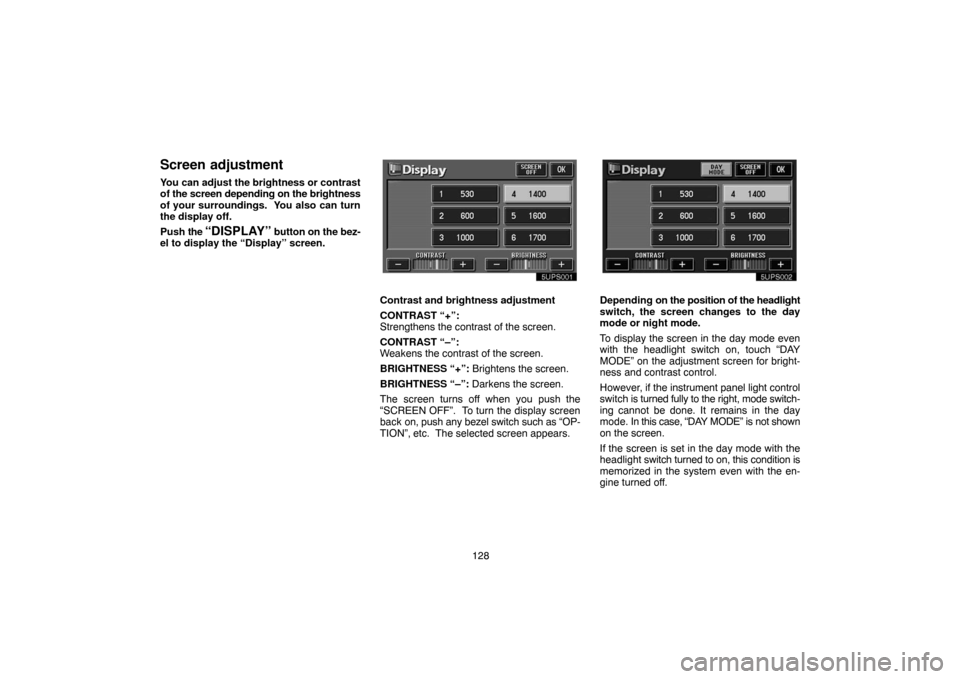

Screen adjustment
You can adjust the brightness or contrast
of the screen depending on the brightness
of your surroundings. You also can turn
the display off.
Push the
“DISPLAY” button on the bez-
el to display the “Display” screen.
Contrast and brightness adjustment
CONTRAST “+”:
Strengthens the contrast of the screen.
CONTRAST “–”:
Weakens the contrast of the screen.
BRIGHTNESS “+”: Brightens the screen.
BRIGHTNESS “–”: Darkens the screen.
The screen turns off when you push the
“SCREEN OFF”. To turn the display screen
back on, push any bezel switch such as “OP-
TION”, etc. The selected screen appears.
5u009
Depending on the position of the headlight
switch, the screen changes to the day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch “DAY
MODE” on the adjustment screen for bright-
ness and contrast control.
However, if the instrument panel light control
switch is turned fully to the right, mode switch-
ing cannot be done. It remains in the day
mode. In this case, “DAY MODE” is not shown
on the screen.
If the screen is set in the day mode with the
headlight switch turned to on, this condition is
memorized in the system even with the en-
gine turned off.
