1
FEATURES ON NEW TOYOTA VEHICLE
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster and multi −information display overview 4
. . . . . . . .

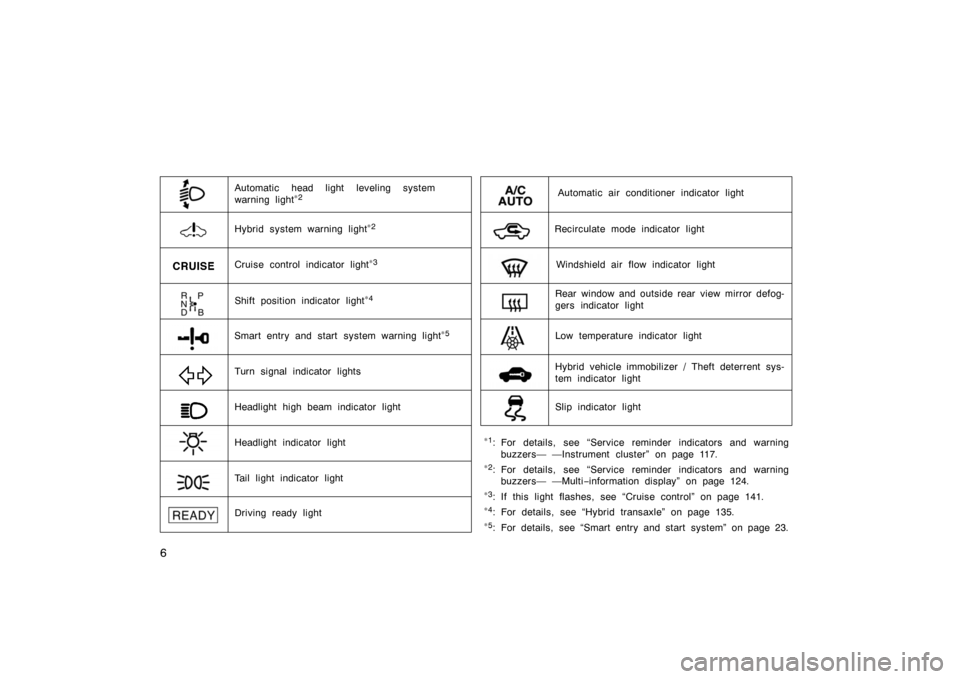

Indicator symbols on the instrument panel and multi −information
display 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
SECTION 1– 1
Page 2 of 333
2
Instrument panel overview

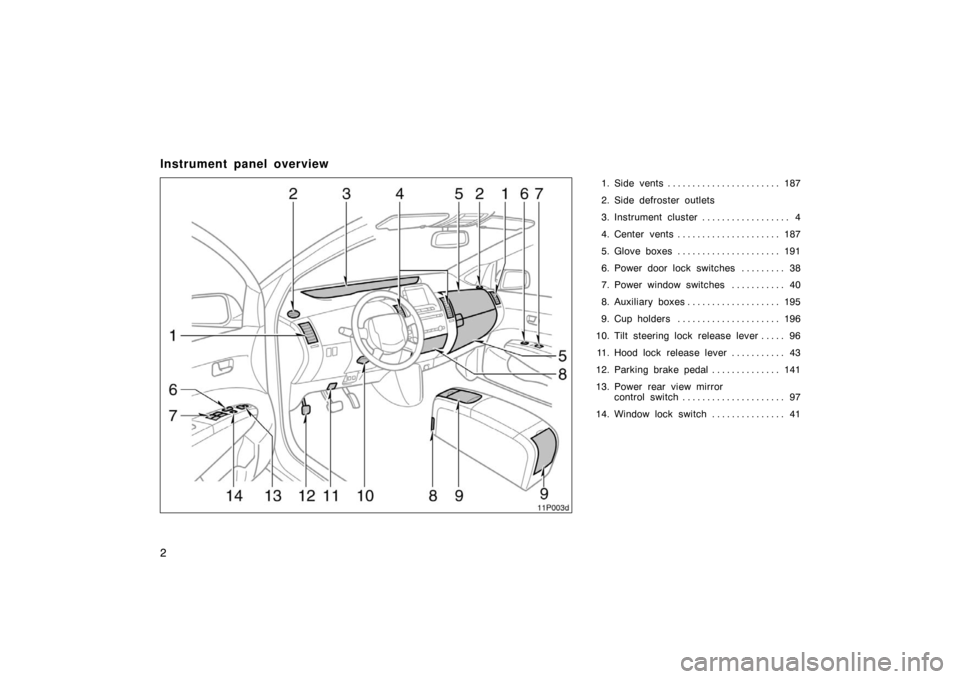

1. Side vents187
. . . . . . . . . . . . . . . . . . . . . . .
2. Side defroster outlets
3. Instrument cluster 4
. . . . . . . . . . . . . . . . . .
4. Center vents 187
. . . . . . . . . . . . . . . . . . . . .
5. Glove boxes 191
. . . . . . . . . . . . . . . . . . . . .
6. Power door lock switches 38
. . . . . . . . .
7. Power window switches 40
. . . . . . . . . . .
8. Auxiliary boxes 195
. . . . . . . . . . . . . . . . . . .
9. Cup holders 196
. . . . . . . . . . . . . . . . . . . . .
10. Tilt steering lock release lever 96 . . . . .
11. Hood lock release lever 43
. . . . . . . . . . .
12. Parking brake pedal 141
. . . . . . . . . . . . . .
13. Power rear view mirror control switch 97
. . . . . . . . . . . . . . . . . . . . .
14. Window lock switch 41
. . . . . . . . . . . . . . .
11p003d
Page 3 of 333
3

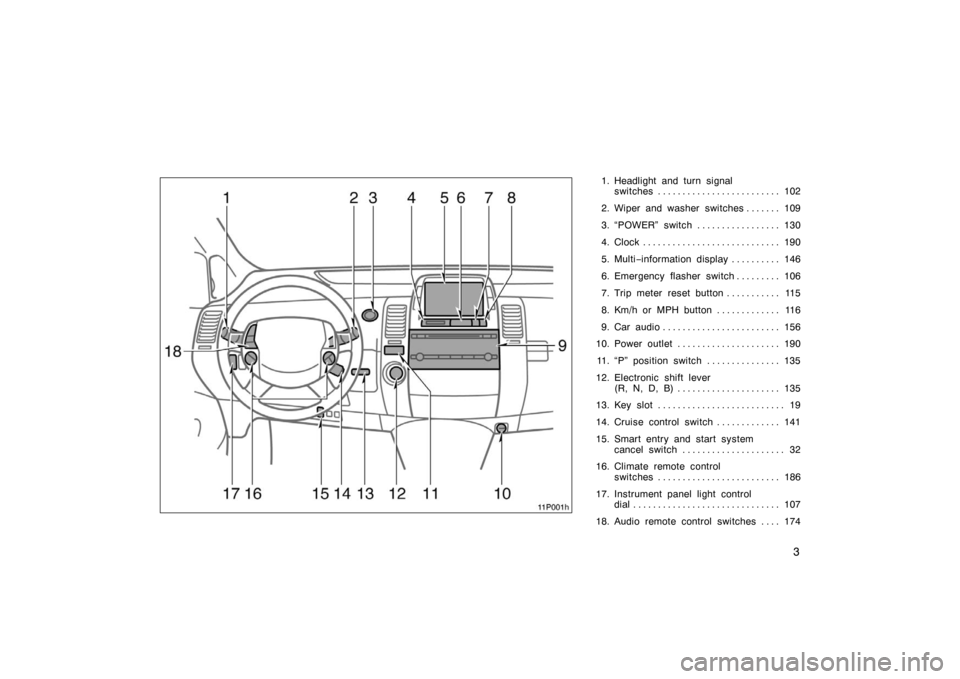

1. Headlight and turn signal switches 102 . . . . . . . . . . . . . . . . . . . . . . . . .
2. Wiper and washer switches 109 . . . . . . .
3. “POWER” switch 130 . . . . . . . . . . . . . . . . .
4. Clock 190 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Multi −information display 146 . . . . . . . . . .
6. Emergency flasher switch 106 . . . . . . . . .
7. Trip meter reset button 115 . . . . . . . . . . .
8. Km/h or MPH button 116 . . . . . . . . . . . . .
9. Car audio 156 . . . . . . . . . . . . . . . . . . . . . . . .
10. Power outlet 190 . . . . . . . . . . . . . . . . . . . . .
11. “P” position switch 135 . . . . . . . . . . . . . . .
12. Electronic shift lever (R, N, D, B) 135 . . . . . . . . . . . . . . . . . . . . .
13. Key slot 19 . . . . . . . . . . . . . . . . . . . . . . . . . .
14. Cruise control switch 141 . . . . . . . . . . . . .
15. Smart entry and start system cancel switch 32 . . . . . . . . . . . . . . . . . . . . .
16. Climate remote control switches 186 . . . . . . . . . . . . . . . . . . . . . . . . .
17. Instrument panel light control dial 107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18. Audio remote control switches 174 . . . .
11p001h
Page 4 of 333
4

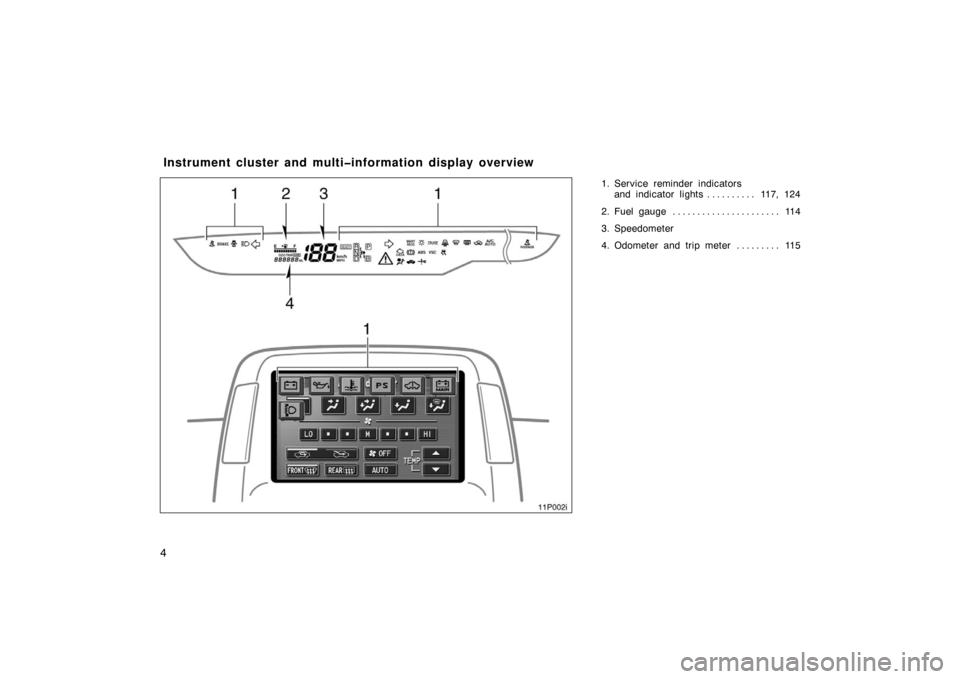

1. Service reminder indicators and indicator lights 117, 124 . . . . . . . . . .
2. Fuel gauge 114 . . . . . . . . . . . . . . . . . . . . . .
3. Speedometer
4. Odometer and trip meter 115 . . . . . . . . .

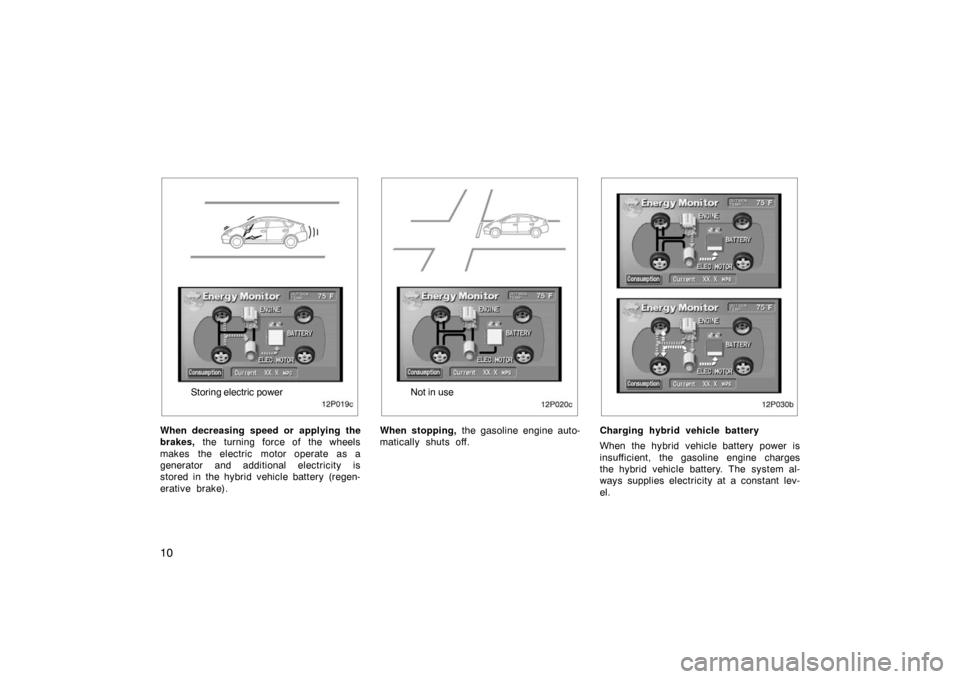

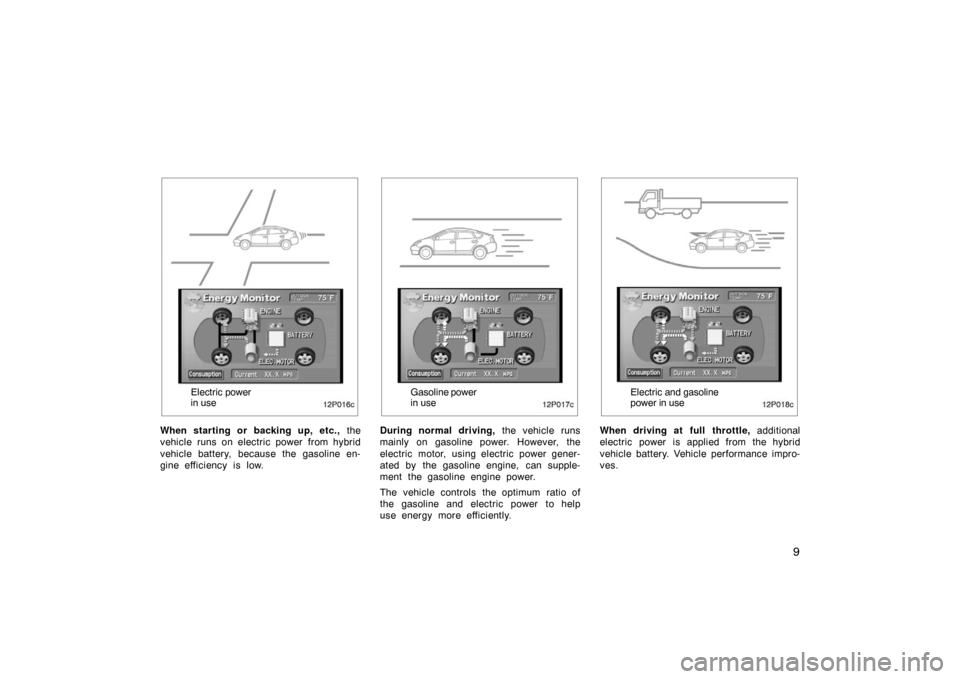

Instrument cluster and multi information display overview
11p002i
