key TOYOTA PRIUS 2004 2.G Navigation Manual

11 0 An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth connection may turn yellow and
the system may not be functioned when
you use the Bluetooth phone in the follow-
ing condition and place.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or covered
with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
BLUETOOTH is a trademark owned by Blue-
tooth SIG. Inc., U.S.A. and licensed to DEN-
SO (Fujitsu TEN)
(a) Enter the Bluetooth phone
To use a handsfree system, you need to
enter your phone in the system. Once you
registered it, you can make a handsfree
call.
1. Push the
“INFO” button to display the
“Information Menu” screen.
5u004
2. Touch the “Telephone” switch to
display “Telephone” screen.
You can also push
of the telephone button
to display this screen when the vehicle is
stopping.
3. Touch the “Settings” switch to dis-
play “Settings” screen and scroll with
“”.
4. Touch the “Entry” switch to connect
your cellular phone to the system. Oper-
ate the phone and input the PASSKEY
displayed on the screen.

11 2
Connect the Bluetooth phone
When you turn the ignition key to “ACC” or
“ON”, the selected Bluetooth phone will
be automatically connected and the con-
nection result is displayed.
Leave the Bluetooth phone enable to con-
nect.
This screen appears when the Bluetooth
phone is first connected after you turn the igni-
tion key to “ACC” or “ON”.
Reconnect the Bluetooth phone
If the Bluetooth phone is disconnected
with the radio condition of Bluetooth net-
work and the like when the ignition key is
turned to “ACC” or “ON”, the system auto-
matically reconnect the Bluetooth phone.
In this case, the connect result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this function is not operated. Reconnect the
following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

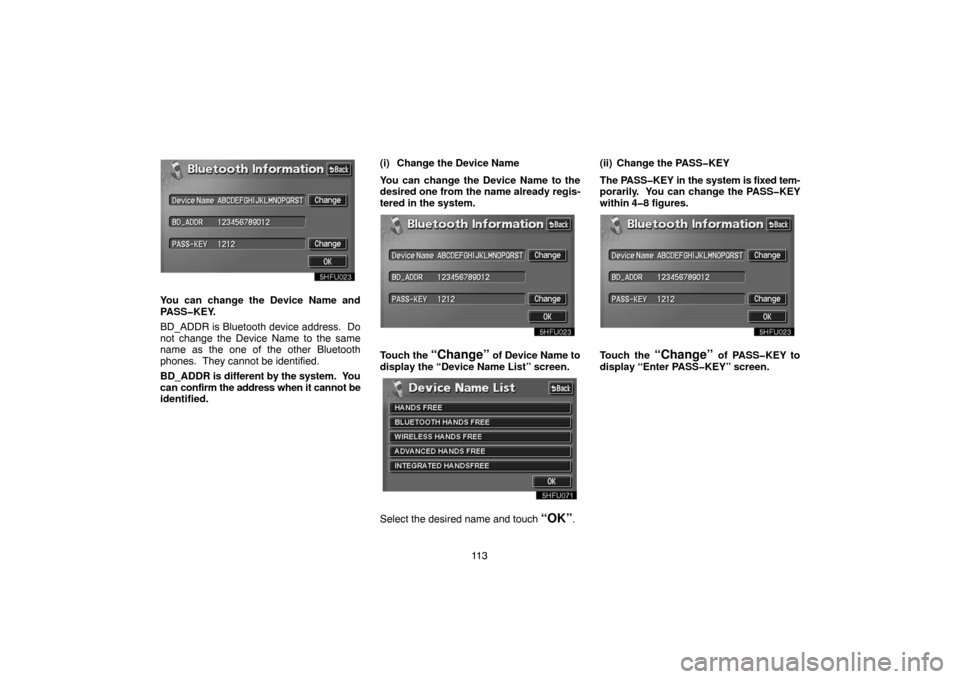

Confirm the Bluetooth information
You can confirm or change the detail set-
ting of the handsfree system.
Touch the
“Settings” switch to display
“Settings” screen.
Touch the “Settings” of Bluetooth to
display “Bluetooth Information” screen.

11 3
You can change the Device Name and
PASSKEY.
BD_ADDR is Bluetooth device address. Do
not change the Device Name to the same
name as the one of the other Bluetooth
phones. They cannot be identified.
BD_ADDR is different by the system. You
can confirm the address when it cannot be
identified.(i) Change the Device Name
You can change the Device Name to the
desired one from the name already regis-
tered in the system.
Touch the “Change” of Device Name to
display the “Device Name List” screen.
Select the desired name and touch “OK”.(ii) Change the PASSKEY

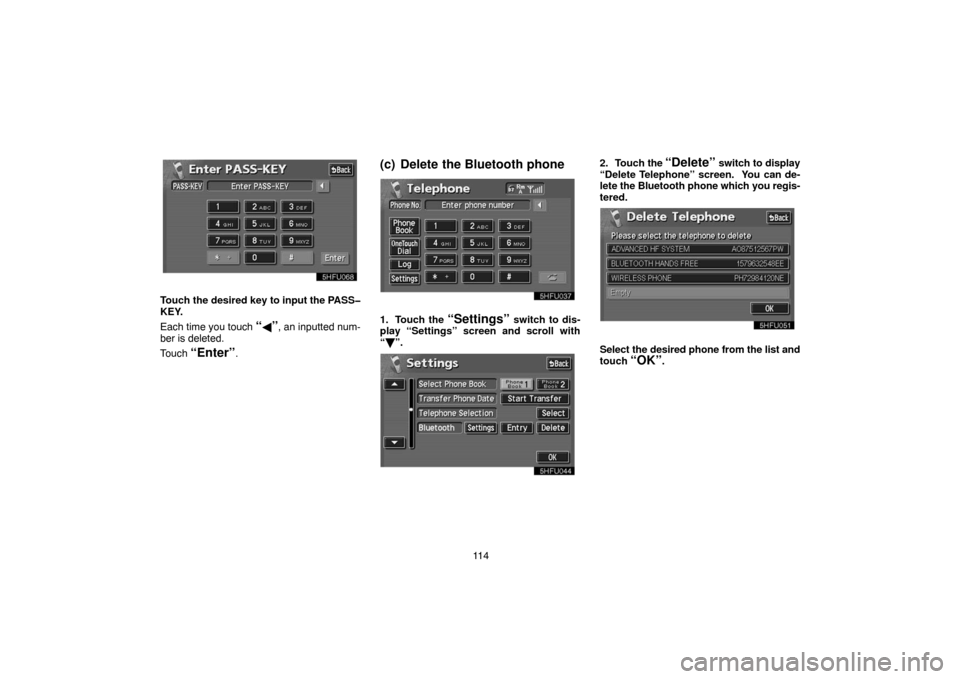

The PASSKEY in the system is fixed tem-
porarily. You can change the PASSKEY
within 48 figures.
Touch the “Change” of PASSKEY to
display “Enter PASSKEY” screen.

11 4
Touch the desired key to input the PASS
KEY.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“Enter”.
(c) Delete the Bluetooth phone
1. Touch the “Settings” switch to dis-
play “Settings” screen and scroll with
“”.
2. Touch the “Delete” switch to display
“Delete Telephone” screen. You can de-
lete the Bluetooth phone which you regis-
tered.
Select the desired phone from the list and
touch
“OK”.

11 5
(d) Call the Bluetooth phone
After you enter the Bluetooth phone, you
can call by using handsfree system. This
system has 6 methods below by which
you call.

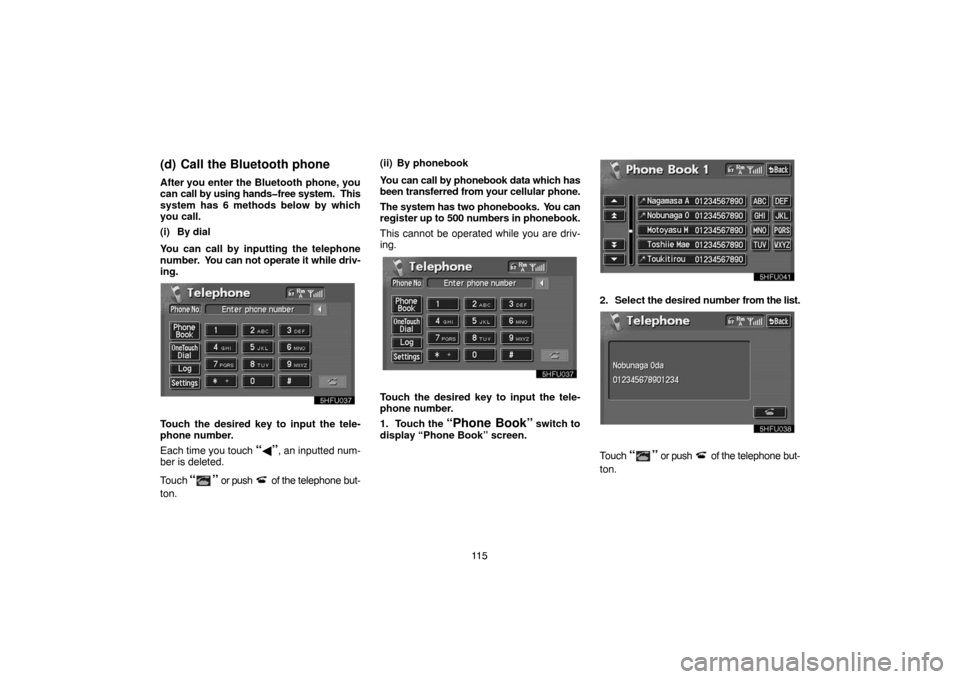

(i) By dial
You can call by inputting the telephone
number. You can not operate it while driv-
ing.
Touch the desired key to input the tele-
phone number.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“” or push of the telephone but-
ton.(ii) By phonebook
You can call by phonebook data which has
been transferred from your cellular phone.
The system has two phonebooks. You can
register up to 500 numbers in phonebook.
This cannot be operated while you are driv-
ing.
Touch the desired key to input the tele-
phone number.
1. Touch the
“Phone Book” switch to
display “Phone Book” screen.
2. Select the desired number from the list.
Touch “” or push of the telephone but-
ton.

11 9

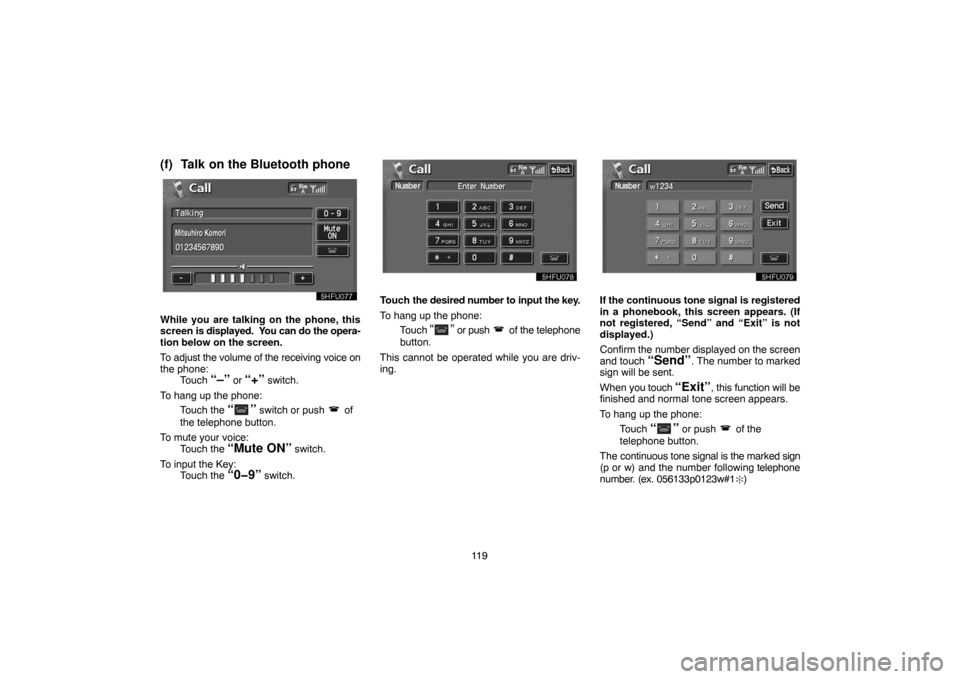

(f) Talk on the Bluetooth phone
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the receiving voice on
the phone:
Touch
“–” or “+” switch.
To hang up the phone:
Touch the
“” switch or push of
the telephone button.
To mute your voice:
Touch the
“Mute ON” switch.
To input the Key:
Touch the
“09” switch.
Touch the desired number to input the key.
To hang up the phone:
Touch
“” or push of the telephone
button.
This cannot be operated while you are driv-
ing.
If the continuous tone signal is registered
in a phonebook, this screen appears. (If
not registered, “Send” and “Exit” is not
displayed.)
Confirm the number displayed on the screen
and touch
“Send”. The number to marked
sign will be sent.
When you touch
“Exit”, this function will be
finished and normal tone screen appears.
To hang up the phone:
Touch
“” or push of the
telephone button.
The continuous tone signal is the marked sign
(p or w) and the number following telephone
number. (ex. 056133p0123w#1
)
