277

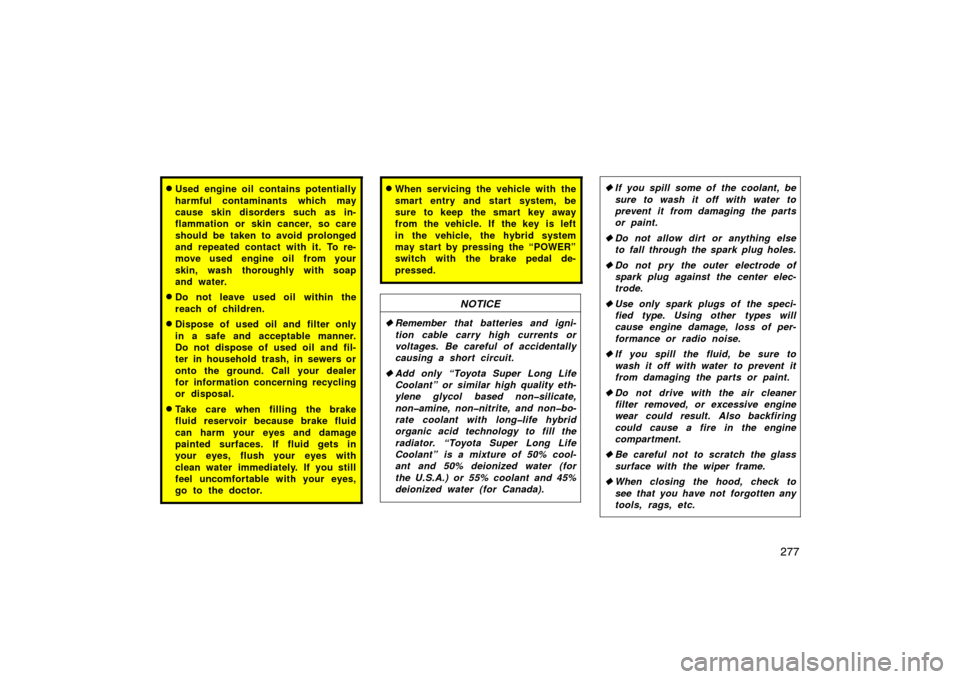

Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer
for information concerning recycling
or disposal.
Take care when filling the brake
fluid reservoir because brake fluid
can harm your eyes and damage
painted surfaces. If fluid gets in
your eyes, flush your eyes with
clean water immediately. If you still
feel uncomfortable with your eyes,
go to the doctor.
When servicing the vehicle with the
smart entry and start system, be
sure to keep the smart key away
from the vehicle. If the key is left
in the vehicle, the hybrid system
may start by pressing the “POWER”
switch with the brake pedal de-
pressed.
NOTICE
Remember that batteries and igni-
tion cable carry high currents or
voltages. Be careful of accidentally
causing a short circuit.
 Add only “Toyota Super Long Life
Coolant” or similar high quality eth-
ylene glycol based nonsilicate,
nonamine, nonnitrite, and nonbo-
rate coolant with longlife hybrid
organic acid technology to fill the
radiator. “Toyota Super Long Life
Coolant” is a mixture of 50% cool-
ant and 50% deionized water (for
the U.S.A.) or 55% coolant and 45%
deionized water (for Canada).
If you spill some of the coolant, be
sure to wash it off with water to
prevent it from damaging the parts
or paint.
 Do not allow dirt or anything else
to fall through the spark plug holes.
 Do not pry the outer electrode of
spark plug against the center elec-
trode.
 Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
 If you spill the fluid, be sure to
wash it off with water to prevent it
from damaging the parts or paint.
 Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
 Be careful not to scratch the glass
surface with the wiper frame.
 When closing the hood, check to
see that you have not forgotten any
tools, rags, etc.

281
DOITYOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level282
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the coolant level 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser 286
. . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 286
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking and replacing the air conditioning filter 287
. . . . . . . . . . . . . . .
Checking tire inflation pressure 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing tires 291
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 295
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8– 2

287
82p109

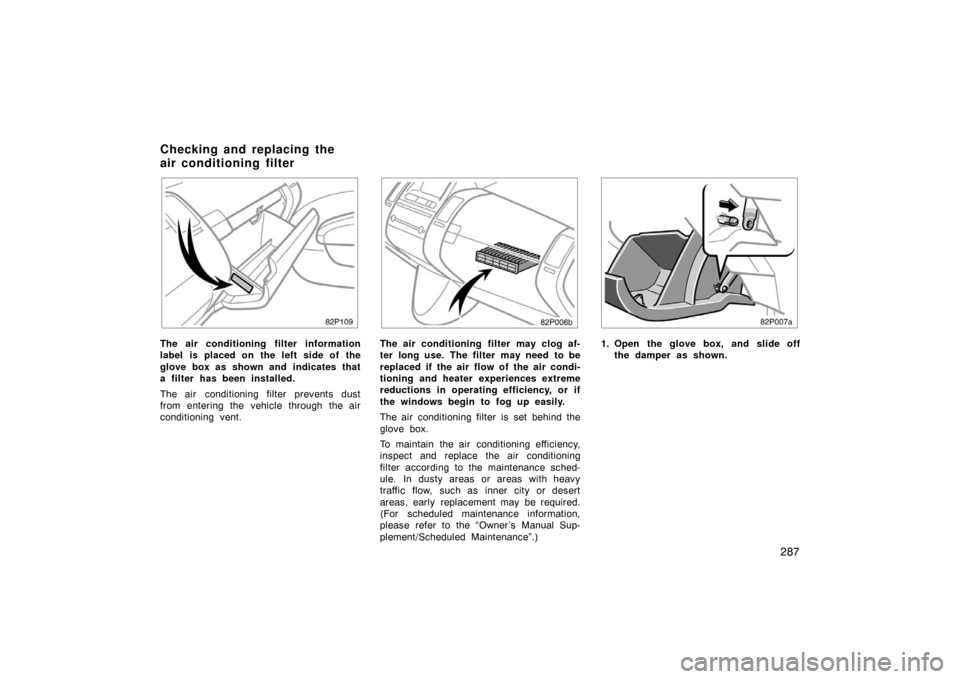

The air conditioning filter information
label is placed on the left side of the
glove box as shown and indicates that
a filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
82p006b
The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
The air conditioning filter is set behind the
glove box.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Owner ’s Manual Sup-
plement/Scheduled Maintenance”.)
82p007a
1. Open the glove box, and slide offthe damper as shown.
Checking and replacing the
air conditioning filter

289
5. Install the filter and filter case in thereverse order of removal.
Set the filter in the filter case correctly.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.
82p105
Keep your tire inflation pressures
at the proper level.

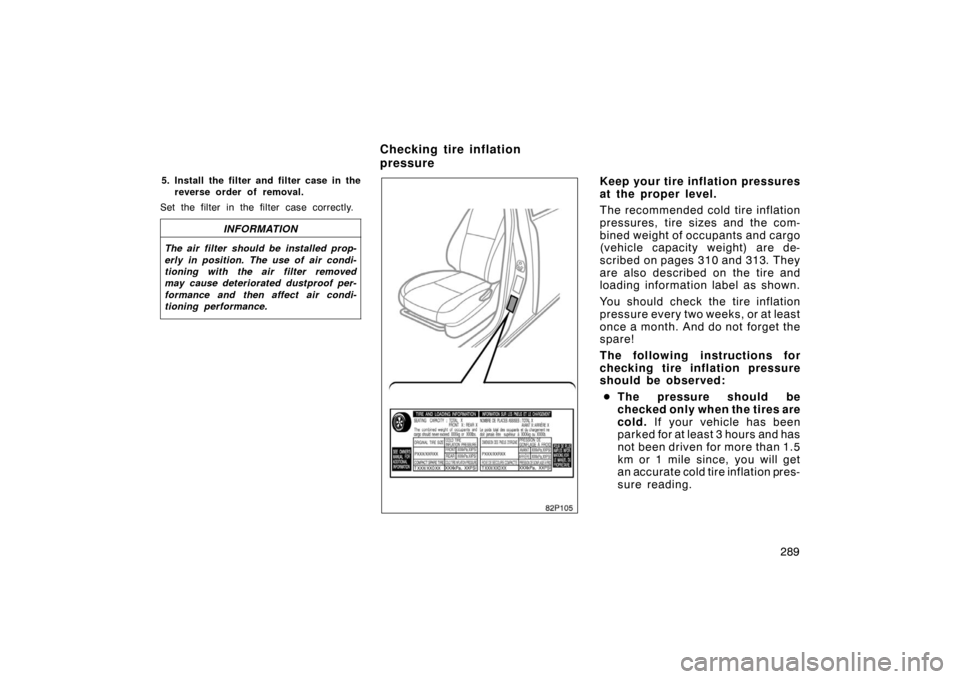

The recommended cold tire inflation
pressures, tire sizes and the com-
bined weight of occupants and cargo
(vehicle capacity weight) are de-
scribed on pages 310 and 313. They
are also described on the tire and
loading information label as shown.
You should check the tire inflation
pressure every two weeks, or at least
once a month. And do not forget the
spare!
The following instructions for
checking tire inflation pressure
should be observed:
 The pressure s hould be
checked only when the tires are
cold. If your vehicle has been
parked for at least 3 hours and has
not been driven for more than 1.5
km or 1 mile since, you will get
an accurate cold tire inflation pres-
sure reading.
Checking tire inflation
pressure
