TOYOTA PRIUS 2006 2.G Navigation Manual

101
Help screen
This system has a function which displays
the voice recognition help screen. You
can see the command list and operating
guide on it.
(a) Command list
1. If the “Operating Guide” screen is dis-
played, touch “Command List” on the up-
per side of the screen.
5E5501T
2. Select the desired category by touch-
ing the buttons on the right side of the
“Command List” screen.
3. You can scroll through the list of the
command list by touching
or .
Touch “OK” after you check it. (b) Operating guide
1. If the “Command List” screen is dis-
played, touch “Operating Guide” on the
upper side of the screen.
5E5502T
2. Select the desired category by touch-
ing the buttons on the right side of the
“Operating Guide” screen.
3. You can scroll through the list of
the op-
erating guide by touching
or .
Touch “OK” after you check it.
Screen adjustment
The brightness or contrast of the screen can
be adjusted depending on the brightness of
your surroundings. You can also turn the dis-
play off.
To display the “Display” screen, push the
“DISPLAY” button.
5U5532t
1. Touch the desired button to adjust con-
trast and brightness.
“Contrast” “+”: Strengthens the contrast of
the screen.
“Contrast” “–”: Weakens the contrast of the
screen.
“Brightness” “+”: Brightens the screen.
“Brightness” “–”: Darkens the screen.
2. After adjusting the screen, touch “OK”.

102
The screen goes off when
“Screen Off” is
touched. To turn the display screen back on,
push any button such as “INFO”, etc. The se-
lected screen appears.
INFORMATION
When you do not touch any button on
the “Display” screen for 20 seconds, the
previous screen will be displayed.
5U5533t
Depending on the position of the headlight
switch, the screen changes to the day mode
or night mode.
To display the screen in the day mode even
with the headlight switch on, touch “Day
Mode” on the adjustment screen for bright-
ness and contrast control.
If the screen is set in the day mode with the
headlight switch turned to on, this condition is
memorized in the system even with the en-
gine turned off.
Screen setting
1. Push the “INFO” button to display the
“Information” screen.
2. Touch “Screen Setting”.

103
(a) Automatic transition
You can select a function that enables auto-
matic
return to the navigation screen from the
audio/air conditioner screen.
5U5534t
Select “ON” or “OFF” and then touch
“OK”.
“ON”: The navigation screen automatically
returns from the audio/air conditioner screen
20 seconds after the end of audio/air condi-
tioner screen operation.
“OFF”: The audio/air conditioner screen re-
mains on. (b) Switch color
You can select the color of the touch
−screen
buttons.
5U5534t
Select “Green” or “Orange” and then
touch “OK”. (c) Delete personal data
The following personal
data can be deleted or
returned to their default settings:
Maintenance conditions
Maintenance information “off” setting
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the ve-
hicle is not moving.

104
5U5534t
1. Touch “Delete personal data”.
The “Delete personal data” screen appears.
5U5535t
2. Touch “Delete”.
The “Confirmation to delete all personal data”
screen appears.
5U5536t
3. Touch “Yes”.
Beep setting
You can set a beep sound off.
1. Push the “INFO” button.
5U5531t
2. Touch “Beep Off”.
“Beep Off” is highlighted.
To switch the beep sound on, touch “Beep
Off” again.

105
Selecting a language
The language of the touch−screen buttons,
pop−up messages and the voice guidance
can be changed.
1. Push the “INFO” button.
5U5531t5U5531t
2. Touch “Language”.
3. Touch “English”, “Français” or “Es-
pañol” to select a language.
If a screen other than for the navigation sys-
tem is displayed, the current screen would
change to the “CAUTION” screen by pushing
the “MAP/VOICE” , “DEST” or “MENU” but-
ton.
4. Touch “I Agree”.
The language is changed and the screen re-
turns to the map display.

106

107
APPENDIX
Limitations of the navigation system108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION VI

108
Limitations of the
navigation system
This navigation system calculates the cur-
rent vehicle position using satellite sig-
nals, various vehicle signals, map data,
etc. However, the accurate position may
not be shown depending on the satellite
condition, road configuration, vehicle
condition or other circumstances.
The Global Positioning System (GPS) devel-
oped and operated by the U.S. Department of
Defense provides an accurate current vehicle
position using 3 to 4 satellites. The GPS sys-
tem has a certain level of inaccuracy. While
the navigation system will compensate for
this most of the time, occasional positioning
errors of up to 300 feet (100 m) can and
should be expected. Generally, position er-
rors will be corrected within a few seconds.
When your vehicle is receiving signals from
the satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle posi-
tion on the map display. Tunnels, tall build-
ings, trucks, or even the placement of objects
on the instrument panel may obstruct the
GPS signals.
The GPS satellites may not send signals due
to repairs or improvements being made to
them.
Even when the navigation system is receiving
clear GPS signals, the vehicle position may
not be shown accurately or inappropriate
route guidance may occur in some cases.
NOTICE
The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content
that will interfere with GPS signal recep-
tion. We advise against the use of win-
dow tinting on vehicles equipped with
navigation systems.

109
(a) Accurate current vehicle position
may not be shown in the following cases:
When
driving on a small angled Y −shaped
road.
When driving on a winding road.
When driving on a slippery road such as
in sand, gravel, snow, etc.
When driving on a long straight road.
When motorway and surface streets run
in parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during high
speed driving.
When driving without setting the current
position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning on
a turntable in the parking lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or larger
than the factory specifications.
When the tire pressure in any of the four
tires is not correct.
INFORMATION
If your vehicle cannot receive GPS sig-
nals, you can correct the current posi-
tion manually. For information on set-
ting the current position calibration, see
page 88.
(b) Inappropriate route guidance may oc-
cur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will display
a route returning to the destination on the
previous route.
When turning at an intersection for which
there is no route guidance.
When passing through an intersection for
which there is no route guidance.
During auto reroute, the route guidance
may not be available for the next turn to
the right or left.
It may take a long time to operate auto re-
route during high speed driving. In auto
reroute, a detour route may be shown.
After auto reroute, the route may not be
changed.
An unnecessary U− turn may be shown or
announced.
A location may have multiple names and
the system will announce one or more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the route
guidance may not be shown.
Your destination point might be shown on
the opposite side of the street.

11 0
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
sons.
The road and map data stored in your nav-
igation system may not be complete or
may not be the latest version.
After replacing a tire, implement the op-
eration described in the “TIRE CHANGE
CALIBRATION”. (See page 89.)
This navigation system u ses tire turning data
and is designed to work with factory −speci-
fied tires for your vehicle. Installing tires that
are larger or smaller than the originally
equipped diameter may cause inaccurate
display of the vehicle’s position. The tire pres-
sure also affects the diameter of the tires so
please make sure the tire pressure of all four
tires is correct.

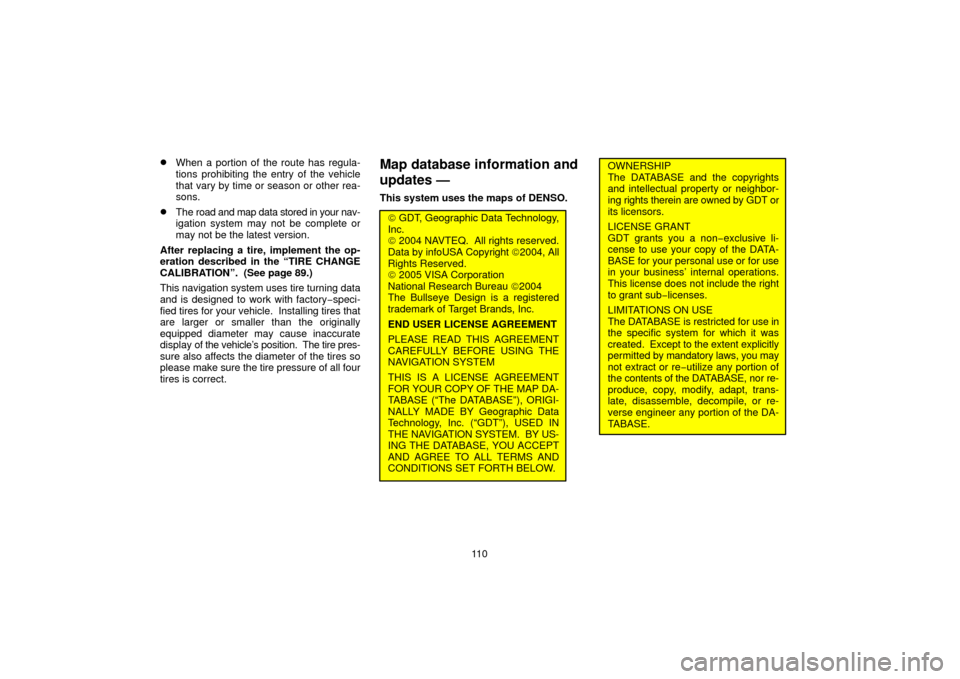

Map database information and
updates —
This system uses the maps of DENSO.
© GDT, Geographic Data Technology,
Inc.
© 2004 NAVTEQ. All rights reserved.
Data by infoUSA Copyright © 2004, All
Rights Reserved.
© 2005 VISA Corporation
National Research Bureau ©2004
The Bullseye Design is a registered
trademark of Target Brands, Inc.
END USER LICENSE AGREEMENT
PLEASE READ THIS AGREEMENT
CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT
FOR YOUR COPY OF THE MAP DA-
TABASE (“The DATABASE”), ORIGI-
NALLY MADE BY Geographic Data
Technology, Inc. (“GDT”), USED IN
THE NAVIGATION SYSTEM. BY US-
ING THE DATABASE, YOU ACCEPT
AND AGREE TO ALL TERMS AND
CONDITIONS SET FORTH BELOW.
OWNERSHIP
The DATABASE and the copyrights
and intellectual property or neighbor-
ing rights therein are owned by GDT or
its licensors.
LICENSE GRANT
GDT grants you a non−exclusive li-
cense to use your copy of the DATA-
BASE for your personal use or for use
in your business’ internal operations.
This license does not include the right
to grant sub− licenses.
LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by ma ndatory laws, you may
not extract or re−utilize any portion of
the contents of the DATABASE, nor re-
produce, copy, modify, adapt, trans-
late, disassemble, decompile, or re-
verse engineer any portion of the DA-
TABASE.
