TOYOTA PRIUS 2006 2.G Navigation Manual

61
— Route preview
1. Touch “Map View”.
2. Touch “Route Preview”.
:To indicate the next destination.
:To preview the route to the next des-
tination.
: To preview the route to the next des-
tination in fast −forward mode.
: To stop the preview.
:To review the route to the previous
destination or starting point.
: To review the route to the previous
destination or starting point in fast −
forward mode.
: To indicate the previous destination
or starting point.
— Route trace
It is possible to store the traveled route up to
124 miles (200 km) and retrace the route on
the display.
INFORMATION
This feature is available on the map with
more detailed map scale than 30 mile (50
km).
Touch “Map View”.

62
“Record”: To start recording the route trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
Touching “Yes” stops recording and the
route trace remains displayed on the screen.
Touching “No” stops recording and the route
trace is erased.

63
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
Quick reference (“Menu” screen)64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Quick reference (“Setup” screen) 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspending and resuming guidance 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Volume 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . .
User selection 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
My places 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . .
Registering memory points 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Editing memory points 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Deleting memory points 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Registering home 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Deleting home 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Registering area to avoid 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Editing area to avoid 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Deleting area to avoid 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Deleting previous points 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setup 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION IV

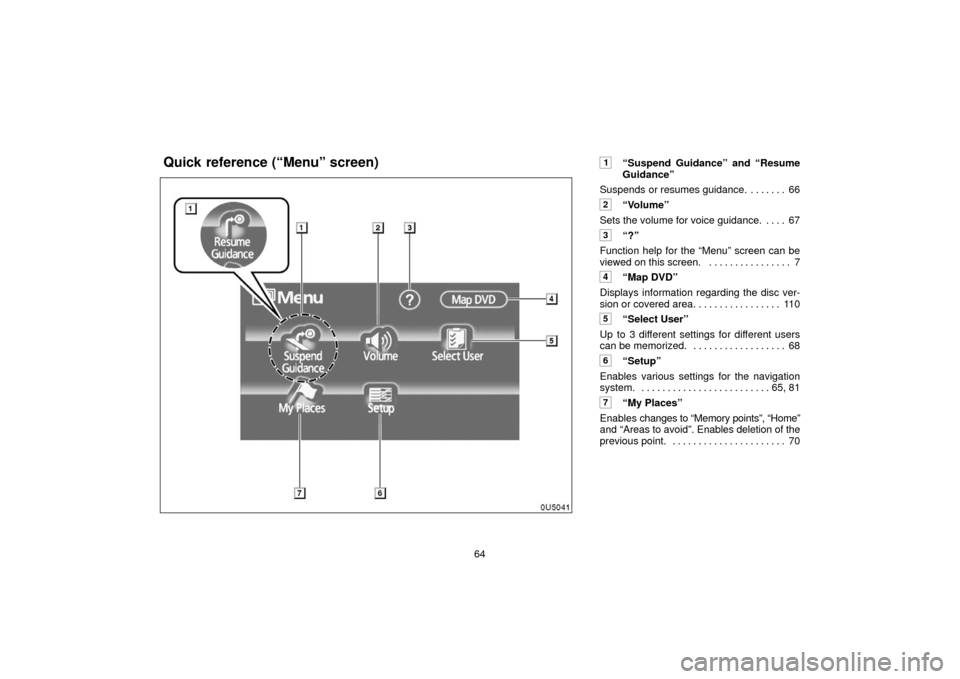

64
1“Suspend Guidance” and “Resume
Guidance”
Suspends or resumes guidance. 66 . . . . . . .
2“Volume”
Sets the volume for voice guidance. 67 . . . .
3“?”
Function help for the “Menu” screen can be
viewed on this screen. 7 . . . . . . . . . . . . . . . .
4“Map DVD”
Displays information regarding the disc ver-
sion or covered area. 110 . . . . . . . . . . . . . . . .
5“Select User”
Up to 3 different settings for different users
can be memorized. 68 . . . . . . . . . . . . . . . . . .
6“Setup”
Enables various settings for the navigation
system. 65, 81 . . . . . . . . . . . . . . . . . . . . . . . . .
7“My Places”
Enables changes to “Memory points”, “Home”
and “Areas to avoid”. Enables deletion of the
previous point. 70 . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Menu” screen)

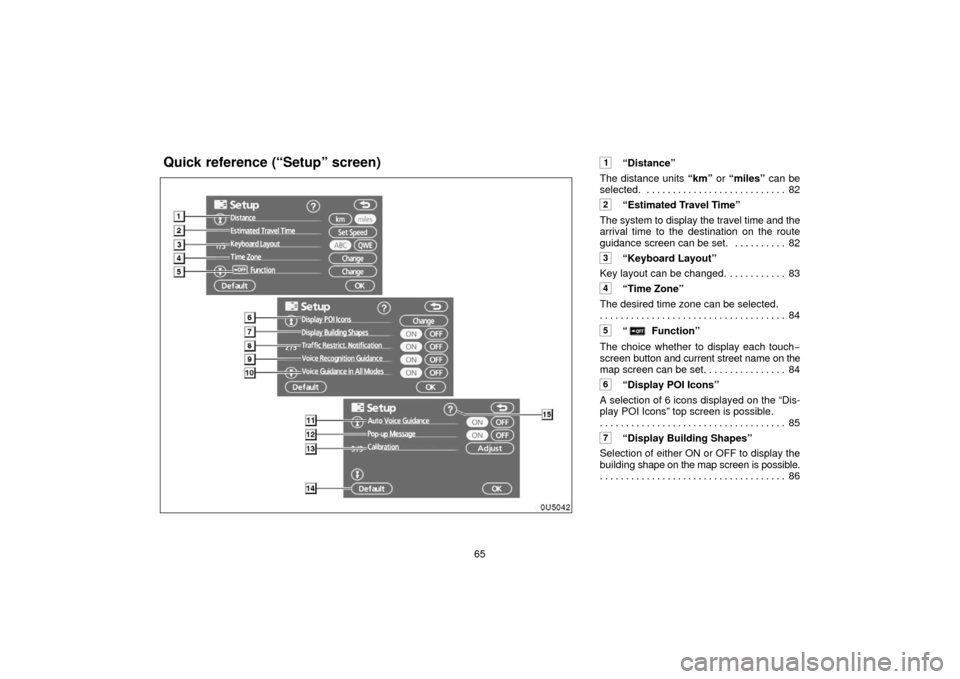

65
1“Distance”
The distance units “km” or “miles” can be
selected. 82 . . . . . . . . . . . . . . . . . . . . . . . . . . .
2“Estimated Travel Time”
The system to display the travel time and the
arrival time to the destination on the route
guidance screen can be set. 82 . . . . . . . . . .
3“Keyboard Layout”
Key layout can be changed. 83 . . . . . . . . . . .
4“Time Zone”
The desired time zone can be selected. 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
5“ Function”
The choice whether to display each touch −
screen button and current street name on the
map screen can be set. 84 . . . . . . . . . . . . . . .
6“Display POI Icons”
A selection of 6 icons displayed on the “Dis-
play POI Icons” top screen is possible. 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Display Building Shapes”
Selection of either ON or OFF to display the
building shape on the map screen is possible.
86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen)

66
8“Traffic Restrict. Notification”
Notification of seasonal restrictions can be
selected. 86 . . . . . . . . . . . . . . . . . . . . . . . . . . .
9“Voice Recognition Guidance”
Voice recognition guidance can be set. 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes. 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
11“Auto Voice Guidance”
Automatic voice guidance can be set. 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
12“Popup Message”
Selection of either ON or OFF to display the
pop−up message is possible. 87
. . . . . . . . . .
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually. 88 . . . . . . . . . .
14“Default”
This touch −screen button initializes all of the
settings. 81 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15“?”
Function help for the “Setup” screen can be
viewed. 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

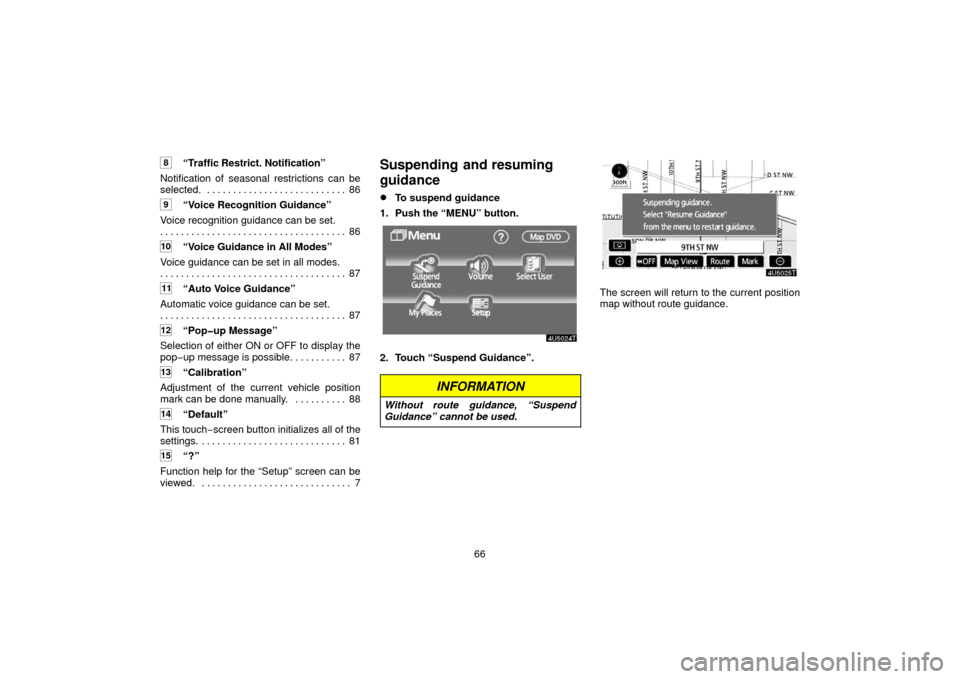

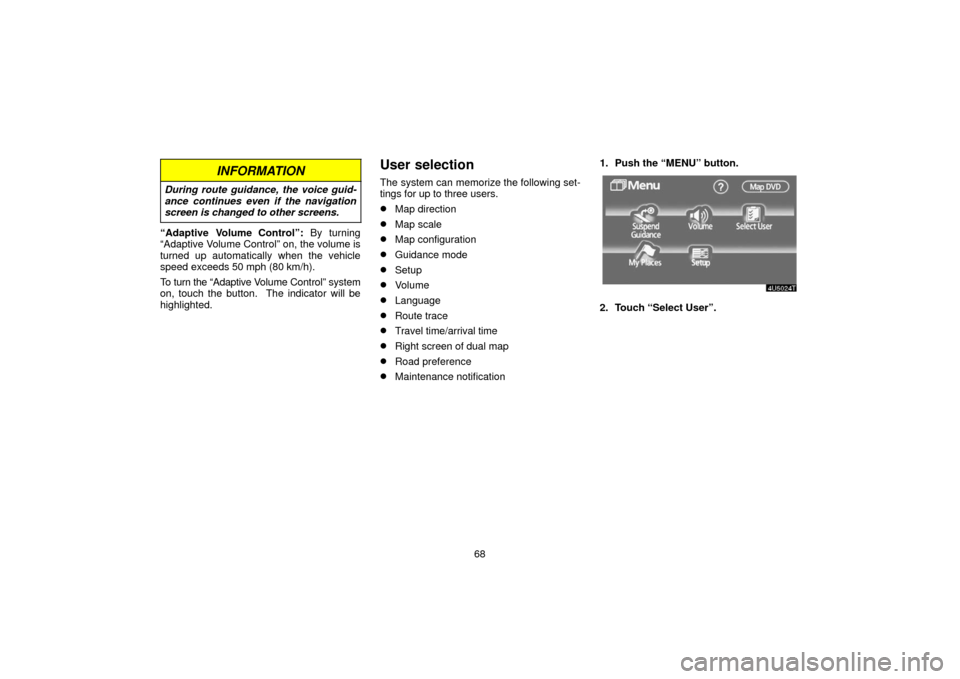

Suspending and resuming
guidance
To suspend guidance
1. Push the “MENU” button.
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
The screen will return to the current position
map without route guidance.

67

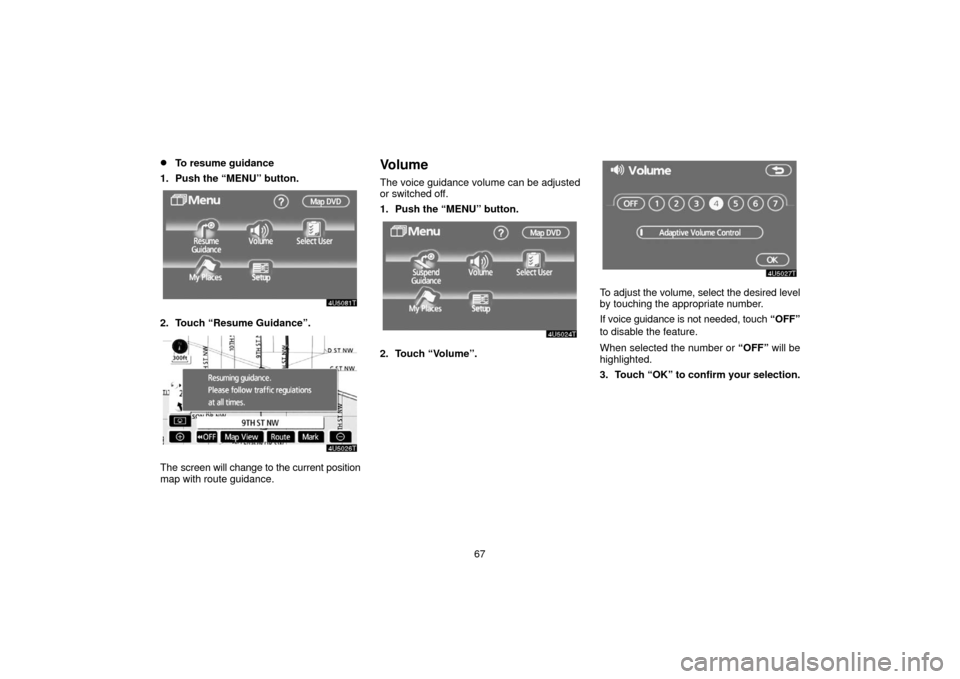

To resume guidance
1. Push the “MENU” button.
2. Touch “Resume Guidance”.
The screen will change to the current position
map with route guidance.
Volume
The voice guidance volume can be adjusted
or switched off.
1. Push the “MENU” button.
2. Touch “Volume”.
To adjust the volume, select the desired level
by touching the appropriate number.
If voice guidance is not needed, touch “OFF”
to disable the feature.
When selected the number or “OFF” will be
highlighted.
3. Touch “OK” to confirm your selection.

68
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: By turning
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the button. The indicator will be
highlighted.

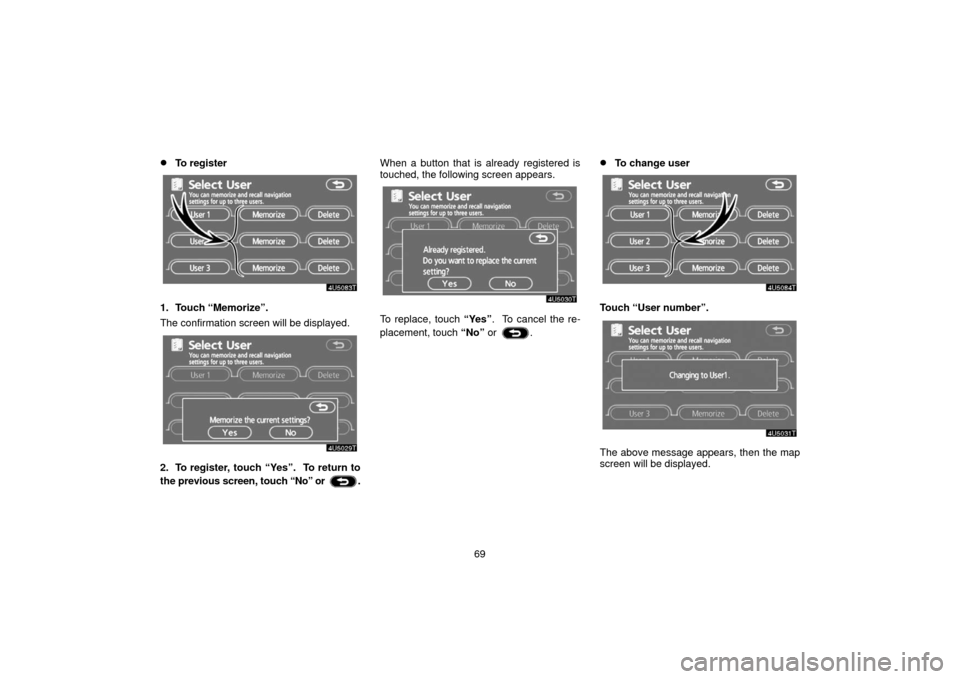

User selection
The system can memorize the following set-
tings for up to three users.
Map direction
Map scale
Map configuration
Guidance mode
Setup
Volume
Language
Route trace
Travel time/arrival time
Right screen of dual map
Road preference
Maintenance notification 1. Push the “MENU” button.
2. Touch “Select User”.

69
To register
1. Touch “Memorize”.
The confirmation screen will be displayed.
2. To register, touch “Yes”. To return to
the previous screen, touch “No” or
.When a button that is already registered is
touched, the following screen appears.
To replace, touch
“Yes”. To cancel the re-
placement, touch “No” or
.
To change user
Touch “User number”.
The above message appears, then the map
screen will be displayed.

70

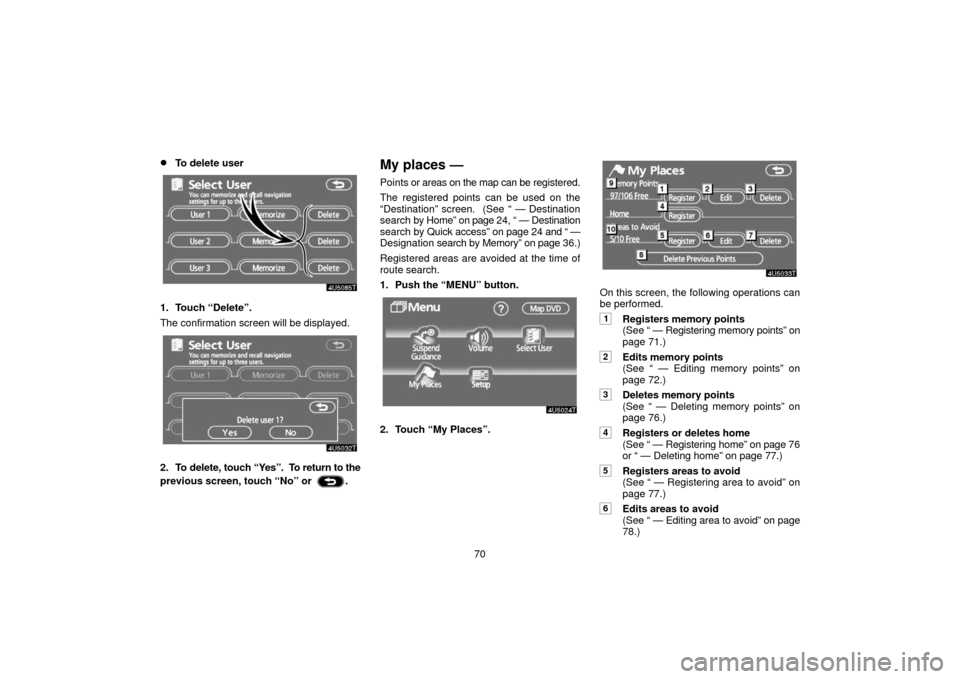

To delete user
1. Touch “Delete”.
The confirmation screen will be displayed.
2. To delete, touch “Yes”. To return to the
previous screen, touch “No” or
.
My places —
Points or areas on the map can be registered.
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Home” on page 24, “ — Destination
search by Quick access” on page 24 and “ —
Designation search by Memory” on page 36.)
Registered areas are avoided at the time of
route search.
1. Push the “MENU” button.
2. Touch “My Places”.
On this screen, the following operations can
be performed.
1Registers memory points
(See “ — Registering memory points” on
page 71.)
2Edits memory points
(See “ — Editing memory points” on
page 72.)
3Deletes memory points
(See “ — Deleting memory points” on
page 76.)
4Registers or deletes home
(See “ — Registering home” on page 76
or “ — Deleting home” on page 77.)
5Registers areas to avoid
(See “ — Registering area to avoid” on
page 77.)
6Edits areas to avoid
(See “ — Editing area to avoid” on page
78.)
