engine coolant TOYOTA PRIUS 2006 2.G Quick Reference Guide

BASIC HYBRID VEHICLE OPERATION
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12
OVERVIEW
Headlight indicator
Low engine oil pressure warning
2
Service reminder indicators and indicator lights
Speedometer
Fuel gauge
Odometer and two trip meters

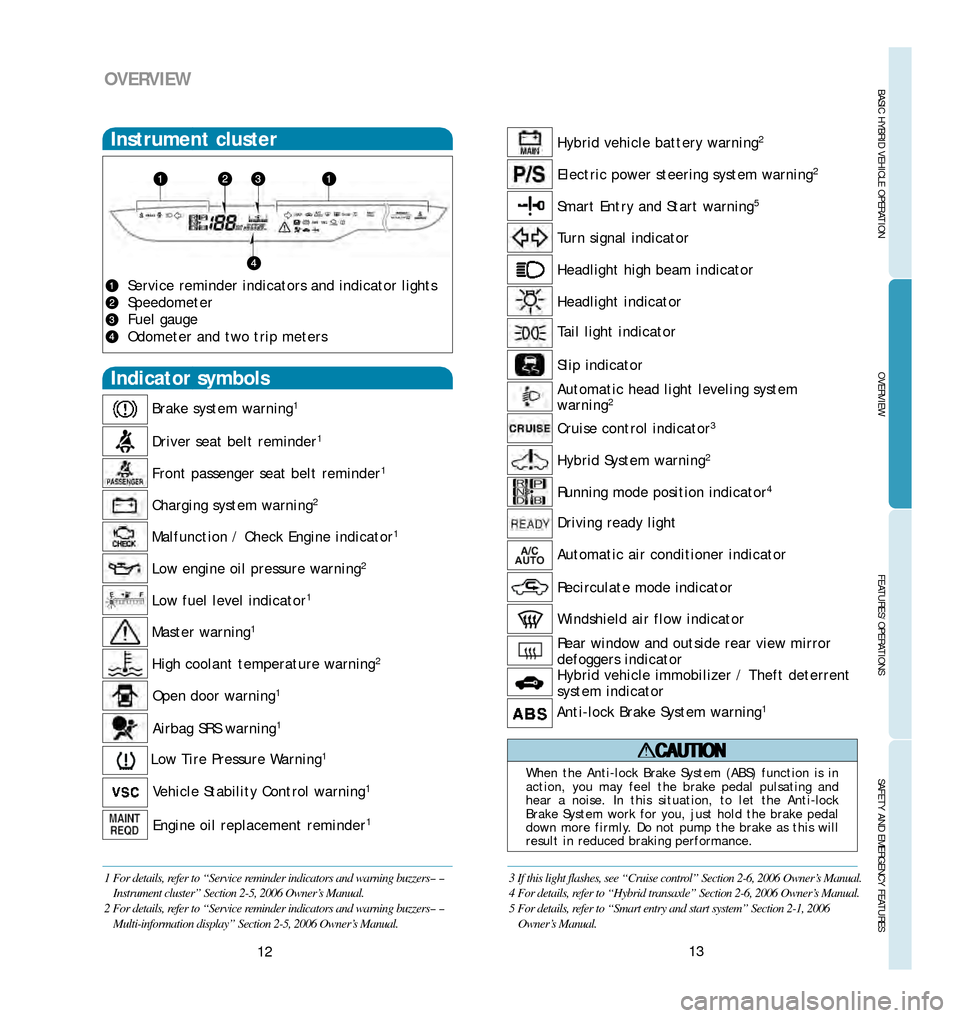

Instrument cluster
Driver seat belt reminder1
Front passenger seat belt reminder1
Brake system warning1
Charging system warning2
Low fuel level indicator1
Antilock Brake System warning1
Malfunction / Check Engine indicator1
When the Antilock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Antilock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking performance.
Indicator symbols
Master warning1
High coolant temperature warning2
Open door warning1
Airbag SRS warning1
1 For details, refer to “Service reminder indicators and warning buzzers
Instr ument cluster” Section 25, 2006 Owner ’s Manual.
2 For details, refer to “Service reminder indicators and warning buzzers
Multiinformation display” Section 25, 2006 Owner ’s Manual. 3
If this light flashes, see “Cruise control” Section 26, 2006 Owner’s Manual.
4 For details, refer to “Hybrid transaxle” Section 26, 2006 Owner ’s Manual.
5 For details, refer to “Smart entry and start system” Section 21, 2006
Owner ’s Manual.
Driving ready light
Engine oil replacement reminder
1
Turn signal indicator
Headlight high beam indicator
Cruise control indicator
3
Slip indicator
Hybrid System warning2
Vehicle Stability Control warning1
Hybrid vehicle battery warning2
Electric power steering system warning2
Smart Entry and Start warning5
T ail light indicator
Automatic head light leveling system
warning
2
R unning mode position indicator4
Automatic air conditioner indicator
Recirculate mode indicator
Windshield air flow indicator
Rear window and outside rear view mirror
defoggers indicator
Hybrid vehicle immobilizer / Theft deterrent
system indicator
Low Tire Pressure Warning1
06 Prius PRG Inside 11/10/05 5:44 PM Page 12

BASIC HYBRID VEHICLE OPERATION
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
14
Hood release
Engine maintenance
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’s W arranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’ s Manual
Supplement.”
Pull up
Pull
Rear hatch
Pull
NOTE:
If not tightened enough, check engine “ ”
indicator may illuminate.
NOTE: MAINTAIN GASOLINE IN THE TANK AT ALL
TIMES. SERIOUS DAMAGE T O THE HYBRID SYSTEM
CAN OCCUR IF THE VEHICLE RUNS OUT OF GAS.
Fuel tank door opener and cap
Turn Driver seat
Pull up
Store
OVERVIEW
To open the rear hatch, grasp the handle and pull up.
