Page 3 of 458
3
1. Headlight and turn signal switches 110 . . . . . . . . . . . . . . . . . . . . . . . . .
2. Wiper and washer switches 117 . . . . . . .
3. “POWER” switch 139 . . . . . . . . . . . . . . . . .
4. Clock 304 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Multi −information display or
navigation system including
multi −information display
(For the navigation system,
see the separate “Navigation
System Owner ’s Manual”.) 160 . . . . . . . .
6. Emergency flasher switch 114 . . . . . . . . .
7. Trip meter reset button 123 . . . . . . . . . . .
8. Km/h or MPH button 124 . . . . . . . . . . . . .
9. Audio system 242 . . . . . . . . . . . . . . . . . . . .
10. Power outlet 307 . . . . . . . . . . . . . . . . . . . . .
11. “P” position switch 144 . . . . . . . . . . . . . . .
12. Electronic shift lever (R, N, D, B) 144 . . . . . . . . . . . . . . . . . . . . .
13. Key slot 138 . . . . . . . . . . . . . . . . . . . . . . . . .
14. Cruise control switch 156 . . . . . . . . . . . . .
15. Tire pressure warning reset switch 150 . . . . . . . . . . . . . . . . . . . . .
16. Smart entry and start system cancel switch 34 . . . . . . . . . . . . . . . . . . . . .
11p019
Page 164 of 458
164
Functions
26p148
Ty p e 1 *
27p149
Ty p e 2
26p027c
Ty p e 3
1. Trip information, Telephone, Lan-guage and Screen setting
For details, see page 166.
*: For other functions (Maintenance, Cal- ender and Beep setting), see the sepa-
rate “Navigation System Owner ’s Manu-
al”.
27p142a
2. Adjustment
The contrast and brightness on the screen
are adjusted. For details, see page 238.
Page 187 of 458
187
You: Push the talk switch.
System: “After the beep, please say thenumber.”
You: “812387”
System: “When ready, please briefly push the talk switch or push
the off−hook switch to dial.”
You: Push the talk switch.
System: “After the beep, please continue to add numbers or say “Dial”.”
You: “Dial.”
System: “Dialing the number.”
Now you can call 812387.
27p206
Sending a tone
You can send a tone by giving a de-
sired number.
You: Push the talk switch.
System: “Say numbers, pound, or star.”
You: “1234.”
System: “1234.” “Push the talk switch.”
You: Push the talk switch.
System: “Send? Say Yes or No.”
You: “Yes.”
System: “Sending.”
Now you can send the tone.
27p207
(g) By POI call (with Navigation Sys- tem)
You can call by touching “
” when it
is displayed on the screen from Naviga-
tion system. (See the separate “Navi-
gation System Owner ’s Manual” for de-
tails.)
Page 237 of 458
237
27p334
Microphone
It is unnecessary to speak directly into
the microphone when giving a com-
mand.This system has a function which dis-
plays the voice recognition help screen.
You can see the command list and op-
erating guide on it.
27p361
(a) Command List
1. Touch the “Command List” tab on the upper side of the screen.
2. Select the desired category by touching the buttons on the right
side of the “Command List” screen.*
3. You can scroll through the command
list by touching “
” or “”
switch.
*: For the vehicles without Navigation Sys-
tem, “Tel” only is shown.
Touch the “OK” switch after you check it.
—Help screen
Page 238 of 458
238
27p362
(b) Operating Guide1. Touch the “Operating Guide” tab on the upper side of the screen.
2. Select the desired category by touching the buttons on the right
side of the “Operating Guide”
screen.*
3. You can scroll through the list of the
operating guide by touching “
” or
“
” switch.
*: For the vehicles without Navigation Sys-
tem, “Tel” only is shown.
Touch the “OK” switch after you check it.
Adjustment
26p024a
Type 1 Type 2 and Type
3
Push the “DISPLAY” button to display
the “Display” screen.
27p142a
Type 1 and Type 2
26p026b
Ty p e 3

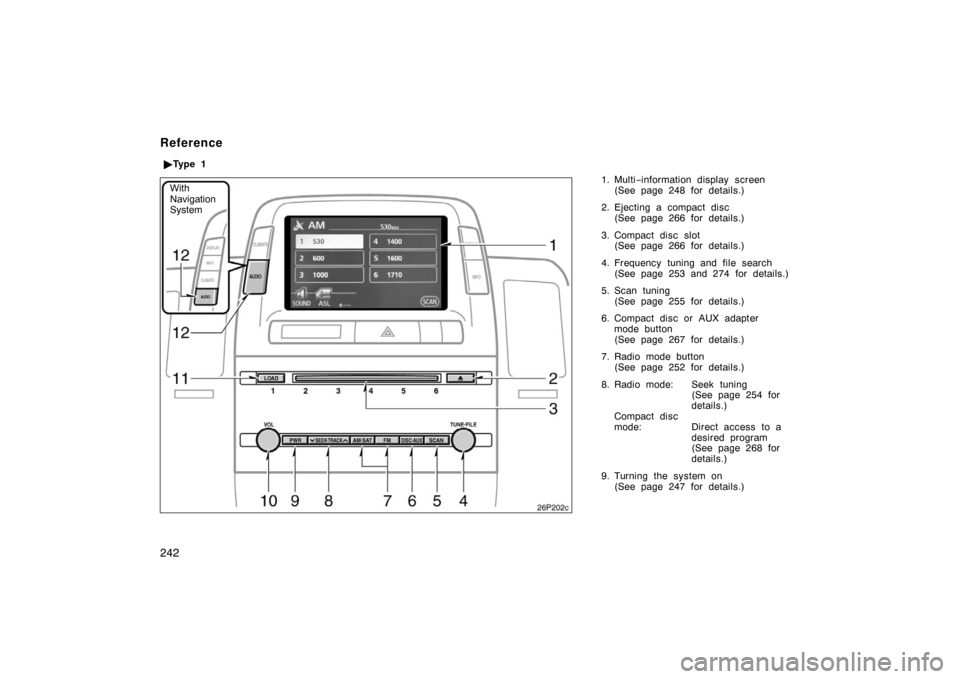

Page 242 of 458
242
1. Multi−information display screen
(See page 248 for details.)
2. Ejecting a compact disc (See page 266 for details.)
3. Compact disc slot (See page 266 for details.)
4. Frequency tuning and file search (See page 253 and 274 for details.)
5. Scan tuning (See page 255 for details.)
6. Compact disc or AUX adapter mode button
(See page 267 for details.)
7. Radio mode button (See page 252 for details.)
8. Radio mode: Seek tuning (See page 254 for
details.)
Compact disc
mode: Direct access to a desired program
(See page 268 for
details.)
9. Turning the system on (See page 247 for details.)
Reference
Ty p e 1
26p202c
With
Navigation
System

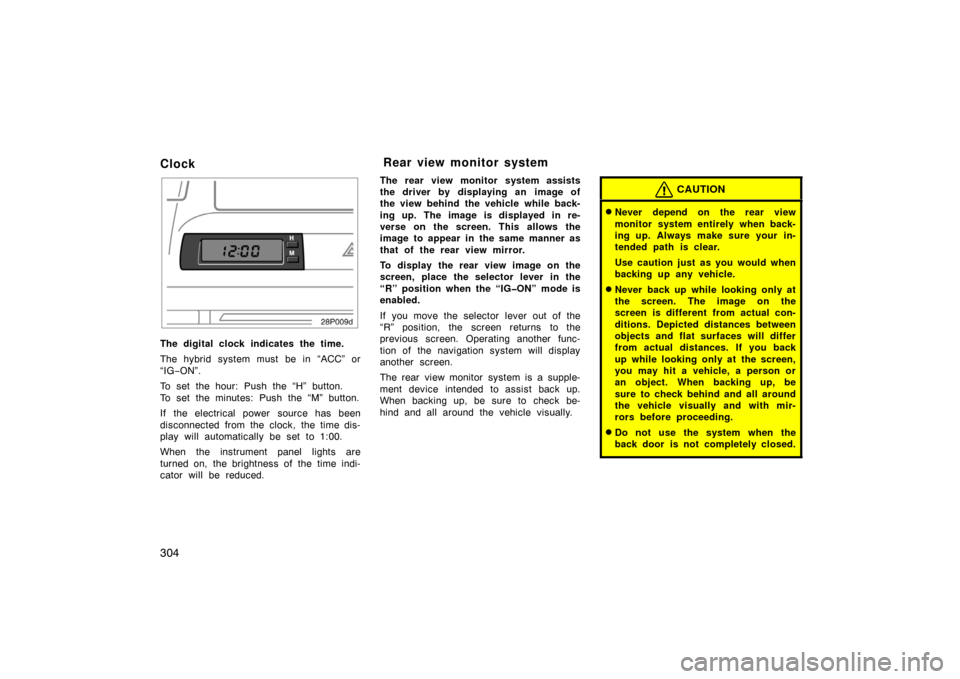

Page 304 of 458
304
Clock
28p009d
The digital clock indicates the time.
The hybrid system must be in “ACC” or
“IG−ON”.
To set the hour: Push the “H” button.
To set the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced. The rear view monitor system assists
the driver by displaying an image of
the view behind the vehicle while back-
ing up. The image is displayed in re-
verse on the screen. This allows the
image to appear in the same manner as
that of the rear view mirror.
To display the rear view image on the
screen, place the selector lever in the
“R” position when the “IG ON” mode is
enabled.
If you move the selector lever out of the
“R” position, the screen returns to the
previous screen. Operating another func-
tion of the navigation system will display
another screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check be-
hind and all around the vehicle visually.
CAUTION
Never depend on the rear view
monitor system entirely when back-
ing up. Always make sure your in-
tended path is clear.
Use caution just as you would when
backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual con-
ditions. Depicted distances between
objects and flat surfaces will differ
from actual distances. If you back
up while looking only at the screen,
you may hit a vehicle, a person or
an object. When backing up, be
sure to check behind and all around
the vehicle visually and with mir-
rors before proceeding.
Do not use the system when the
back door is not completely closed.
Rear view monitor system
