engine TOYOTA PRIUS 2007 2.G Quick Reference Guide

1
OVERVIEW BASIC HYBRID VEHICLE OPERATION
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
ItemPage no.
BASIC HYBRID VEHICLE OPERATIONHybrid Synergy Drive System 2Keyless entry 4Key fob3Parking & turning OFF the Hybrid System 9Shifting8Smart Key 5-6Smart Key unlock functions16Tu r n i n g the Hybrid System ON 7
OVERVIEWEngine maintenance15Fuel tank door opener and cap14Hood release15Indicator symbols12-13Instrument cluster12Instrument panel10-11
Rear hatch14
FEATURES/OPERATIONSAir Conditioning/Heating 20-21Audio 22-23AUX audio jack 24Clock 24Cruise control 21Cup and bottle holders 25
Garage door opener (HomeLink®)217Light Control-Instrument panel 24Lights & turn signals16Luggage storage box 24Parking brake 25Power outlets 25Seat adjustments-Front18Seat adjustments-Rear18Seats-Head restraints18Tilt steering wheel19Window wiper & washer17
Windows19
SAFETY AND EMERGENCY FEATURESDoor locks 26Doors-Child safety locks 26Emergency flashers 27Jump starting 28Rear air vent 27Seat belts 26Seat belts-Shoulder belt anchor 26Spare tire & tools 29Tire Pressure Wa r n i n g System reset 27
1Programmable by customer.For dealer-programmable
features, please visit your Toyota dealer.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

3 2
OVERVIEW BASIC HYBRID VEHICLE OPERATION
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Master keyIgnition key & wireless remote.
Mechanical keyFits into master key and can be
removed to manually lock/unlock driver door only.
Ignition key slot When inserting, push completely
in. When removing, gently pull; key will be pushed
out by a spring. DO NOT FORCE THE KEY.If it
cannot be removed, push
it all the way in again,
then pull it out.
To remove or replace mechanical key Slide the
lock knob in the direction of the arrow.

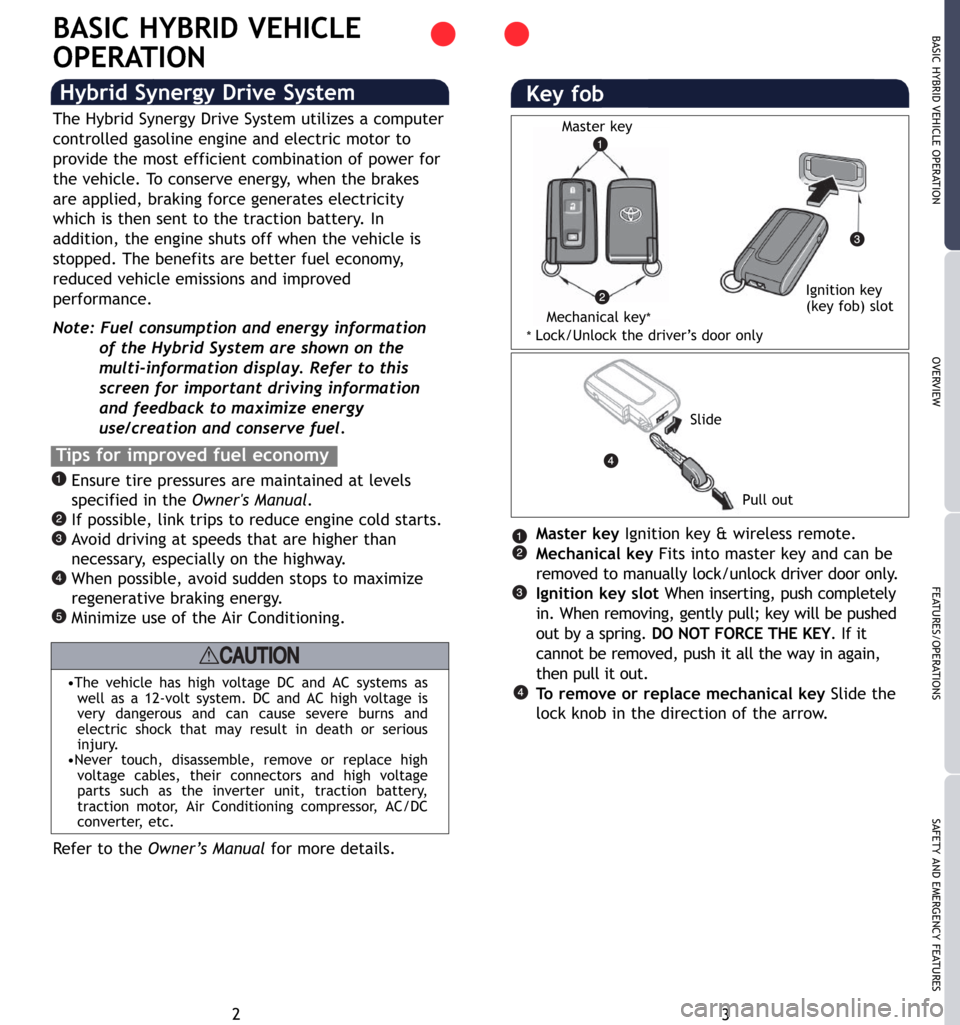

Key fob
BASIC HYBRID VEHICLE
OPERATION
Master key
Mechanical key
*
Ignition key
(key fob) slot
*Lock/Unlock the driver’s door only
Slide
Pull out
Hybrid Synergy Drive System
•The vehicle has high voltage DC and AC systems as
well as a 12-volt system. DC and AC high voltage is
very dangerous and can cause severe burns and
electric shock that may result in death or serious
injury.
•Never touch, disassemble, remove or replace high
voltage cables, their connectors and high voltage
parts such as the inverter unit, traction battery,
traction motor, Air Conditioning compressor, AC/DC
converter, etc.
The Hybrid Synergy Drive System utilizes a computer
controlled gasoline engine and electric motor to
provide the most efficient combination of power for
the vehicle. To conserve energy, when the brakes
are applied, braking force generates electricity
which is then sent to the traction battery. In
addition, the engine shuts off when the
vehicle is
stopped. The benefits are better fuel economy,
reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information
of the Hybrid System are shown on the
multi-information display. Refer to this
screen for important driving information
and feedb
ack to maximize energy
use/creation and conserve fuel.
Refer to the Owner’s Manualfor more details.
Tips for improved fuel economy
Ensure tire pressures are maintained at levels
specified in the Owner's Manual.
If possible, link trips to reduce engine cold starts.
Av o i d driving at speeds that are higher than
necessary, especially on the highway.
When possible, avoid sudden stops to maximize
regenerative braking energy.
Minimize use of the Air Conditioning.

89
OVERVIEW BASIC HYBRID VEHICLE OPERATION
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
BASIC HYBRID VEHICLE OPERATION
When the vehicle is at a complete stop, keep
brake pedal depressed and push Park button
above the shift lever.
Push the “POWER” button to turn off the system.
Fully depress the parking brake.
Remove the key fob if inserted.
Information
In instances when the engine starts, and/or on a short
trip after the engine is stopped, the engine water
pump may continue operating for a short time. This is
astandard operation of the vehicle to ensure
optimum performance and shouldn’t be a concern.
WA R N I N G: If the “POWER” button is held for longer
than 3 seconds while the vehicle is moving, the
Hybrid System will shut off.

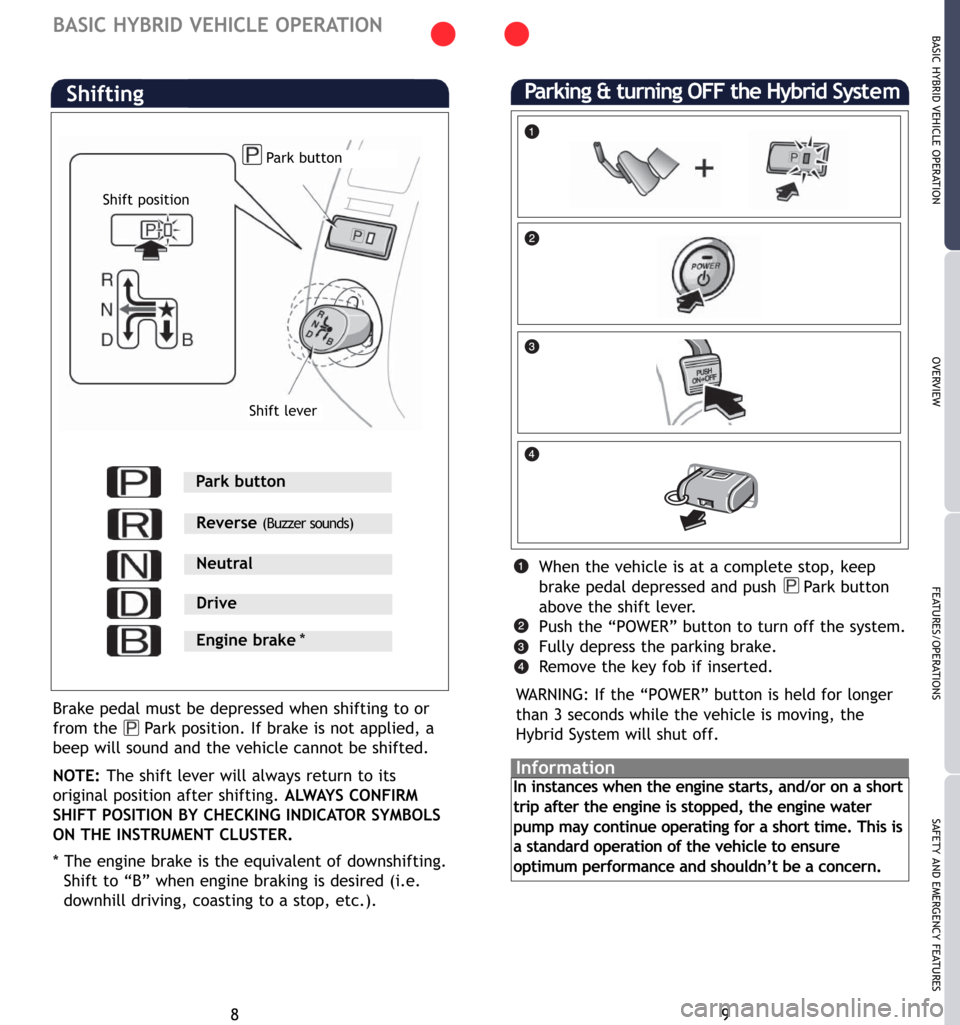

Shifting
Park button
Shift lever
Brake pedal must be depressed when shifting to or
from the Park position. If brake is not applied, a
beep will sound and the vehicle cannot be shifted.
NOTE:The shift lever will always return to its
original position after shifting.ALWAY S CONFIRM
SHIFT POSITION BY CHEC
KING INDICATOR SYMBOLS
ON THE INSTRUMENT CLUSTER.
*The engine brake is the equivalent of downshifting.
Shift to “B” when engine braking is desired (i.e.
downhill driving, coasting to a stop, etc.).
Park button
Reverse(Buzzer sounds)
Neutral
Drive
Engine brake
Shift position
*
Parking & turning OFF the Hybrid Syst e m

BASIC HYBRID VEHICLE OPERATION
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12
OVERVIEW
Headlight indicator
Low engine oil pressure warning
2
Service indicators and reminder
Speedometer
Fuel gauge
Odometer and two trip meters
Instrument cluster
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning2
Low fuel level indicator1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking
performance.
Indicator symbols
Master warning1
High coolant temperature warning2
Open door warning1
Airbag SRS warning1
1
For details, refer to “Service reminder indicators and warning buzzers-- --
Instrument cluster” Section 2-5, 2007 Owner’s Manual.
2For details, refer to “Service reminder indicators and warning buzzers-- --
Multi-information display” Section 2-5, 2007 Owner’s Manual.
3If this light flashes, see “Cruise control” Section 2-6, 2007 Owner’s Manual.4For details, refer to “Hybrid transaxle” Section 2-6, 2007 Owner’s Manual.5For details, refer to “Smart Key system” Section 2-1, 2007 Owner’s
Manual.
Driving ready light
Engine oil replacement reminder
1
Tu r n signal indicator
Headlight high beam indicator
Cruise control indicator
3
Slip indicator
Hybrid System warning2
Vehicle Stability Control warning1
Tr a c t i o n battery warning2
Electric power steering system
warning2
Smart Key system warning5
Ta i l light indicator
Automatic headlight leveling system warning
2
Running mode position indicator4
Automatic Air Conditioner indicator
Recirculate mode indicator
Windshield air flow indicator
Rear window and outside rear view mirror
defoggers indicator
Hybrid vehicle immobilizer/Theft deterrent
system indicator
Low Tire Pressure Wa r n i n g1
Front passenger occupant classification
indicator

BASIC HYBRID VEHICLE OPERATION
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
14
Hood release
Engine maintenance
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’sWarranty
Information Booklet,” “Sc
heduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Pull up latch and
raise hood Pull
Rear hatch
Pull
NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.
NOTE: MAINTAIN GASOLINE IN THE TANK AT ALL
TIMES. SERIOUS DAMAGE TO THE HYBRID
SYSTEM CAN OCCUR IF THE VEHICLE RUNS
OUT OF GASOLINE.
Fuel tank door opener and cap
Tu r nDriver seat
Pull up
Store
OVERVIEW
To open the rear hatch, grasp the handle and pull up.
