navigation system TOYOTA PRIUS 2007 2.G Quick Reference Guide

11
OVERVIEW BASIC HYBRID VEHICLE OPERATION
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
10
OVERVIEW
Headlight, turn signal and front fog light1controls
Wiper and washer controls
“POWER”
Clock
“AUDIO” switch (Multi-information display control)
“CLIMATE” switch (Multi-information display control)
Multi-information display
“DISPLAY” switch (Multi-information display control)
“INFO” switch (Multi-information display control)
Mph or km/h button
Tr i p meter reset
Emergency flasher buttonAudio system
12V DC Power outlet
Park button
Electronic shift lever
Ignition key (key fob
) slot
Cruise control
Tire Pressure Wa r n i n g System reset
Smart Key system cancel
1
Steering wheel climate control
Instrument panel light control
Steering wheel audio control
1If equipped2For details, refer to the Navigation System
Owner’s Manual.
Instrument panel
With navigation system1, 2
Without navigation system

BASIC HYBRID VEHICLE OPERATION
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
20
FEATURES/OPERATIONS
Setting a speed
System
ON/OFF
Resume
2/Increase speed
Cancel1
Set/Decrease speed
Cruise control
Passenger compartment temperature
Outside temperature
Temperature
Air flow vent
Fan speed
Automatic climate control ON
Fresh or recirculated cabin air
Rear window and outside rear view mirror
defogger
Windshield air flow
Air Conditioning ON/OFF
Climate control OFF
Display the operation screen
1
Air Conditioning/Heating
1For details, refer to the “Navigation System
Owner’s Manual.”Auto A/C ON/OFF
Temperature selector
Air intake selector
Windshield vent
Rear window and outside rear view mirror
defogger
Steering wheel switches
1The set speed may also be cancelled by depressing
the brake pedal.
2If vehicle speed falls below 25 mph, the set speed
will not be resumed.
Turning system ON/OFF
With navigation system1
Ty p e 2 functions
Ty p e 1 functions

23
OVERVIEW BASIC HYBRID VEHICLE OPERATION
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
22
FEATURES/OPERATIONS
RADIO
To preset a station Tune in the desired station and
touch a station selector icon (1-6) until you hear a
beep.
To scan for stationsPush “SCAN.” Push again to hold
selection.
CD PLAY E R
To scan tracks on a disc To u c h “SCAN” icon on the
display. Push again to hold selection.
CD changer (Ty p e 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until
you hear a beep. Insert one disc. Shutter will close
and then re-open for
next disc.
To select a file (MP3/WMA only) Tu r n “TUNE•FILE.”
1For details, refer to theNavigation System Owner’s
Manual.

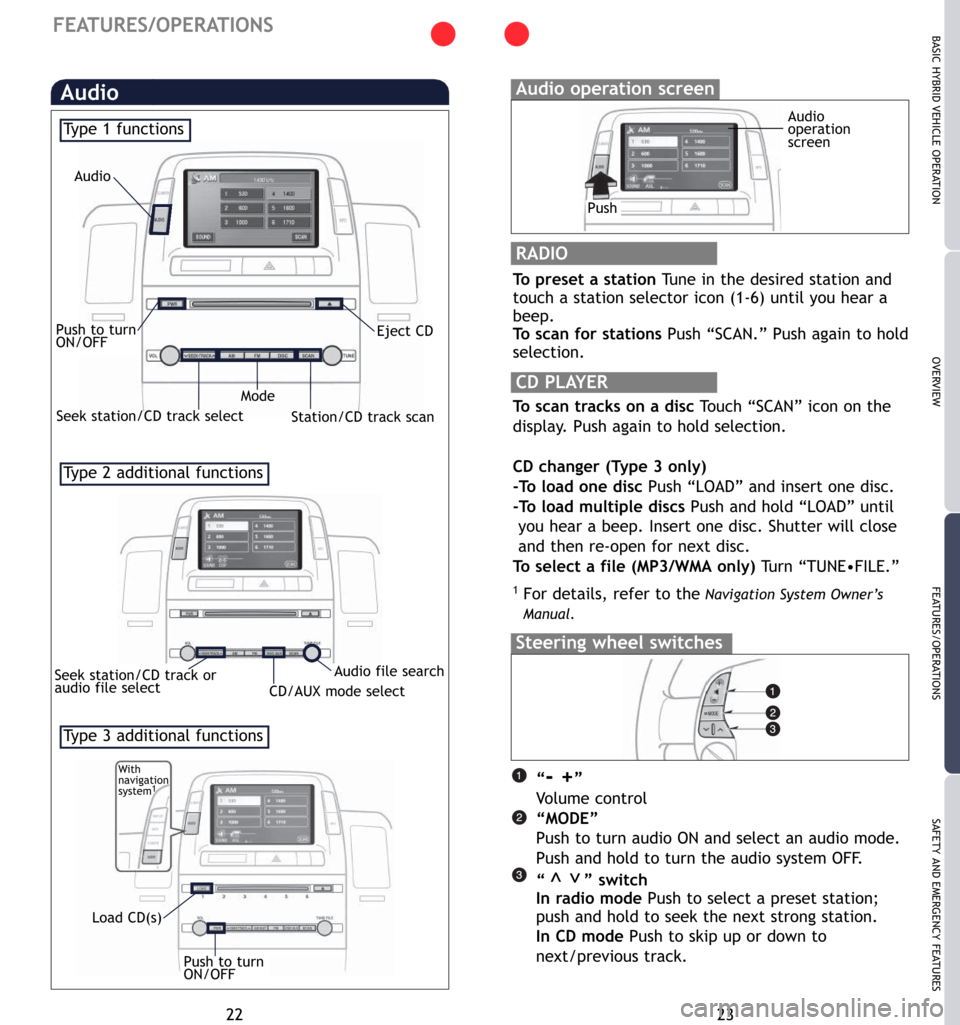

AudioAudio operation screen
Ty p e 2 additional functions
Ty p e 3 additional functions
Push
Audio
operation
screen
“-+”
Vo l u m e control
“MODE”
Push to turn audio ON and select an audio mode.
Push and hold to turn the audio system OFF.
“”switch
In radio modePush to select a preset station;
push and hold to seek the next strong station.
In CD modePush to skip up or down to
next/previous
track.
>>
Steering wheel switches
Ty p e 1 functions
Audio file search
With
navigation
system
1
Eject CDPush to turn
ON/OFF
Load CD(s)Station/CD track scan Mode
Seek station/CD track select
Audio
Seek station/CD track or
audio file selectCD/AUX mode select
Push to turn
ON/OFF
