TOYOTA PRIUS 2008 2.G Owners Manual

111
1-8. Safety information
1
Before driving
PRIUS_U_(L/O_0802)
Installing child restraints using a
seat belt (child restraint lock
function belt)
■ Rear facing Infant seat/convertible seat
Place the child seat on the rear
seat facing the rear of the vehi-
cle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.
STEP1
STEP2
STEP3

112 1-8. Safety information
PRIUS_U_(L/O_0802)While pushing the child seat
down into the rear seat, allow the
shoulder belt to retract until the
child seat is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■
Forward facing Convertible seat
Place the child seat on the seat
facing the front of the vehicle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder strap
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
STEP4
STEP1
STEP2
STEP3

113
1-8. Safety information
1
Before driving
PRIUS_U_(L/O_0802)
While pushing the child seat into
the rear seat, allow the shoulder
belt to retract until the child seat
is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■
Booster seat
Place the booster seat on the
seat facing the front of the vehi-
cle.
Sit the booster in the child seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 64)
STEP4
STEP1
STEP2

114 1-8. Safety information
PRIUS_U_(L/O_0802)
Removing a child restraint installed with a seat beltPush the buckle release button
and fully retract the seat belt.
Installation with child restraint lower anchoragesType A Widen the gap between
the seat cushion and
seatback slightly.
Latch the hooks of the
lower straps onto the
anchorages.
If the child restraint has a
top strap, the top strap
should be latched onto the
anchorage.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower anchorage system.
Canada only
STEP1
STEP2

115
1-8. Safety information
1
Before driving
PRIUS_U_(L/O_0802)
Type B
Widen the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the anchorages.
If the child restraint has a
top strap, the top strap
should be latched onto the
anchorage.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower anchorage system.
Child restraint systems with a top strap
Secure the child restraint using a
seat belt or lower anchors, and
lock the head restraint in place at
the highest position.
Canada only
STEP1
STEP2
STEP1

116 1-8. Safety information
PRIUS_U_(L/O_0802)Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Reinstall the head restraint.
STEP2
ITY18P041
STEP3
■
Laws and regulations pertaining to anchorages
Anchorages conform to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode: ( P. 66)
● ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.
● Do not allow the child to play with the seat belt or the child could be killed
or serious injured.

117
1-8. Safety information
1
Before driving
PRIUS_U_(L/O_0802)
CAUTION
■
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be injured or even killed in the event of sudden braking or
an accident.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of an accident or sudden braking.
● Ensure the belt and tab are securely locked and that the seat belt is not
twisted.
● Push and pull the child seat in different directions to be sure it is secure.
● Follow all installation instructions provided by the child restraint system
manufacturer.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Only put a forward facing or booster
child seat on the front seat when
unavoidable. When installing a forward
facing or booster child seat on the front
passenger seat, move the seat as far
back as possible even if “AIR BAG
OFF” indicator light is illuminated. Fail-
ing to do so may result in death or seri-
ous injury if the airbags deploy (inflate).

118 1-8. Safety information
PRIUS_U_(L/O_0802)
CAUTION
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a colli-
sion.
■ To correctly attach a child r estraint system to the anchorages
When using the lower anchorages, be sure that there are no foreign objects
around the anchorages and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it may
cause death or serious injury to the child or other passengers in the event of
a sudden stop or accident.

When driving2
119
PRIUS_U_(L/O_0802)

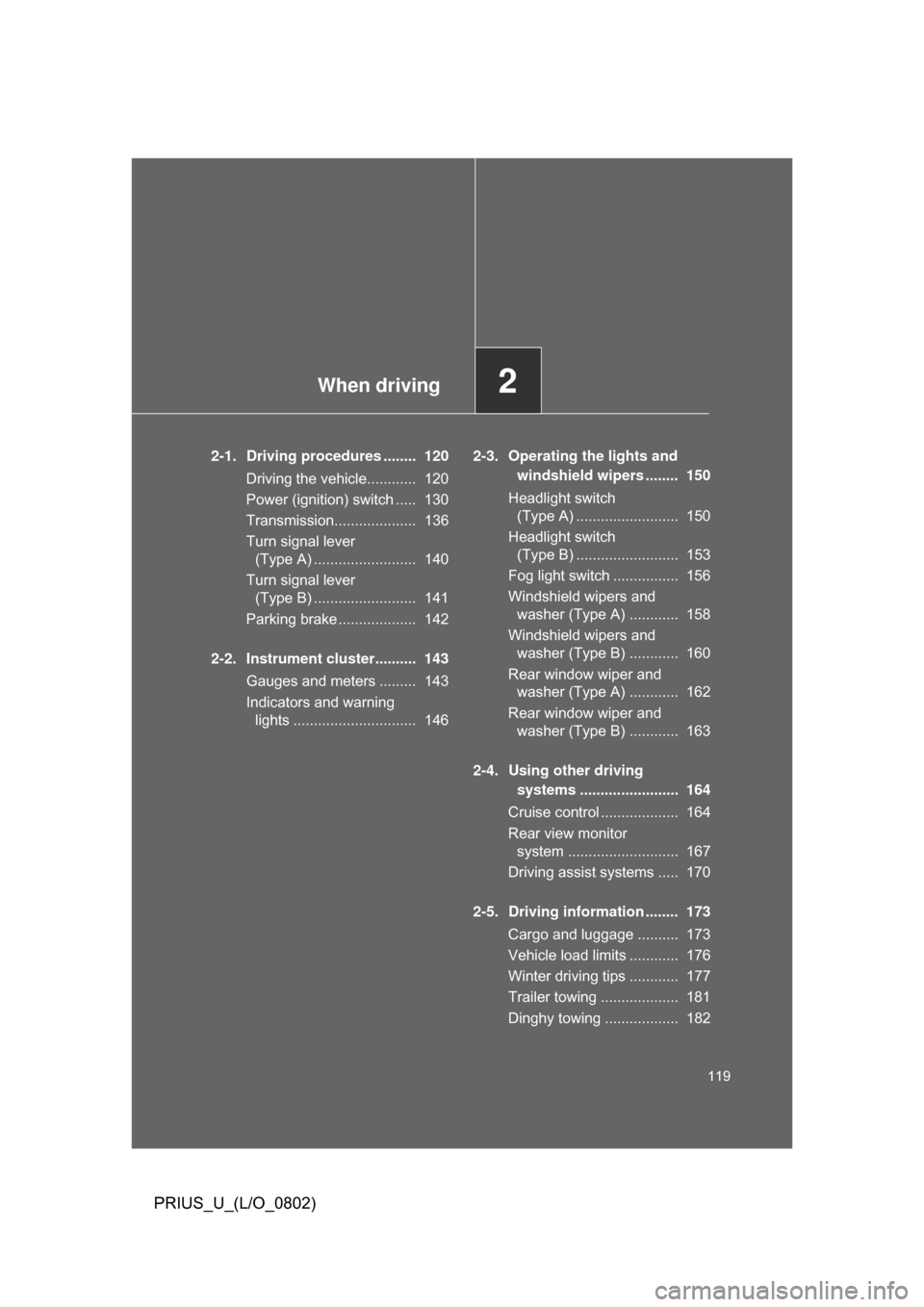

2-1. Driving procedures ........ 120Driving the vehicle............ 120
Power (ignition) switch ..... 130
Transmission.................... 136
Turn signal lever (Type A) ......................... 140
Turn signal lever (Type B) ......................... 141
Parking brake ................... 142
2-2. Instrument cluster.......... 143 Gauges and meters ......... 143
Indicators and warning lights .............................. 146 2-3. Operating the lights and
windshield wipers ........ 150
Headlight switch (Type A) ......................... 150
Headlight switch (Type B) ......................... 153
Fog light switch ................ 156
Windshield wipers and washer (Type A) ............ 158
Windshield wipers and washer (Type B) ............ 160
Rear window wiper and washer (Type A) ............ 162
Rear window wiper and washer (Type B) ............ 163
2-4. Using other driving systems ........................ 164
Cruise control ................... 164
Rear view monitor system ........................... 167
Driving assist systems ..... 170
2-5. Driving information ........ 173 Cargo and luggage .......... 173
Vehicle load limits ............ 176
Winter driving tips ............ 177
Trailer towing ................... 181
Dinghy towing .................. 182

120
PRIUS_U_(L/O_0802)
2-1. Driving procedures
Driving the vehicle
Starting on a steep inclineFirmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driv-
ing.
■ Starting the hybrid system ( P. 131)
■ Driving
With the brake pedal depressed, shift the shift lever to “D”. ( P. 136)
Release the parking brake. ( P. 142)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in “D”, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, push
the “P” position switch. (
P. 137)
■Parking the vehicle
With the shift lever in “D”, depress the brake pedal.
Set the parking brake. ( P. 142)
Push the “P” position switch. ( P. 137)
When parking on hill, if necessary, block the wheels.
Press the “POWER” switch and stop the hybrid system.
Lock the door, making sure that you have the electronic key
on your person.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
