TOYOTA PRIUS 2008 2.G Owners Manual

141
2-1. Driving procedures
2
When driving
PRIUS_U_(L/O_0802)

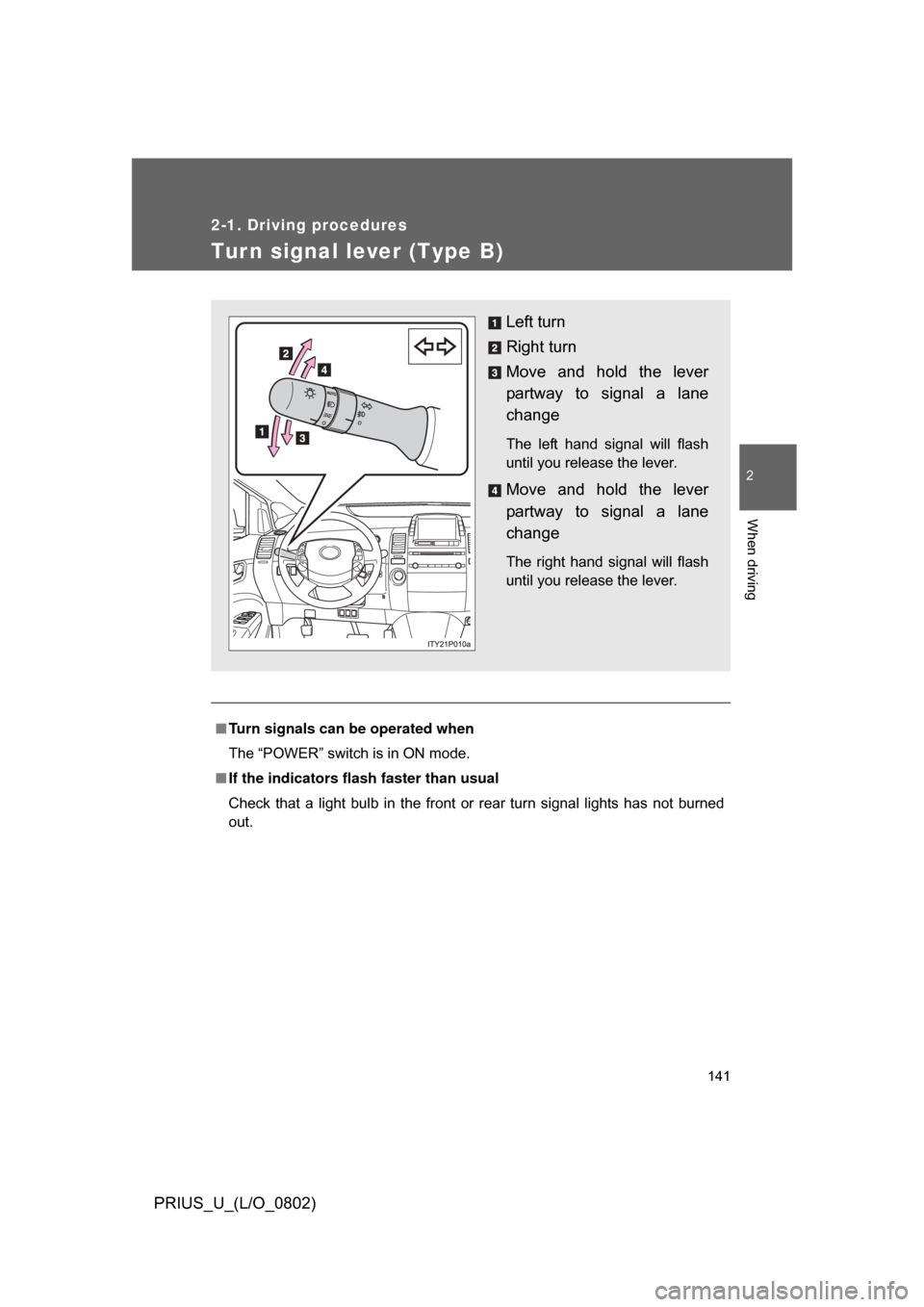

Turn signal lever (Type B)
■Turn signals can be operated when
The “POWER” switch is in ON mode.
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Left turn
Right turn
Move and hold the lever
partway to signal a lane
change
The left hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change
The right hand signal will flash
until you release the lever.

142
2-1. Driving procedures
PRIUS_U_(L/O_0802)

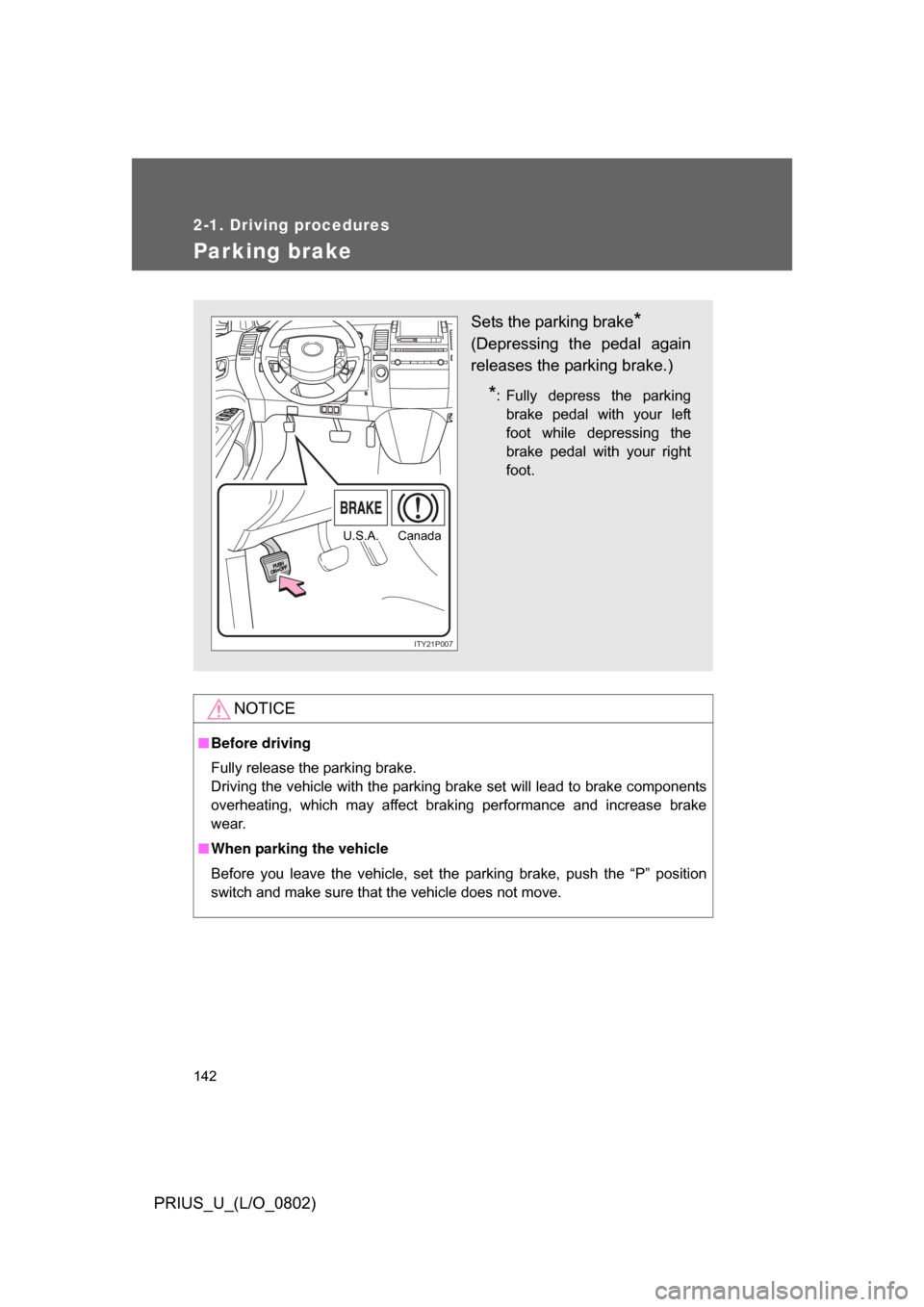

Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
■ When parking the vehicle
Before you leave the vehicle, set the parking brake, push the “P” position
switch and make sure that the vehicle does not move.
Sets the parking brake*
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parking
brake pedal with your left
foot while depressing the
brake pedal with your right
foot.
ITY21P007
CanadaU.S.A.

143
2
When driving
PRIUS_U_(L/O_0802)
2-2. Instrument cluster

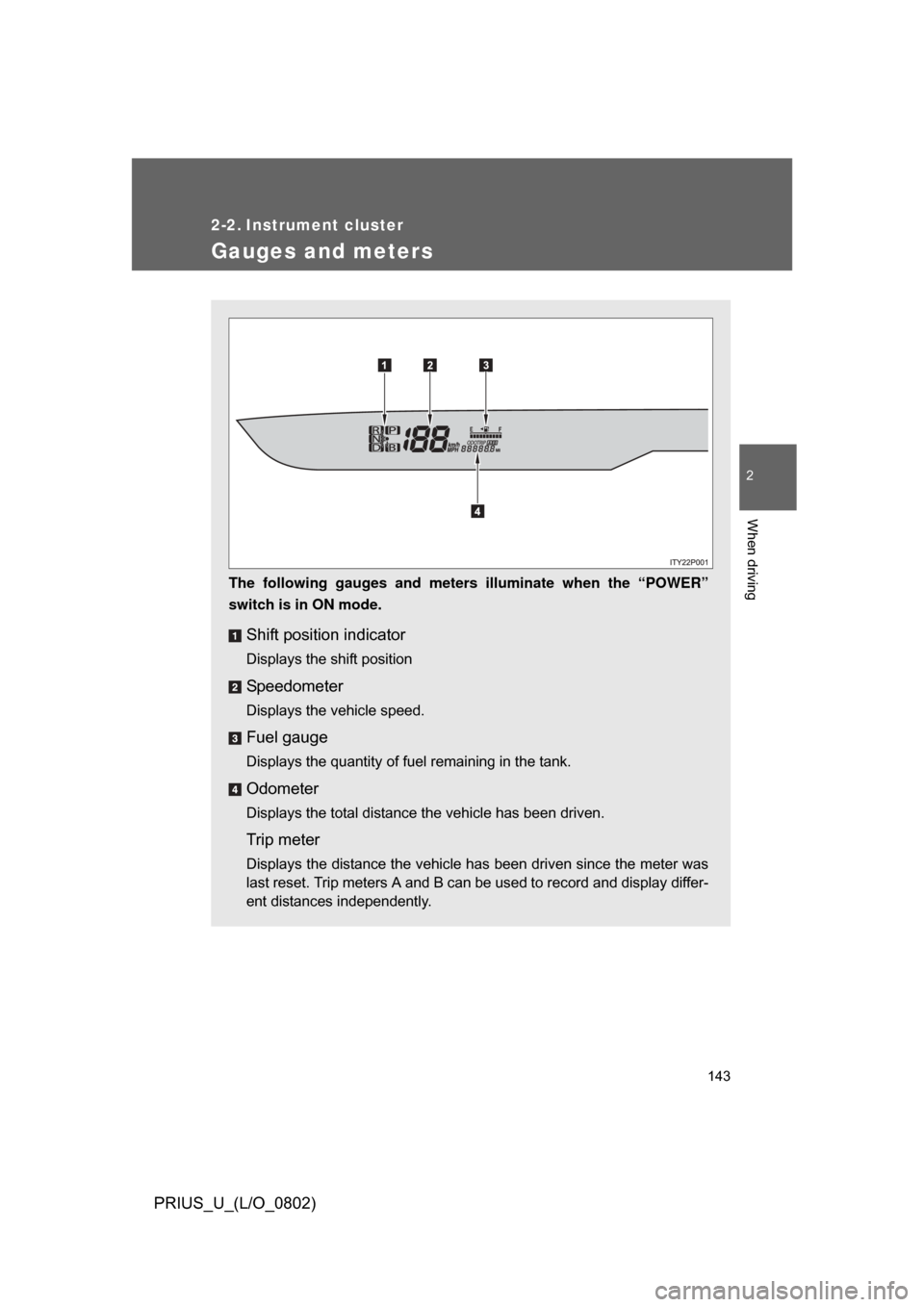

Gauges and meters
The following gauges and meters illuminate when the “POWER”
switch is in ON mode.
Shift position indicator
Displays the shift position
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.

144 2-2. Instrument cluster
PRIUS_U_(L/O_0802)
Odometer/trip meter and trip meter reset buttonOdometer
Trip meter A
*
Trip meter B*
*
: Pushing and holding the but-
ton will reset th e trip meter.
MPH or km/h button
The speed units can be selected MPH or km/h. km/h
MPH
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
km/hMPH
56
MAVO
1
2
ITY22P003

145
2-2. Instrument cluster
2
When driving
PRIUS_U_(L/O_0802)
NOTICE
■
To prevent damage to the hybr id system and its components
The hybrid system may be overheating if the high coolant temperature warn-
ing light is displayed on the touch screen. In this case, immediately stop the
vehicle in a safe place. Check the hybrid system after it has cooled com-
pletely. ( P. 456)

146
2-2. Instrument cluster
PRIUS_U_(L/O_0802)

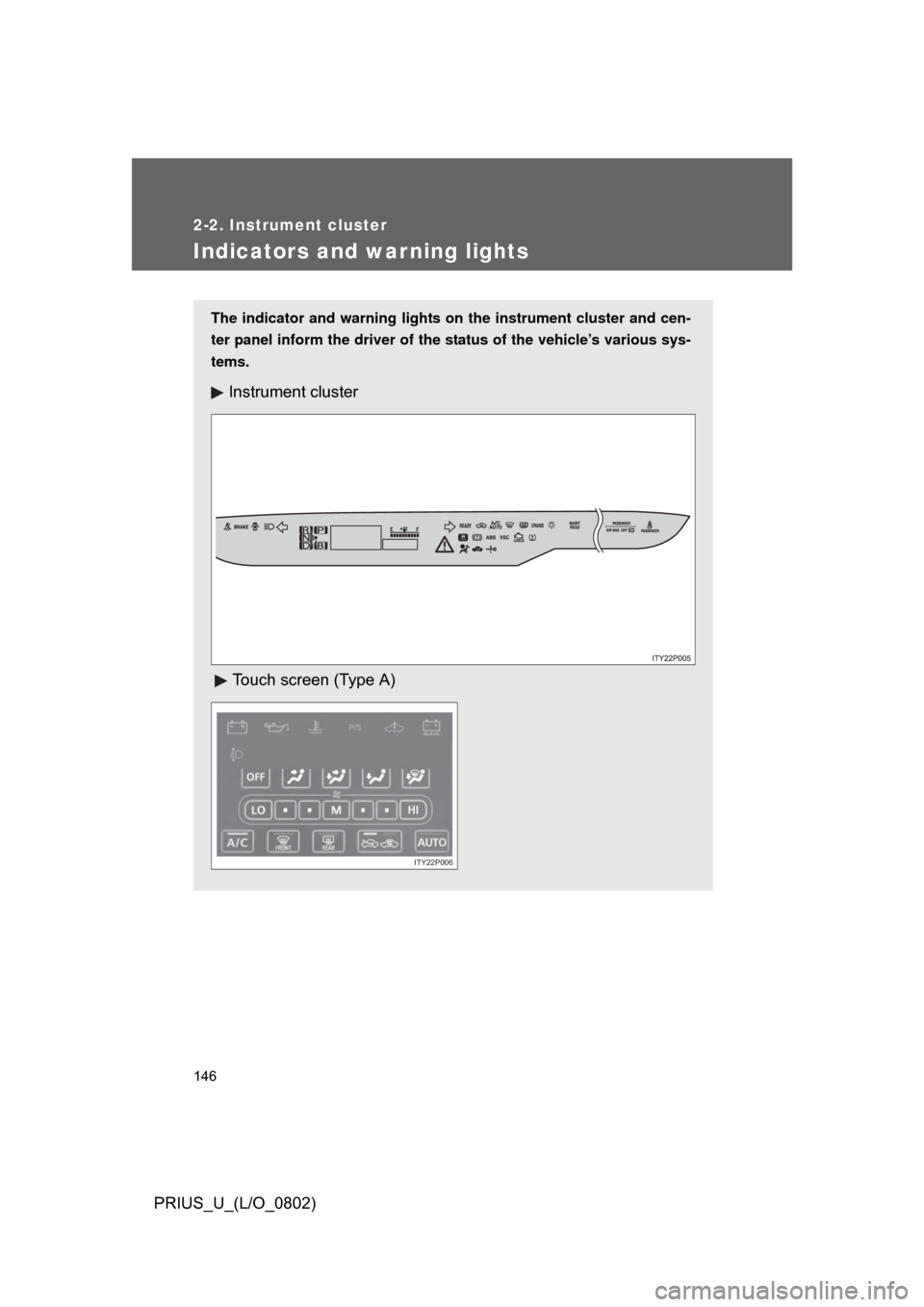

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Touch screen (Type A)
ITY22P006

147
2-2. Instrument cluster
2
When driving
PRIUS_U_(L/O_0802)

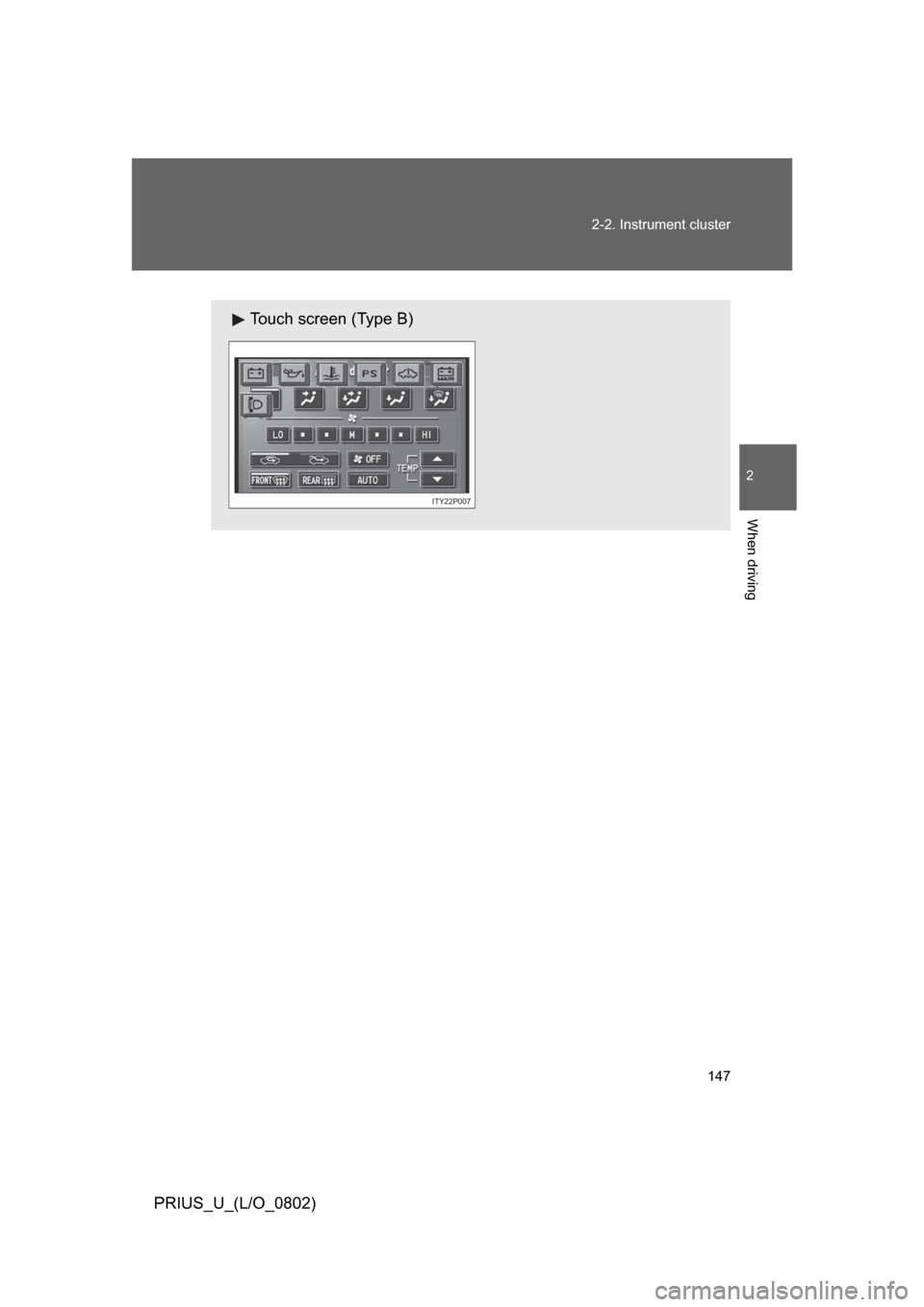

Touch screen (Type B)
ITY22P007

148 2-2. Instrument cluster
PRIUS_U_(L/O_0802)

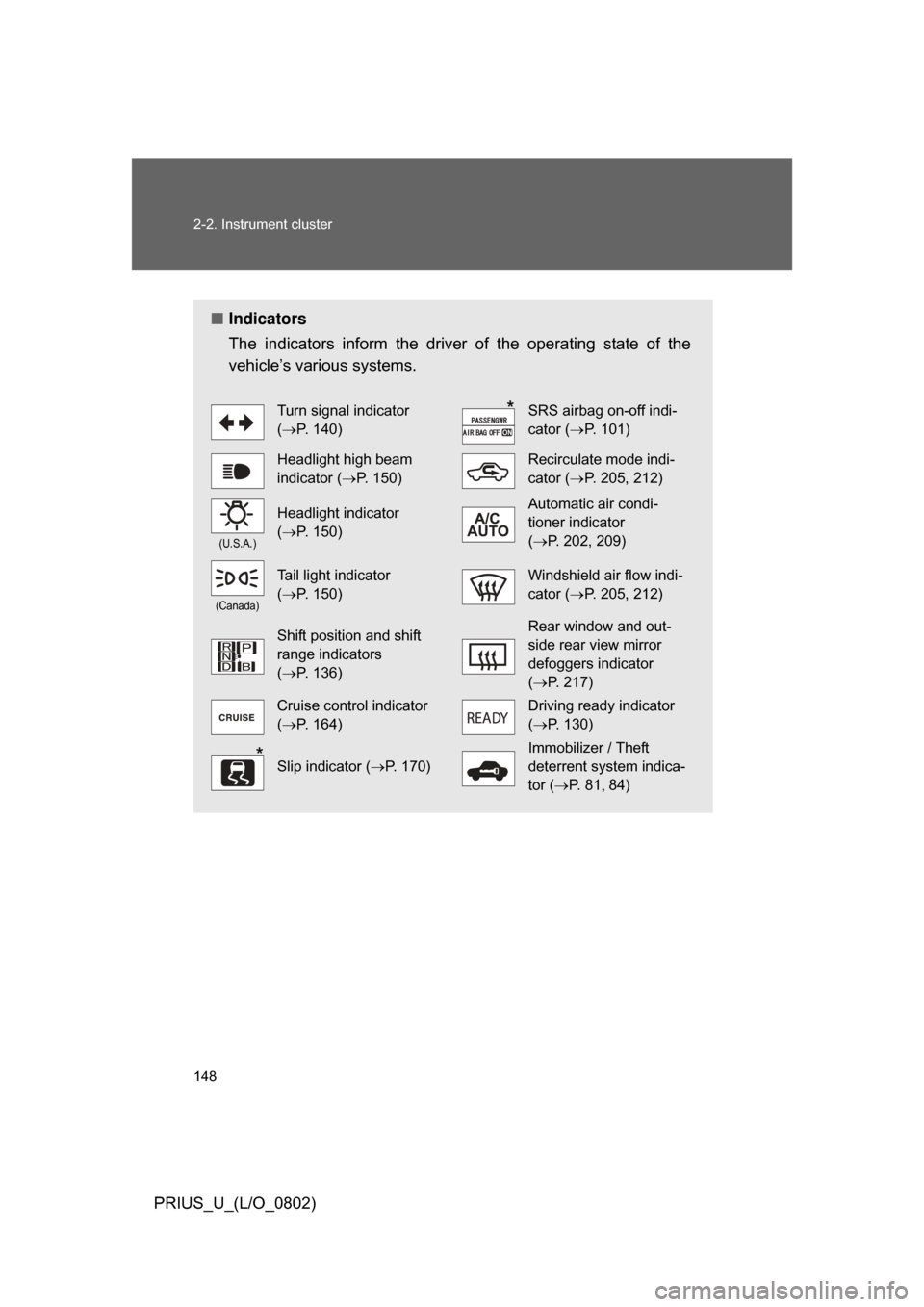

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 140)SRS airbag on-off indi-
cator ( P. 101)
Headlight high beam
indicator ( P. 150)Recirculate mode indi-
cator (P. 205, 212)
(U.S.A.)
Headlight indicator
(P. 150)Automatic air condi-
tioner indicator
(P. 202, 209)
(Canada)
Tail light indicator
(P. 150)Windshield air flow indi-
cator ( P. 205, 212)
Shift position and shift
range indicators
(P. 136)Rear window and out-
side rear view mirror
defoggers indicator
(P. 217)
Cruise control indicator
(P. 164)Driving ready indicator
(P. 130)
Slip indicator ( P. 170)
Immobilizer / Theft
deterrent system indica-
tor (P. 8 1 84)
ON

149
2-2. Instrument cluster
2
When driving
PRIUS_U_(L/O_0802)
CAUTION
■
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the hybrid system, this could mean that these
systems are not available to help protect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by your Toyota
dealer immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 426)
*: These lights turn on when the “POWER” switch is turned to ON mode
to indicate that a system check is being performed. They will turn off
after the hybrid system is started is on, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
(U.S.A.)(Canada) redyellow(if equipped)
(U.S.A.)(Canada)
(U.S.A.)
(if equipped)
******
****
*
*

150
PRIUS_U_(L/O_0802)
2-3. Operating the lights and windshield wipers
Headlight switch (Type A)
Turning on the high beam headlightsWith the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release to turn them off. You can
flash the high beams with the
headlights on or off.
The headlights can be operated manually or automatically.
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
the lights listed above
turn on and off auto-
matically.
(When the “POWER”
switch is in ON mode.)
AUTO
ITY23P001
U.S.A.Canada
(if equipped)
