TOYOTA PRIUS 2008 2.G Owners Manual

331
3-7. Other interior features
3
Interior features
PRIUS_U_(L/O_0802)
Clock
■The clock is displayed when
The “POWER” switch is in ACCESSORY or ON mode.
■ When the 12 volt battery is disconnected
The time display will automatically be set to 1:00.
■ When the instrument panel lights ar e turned on the brightness of the
time indicator will be reduced.
Adjusts the hour
Adjusts the minutes.
ITY37P003

332
3-7. Other interior features
PRIUS_U_(L/O_0802)
Power outlet
■The power outlet can be used when
The “POWER” switch is in ACCESSORY or ON mode.
The power outlet can be used for 12V accessories that run on less
than 10A.
Instrument panel
Rear console box

333
3-7. Other interior features
3
Interior features
PRIUS_U_(L/O_0802)
NOTICE
■
To avoid damaging the power outlet
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
Do not use an accessory that uses more than 12V/10A.
■ To prevent 12 volt battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.

334
3-7. Other interior features
PRIUS_U_(L/O_0802)
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.
ITY37P006

335
3-7. Other interior features
3
Interior features
PRIUS_U_(L/O_0802)
Floor mats
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering with the
movement of the pedals during driving, resulting in an accident.
● Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the floor mat using the
hooks provided.

336
3-7. Other interior features
PRIUS_U_(L/O_0802)

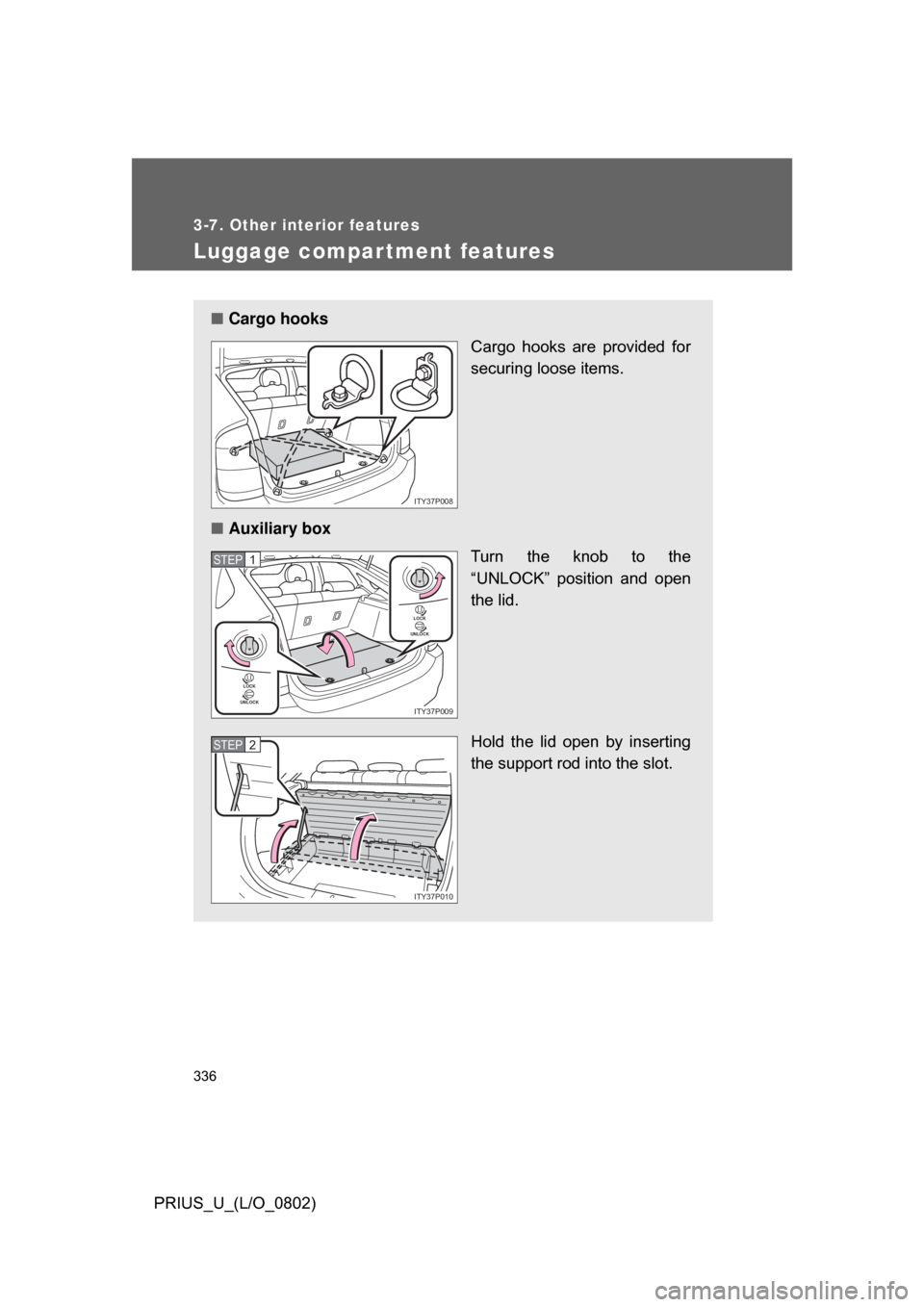

Luggage compartment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Auxiliary box
Turn the knob to the
“UNLOCK” position and open
the lid.
Hold the lid open by inserting
the support rod into the slot.
ITY37P008
LOCK
UNLOCK
LOCK
UNLOCK
ITY37P009
STEP1
ITY37P010
STEP2

337
3-7. Other interior features
3
Interior features
PRIUS_U_(L/O_0802)
■
Removing the luggage cover
The luggage cover can be removed by following the procedure below.
■ Luggage cover (If equipped)
Adjust the cover so that “TOP”
is facing upwards.
Pull out the luggage cover and
secure it to the hook brackets.
ITY37P011
STEP1
ITY37P012
STEP2
Lift it up.
TOP
ITY37P013

338 3-7. Other interior features
PRIUS_U_(L/O_0802)
■Stowing the luggage cover
CAUTION
■While driving
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Remove the side deck boards and
open the auxiliary box.
Adjust the cover so that “TOP” is facing
up.STEP1
ITY37P015
STEP2

339
3-7. Other interior features
3
Interior features
PRIUS_U_(L/O_0802)
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator
■ Programming the HomeLink

Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
 control but-
tons.
Keep the indicator light on the
HomeLink in view while pro-
gramming.
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, and
security systems, and other devices.
,7<3
67(3

340 3-7. Other interior features
PRIUS_U_(L/O_0802)Press and hold down one of the
buttons on the HomeLink
 and
the button on the transmitter.
When the indicator light on the
HomeLink
 changes from a slow
to a rapid flash after 20 seconds,
you can release both buttons.
Test the operation of the
HomeLink
 by pressing the
newly programmed button.
If programming a garage door
opener, check to see if the garage
door opens and closes. If the
garage door does not operate,
see if your garage transmitter is
of the Rolling Code type. Press
and hold the programmed
HomeLink
 button. The garage
door has the rolling code feature
if the indicator light (on the
HomeLink
) flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the Rolling
Code type, proceed to the head-
ing “Programming a rolling code
system”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
ITY37P018
STEP2
ITY37P019
STEP3
STEP4
