SAFETY AND EMERGENCY FEATUR ES

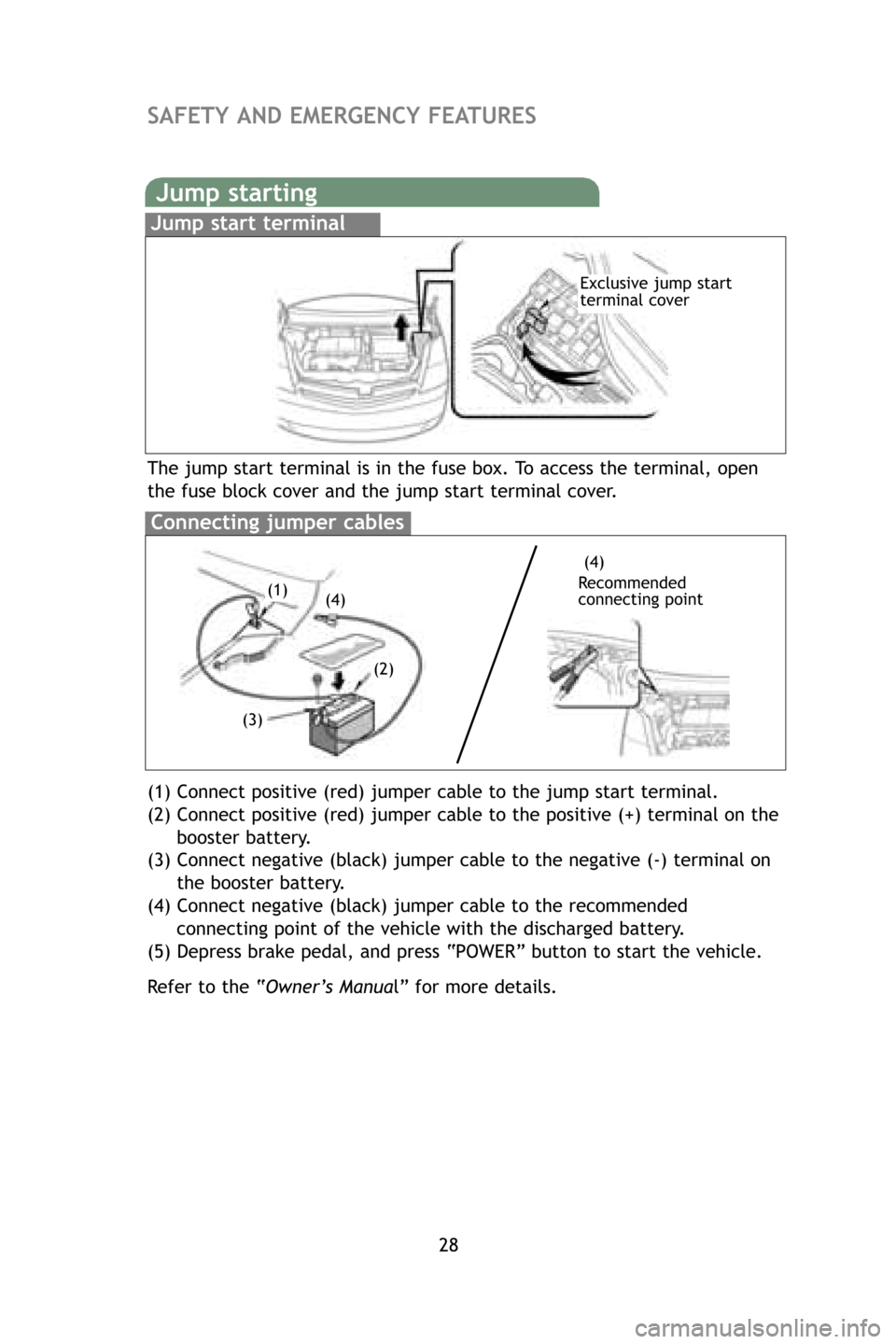

Jump starting
Jump start terminal
Connecting jumper cables
The jump start terminal is in the fuse box. To access the terminal, open
the fuse block cover and the jump start terminal cover.
Recommended
connecting point
Exclusive jump start
terminal cover
(1) Connect positive (red) jumper cable to the jump start terminal.
(2) Connect positive (red) jumper cable to the positive (+) terminal on the
booster battery.
(3) Connect negative (black) jumper cable to the negative (-) terminal on
the booster battery.
(4) Connect negative (black) jumper cable to the recommended
connecting point of the vehicle with the discharged battery.
(5) Depress brake pedal, and press “P OWER” button to start the vehicle.
R efer to the “ Owner’s Manua l” for more details.
(1)
(3)
(2)
(4)
(4)
