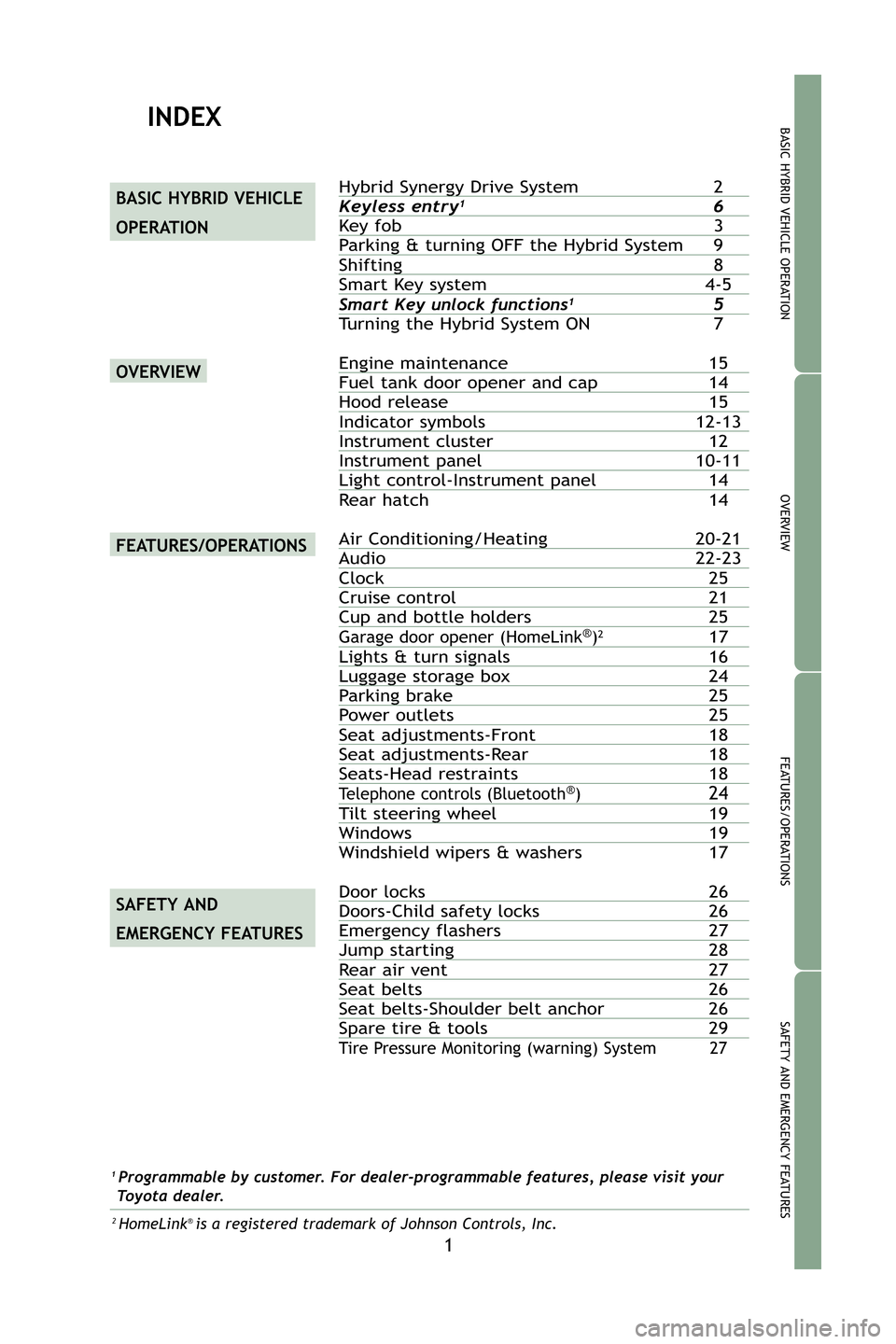

BASIC HYBRID VEHICLE OPERATION

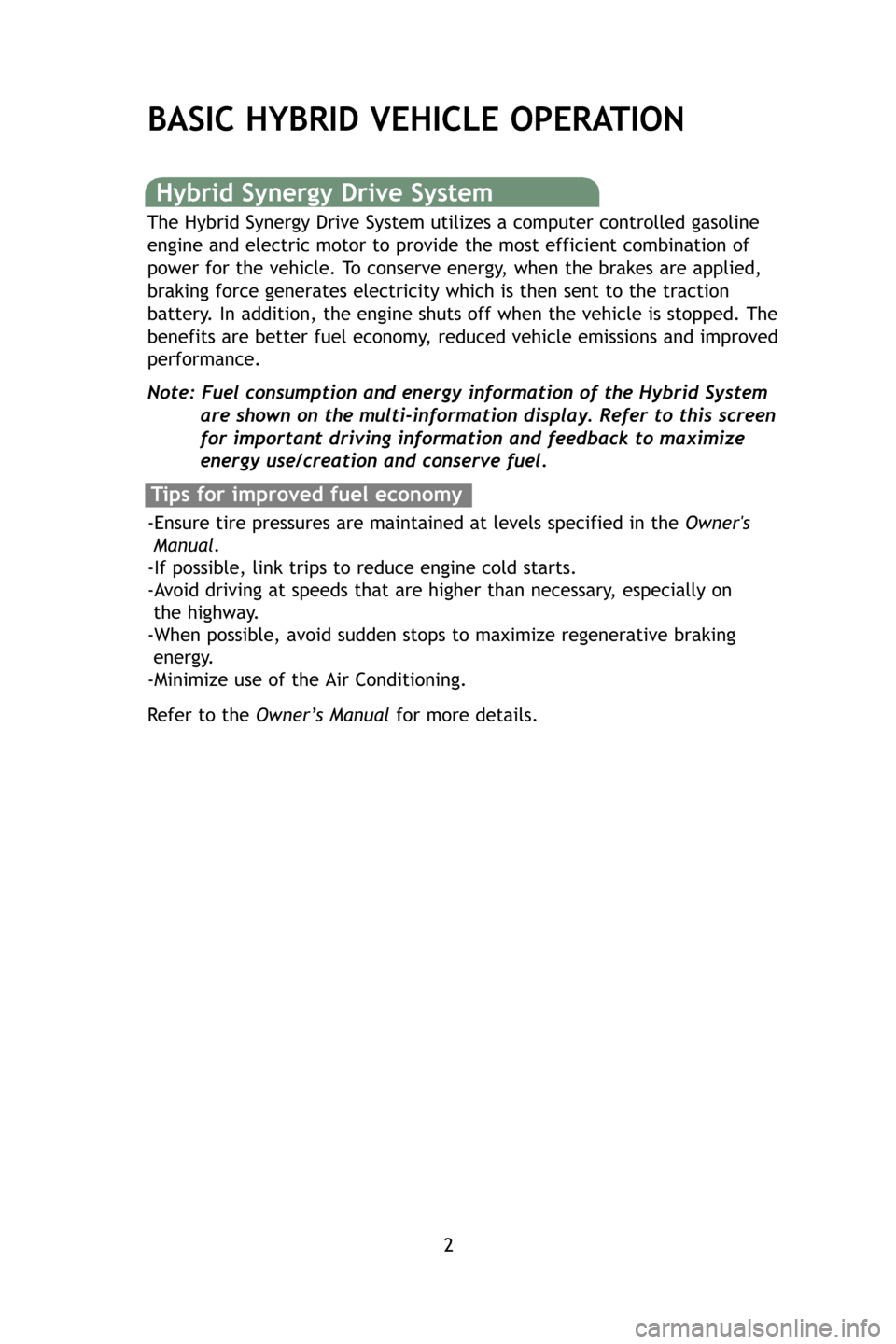

Hybrid Synergy Drive System
The Hybrid Synergy Drive System utilizes a computer controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied,
braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumpt ion and energy information of the Hybrid System
are shown on the multi-inf ormation display. Refer to this screen
for impo rtant dri ving information and feed back to maxi mize
ener gy use/crea tion and conserve fuel.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner's
Manual .
-If possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the Air Conditioning.
R efer to the Owner’s Manual for more details.
M2.qxd 7/28/08 3:49 PM Page 2

3
OVERVIEW
BASIC HYBRID VEHICLE OPER AT ION
FEAT U RES/O PERAT IONS
SAFETY AND EMERGENCY FEAT URES

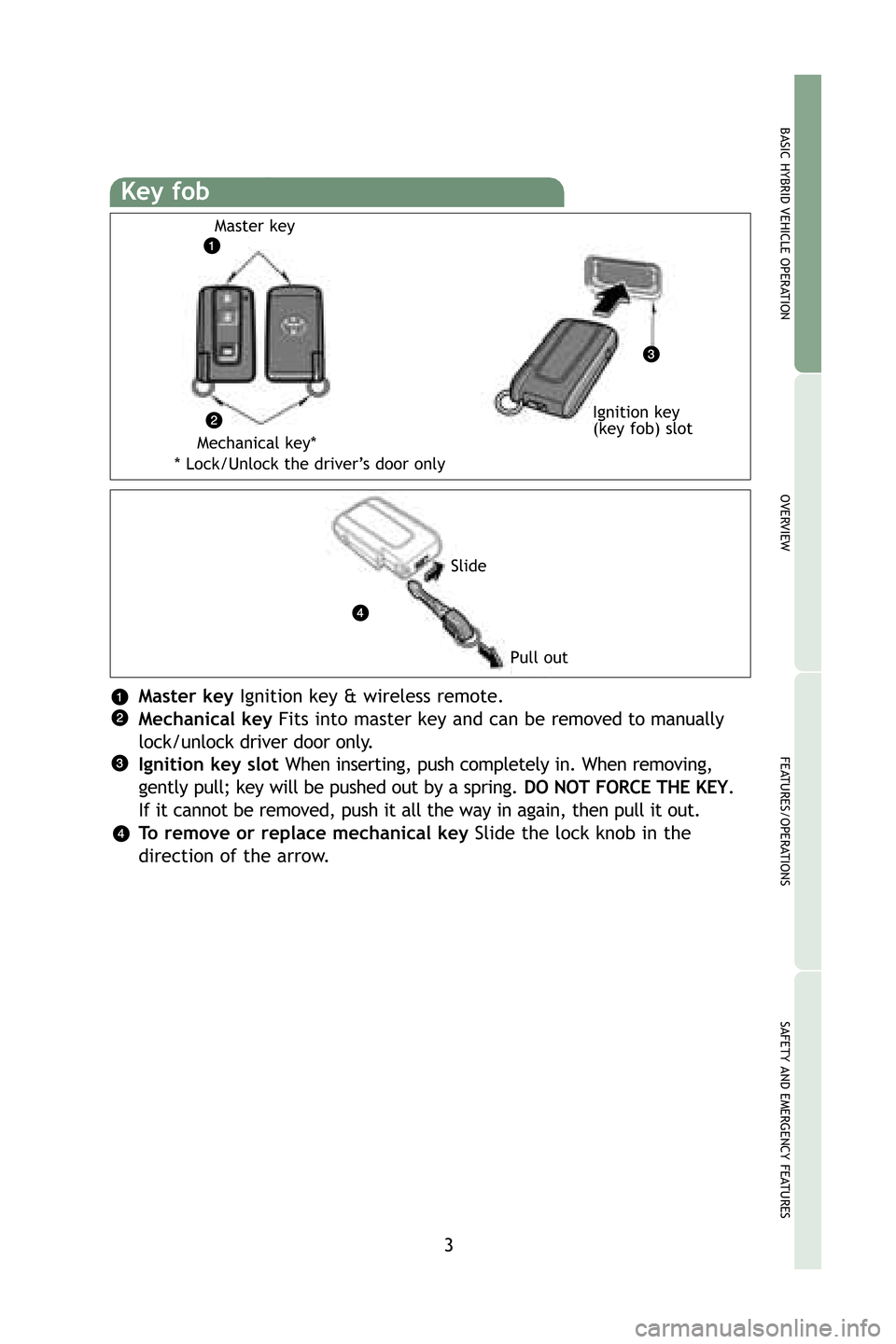

Master key Ignition key & wireless remote.
Mechanical key Fits into master key and can be removed to manually
lock/ unlock driver door only.
Ignition key slot When inserting, push completely in. When removing,
gently pull; key will be pushed out by a spring. DO NO T FORCE TH E KEY.
If it cannot be removed, push it all the way in again, then pull it out.\
To remove or replace mechanical key Slide the lock knob in the
direction of the arrow.
Key fob
Master key
Mechanical key* Ignition key
(key fob) slot
* Lock /Unlock the driver’s door only
Slide
Pull out
M2.qxd 7/28/08 3:49 PM Page 3

4
BASIC HYBRID VEHICLE OPERATION
Locking operation
Front doorRear hatch

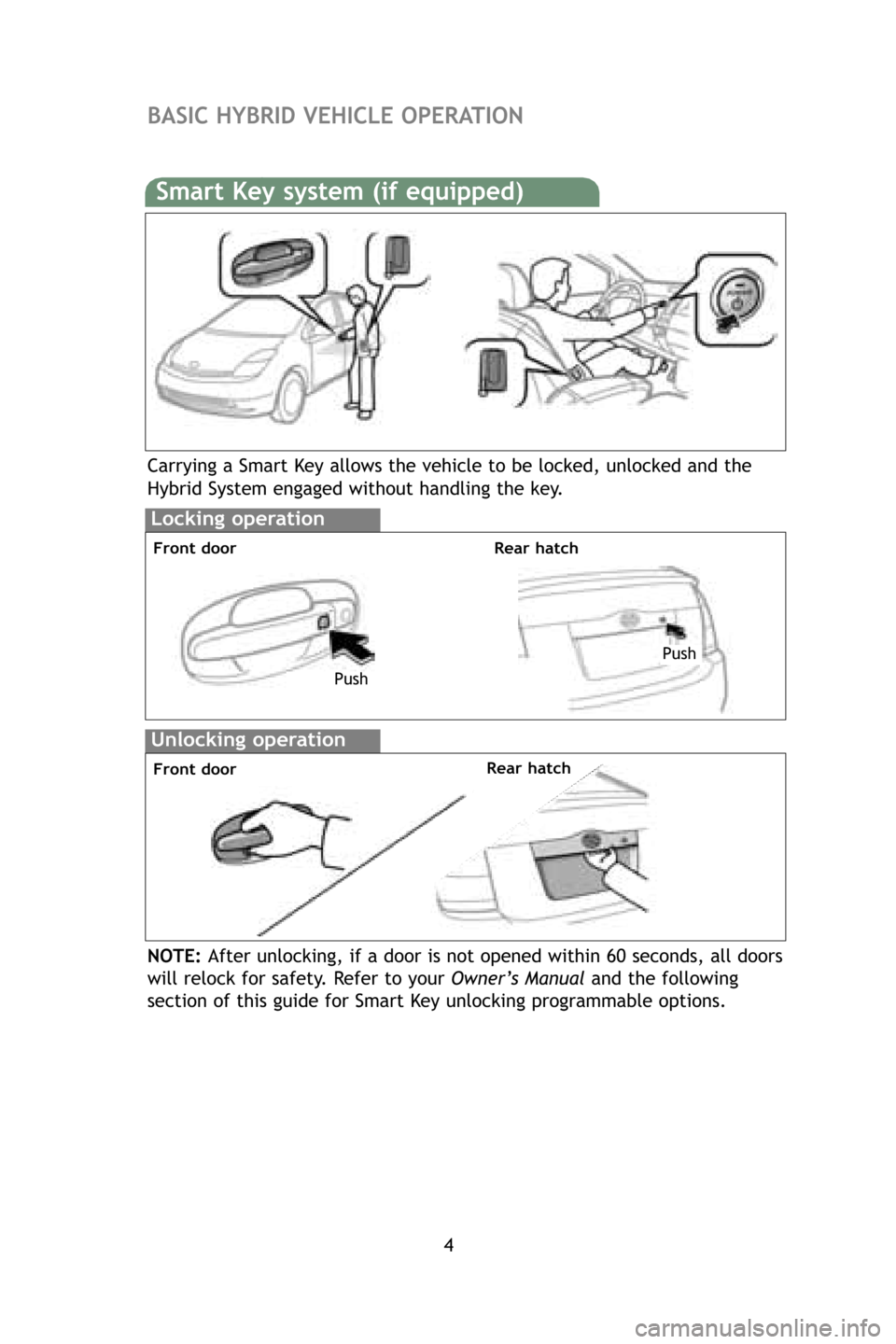

Smart Key system (if equipped)
Carrying a Smart Key allows the vehicle to be locked, unlocked and the
Hybrid System engaged without handling the key.
Push
Push
Unlocking operation
Front door
NO TE: After unlocking, if a door is not opened within 60 seconds, all doors
will relock for safety. Refer to your Owner’s Manual and the following
section of this guide for Smart Key unlocking programmable options.
Rear hatch
M2.qxd 7/28/08 3:50 PM Page 4

5
OVERVIEW
BASIC HYBRID VEHICLE OPER AT ION
FEAT U RES/O PERAT IONS
SAFETY AND EMERGENCY FEAT URES
Smart Key unlock functions(if equipped)
The Smart Key unlocking function can be programmed to operate in three
different modes when Smart Key is activated. In all modes, grasping the
front passenger’s door handle will unlock all doors.
-To unlock driver’s door only, grasp driver’s door handle.
-To unlock all doors, grasp any door handle except rear doors.
-To unlock driver’s door or hatch independently, grasp the handle.
R efer to the Owner’s Manual for more information on this feature, and
how to change modes.

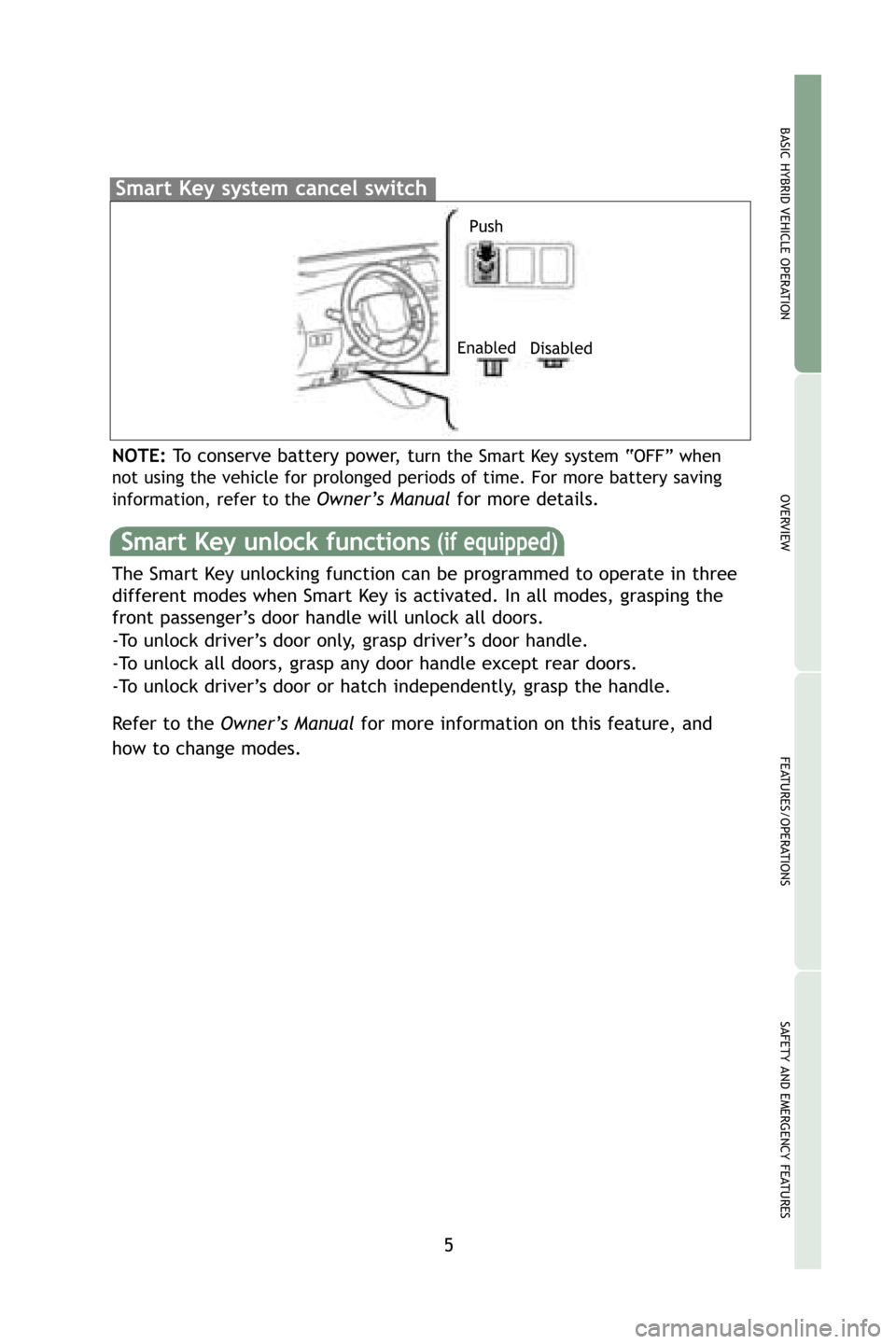

Smart Key system cancel switch
NO TE: To conserve battery power, turn the Smart Key system “ OFF” when
not using the vehicle for prolonged periods of time. For more battery saving
information, refer to the
Owner’s Manual for more details.
Enabled
Disabled
Push
M2.qxd 7/28/08 3:50 PM Page 5

6
BASIC HYBRID VEHICLE OPERATION
Panic button
Push and hold

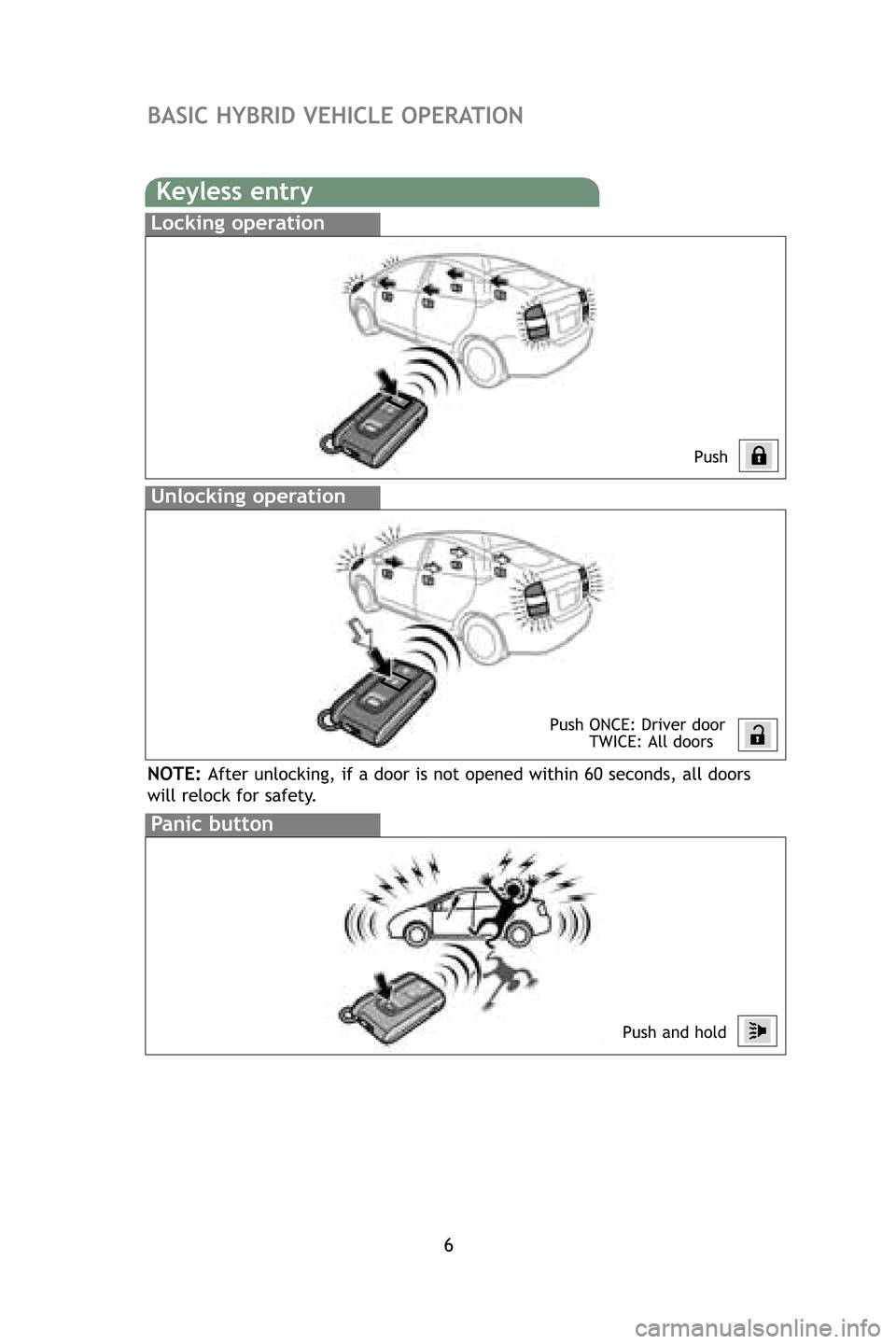

Keyless entry
Locking operation
Unlocking operation
NOTE:After unlocking, if a door is not opened within 60 seconds, all doors
will relock for safety.
Push
Push ONCE: Driver door
TWI CE: All doors
M2.qxd 7/28/08 3:50 PM Page 6

7
OVERVIEW
BASIC HYBRID VEHICLE OPER AT ION
FEAT U RES/O PERAT IONS
SAFETY AND EMERGENCY FEAT URES

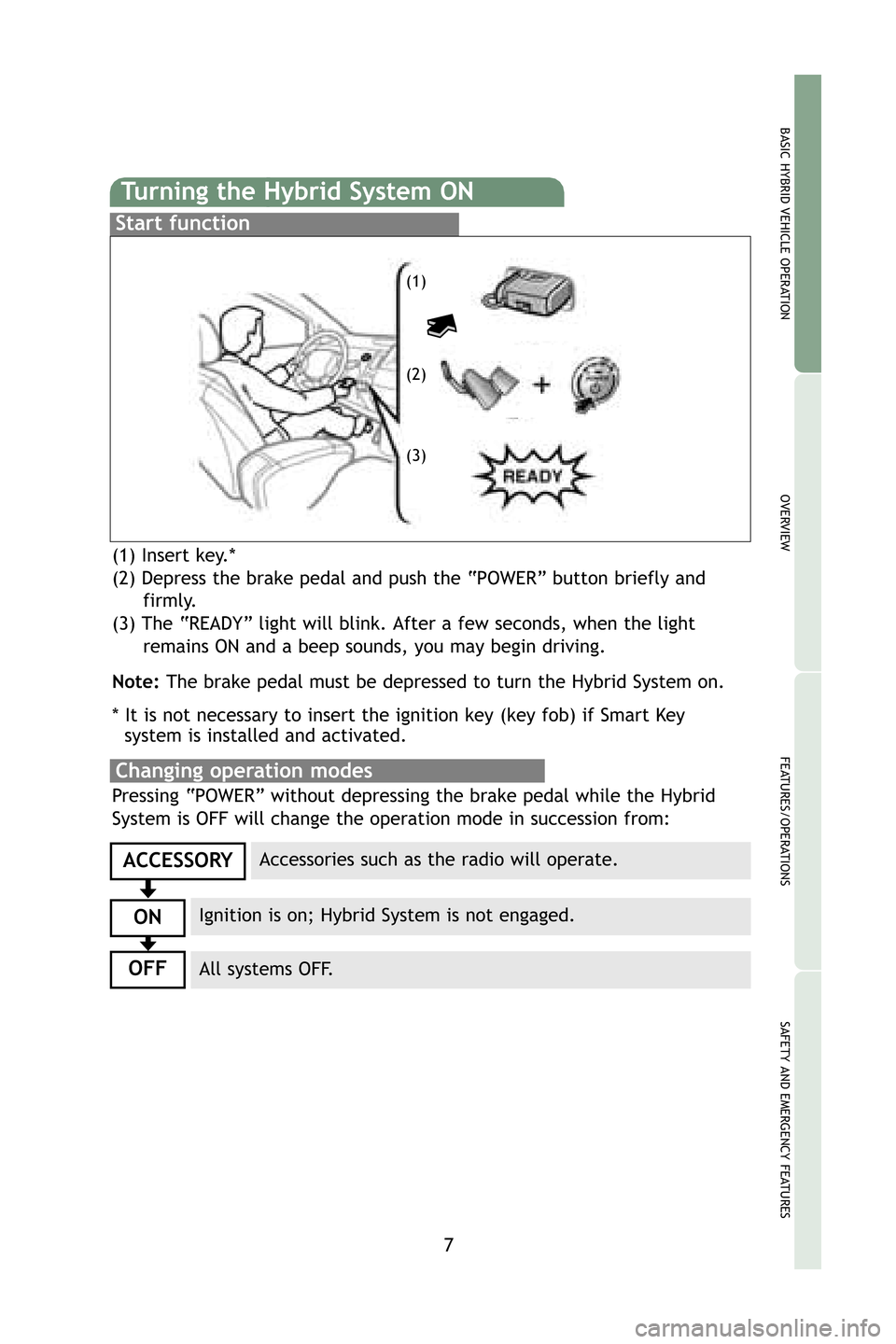

(1) Insert key.*
(2) Depress the brake pedal and push the “P OWER” button briefly and
firmly.
(3) The “ READY” light will blink. After a few seconds, when the light
remains ON and a beep sounds, you may begin driving.
Note: The brake pedal must be depressed to turn the Hybrid System on.
* It is not necessary to insert the ignition key (key fob) if Smart Key
system is installed and activated.
Turning the Hybrid System ON
Changing operation modes
Pressing “P OWER” without depressing the brake pedal while the Hybrid
System is OFF will change the operation mode in succession from:
Start function
ACCESSORY
ON
OFF
Accessories such as the radio will operate.
Ignition is on; Hybrid System is not engaged.
All systems OFF.
(1)
(2)
(3)
M2.qxd 7/28/08 3:50 PM Page 7

8
BASIC HYBRID VEHICLE OPERATION

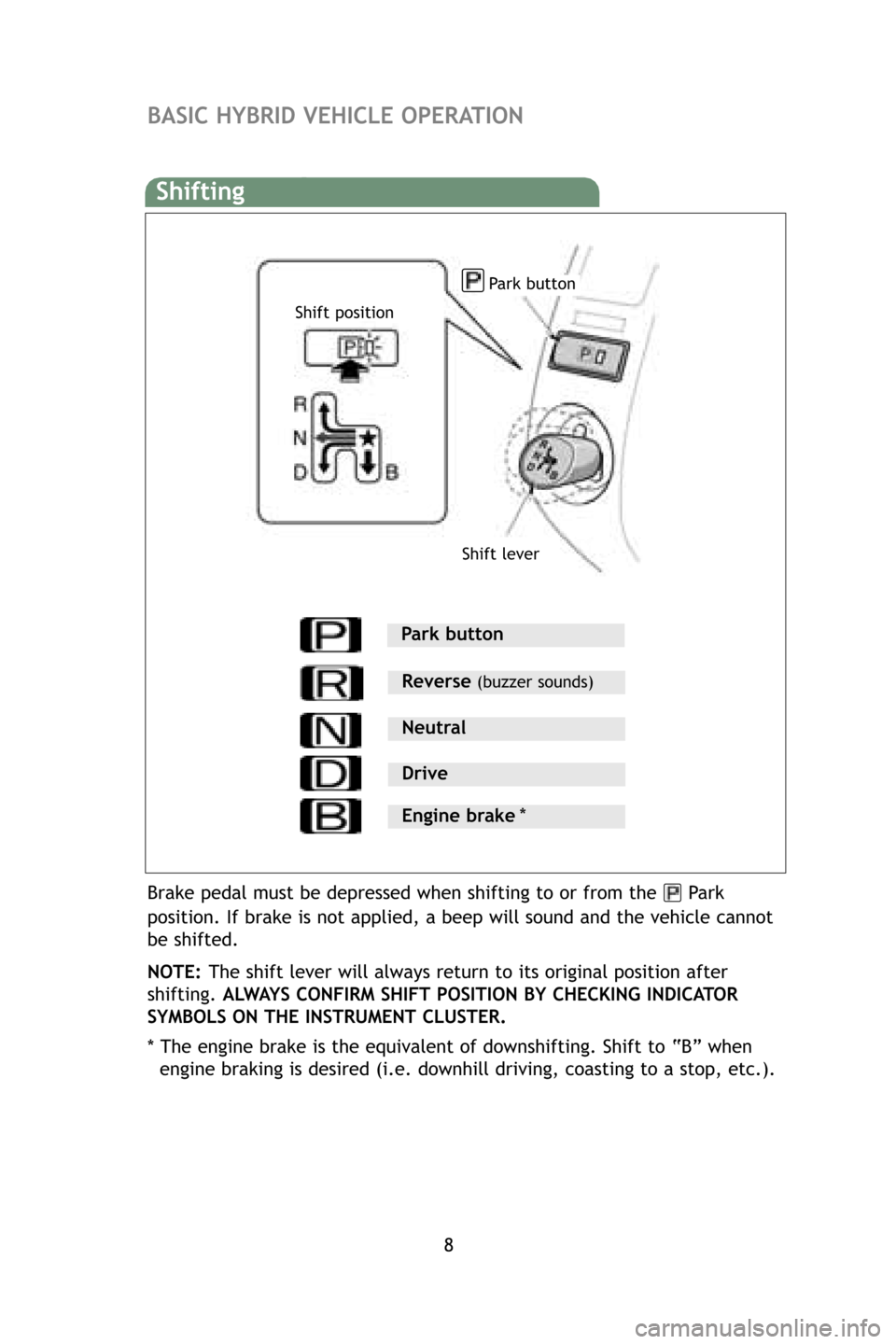

Shifting
Park button
Shift lever
Brake pedal must be depressed when shifting to or from the Park
position. If brake is not applied, a beep will sound and the vehicle can\
not
be shifted.
NOTE: The shift lever will always return to its original position after
shifting. ALWAYS CONFIRM SHIFT POSI TION BY CHECKING INDIC ATOR
SYMBOLS ON T HE INSTRUM ENT CLUS TER.
* The engine brake is the equivalent of downshifting. Shift to “ B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc. ).
Park button
Reverse(buzzer sounds)
Neutral
Drive
Engine brake
Shift position
*
M2.qxd 7/28/08 3:50 PM Page 8
