warning light TOYOTA PRIUS 2009 2.G Quick Reference Guide

1
OVERVIEW
BASIC HYBRID VEH ICLE OPERAT ION
FEAT U RES/O PERAT IONS
SAFETY AND E MERGENCY FEAT U RES
Hybrid Synergy Drive System 2Keyless entry16Key fob 3Parking & turning OFF the Hybrid System 9Shifting8Smart Key system 4-5Smart Key unlock functions15Tu r n i n g the Hybrid System ON 7
Engine maintenance 15Fuel tank door opener and cap14Hood release 15Indicator symbols 12-13Instrument cluster 12Instrument panel10-11Light control-Instrument panel14
R ear hatch 14
Air Conditioning /Heating20-21Audio 22-23Clock 25Cruise control 21Cup and bottle holders 25Garage door opener (Home Link®)217Lights & turn signals16Luggage storage box 24Parking brake 25Power outlets 25Seat ad justments -Front18Seat ad justments -Rear18Seats -Head restraints 18Te l e p h o n e controls (B luetooth®)24Tilt steering wheel 19Windows 19
Windshield wipers & washers 17
Door locks 26Doors-Child safety locks 26Emergency flashers 27Jump starting28R ear air vent 27Seat belts 26Seat belts -Shoulder belt anchor 26Spare tire & tools 29Tire Pressure Monitoring (warning ) System 27
OVERVIEW
FEATUR ES/OPERAT IONS
SAFETY AND
EMERGENCY F EATURES
INDEX
1 Programmable by customer. For dealer -programmable features, please visi t your
Toyota dealer.
2 HomeLink® is a re gis tered t rademark o f Johnson Controls , Inc .
BASIC HYBRID V EHICLE
OPERAT ION
09-Prius-revised.qxd 7/30/08 5:30 AM Page 1

11
OVERVIEW
BASIC HYBRID VEH ICLE OPERAT ION
FEAT U RES/O PERAT IONS
SAFETY AND E MERGENCY FEAT U RES
Audio system
12V DC Power outlet
Park button
Electronic shift lever
Ignition key (key fob ) slot
Cruise control
1
Tire Pressure Monitoring (warning ) System
Smart K ey system cancel1
Steering wheel climate control
Instrument panel light control
Steering wheel audio control
1 If equipped2For details, refer to the Navigation System Owner’s Manual.
With navigation system1,2
Without navigation system
09-Prius-revised.qxd 7/30/08 5:31 AM Page 3

12
OVERVIEW
Low engine oil pressure warning1
Service indicators and reminder
Speedometer
Fuel gauge
Odometer and two trip meters
Instrument cluster
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph )
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph )
Brake system warning
1
Charging system warning1
Low fuel level indicator1
Malfunction
/Check Engine indicator1
Indicator symbols
Master warning1
High coolant temperature warning1
Open door warning1
Airbag SRS warning1
1
F o r det ails, refer to Sect io n 5- 2, 2 009 Owner’s Manual .2If this light flas hes, see “ Cruise c on tro l” Sect io n 2-4, 2 009 Owner’s Manual .
Engine oil replacement reminder1
Vehicle Stability Control warning1
Traction battery warning1
Low Tire Pressure Warning1
M2.qxd 7/28/08 3:50 PM Page 12

13
OVERVIEW
BASIC HYBRID VEHICLE OPER AT ION
FEAT U RES/O PERAT IONS
SAFETY AND EMERGENCY FEAT URES
Headlight indicator
Anti -lock Brake System warning
1
3Fo r det ails, refer to “Trans missi on” Sect io n 2-1, 2 009 Owner’s Manual .
Driving ready light Turn signal indicator
Headlight high beam indicator
Cruise control indicator
2
Slip indicator
Hybrid System warning1
Electric power steering system warning1
Smart Key system warning1
Automatic headlight leveling system warning1
R unning mode position indicator3
Automatic Air Conditioner indicator
Recirculate mode indicator
Windshield airflow indicator
Rear window and outside rearview mirror defogger indicator
Hybrid vehicle immobilizer /Theft deterrent system indicator
Front passenger occupant classification indicator
Yellow: Brake System warning1
M2.qxd 7/28/08 3:50 PM Page 13

27
OVERVIEW
BASIC HYBRID VEHICLE OPER AT ION
FEAT U RES/O PERAT IONS
SAFETY AND EMERGENCY FEAT URES

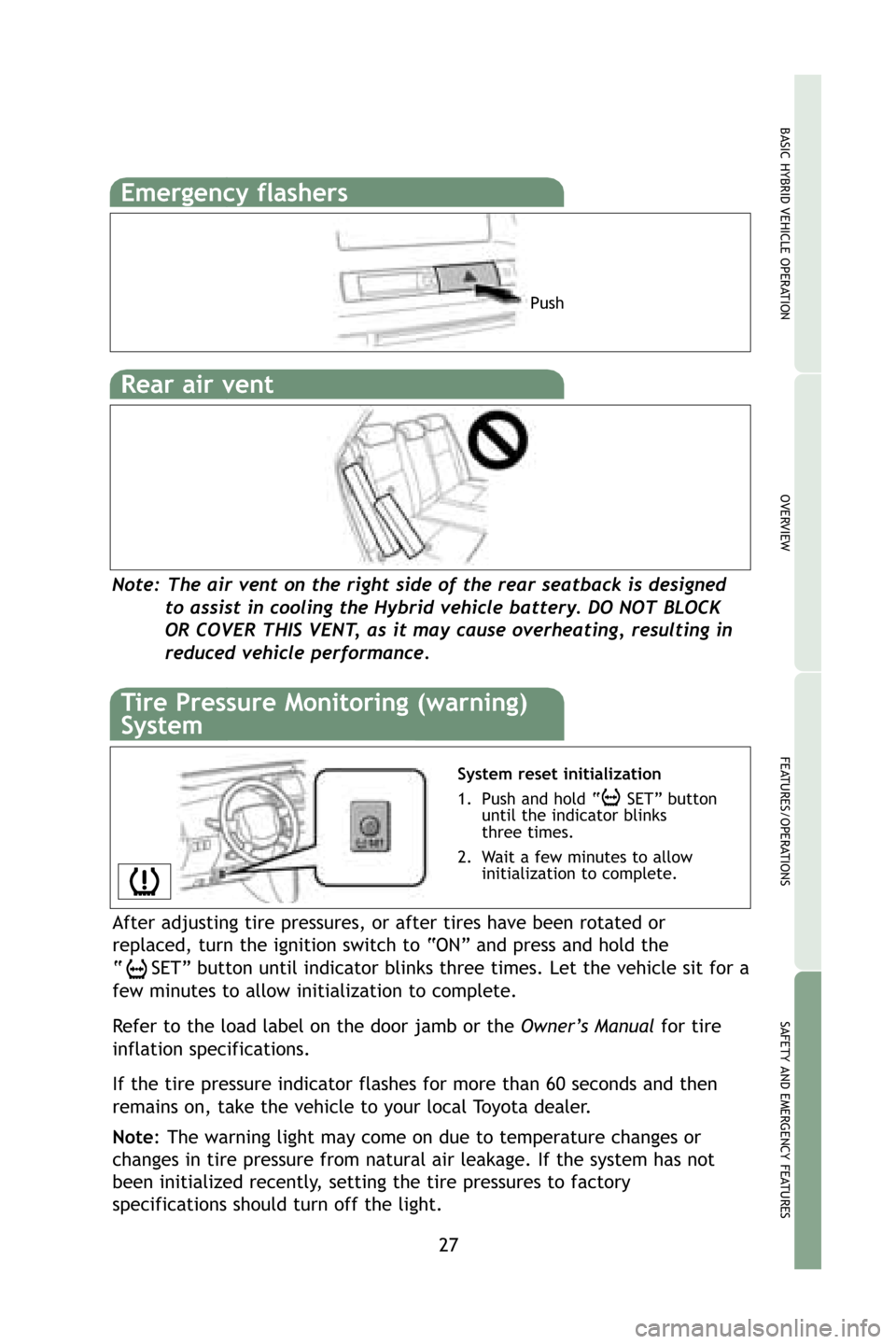

Emergency flashers
Note: The air vent on the ri ght side of the rear sea tback is desi gned
to assist in coolin g the Hybrid vehicle battery. DO NOT BLOC K
OR COVER THIS VEN T, as it may cause overhea ting, resultin g in
reduced vehicle performance .
Rear air vent
Push
System reset initialization
1. Push and hold “ S ET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow initialization to complete.
Tire Pressure Monitoring (warning)
System
After ad justing tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ ON” and press and hold the
“S ET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
R efer to the load label on the door jamb or the Owner’s Manual for tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Note : The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not\
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
