window TOYOTA PRIUS 2009 2.G Quick Reference Guide

1
OVERVIEW
BASIC HYBRID VEH ICLE OPERAT ION
FEAT U RES/O PERAT IONS
SAFETY AND E MERGENCY FEAT U RES
Hybrid Synergy Drive System 2Keyless entry16Key fob 3Parking & turning OFF the Hybrid System 9Shifting8Smart Key system 4-5Smart Key unlock functions15Tu r n i n g the Hybrid System ON 7
Engine maintenance 15Fuel tank door opener and cap14Hood release 15Indicator symbols 12-13Instrument cluster 12Instrument panel10-11Light control-Instrument panel14
R ear hatch 14
Air Conditioning /Heating20-21Audio 22-23Clock 25Cruise control 21Cup and bottle holders 25Garage door opener (Home Link®)217Lights & turn signals16Luggage storage box 24Parking brake 25Power outlets 25Seat ad justments -Front18Seat ad justments -Rear18Seats -Head restraints 18Te l e p h o n e controls (B luetooth®)24Tilt steering wheel 19Windows 19
Windshield wipers & washers 17
Door locks 26Doors-Child safety locks 26Emergency flashers 27Jump starting28R ear air vent 27Seat belts 26Seat belts -Shoulder belt anchor 26Spare tire & tools 29Tire Pressure Monitoring (warning ) System 27
OVERVIEW
FEATUR ES/OPERAT IONS
SAFETY AND
EMERGENCY F EATURES
INDEX
1 Programmable by customer. For dealer -programmable features, please visi t your
Toyota dealer.
2 HomeLink® is a re gis tered t rademark o f Johnson Controls , Inc .
BASIC HYBRID V EHICLE
OPERAT ION
09-Prius-revised.qxd 7/30/08 5:30 AM Page 1

13
OVERVIEW
BASIC HYBRID VEHICLE OPER AT ION
FEAT U RES/O PERAT IONS
SAFETY AND EMERGENCY FEAT URES
Headlight indicator
Anti -lock Brake System warning
1
3Fo r det ails, refer to “Trans missi on” Sect io n 2-1, 2 009 Owner’s Manual .
Driving ready light Turn signal indicator
Headlight high beam indicator
Cruise control indicator
2
Slip indicator
Hybrid System warning1
Electric power steering system warning1
Smart Key system warning1
Automatic headlight leveling system warning1
R unning mode position indicator3
Automatic Air Conditioner indicator
Recirculate mode indicator
Windshield airflow indicator
Rear window and outside rearview mirror defogger indicator
Hybrid vehicle immobilizer /Theft deterrent system indicator
Front passenger occupant classification indicator
Yellow: Brake System warning1
M2.qxd 7/28/08 3:50 PM Page 13

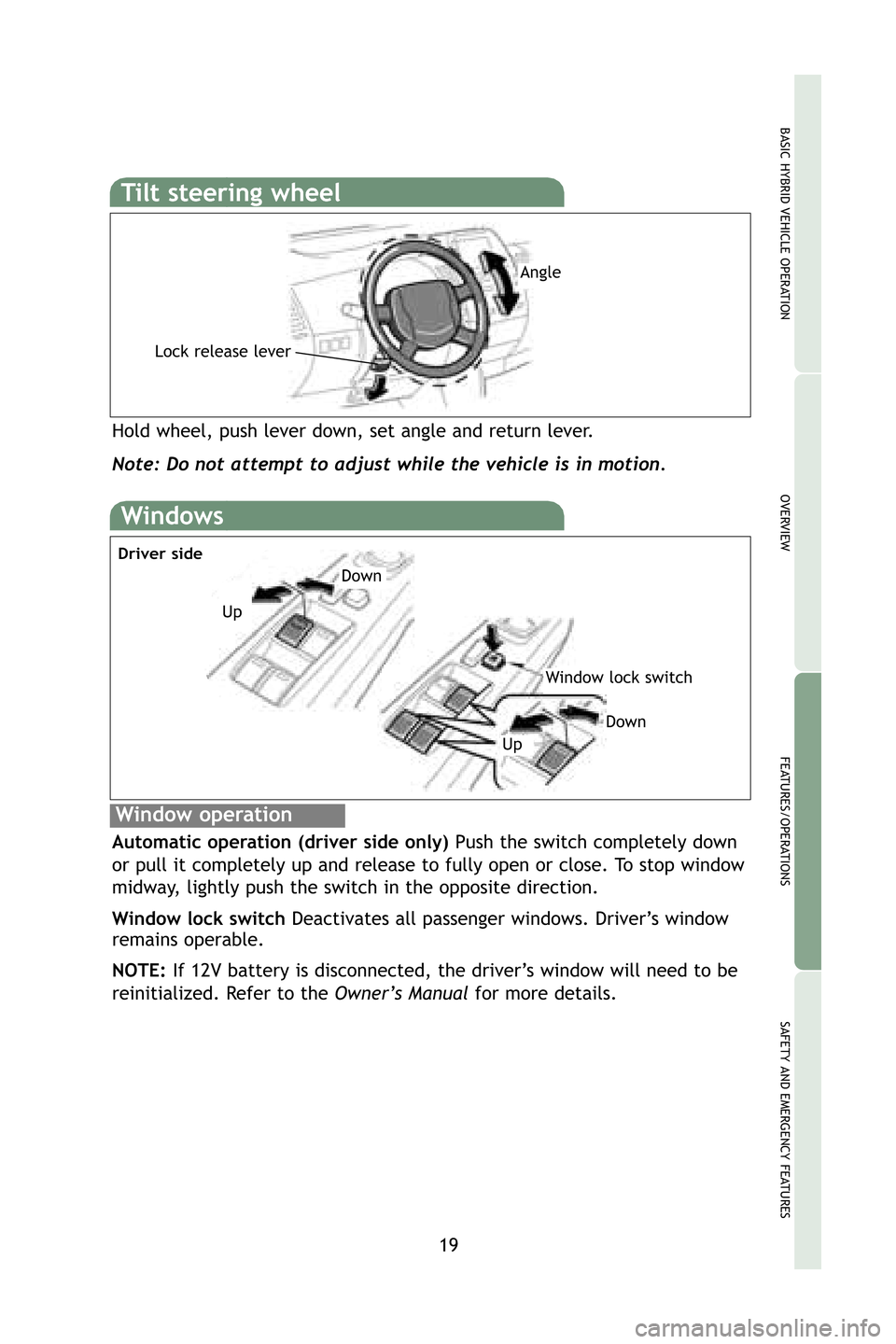

19
OVERVIEW
BASIC HYBRID VEHICLE OPER AT ION
FEAT U RES/O PERAT IONS
SAFETY AND EMERGENCY FEAT URES
Windows
Window operation
Automatic operation (driver side only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
NO TE: If 12V battery is disconnected, the driver’s window will need to be
reinitialized. Refer to the Owner’s Manual for more details.
Window lock switch
Up
Down
Driver side
Down
Up
Tilt steering wheel
Hold wheel, push lever down, set angle and return lever.
Note: Do n ot attempt to adjust while the vehicle is in motion.
Angle
Lock release lever
M2.qxd 7/28/08 3:50 PM Page 19

20
FEATURES/OPERAT IONS
Passenger compartment temperature
Outside temperature
Temperature selector
Airflow vent
Fan speed
Automatic climate control ON
Fresh or recirculated cabin air
R ear window and outside rearview mirror defogger
Windshield airflow
Air Conditioning ON/OFF
Climate control OFF
Display the operation screen
Air Conditioning /Heating
* For details, refer to the “ Navigation System Owner’s Manual .”
Type 2 functions
Ty p e 1 functions
With navigation system*
M2.qxd 7/28/08 3:50 PM Page 20

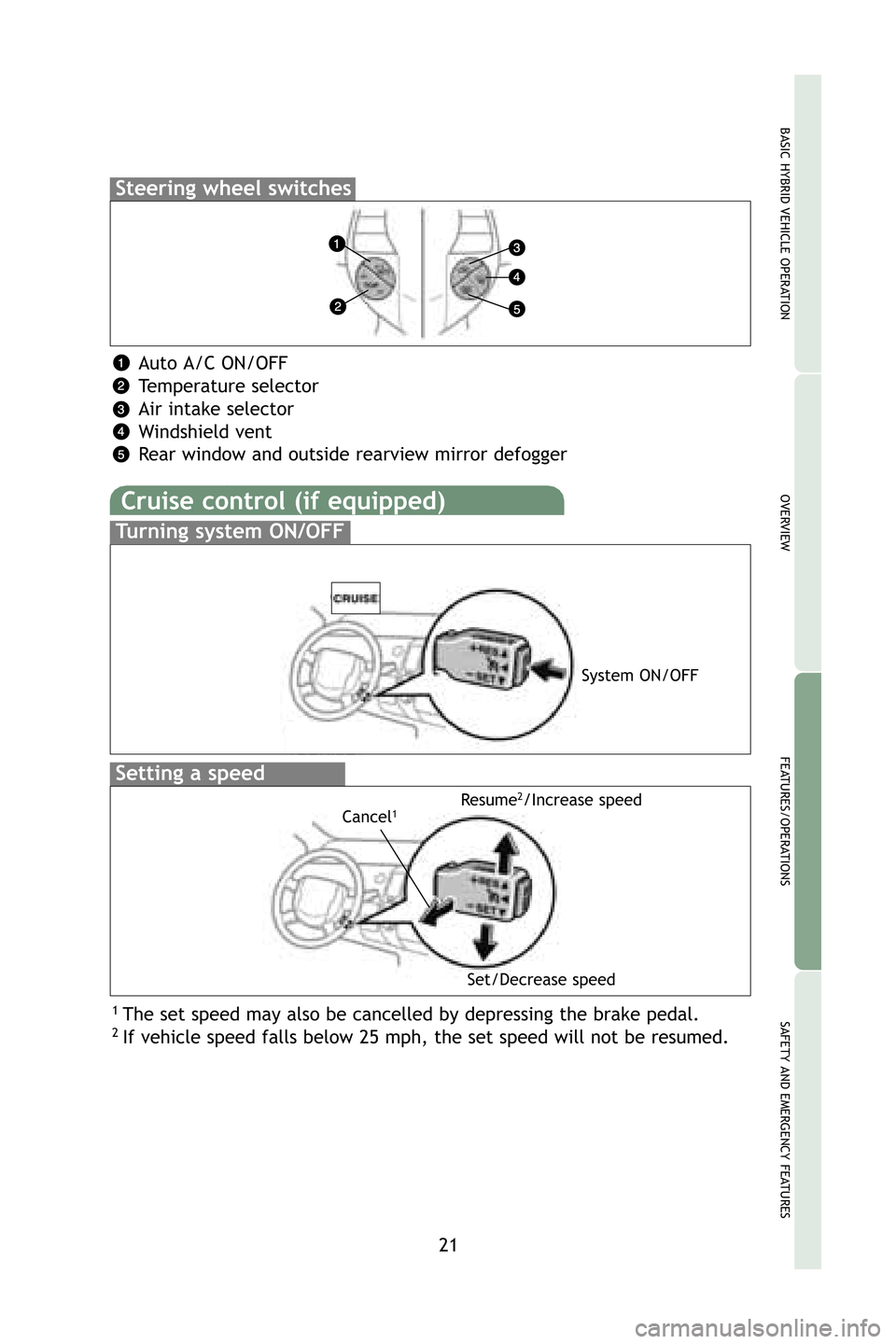

21
OVERVIEW
BASIC HYBRID VEHICLE OPER AT ION
FEAT U RES/O PERAT IONS
SAFETY AND EMERGENCY FEAT URES
Setting a speed
System ON/OFF
R esume
2/Increase speed
Cancel1
Set /Decrease speed
Cruise control (if equipped)
Auto A /C ON/OFF
Temperature selector
Air intake selector
Windshield vent
R ear window and outside rearview mirror defogger
1 The set speed may also be cancelled by depressing the brake pedal.2 If vehicle speed falls below 25 mph, the set speed will not be resumed.
Turning system ON/OFF
Steering wheel switches
M2.qxd 7/28/08 3:50 PM Page 21
