If the electronic key battery is discharged
The following symptoms may occur.
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR1632 lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by a
Toyota dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children. 
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands. 
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the electronic key.
● Do not bend the battery terminals.

462
4-3. Do-it-yourself maintenance
PRIUS_U (OM47668U) U.S.A.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch OFF. 
Vehicles with Solar Ventilation System: Turn the Solar Ven-
tilation System off and make sure not to operate the
Remote Air Conditioning System.

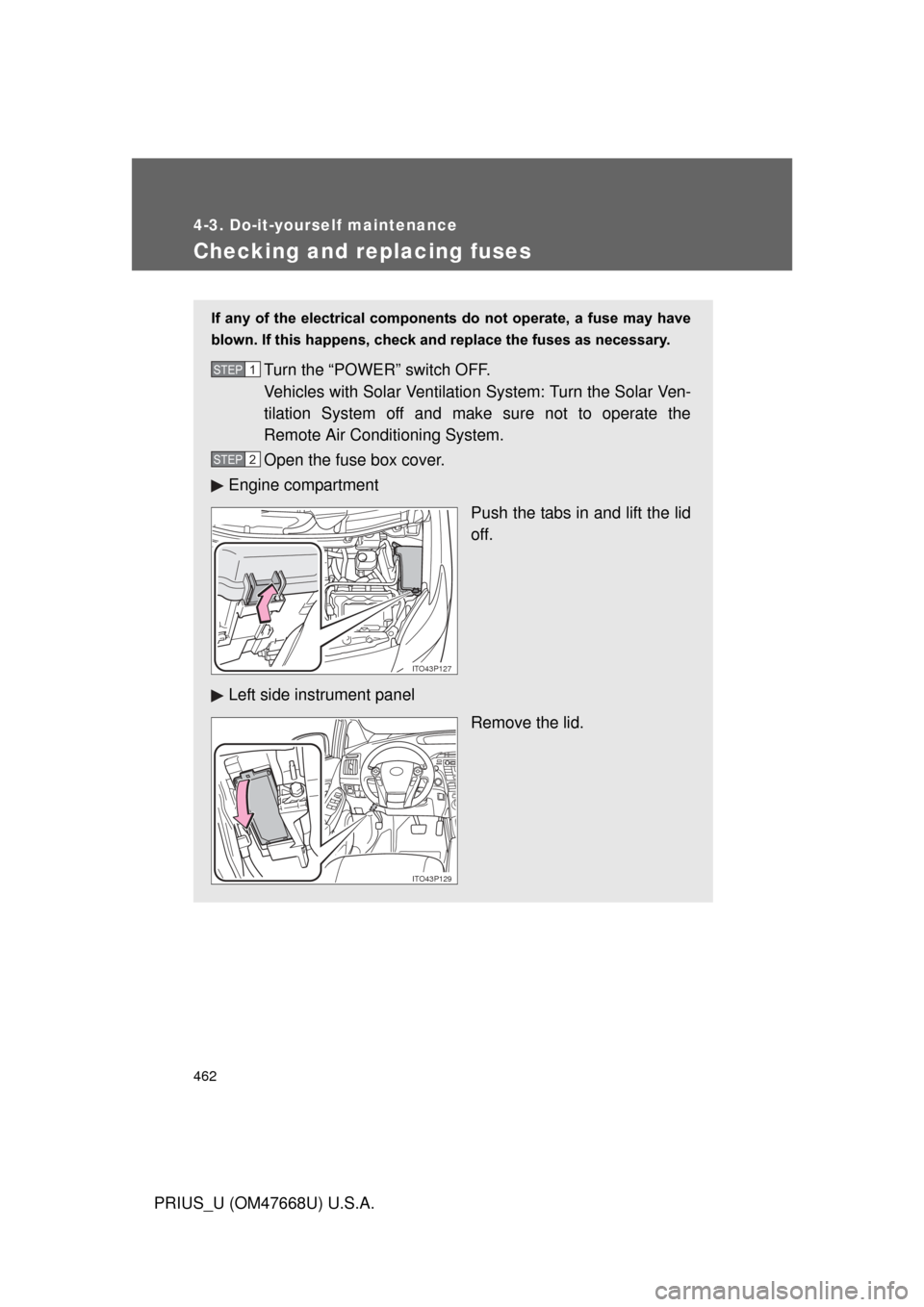

Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
Left side instrument panel Remove the lid.STEP1
STEP2
ITO43P127
ITO43P129

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U (OM47668U) U.S.A.
After a system failure, see “Fuse layout and amperage rat-
ings” (
P. 465) for details about which fuse to check.

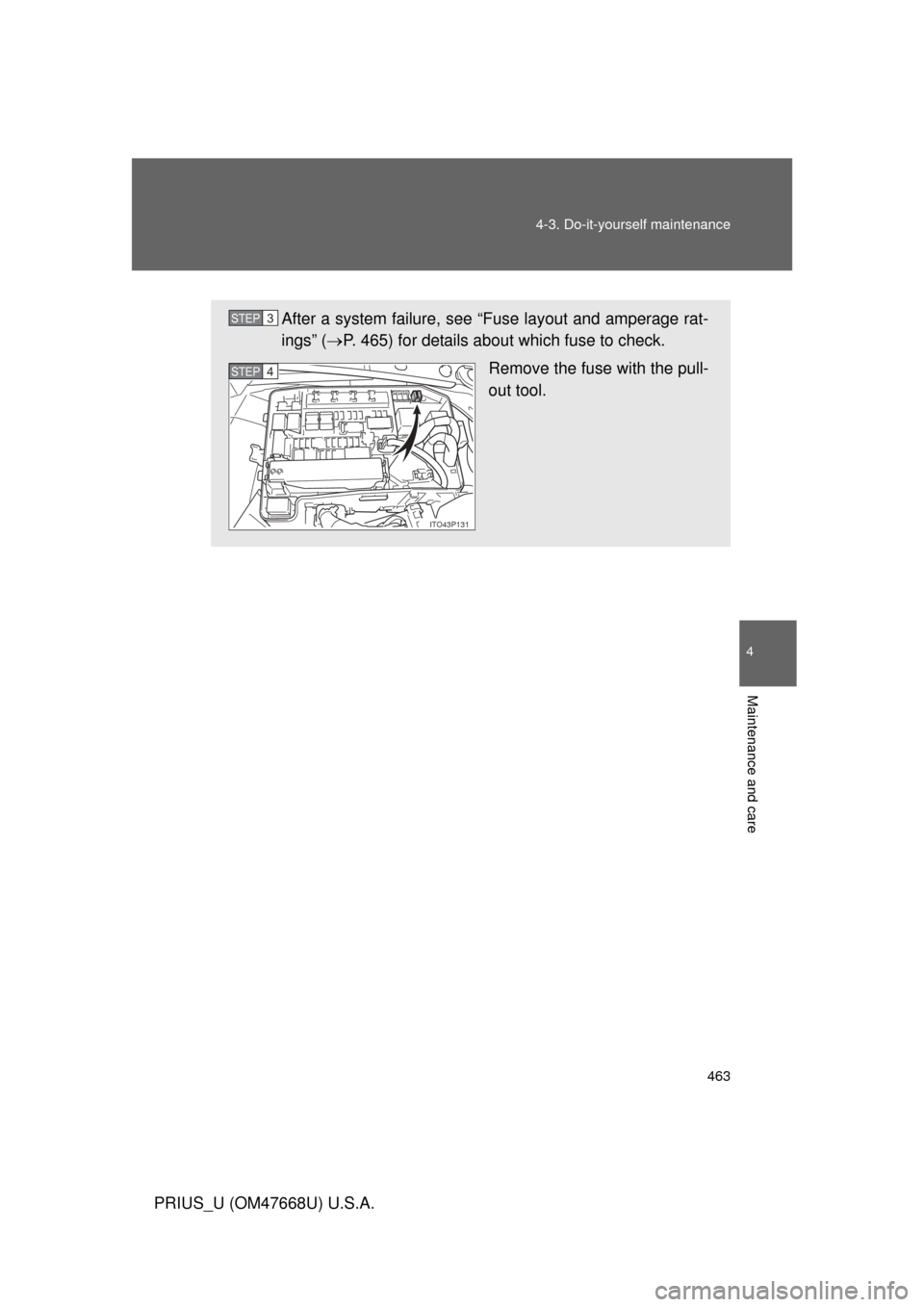

Remove the fuse with the pull-
out tool.STEP3
ITO43P131
STEP4

464 4-3. Do-it-yourself maintenance
PRIUS_U (OM47668U) U.S.A.

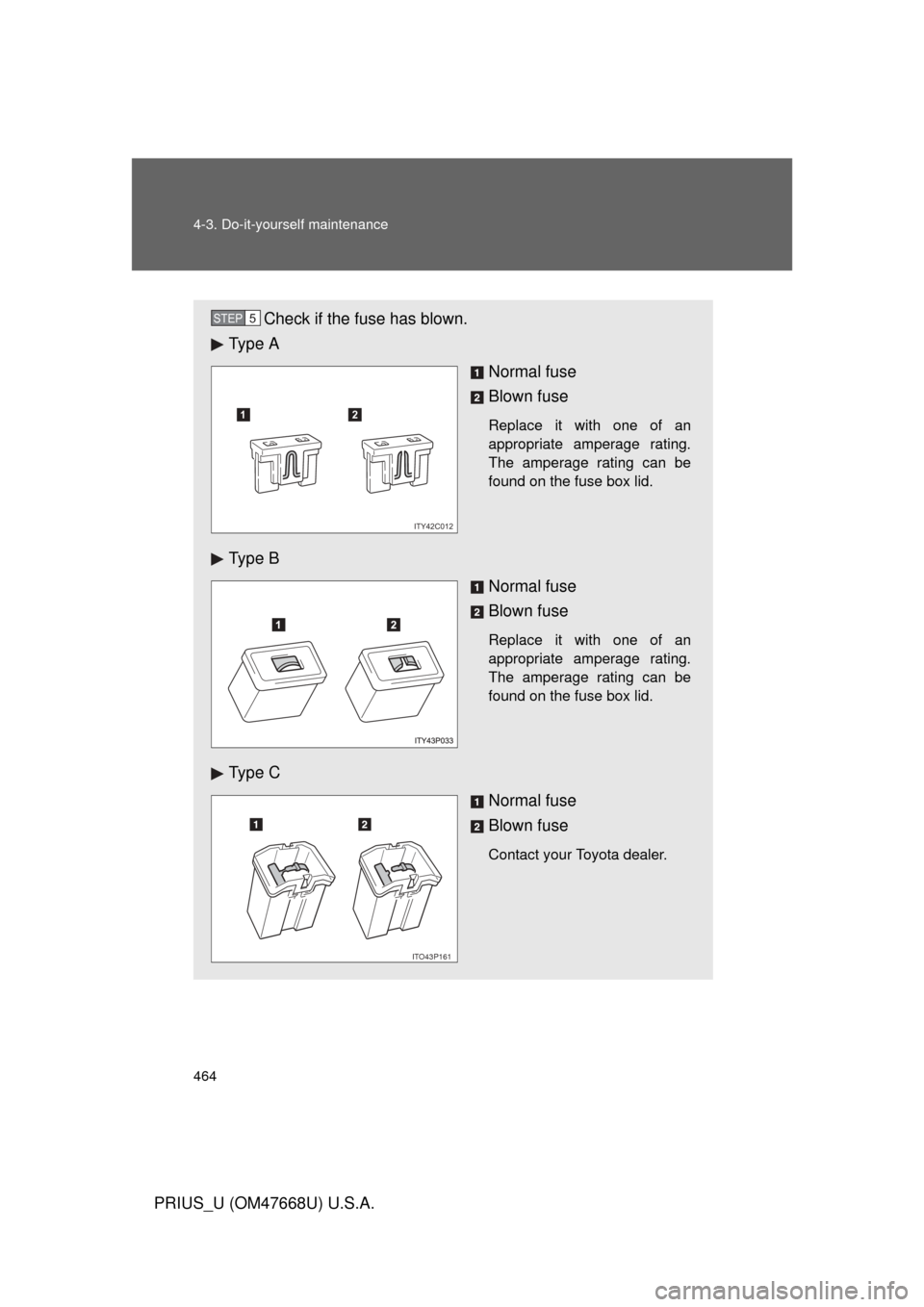

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.
STEP5
12
ITY42C012
ITO43P161

465
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U (OM47668U) U.S.A.
Fuse layout and amperage ratings

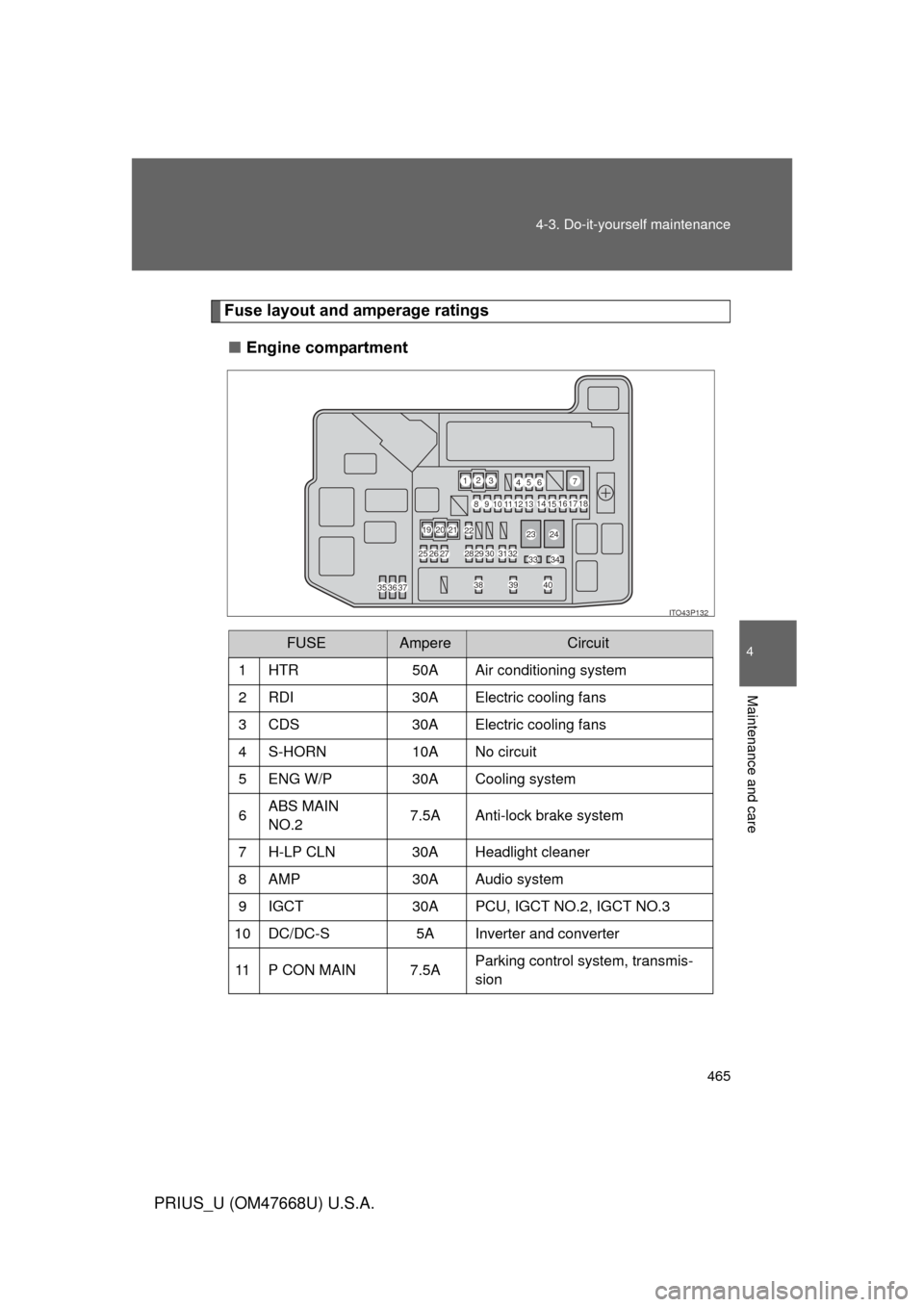

■ Engine compartment
FUSEAmpereCircuit
1 HTR 50A Air conditioning system
2 RDI 30A Electric cooling fans
3 CDS 30A Electric cooling fans
4 S-HORN 10A No circuit
5 ENG W/P 30A Cooling system
6 ABS MAIN
NO.2 7.5A Anti-lock brake system
7 H-LP CLN 30A Headlight cleaner
8 AMP 30A Audio system
9 IGCT 30A PCU, IGCT NO.2, IGCT NO.3
10 DC/DC-S 5A Inverter and converter
11 P CON MAIN 7.5A Parking control system, transmis-
sion
ITO43P132
1
2
3
456 7
891011 12
13 14
15 16
17 18
19 20 21 22
2324
25 26 27 28 29 30 31 32 33 34
35 36 37 38 39 40

466 4-3. Do-it-yourself maintenance
PRIUS_U (OM47668U) U.S.A.
FUSEAmpereCircuit
12 AM2 7.5A Power windows
13 ECU-B2 7.5A Smart key system
14 MAYDAY 10A No circuit
15 ECU-B3 10A Air conditioning system
16 TURN & HAZ 10A Turn signal lights
17 ETCS 10AMultiport fuel injection system/
sequential multiport fuel injection
system
18 ABS MAIN
NO.1 20A Anti-lock brake system
19 P/I 2 40AParking control system, horn,
right-hand headlight (low beam),
left-hand headlight (low beam),
back-up lights
20 ABS MTR 1 30A Anti-lock brake system
21 ABS MTR 2 30A Anti-lock brake system
22 H-LP HI MAIN 20A H-LP HI RH, H-LP HI LH,
headlight switch, daytime running
light system
23 P/I 1 60A IG2, EFI MAIN, BATT FAN
24 EPS 60A Electric power steering
25 PCU 10A Inverter and converter
26 IGCT NO.2 10A Hybrid system, parking control
system, power windows, inverter
and converter

467
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U (OM47668U) U.S.A.
FUSEAmpereCircuit
27 MIR HTR 10A Outside rear view mirror defoggers
28 RAD NO.1 15A Audio system, navigation system
29 DOME 10ADoor courtesy lights, personal
lights, interior lights, front foot
lights, vanity lights, inside rear
view mirror, garage door opener,
electric power steering
30 ECU-B 7.5ASmart key system, multiplex com-
munication system, personal
lights, gauges and meters
31 H-LP LH HI 10A Left-hand headlight (high beam)
32 H-LP RH HI 10A Right-hand headlight (high beam)
33 EFI NO.2 10AMultiport fuel injection system/
sequential multiport fuel injection
system
34 IGCT NO.3 10A Cooling system
35 SPARE 30A Spare fuses
36 SPARE 15A Spare fuses
37 SPARE 7.5A Spare fuses
38 EFI MAIN 20AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2
39 BATT FAN 10A Battery cooling fan
40 IG2 20AMultiport fuel injection system/
sequential multiport fuel injection
system, MET-IGN, IGN, power
windows

468 4-3. Do-it-yourself maintenance
PRIUS_U (OM47668U) U.S.A.■

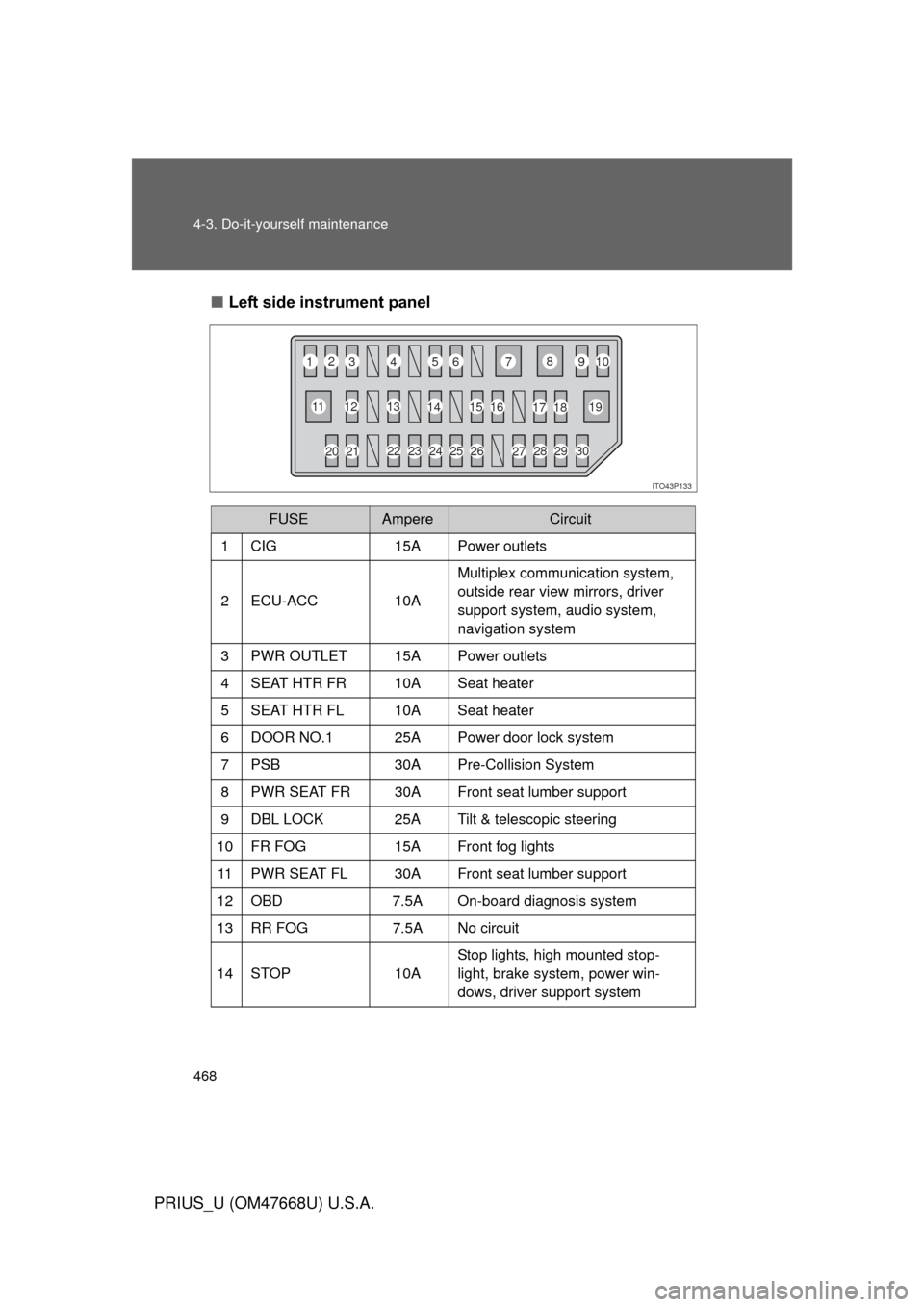

Left side instrument panel
FUSEAmpereCircuit
1 CIG 15A Power outlets
2 ECU-ACC 10AMultiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system
3 PWR OUTLET 15A Power outlets
4 SEAT HTR FR 10A Seat heater
5 SEAT HTR FL 10A Seat heater
6 DOOR NO.1 25A Power door lock system
7 PSB 30A Pre-Collision System
8 PWR SEAT FR 30A Front seat lumber support
9 DBL LOCK 25A Tilt & telescopic steering
10 FR FOG 15A Front fog lights
11 PWR SEAT FL 30A Front seat lumber support
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A No circuit
14 STOP 10AStop lights, high mounted stop-
light, brake system, power win-
dows, driver support system
ITO43P133
1
2
3 4
56 7
8
910
11 12
13
14 15
16 17
18 19
23 24 25
26
2728
29
30
20 21 22

469
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U (OM47668U) U.S.A.
FUSEAmpereCircuit
15 P FR DOOR 25A Power windows
16 D FR DOOR 25A Power windows
17 DOOR RR 25A Power windows
18 DOOR RL 25A Power windows
19 S/ROOF 30A Electric moon roof
20 ECU-IG NO.1 10A Electric cooling fans, multiplex
communication system
21 ECU-IG NO.2 10A Driver support system, Pre-Colli-
sion System, LKA system, inside
rear view mirror, garage door
opener, yaw rate & G sensor,
brake system, electric power
steering, navigation system, elec-
tric moon roof, tire pressure warn-
ing system, seat belt
pretensioners, audio system,
emergency flashers, turn signal
lights, windshield wipers, headlight
cleaner
22 GAUGE 10A Headlight leveling system, front
passenger’s seat belt reminder
light, gauges and meters
23 A/C 10A Air conditioning system, Solar
Ventilation System, Remote Air
Conditioning System
24 WASHER 15A Windshield washer

470 4-3. Do-it-yourself maintenance
PRIUS_U (OM47668U) U.S.A.
FUSEAmpereCircuit
25 RR WIP 20A Rear window wiper and washer
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters
28 IGN 10ABrake system, driver support sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, SRS airbag sys-
tem, occupant detection sensor,
power windows, smart key system
29 PANEL 10AAir conditioning system, emer-
gency flashers, seat heaters,
transmission, “P” position switch,
navigation system, Solar Ventila-
tion System, Remote Air Condi-
tioning System, advanced parking
guidance system, headlight
cleaner, front passenger’s seat
belt reminder light, headlight level-
ing system, glove box light, clock,
audio system
30 TAIL 10AHeadlight leveling system, park-
ing lights, tail lights, license plate
lights, front fog lights, side marker
lights
