TOYOTA PRIUS 2012 3.G Owners Manual

101
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may make the inner struc-
ture of the head restraint appear. This does not indicate a problem.
CAUTION
■Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
During
rear-end
collision
Inner
structure

102
1-4. Adjustable components (seats, mirrors, steering wheel)
Rear seats
Before folding down the seatbacksPark the vehicle in a safe place.
Apply the parking brake firmly and shift the shift position to P.
(P. 205)
Adjust the position of the front seat and the angle of the seat-
back. (
P. 99)
Depending on the position of the front seat, if the seatback is folded
backward, it may interfere with the operation of the rear seat.
Stow the buckle of the seat belts.
Lower the head restraint of the rear seat. (
P. 105)
Vehicles with an armrest: Stow the armrest of the rear seat if it
is pulled out. ( P. 371)
This step is not necessary when operating the driver’s side seat only.
The seatbacks can be folded down.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

103
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Folding down the seatbacks
Fold the seatback down while
pushing the lock release button.
To return the rear seatbacks to
their original positions, lift them
up until they lock.
■Remove the seat belt from the guide
■ Returning rear seatbacks
If the seat belt interferes with luggage on
the folded seats, remove the seat belt
from the guide.
Tilt the rear seatback up until it locks,
making sure that you hold the seat belt to
prevent it from getting caught between
the seatback and the inner side of the
vehicle.
If the seat belt is removed from the guide,
make sure the belt pass through the
guide.

104 1-4. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
position to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
■ After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Check that the seat belts are not twisted or caught in the seatback.
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatbacks is not securely locked,
the red marking will be visible on the
seatback lock release button. Make
sure that the red marking is not visible.

105
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving

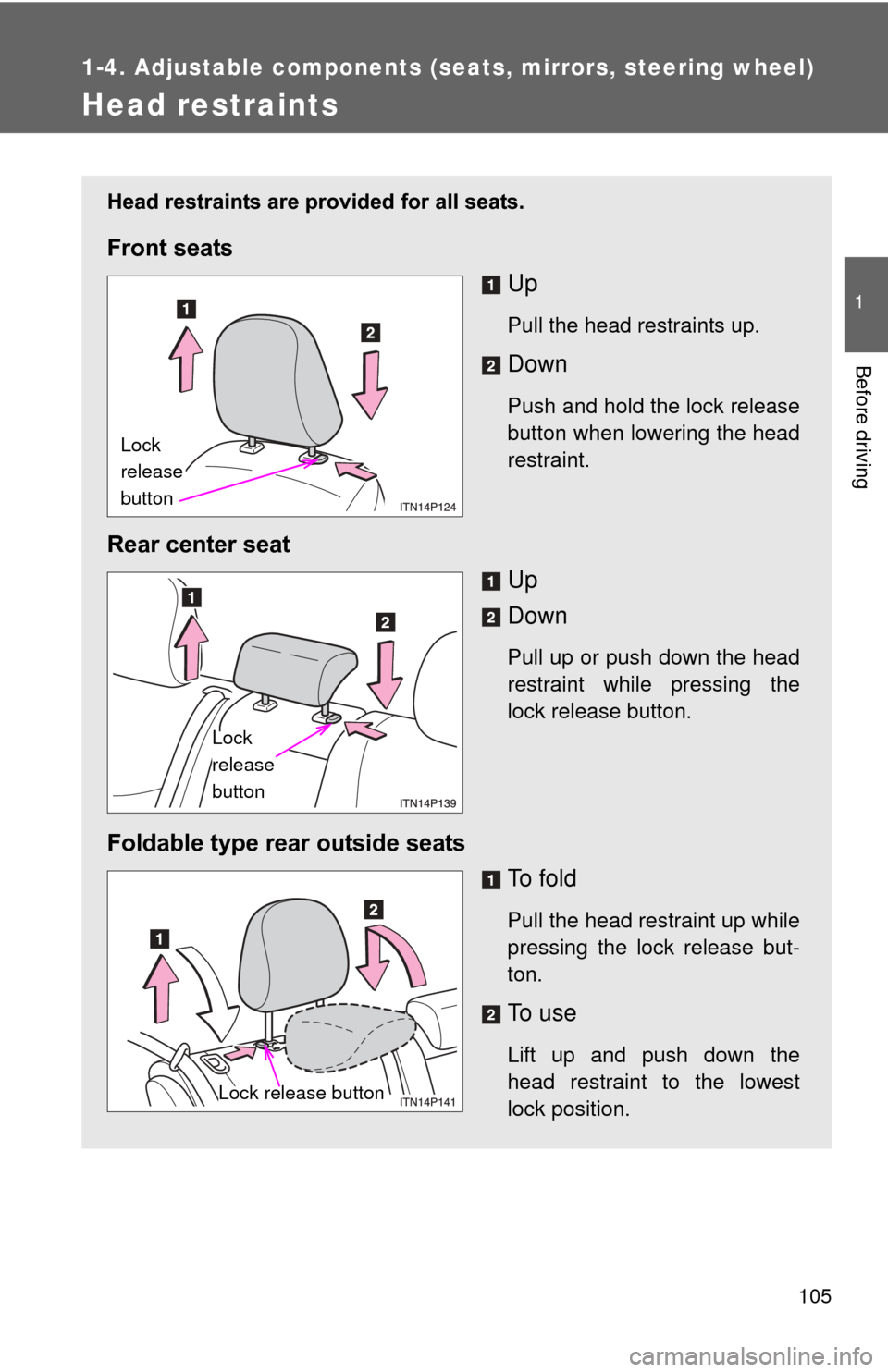

Head restraints
Head restraints are provided for all seats.
Front seatsUp
Pull the head restraints up.
Down
Push and hold the lock release
button when lowering the head
restraint.
Rear center seatUp
Down
Pull up or push down the head
restraint while pressing the
lock release button.
Foldable type rear outside seats
To f o l d
Pull the head restraint up while
pressing the lock release but-
ton.
To u s e
Lift up and push down the
head restraint to the lowest
lock position.
Lock
release
button
Lock
release
button
Lock release button

106 1-4. Adjustable components (seats, mirrors, steering wheel)
■Removing the head restraints
Front and rear center seats
Foldable type rear outside seats
Non-foldable type rear outside seats
Pull the head restraint up while pressing
the lock release button.
Lock
release
button
Pull the head restraint up while pressing
the lock release buttons.
Lock release buttons
Pull the head restraint up while pressing
the lock release button.
Lock release button

107
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Installing the head restraints
Front and rear center seats
Rear outside seats
■ Adjusting the height of the head restraints
■ Adjusting the rear cent er seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Lock
release
button
Align the head restraint with the installa-
tion holes and push it down to the lowest
lock position.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

108 1-4. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

109
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving

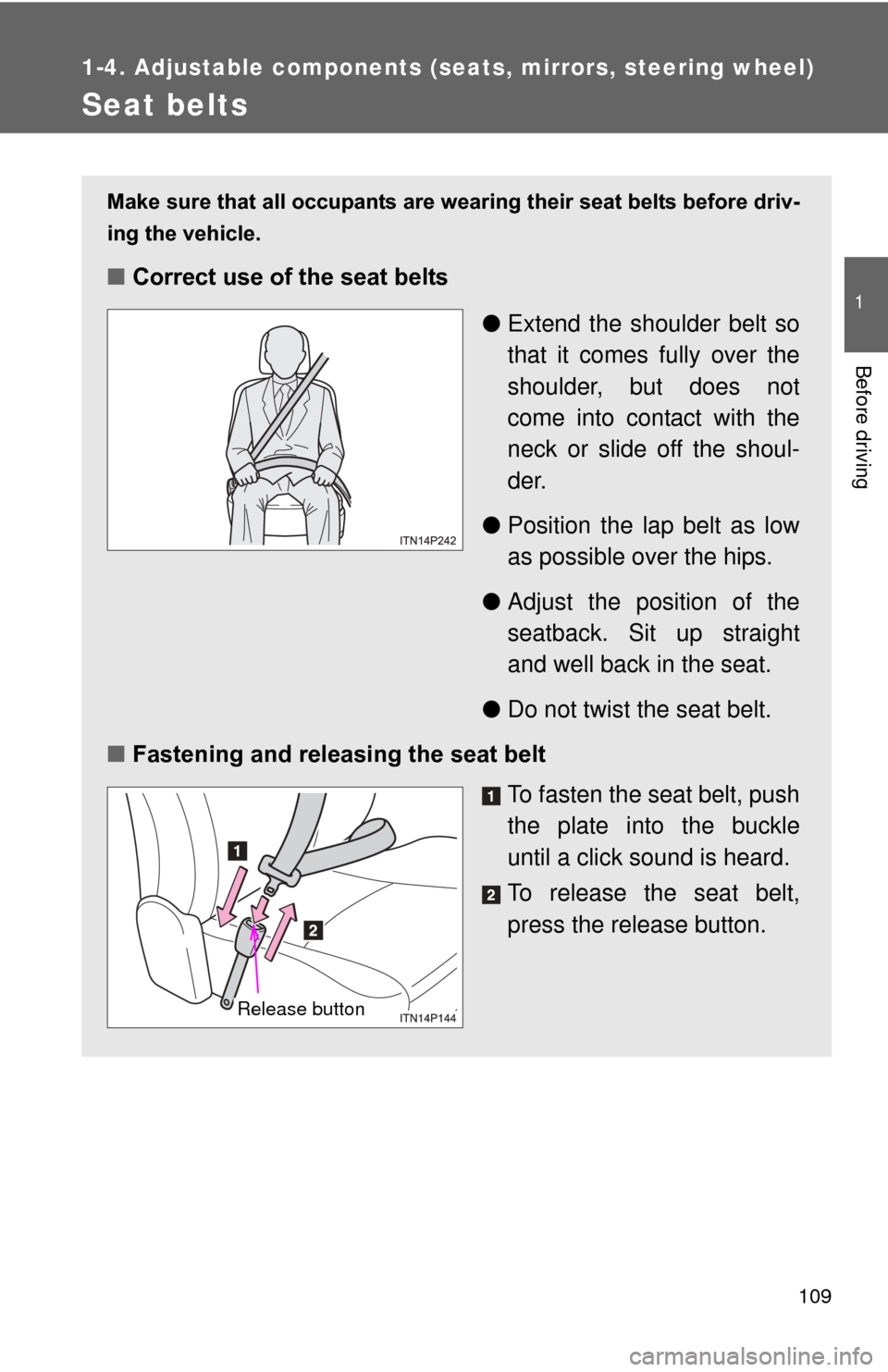

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

110 1-4. Adjustable components (seats, mirrors, steering wheel)
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a side impact, a rear
impact or a vehicle rollover.
■Adjusting the seat belt shoulde r anchor height (front seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.
