TOYOTA PRIUS 2012 3.G Warranty And Maintenance Guide

warrant y &
M
aIntEnanCE GUI

DE
www.toyota.com
If your name or address has changed
or you purchased your Toyota as a
used vehicle, please complete and
mail the attached card, even if your
warranty coverage has expired. This
will enable Toyota to contact you with
important product or safety updates
concerning your vehicle. If the card
is no longer attached, please call the
Toyota Customer Experience Center
at (800) 331-4331.
00505-12wMG-PrI
Printed

in U.S.a. 11/
11
11-tCS - 04853
Prius
201 2Check one:

Same owner, name and/or address has changed

New owner, purchased vehicle used


Same owner, additional driver who should receive product/safety updates
Mr.

Mrs.

Ms.

Miss

Dr.
First name M.I.Last name
Company name
Street address or P.O. Box Apt. or suite number
CityStateZip code
–
This information is obtained solely for the use of Toyota Motor Sales, U.S.A., Inc.
Toyota occasionally sends special promotional offers to registered owners. Check here if you prefer not to receive these offers.
Vehicle Identification Number (required to process change)
Mo.

Day

Year
//
Effective date of
this information
Primary phone number– –
Alternate phone number––
E-mail address
EVV
Own
Er Inf
Orma
TIO
n Chang
E fO
rm
Check here if
address below
is for company
11-TCS-04853_WarrMaintGuide_Prius_1_0F_lm.indd 111/18/11 4:13 PM

CUSTOMER LOYALTY WC13
TOYOTA MOTOR SALES USA INC
PO BOX 2991
TORRANCE CA 90509-9809

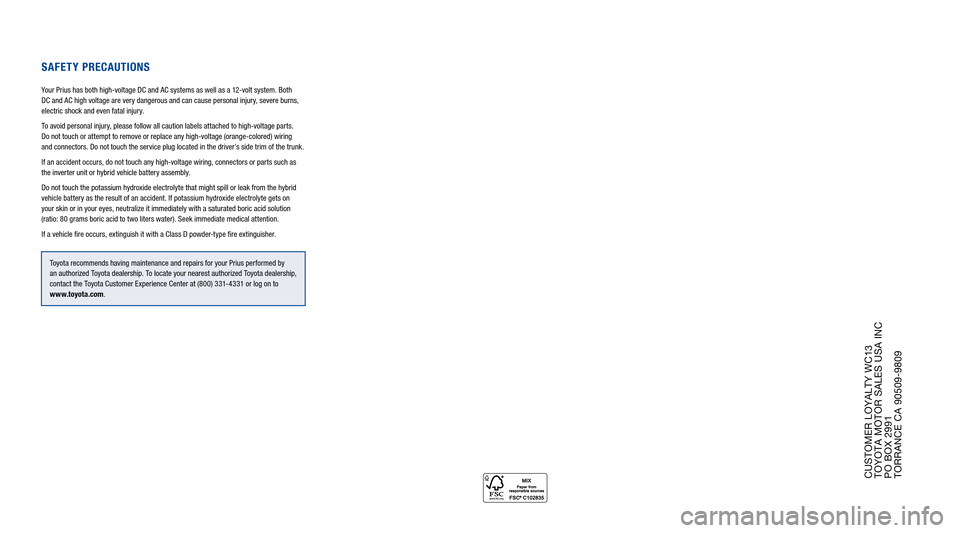

Safety PrecautionS
Your Prius has both high-voltage DC and AC systems as well as a 12-volt system. Both
DC and AC high voltage are very dangerous and can cause personal injury, severe burns,
electric shock and even fatal injury.
To avoid personal injury, please follow all caution labels attached to high-voltage parts.
Do not touch or attempt to remove or replace any high-voltage (orange-colored) wiring
and connectors. Do not touch the service plug located in the driver’s side trim of the trunk.
If an accident occurs, do not touch any high-voltage wiring, connectors or parts such as
the inverter unit or hybrid vehicle battery assembly.
Do not touch the potassium hydroxide electrolyte that might spill or leak from the hybrid
vehicle battery as the result of an accident. If potassium hydroxide electrolyte gets on
your skin or in your eyes, neutralize it immediately with a saturated boric acid solution
(ratio: 80 grams boric acid to two liters water). Seek immediate medical attention.
If a vehicle fire occurs, extinguish it with a Class D powder-type fire extinguisher.
Toyota recommends having maintenance and repairs for your Prius performed by
an authorized Toyota dealership. To locate your nearest authorized Toyota dealership,
contact the Toyota Customer Experience Center at (800) 331-4331 or log on to
www.toyota.com .
11-TCS-04853_WarrMaintGuide_Prius_1_0F_lm.indd 211/18/11 4:08 PM

JOBNAME: 934405-2012-priWG-EN PAGE: 1 SESS: 11 OUTPUT: Fri Nov 18 11:03:17 2011
/tweddle/toyota/sched-maint/934405-en-pri/wg
T
hank you for purchasing a Toyota
vehicle.We know you have many
options when considering which
vehicle to buy, and we appreciate your
decision to select Toyota.
We want you to enjoy owning your Toyota
as much as you enjoy driving it. This
booklet is designed to help. Here you’ll
find information on Toyota’s warranty
coverage and maintenance recommenda-
tions for your vehicle. There are two
easy-to-follow sections: one for warranty
and one for maintenance. The tab on the
side of each page identifies the section
you are in. For more information about our vehicles,
our company or the products and services
available for your vehicle, please visit
Toyota’s official Web site,
www.toyota.com.
We wish you many miles of safe and
pleasurable driving, and we look forward
to serving you in the years ahead.
Welcome to the Toyota family!
Welcome to the Toyota Family
1
2012
(PRI) 2012(PRI)

JOBNAME: 934405-2012-priWG-EN PAGE: 2 SESS: 11 OUTPUT: Fri Nov 18 11:03:17 2011
/tweddle/toyota/sched-maint/934405-en-pri/wg

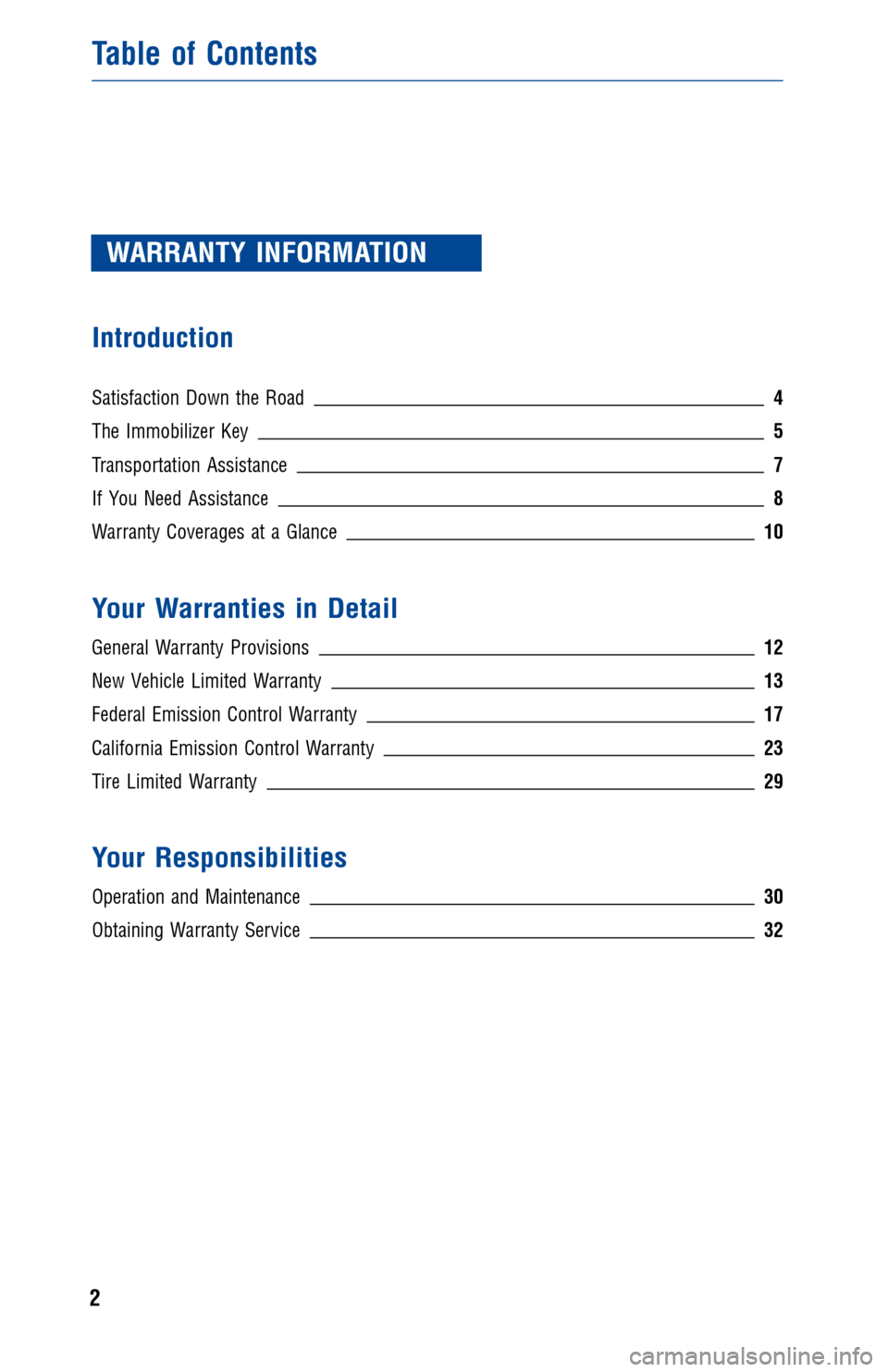

WARRANTY INFORMATION
Introduction
Satisfaction Down the Road 4
The Immobilizer Key 5
Transportation Assistance7
If You Need Assistance8
Warranty Coverages at a Glance10
Your Warranties in Detail
General Warranty Provisions12
New Vehicle Limited Warranty 13
Federal Emission Control Warranty17
California Emission Control Warranty 23
Tire Limited Warranty29
Your Responsibilities
Operation and Maintenance30
Obtaining Warranty Service32
Table of Contents
2

JOBNAME: 934405-2012-priWG-EN PAGE: 3 SESS: 11 OUTPUT: Fri Nov 18 11:03:17 2011
/tweddle/toyota/sched-maint/934405-en-pri/wg

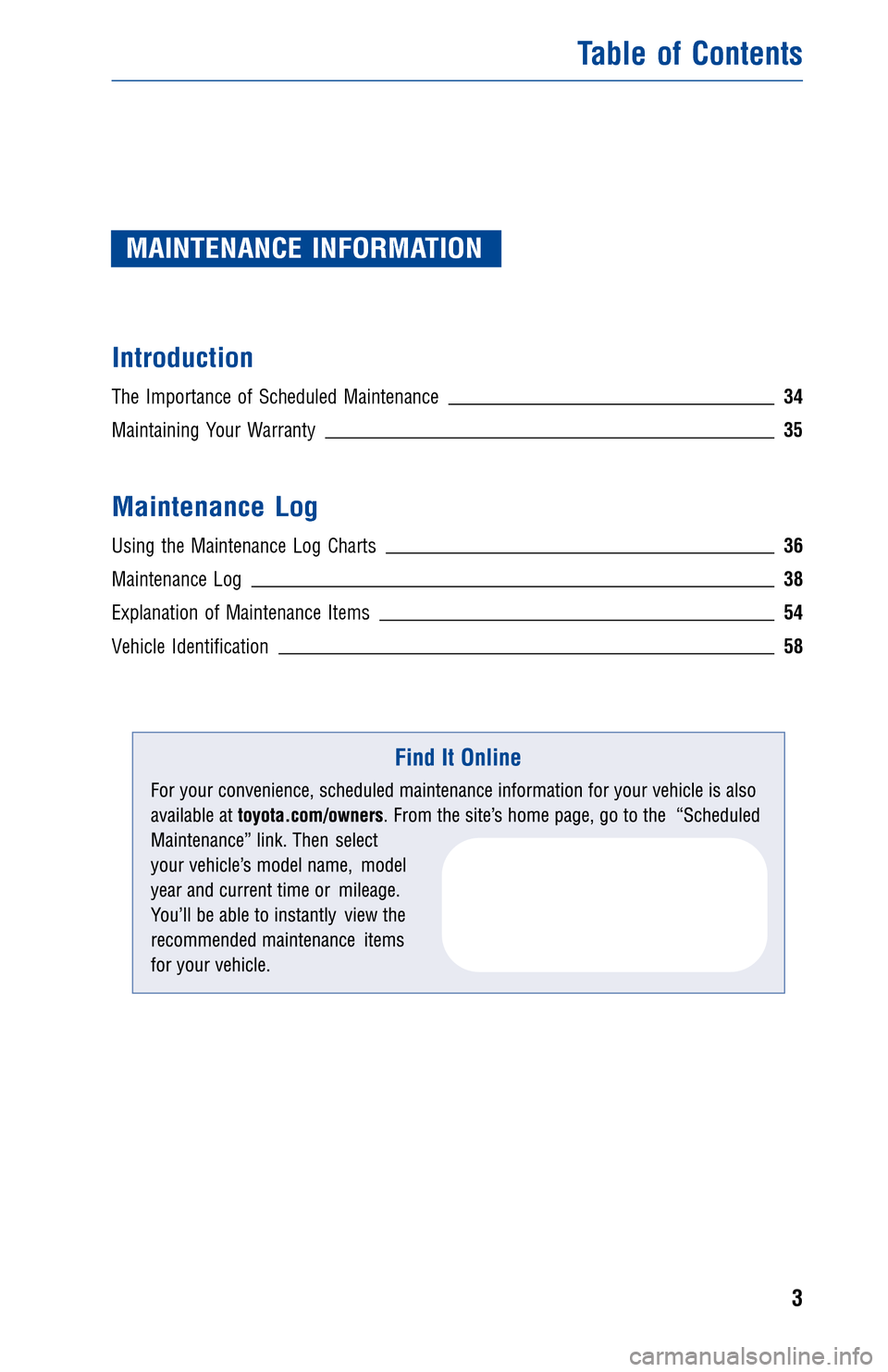

MAINTENANCE INFORMATION
Introduction
The Importance of Scheduled Maintenance 34
Maintaining Your Warranty35
Maintenance Log
Using the Maintenance Log Charts36
Maintenance Log38
Explanation of Maintenance Items 54
Vehicle Identification 58
Table of Contents
3

JOBNAME: 934405-2012-priWG-EN PAGE: 4 SESS: 11 OUTPUT: Fri Nov 18 11:03:17 2011
/tweddle/toyota/sched-maint/934405-en-pri/wg
A
t Toyota, our top priority is always
our customers. We know your
Toyota is an important part of your
life and something you depend on every
day. That’s why we’re dedicated to building
products of the highest quality and
reliability.
Our excellent warranty coverage is
evidence that we stand behind the quality
of our vehicles. We’re confident — as you
should be — that your Toyota will provide
you with many years of enjoyable driving.
To further demonstrate our commitment to
our customers’ satisfaction, occasionally
we may establish a special policy
adjustment to pay for specific repairs that
are no longer covered by warranty. When
we establish such a policy adjustment, we
mail details to all applicable owners we
have on record. That’s why it’s important
to send in the card at the back of this
booklet if you change your address or if
you’ve purchased this vehicle from a
previous owner.
To provide you with added protection
against unexpected service costs, we offer
Toyota Extra Care vehicle service
agreements and Toyota Auto Care pre-paid
maintenance programs. Both offer plans to
meet a wide variety of needs. Your
dealership can help you select the plan
that’s best for you. Our goal is for every Toyota customer to
enjoy outstanding quality, dependability
and peace of mind throughout their
ownership experience. We want you to be
a satisfied member of the Toyota family
for many miles to come.
Pages 5–32 of this booklet describe
the terms of Toyota warranty coverage
as well as general owner
responsibilities. The scheduled
maintenance section describes your
vehicle’s maintenance requirements. Be
sure to review this information
carefully, since proper maintenance is
required to ensure that warranty
coverage remains intact.
All information in this booklet is the latest
available at the time of publication and,
with the exception of the emission control
warranties, is subject to change without
notice.
Satisfaction Down the Road
WARRANTY
4Introduction

JOBNAME: 934405-2012-priWG-EN PAGE: 5 SESS: 11 OUTPUT: Fri Nov 18 11:03:17 2011
/tweddle/toyota/sched-maint/934405-en-pri/wg
THE NEW WORLD OF
ANTI-THEFT TECHNOLOGY
This Toyota vehicle may be equipped with
an electronic “immobilizer” anti-theft
system. When the key is inserted into the
ignition switch it transmits an electronic
code to an immobilizer computer. The
engine will only start if the code in the key
matches the code in the immobilizer. If the
code does not match, the immobilizer
disables the ignition and fuel systems.
While an exact physical copy of the key
will open the door and allow retrieval of
items locked in the vehicle, it won’t start
the vehicle unless the key has the same
code as the immobilizer.
SECURITY
For security purposes, access to key
codes and service procedures for
electronically registering replacement keys
is restricted. Only a Toyota dealer or
certain bonded/registered independent
locksmiths can generate replacement keys.
The Immobilizer Key
WARRANTY
Introduction5

JOBNAME: 934405-2012-priWG-EN PAGE: 6 SESS: 11 OUTPUT: Fri Nov 18 11:03:17 2011
/tweddle/toyota/sched-maint/934405-en-pri/wg
REPLACING THE KEY
Upon purchase, each vehicle should have
two master keys and an aluminum tag
with a key-code imprinted on it.
To generate a fully functional replacement
key (one that will both open the doors and
start the engine), one of the master keys
is required. To make a key that will open
the door for retrieval of items locked
inside the vehicle, the aluminum key-code
tag can be used. If a master key or the
aluminum key-code tag is not available, a
Toyota dealer or certain registered
locksmiths can obtain the key code from a
restricted-access database. These
businesses can also access a service
utility to reprogram the immobilizer if all
registered master keys have been lost. If a
Toyota dealer is not available, please refer
towww.aloa.org to find a
bonded/registered locksmith who performs
high security key service.
KEEPING THE KEY SAFE
Replacing an immobilizer key may be
costly. It is advisable to keep a spare
master key and the aluminum key-code
tag in a safe place. If you record the
key-code in more than one place, do not
record it in a way that can be easily
identified and associated with the vehicle.
It is wise to keep a copy of the key-code
outside of the vehicle.
If the vehicle was delivered with less than
two keys and the aluminum key-code tag,
consider having the Toyota dealer or a
qualified independent automotive
locksmith make a duplicate key before you
need it.
The Immobilizer Key
WARRANTY
6Introduction

JOBNAME: 934405-2012-priWG-EN PAGE: 7 SESS: 11 OUTPUT: Fri Nov 18 11:03:17 2011
/tweddle/toyota/sched-maint/934405-en-pri/wg
W
e realize that your confidence in
the quality and reliability of our
products was a key factor in
your decision to buy a Toyota. We also
know how disruptive the loss of
transportation can be to your daily routine.
That’s why we’re pleased to offer you the
benefits of our Transportation Assistance
Policy.
Under this policy, you are eligible for
transportation assistance if your Toyota
must be kept overnight for
warranty-covered repairs. The policy
applies when your vehicle must be kept
overnight for any of the following reasons:
• The warranty repairs will take longer
than one day to
complete.
• The warrantable condition requires
extensive
diagnosis.
• The parts needed

for the warranty
repairs are not readily

available and
your vehicle is inoperative or unsafe
to drive.
The policy does not apply when warranty
repairs can be completed in one day but
the vehicle must be kept overnight due to
dealer or owner scheduling conflicts.
The Transportation Assistance Policy
applies for the duration of the New Vehicle
Limited Warranty. The policy applies to all
2012 model-year Toyotas sold and
serviced by authorized Toyota dealerships
in the mainland United States and Alaska.
For further details, please consult your
Toyota dealer.
Transportation Assistance
WARRANTY
Introduction7

JOBNAME: 934405-2012-priWG-EN PAGE: 8 SESS: 11 OUTPUT: Fri Nov 18 11:03:17 2011
/tweddle/toyota/sched-maint/934405-en-pri/wg

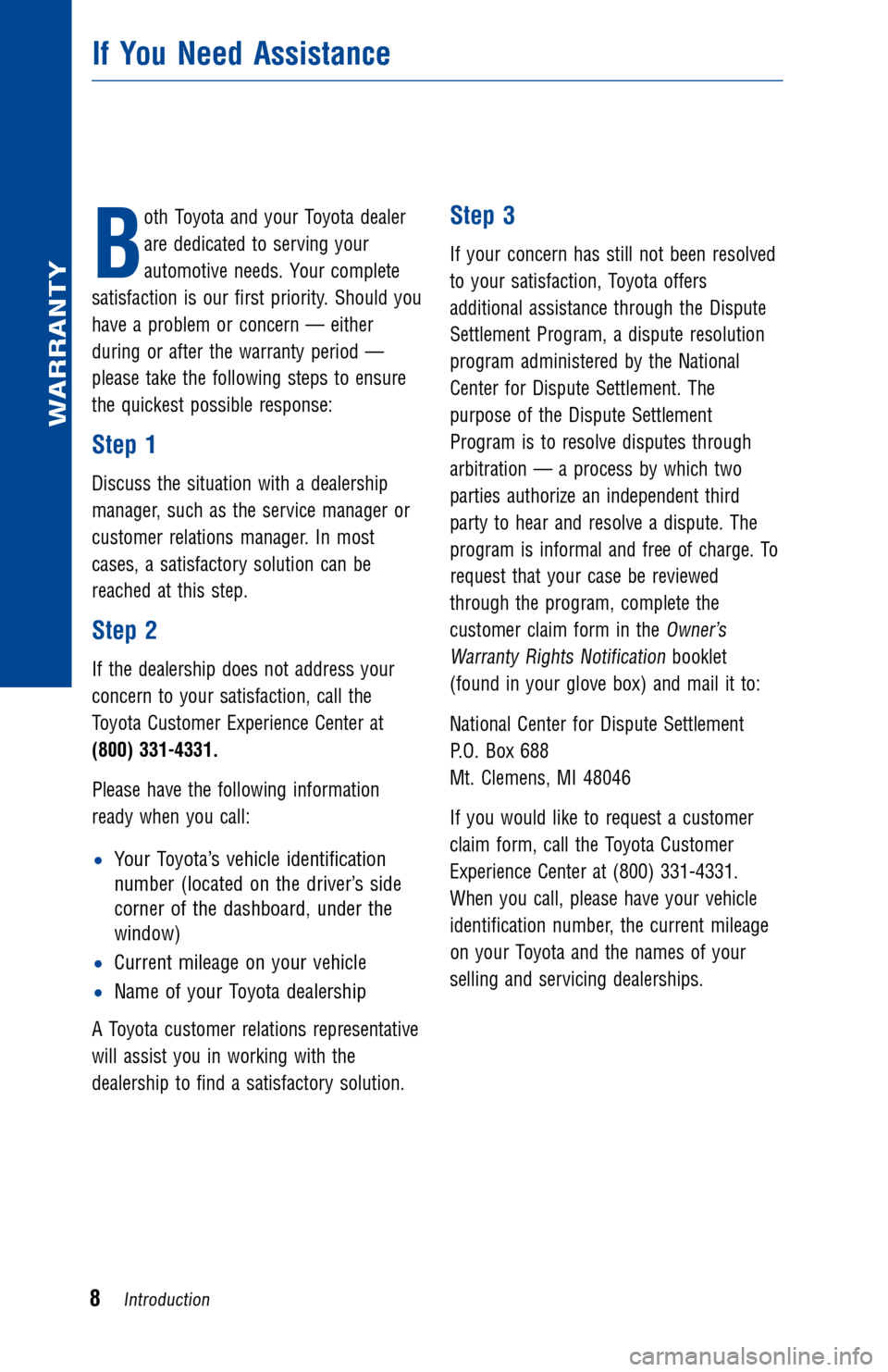

B
oth Toyota and your Toyota dealer
are dedicated to serving your
automotive needs. Your complete
satisfaction is our first priority. Should you
have a problem or concern — either
during or after the warranty period —
please take the following steps to ensure
the quickest possible response:
Step 1
Discuss the situation with a dealership
manager, such as the service manager or
customer relations manager. In most
cases, a satisfactory solution can be
reached at this step.
Step 2
If the dealership does not address your
concern to your satisfaction, call the
Toyota Customer Experience Center at
(800) 331-4331.
Please have the following information
ready when you call:
• Your Toyota’s vehicle identification
number (located on the
driver’s side
corner of the dashboard, under the
window)
• Current mileage on your vehicle
• Name of your Toyota dealership
A Toyota customer relations representative
will assist you in working with the
dealership to find a satisfactory solution.
Step 3
If your concern has still not been resolved
to your satisfaction, Toyota offers
additional assistance through the Dispute
Settlement Program, a dispute resolution
program administered by the National
Center for Dispute Settlement. The
purpose of the Dispute Settlement
Program is to resolve disputes through
arbitration — a process by which two
parties authorize an independent third
party to hear and resolve a dispute. The
program is informal and free of charge. To
request that your case be reviewed
through the program, complete the
customer claim form in the
Owner’s
Warranty Rights Notification
booklet
(found in your glove box) and mail it to:
National Center for Dispute Settlement
P.O. Box 688
Mt. Clemens, MI 48046
If you would like to request a customer
claim form, call the Toyota Customer
Experience Center at (800) 331-4331.
When you call, please have your vehicle
identification number, the current mileage
on your Toyota and the names of your
selling and servicing dealerships.
If You Need Assistance
WARRANTY
8Introduction
