Page 3 of 32

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/ OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 9
Sm art Key system1, 27
Air Conditioning/Heating 16
Audio 18
Auto lock/ unlock110
Clock 22
Cruise control 20
Dynamic Radar Cruise Control 20-21
EV-Drive Mode 12
Garage door opener (HomeLink®)323
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Lights1& turn signals 15
LKA (Lane Keep Assist) 21
Moonroof 17
Multi-Information Display222
Parking brake 12
Power outlets 19
Seat adjustments-Front 13
Seat heaters 16
Seat-Folding down rear seat 13
Seats-Head restraints 13
Solar ventilation system 17
Steering wheel switches 19
Tilt and telescopic steering wheel 12
Transmission 11
Windows-Power 14
Windshield wipers & washers 14
Doors-Child safety locks 25
Door locks 25
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety SystemTM26-27
Tire Pressure Monitoring (warning) System 24
1Visit your Toyota dealer for information on customizing this feature.2 Program m able by c ustom e r. Re fe r to the Owne r’s Manual for instruc tions and m ore
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Page 5 of 32

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Outside rearview mirror1/Rear window defogger button
“PWR MODE” switch
Emergency flasher button
“ECO MODE” switch
“EV MODE” switch
1
Shift lever
“P” position switch
Tilt and telescopic steering lock release lever
Fuel filler door opener
Power rearview mirror controls
Headlight cleaner switch
1
Solar ventilation switch1
Instrument panel light control
1If equipped2For details, refer to the “Navigation System Owner’s Manual.”3For details, refer to the “Display Audio System Owner’s Manual.”
Page 7 of 32

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
2If this light flashes, refer to “Cruise control,” Section 2-4, 2012 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Theft deterrent/Engine immobilizer system indicator
Electric power steering system warning1
READY indicator
Front fog light indicator
ECO Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning
1
Lane Keep Assist indicator
Pre-Collision System warning light1
High coolant temperature warning light1
Power Mode indicator
ECO Driving indicator
EV indicator
Page 8 of 32

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Remote Air Conditioning system operation (if equipped)
Panic button
Push and hold
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Will automatically shut off
after three minutes, or if a
door is opened.
Page 9 of 32

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; hybrid system is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Push Depress
brake pedal
CarryingGreen indicator ON
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power (without starting hybrid system)
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping a passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Locking (if equipped)Unlocking (if equipped)
Carry remote to lock Carry remote to unlock
All-door lockDriver door unlock*
Back door lock/ unlock (if equipped)
Carry remote to
lock/unlock
To u c h
Grasp
Push
Lock
Push
Unlock
Page 12 of 32

10
FEATURES/ OPERATIONS
Starting the hybrid system
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition, the
engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the hybrid system are shown
on the multi-information display.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Auto lock/ unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“POWER” switch OFF.
Refer to the Owner’s Manualfor more details.(1) Depress the brake pedal, and
press the “POWER” switch
briefly and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a
beep sounds, you may begin
driving.
Page 14 of 32

12
FEATURES/ OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
EV-Drive Mode (if equipped)
EV-Drive Mode allows the electric motor (traction motor), powered by the hybrid
battery (traction battery), to be used to drive the vehicle under certain driving
conditions.
Refer to the Owner’s Manualfor more details.
Push
Angle
Length
Lock release lever
Parking brake
Set: Depress
Release: Depress again
Page 15 of 32

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

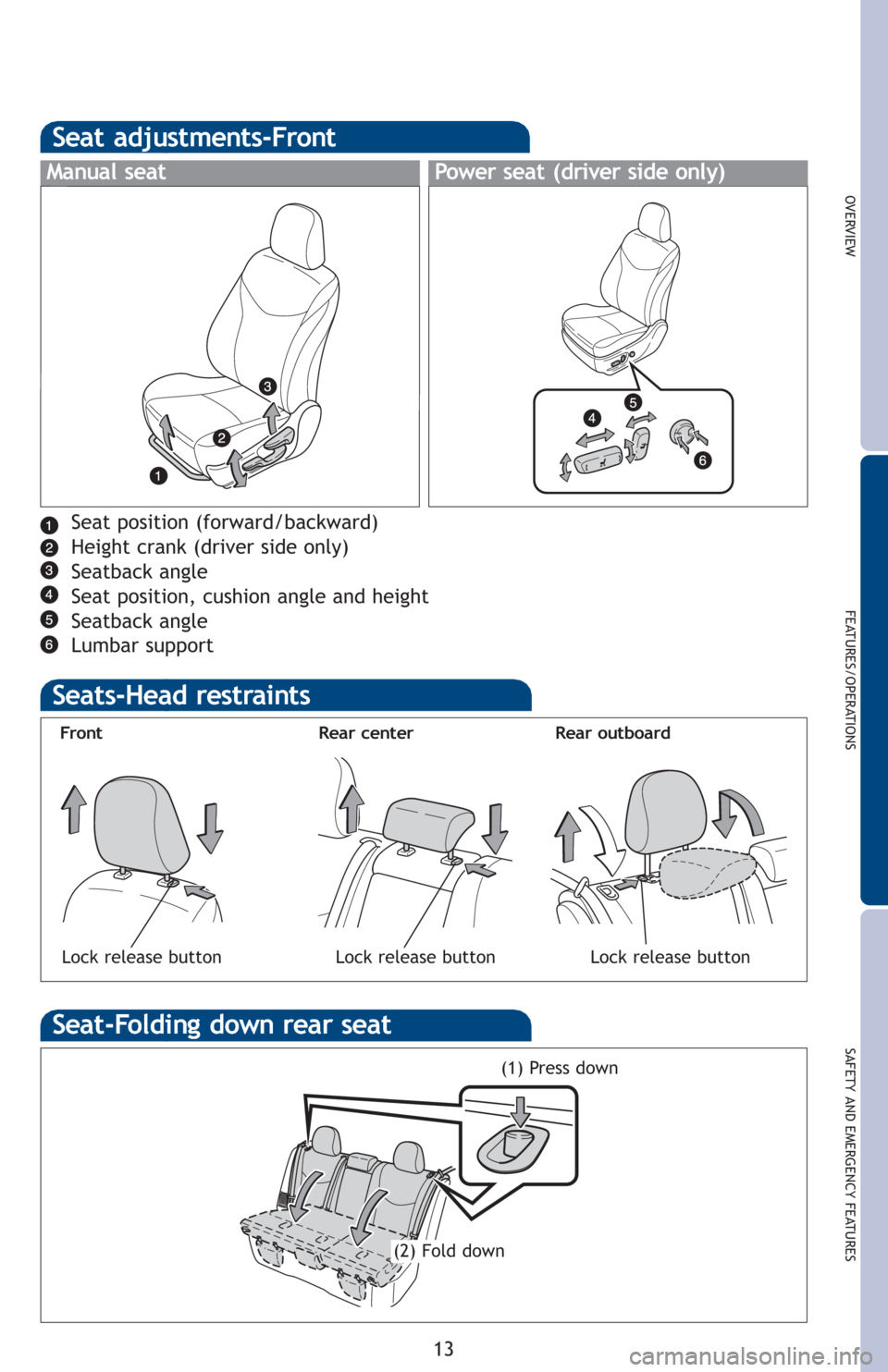

Seat adjustments-Front
Seats-Head restraints
Front Rear center
Lock release buttonLock release button
Rear outboard
Lock release button
(2) Fold down(1) Press down
Seat-Folding down rear seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Seatback angle
Lumbar support
Manual seatPower seat (driver side only)
Page 16 of 32

14
FEATURES/ OPERATIONS
Windshield wipers & washers
Interval wipe Single wipe
Slow
Fast
Pull to wash and wipe
Front
Rear (if equipped)
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Windows-Power
Up
Down
Window lock switch
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop window midway, push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Intermittent windshield
wiper frequency
(if equipped)
Increase
Decrease
Page 17 of 32

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights (if equipped)
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds, or when lock switch on remote is pushed after all doors are locked.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn High beam
Auto* Headlights
Parking lights
Tu r n
* If equippedDRL OFF
Auto*
Headlights
Parking lights
OFF
Ty p e A Ty p e B
