Turning the LKA system on
Press the “LKA” switch to acti-
vate the system.
“LKA” indicator will come on.
Press the switch again to turn the
LKA system off.
The LKA system will revert to off
each time the power switch is
turned to ON mode.

292 2-4. Using other driving systems
PRIUS_OM_OM47791U_(U)
Operating conditions for each function■ Lane departure warning function
●When the vehicle speed is a pproximately 30 mph (48 km/h) or
more
● When the lane width is more than approximately 9.1 ft. (2.8 m)
● When driving on a straight road or through a curve with a radius
of more than approximately 394 ft. (120 m)
■ Lane keeping assist function
●When the vehicle speed is between approximately 45 and 112
mph (72 and 180 km/h)
● When the vehicle-to-vehicle distance mode of the radar cruise
control is on, and the set vehicl e speed is approximately 45 mph
(72 km/h) or more (the functi on will not operate when the radar
cruise control is in set speed mode)
● When the lane width is between approximately 9.1 and 13.1 ft.
(2.8 and 4.0 m)
● When driving on a straight road or through a curve with a radius
of more than approximately 656 ft. (200 m)

293
2-4. Using other
driving systems
PRIUS_OM_OM47791U_(U)
2
When driving
Indication on the multi-information display
When the LKA system is on, the lane line display and steering wheel
display are shown. Lane keeping assist function
operation indication
Steering wheel displayed:
Indicates that the function is cur-
rently operating. (If the lane
departure warning operates at
this time, the steering wheel
flashes.)
Steering wheel not displayed:
Indicates that the function is not
currently operating. (When the
lane keeping assist function is
canceled, the buzzer will beep
twice.)
Dynamic radar cruise control
display
Lane departure warning func-
tion indication (when solid
lines are shown):
The function has recognized lane
markers. (If the lane departure
warning operates at this time, the
lines flash.)
Lane departure warning func-
tion indication (when thin lines
are shown):
A lane marker is not recognized
by the system, or the LKA system
functions are temporarily can-
celed.

294 2-4. Using other driving systems
PRIUS_OM_OM47791U_(U)
■Temporary cancelation of the LKA system functions
If any of the following occurs, the LKA system functions will be temporarily
canceled. The functions will resume after the necessary operating conditions
have returned.
● The steering wheel is turned as far as necessary to cause the vehicle to
change lanes.
● When the system detects no-handed driving. (The lane keeping assist
function will be temporarily canceled, but the lane departure warning
function will continue.)
● The turn signal lever is operated.
● The vehicle speed deviates from the operating range of the LKA system
functions. (The buzzer will beep twice when the lane keeping assist func-
tion is being canceled.)
● When the lane lines cannot be recognized while driving. (The buzzer will
beep twice when the lane keeping assist function is being canceled.)
● The wiper switch is set on high speed mode. (The lane keeping assist
function will be temporarily canceled, but the lane departure warning
function will continue.)
● If the vehicle crosses a line for approximately half a minute or more. (The
lane keeping assist function will be temporarily canceled, but the lane
departure warning function will continue.)
● When the lane departure warning function is activated.
The lane departure warning function will not operate again for a several
seconds after it has been activated, even if the vehicle leaves the lane
again.
■ The lane departure warning
It may be difficult to feel the sensory warning depending on the road condi-
tions.

295
2-4. Using other
driving systems
PRIUS_OM_OM47791U_(U)
2
When driving
■No-handed driving warning
If the steering wheel is not operated for approximately 15 seconds on a
straight road or approximately 5 seconds on a curve, the buzzer will beep
twice, indicators on the multi-information display will flash, and the lane
keeping assist function will be temporarily canceled. If you drive the vehicle
with your hands lightly touching the steering wheel, this may also be
detected as no-handed driving.
■ After the vehicle has been parked in the sun
The LKA system functions may not be available and a warning message
(P. 520) will be displayed for a while after driving has started. In such
cases, turn the LKA system off and turn it on again after normal temperature
returns. When the temperature in the cabin decreases and the temperature
around the camera sensor ( P. 289) becomes suitable for its operation, the
functions will begin to operate.
■ If there are lane markers on only one side of the vehicle
The lane keeping assist function will not operate. Also, the lane departure
warning will not operate for the side on which lane markers could not be rec-
ognized.
■ Conditions in which the function may not operate correctly
In the following conditions, the LKA system functions may not operate, or it
may not be possible to ensure adequate performance. Also, the camera
sensor may be unable to recognize lane lines causing the lane departure
warning function to operate incorrectly, or the lane keeping assist function
may not operate properly. However, this does not indicate a malfunction.
● When driving through an area with no lane markers, such as a tollbooth,
a crossing or before a ticket checkpoint
● When driving on a sharp curve
● When lanes are extremely narrow or extremely wide
● When the vehicle leans to one side an unusual amount due to a heavy
load or improper tire inflation pressure
● When the following distance between your vehicle and the vehicle ahead
is extremely short

296 2-4. Using other driving systems
PRIUS_OM_OM47791U_(U)
●When the lane markers are yellow (These may be more difficult for the
system to recognize compared to white markers.)
● When the lane markers are broken, “Botts’ dots”, “Raised pavement
marker” or stones
● When lane markers are obscured or partially obscured by sand, dirt, etc.
● When there are shadows on the road running parallel with lane markers,
or if a shadow covers the lane markers
● When driving on a particularly bright road surface, such as concrete
● When driving on a road surface that is bright due to reflected light
● When driving in a location where the light level changes rapidly, such as
the entrance to or exit from a tunnel
● When sunlight or the headlights of oncoming vehicles are shining directly
into the camera lens
● When driving on roads that are branching or merging
● When driving on a road surface that is wet due to rain, previous rainfall,
standing water, etc.
● When the vehicle experiences strong up-and-down motion such as when
driving on an extremely rough road or on a seam in the pavement
● When headlight brightness at nighttime is reduced due to dirt on the
lenses, or when the headlights are misaligned
● When driving with a strong crosswind
● When driving on winding roads or roads that are uneven
● When driving on rough or unpaved roads
■ When changing the tires
Depending on the tires used, sufficient performance may not be maintain-
able.
■ Warning messages for LKA
Warning messages are used to indicate a system malfunction or to inform
the driver of the need for caution while driving. ( P. 516, 520)

297
2-4. Using other
driving systems
PRIUS_OM_OM47791U_(U)
2
When driving

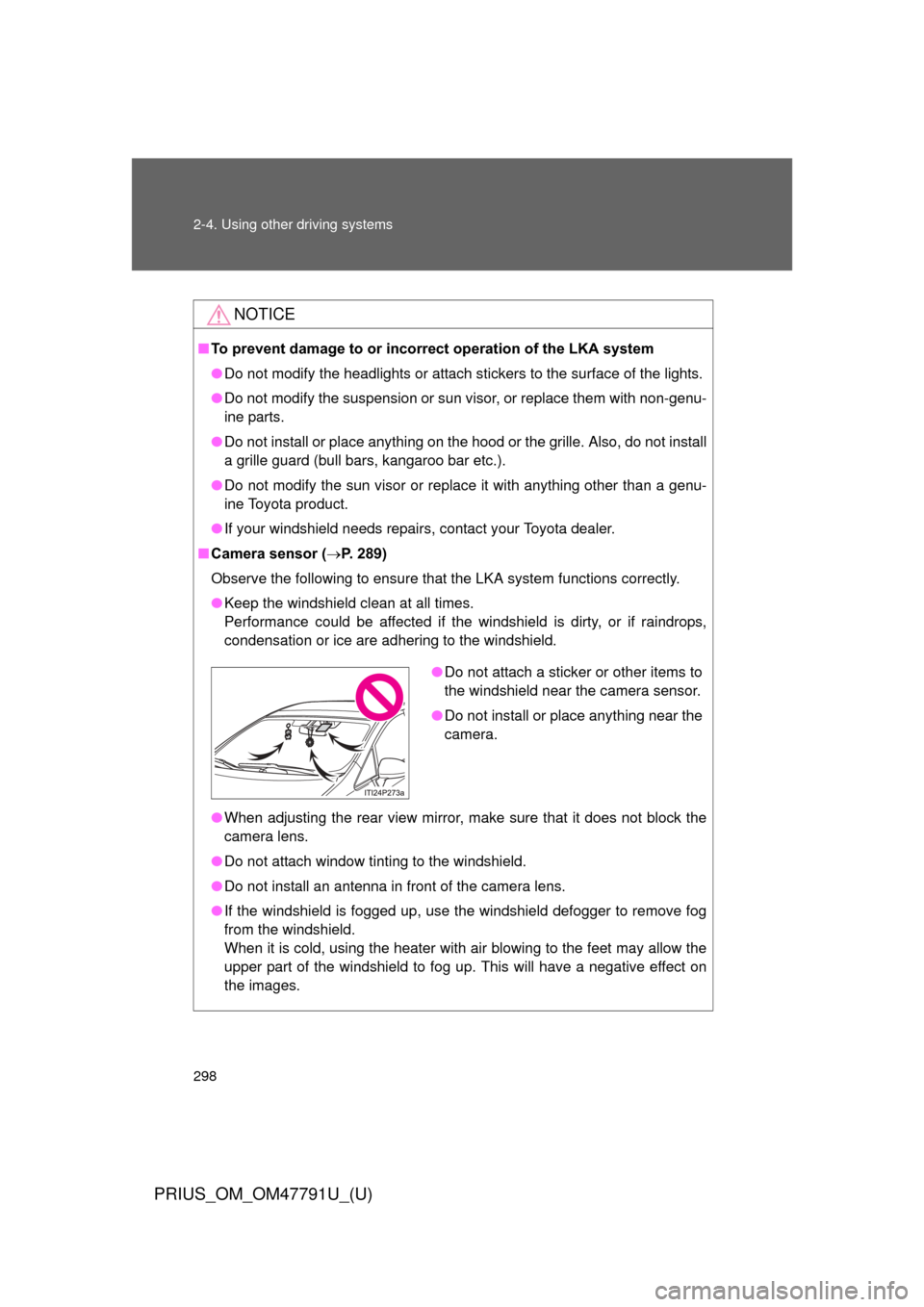

CAUTION
■Before using the LKA system
Do not rely solely on the LKA system. The LKA system does not drive the
vehicle automatically, nor does it reduce the amount of care you need to
take. As such, the driver must always assume full responsibility for under-
standing his/her surroundings, for operating the steering wheel to correct the
driving line, and for driving safely.
Inappropriate or negligent driving could lead to an accident.
■ To avoid operating the LKA by mistake
Switch the LKA off using the “LKA” switch when not in use.
■ Situations unsuitable for LKA
Do not use LKA in any of the following situations.
Otherwise, the system may not function correctly and could result in an acci-
dent.
● When driving with snow tires, tire c hains, a spare tire, or similar equipment
● When the tires have been excessively worn, or when the tire inflation pres-
sure is low.
● When there are objects or structures along the roadside that might be mis-
interpreted as lane markers (such as guardrails, curb, reflector posts, etc.)
● When driving on snowy roads
● When pavement lane markers are difficult to see due to rain, snow, fog,
etc.
● When there are visible lines on the pavement from road repairs, or if the
remains of old lane markers are still visible on the road
● When driving on slippery roads, such as those covered with rain, ice or
snow
● When driving in a lane other than the driving or passing lanes on a freeway
or highway
● When driving on a road with lane closures due to maintenance, or when
driving in a temporary lane
● During emergency towing

298 2-4. Using other driving systems
PRIUS_OM_OM47791U_(U)
NOTICE
■To prevent damage to or incorr ect operation of the LKA system
● Do not modify the headlights or attach stickers to the surface of the lights.
● Do not modify the suspension or sun visor, or replace them with non-genu-
ine parts.
● Do not install or place anything on the hood or the grille. Also, do not install
a grille guard (bull bars, kangaroo bar etc.).
● Do not modify the sun visor or replace it with anything other than a genu-
ine Toyota product.
● If your windshield needs repairs, contact your Toyota dealer.
■ Camera sensor (P. 289)
Observe the following to ensure that the LKA system functions correctly.
● Keep the windshield clean at all times.
Performance could be affected if the windshield is dirty, or if raindrops,
condensation or ice are adhering to the windshield.
● When adjusting the rear view mirror, make sure that it does not block the
camera lens.
● Do not attach window tinting to the windshield.
● Do not install an antenna in front of the camera lens.
● If the windshield is fogged up, use the windshield defogger to remove fog
from the windshield.
When it is cold, using the heater with air blowing to the feet may allow the
upper part of the windshield to fog up. This will have a negative effect on
the images.
●Do not attach a sticker or other items to
the windshield near the camera sensor.
● Do not install or place anything near the
camera.

299
2-4. Using other
driving systems
PRIUS_OM_OM47791U_(U)
2
When driving
NOTICE
●Do not place anything on the dashboard.
The camera sensor may recognize the image reflected on the windshield
as lane markers by mistake.
● Do not scratch the camera lens, or let it get dirty.
When cleaning the inside of the windshield, be careful not to get any glass
cleaner etc. on the lens. Also, do not touch the lens.
For lens repair, contact your Toyota dealer.
● Do not change the installation position or direction of the camera sensor or
remove it. The direction of the camera sensor is precisely adjusted.
● Do not subject the camera sensor to strong impact or force, and do not
disassemble the camera sensor.

300
2-4. Using other driving systems
PRIUS_OM_OM47791U_(U)

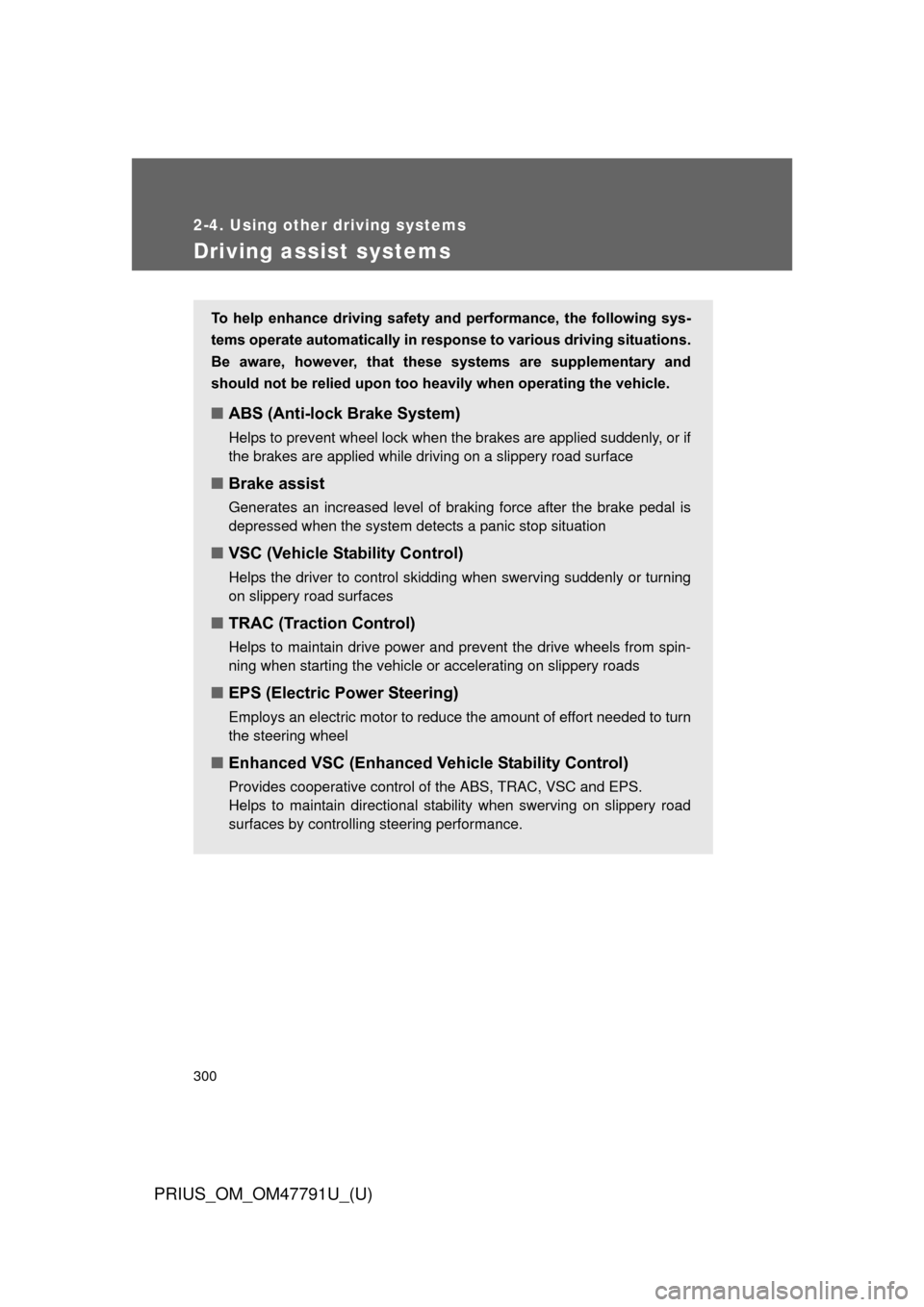

Driving assist systems
To help enhance driving safety and performance, the following sys-
tems operate automatically in res ponse to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too h eavily when operating the vehicle.
■ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface
■Brake assist
Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation
■VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning
on slippery road surfaces
■TRAC (Traction Control)
Helps to maintain drive power and prevent the drive wheels from spin-
ning when starting the vehicle or accelerating on slippery roads
■EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel
■Enhanced VSC (Enhanced Vehicle Stability Control)
Provides cooperative control of the ABS, TRAC, VSC and EPS.
Helps to maintain directional stability when swerving on slippery road
surfaces by controlling steering performance.
