TOYOTA PRIUS 2013 3.G Owners Manual

321
2-5. Driving information
PRIUS_OM_OM47791U_(U)
2
When driving

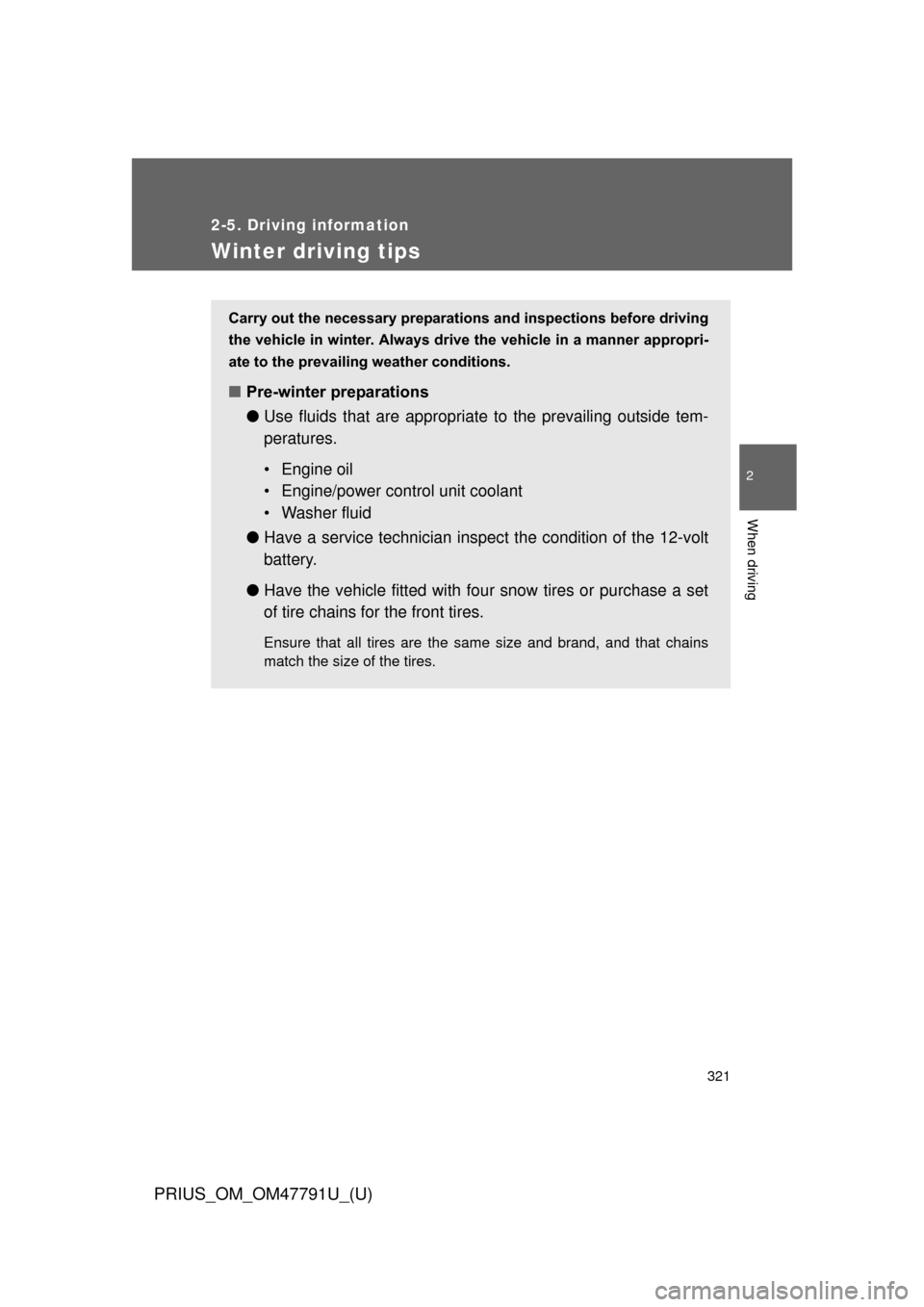

Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.
■ Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tem-
peratures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspec t the condition of the 12-volt
battery.
● Have the vehicle fitted with four snow tires or purchase a set
of tire chains for the front tires.
Ensure that all tires are the same size and brand, and that chains
match the size of the tires.

322 2-5. Driving information
PRIUS_OM_OM47791U_(U)

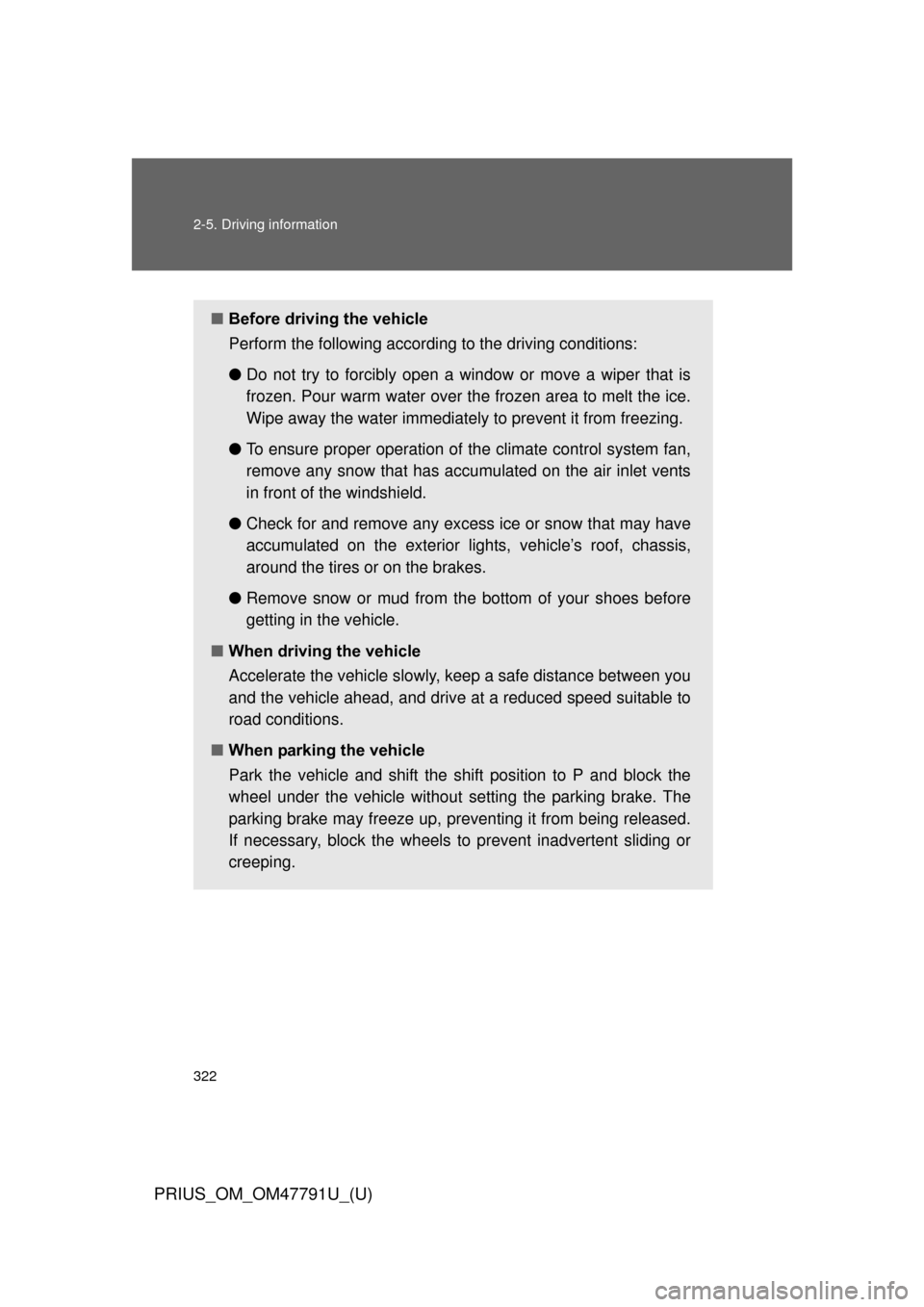

■Before driving the vehicle
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is
frozen. Pour warm water over the frozen area to melt the ice.
Wipe away the water immediately to prevent it from freezing.
● To ensure proper operation of th e climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
● Check for and remove any excess ice or snow that may have
accumulated on the exterior lights, vehicle’s roof, chassis,
around the tires or on the brakes.
● Remove snow or mud from the bottom of your shoes before
getting in the vehicle.
■ When driving the vehicle
Accelerate the vehicle slowly, keep a safe distance between you
and the vehicle ahead, and drive at a reduced speed suitable to
road conditions.
■ When parking the vehicle
Park the vehicle and shift the shift position to P and block the
wheel under the vehicle without setting the parking brake. The
parking brake may freeze up, preventing it from being released.
If necessary, block the wheels to prevent inadvertent sliding or
creeping.

323
2-5. Driving information
PRIUS_OM_OM47791U_(U)
2
When driving
Selecting tire chains
Vehicles with 17-inch tires
Use the correct tire chain size when mounting the tire chains. Chain
size is regulated for each tire size.
Side chain:0.12 in. (3.0 mm)
1.18 in. (30.0 mm)
0.39 in. (10.0 mm)
Cross chain: 0.16 in. (4.0 mm)
0.98 in. (25.0 mm)
0.55 in. (14.0 mm)
Vehicles with 15-inch tires
Use the tire chains of correct size and type.
Use SAE Class “S” type radial tire chains except radial cable chains
or V-bar type chains.
Regulations on the use of tire chains
Regulations regarding the use of ti re chains vary depending on loca-
tion and type of road. Always chec k local regulations before installing
chains.

324 2-5. Driving information
PRIUS_OM_OM47791U_(U)
■Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install tire chains on the
rear tires.
● Install tire chains on front tires as tightly as possible. Retighten chains
after driving 1/4 - 1/2 mile (0.5 - 1.0 km).
● Install tire chains following the instructions provided with the tire chains.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the size specified.
● Maintain the recommended level of air pressure.
● Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
● Use snow tires on all, not just some wheels.
● Do not use LKA (Lane-Keeping Assist) system (if equipped).

325
2-5. Driving information
PRIUS_OM_OM47791U_(U)
2
When driving
CAUTION
■
Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden turns and braking, as use of chains may adversely affect
vehicle handling.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
● Do not use LKA (Lane-Keeping Assist) system (if equipped).
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

326
2-5. Driving information
PRIUS_OM_OM47791U_(U)

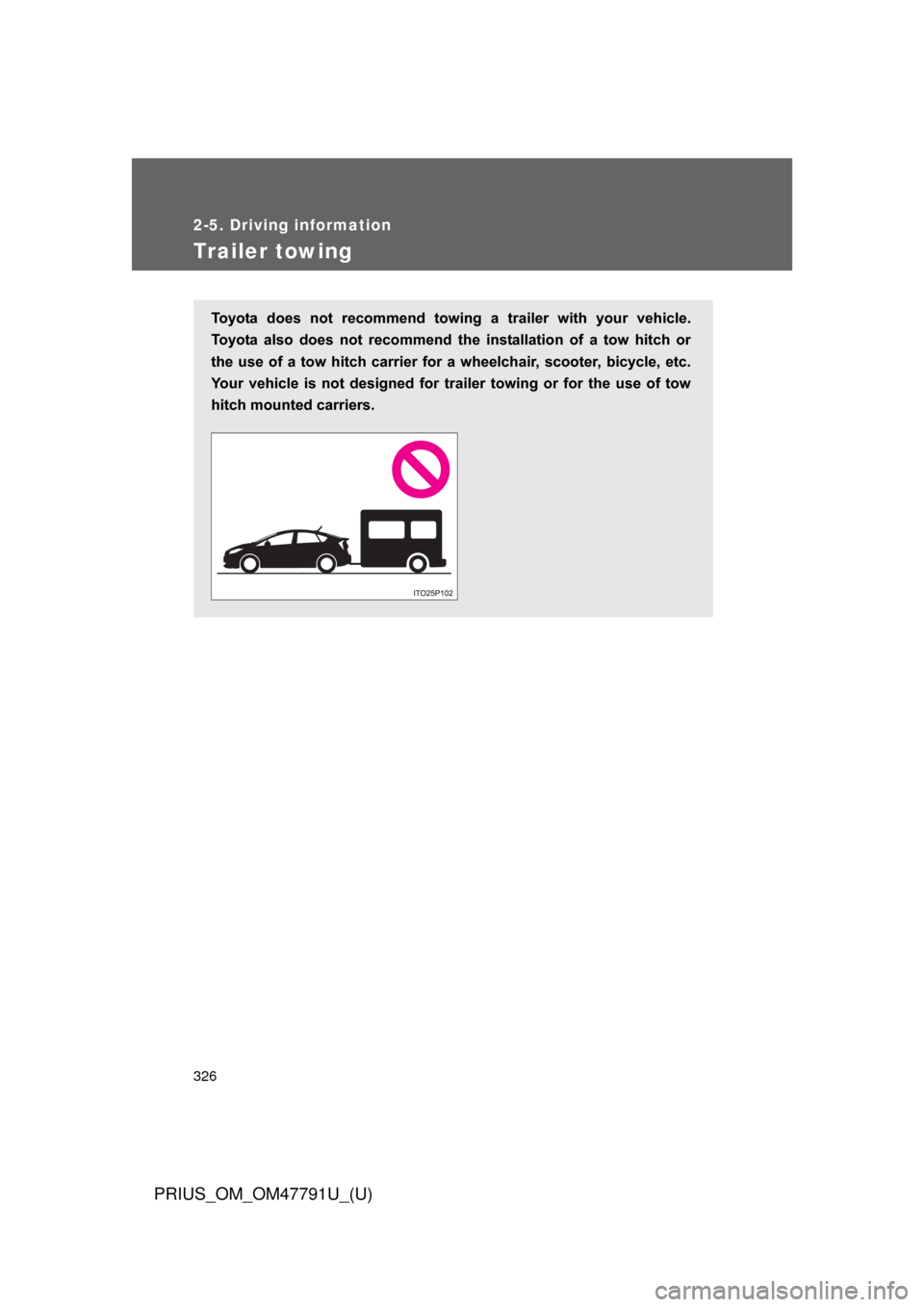

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your vehicle is not designed for tr ailer towing or for the use of tow
hitch mounted carriers.

327
2-5. Driving information
PRIUS_OM_OM47791U_(U)
2
When driving

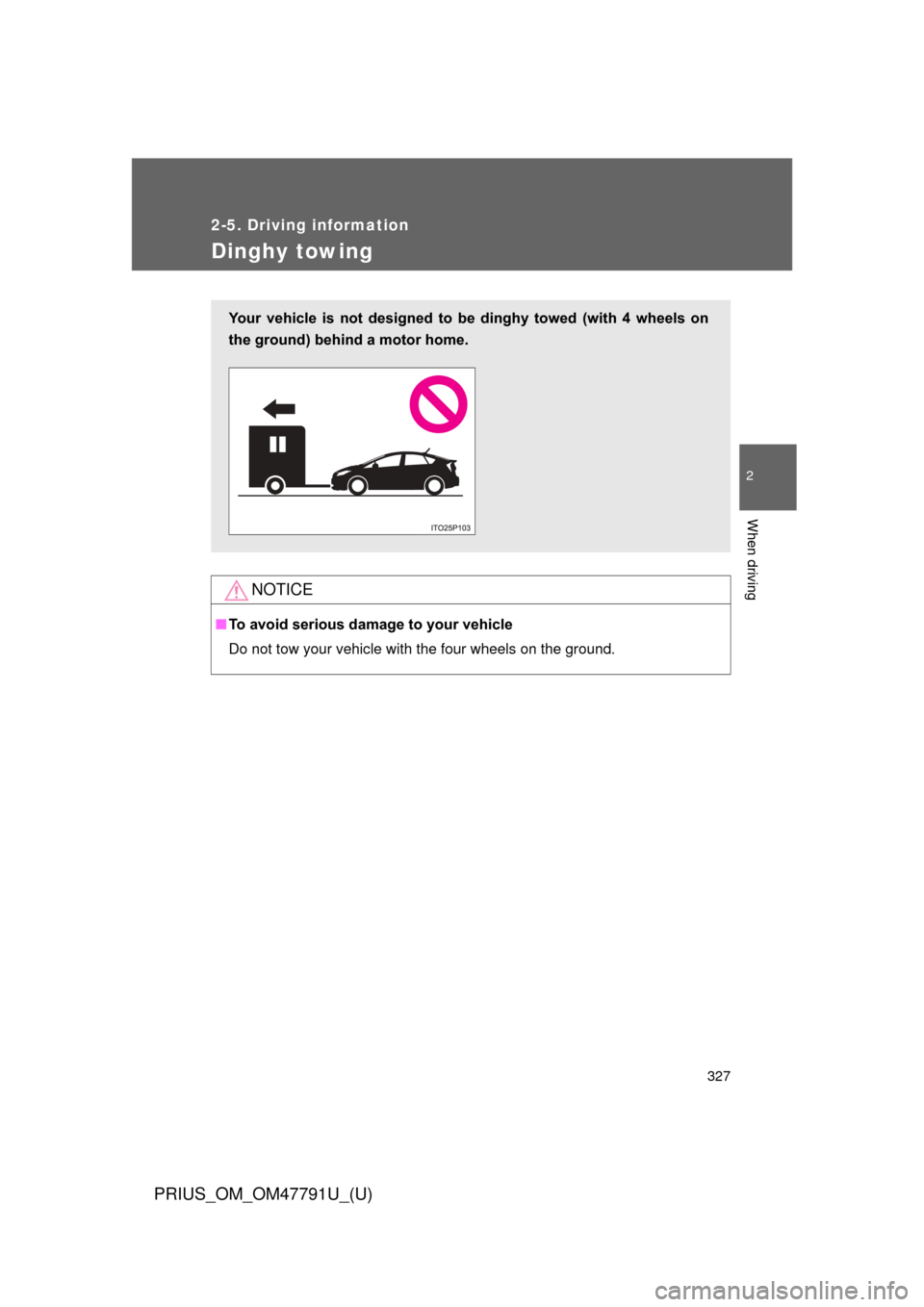

Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

328 2-5. Driving information
PRIUS_OM_OM47791U_(U)

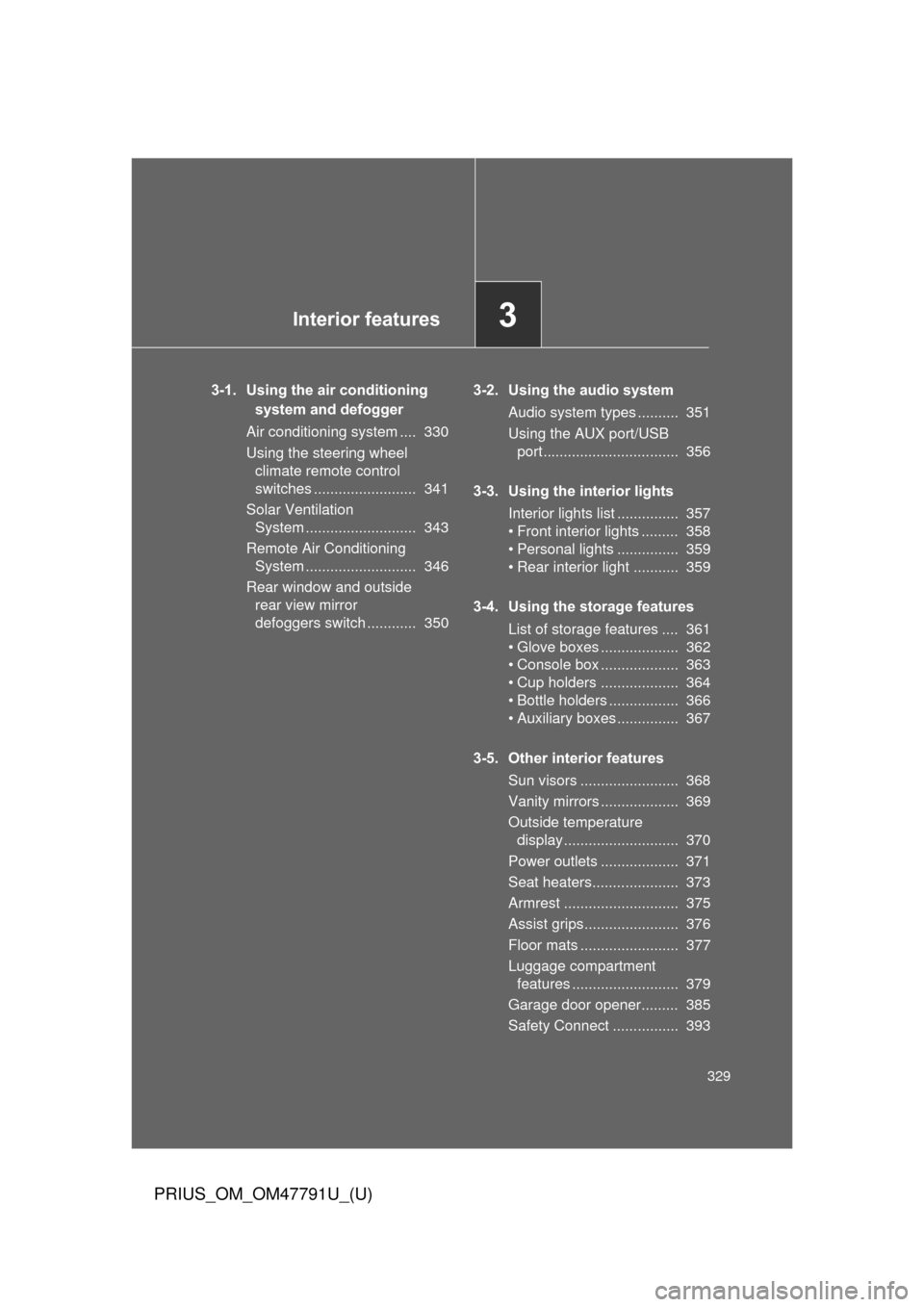

Interior features3
329
PRIUS_OM_OM47791U_(U)
3-1. Using the air conditioning system and defogger
Air conditioning system .... 330
Using the steering wheel climate remote control
switches ......................... 341
Solar Ventilation System ........................... 343
Remote Air Conditioning System ........................... 346
Rear window and outside rear view mirror
defoggers switch ............ 350 3-2. Using the audio system
Audio system types .......... 351
Using the AUX port/USB port ................................. 356
3-3. Using the interior lights Interior lights list ............... 357
• Front interior lights ......... 358
• Personal lights ............... 359
• Rear interior light ........... 359
3-4. Using the storage features List of storage features .... 361
• Glove boxes ................... 362
• Console box ................... 363
• Cup holders ................... 364
• Bottle holders ................. 366
• Auxiliary boxes ............... 367
3-5. Other interior features Sun visors ........................ 368
Vanity mirrors ................... 369
Outside temperature display............................ 370
Power outlets ................... 371
Seat heaters..................... 373
Armrest ............................ 375
Assist grips....................... 376
Floor mats ........................ 377
Luggage compartment features .......................... 379
Garage door opener......... 385
Safety Connect ................ 393

330
PRIUS_OM_OM47791U_(U)
3-1. Using the air conditioning system and defogger

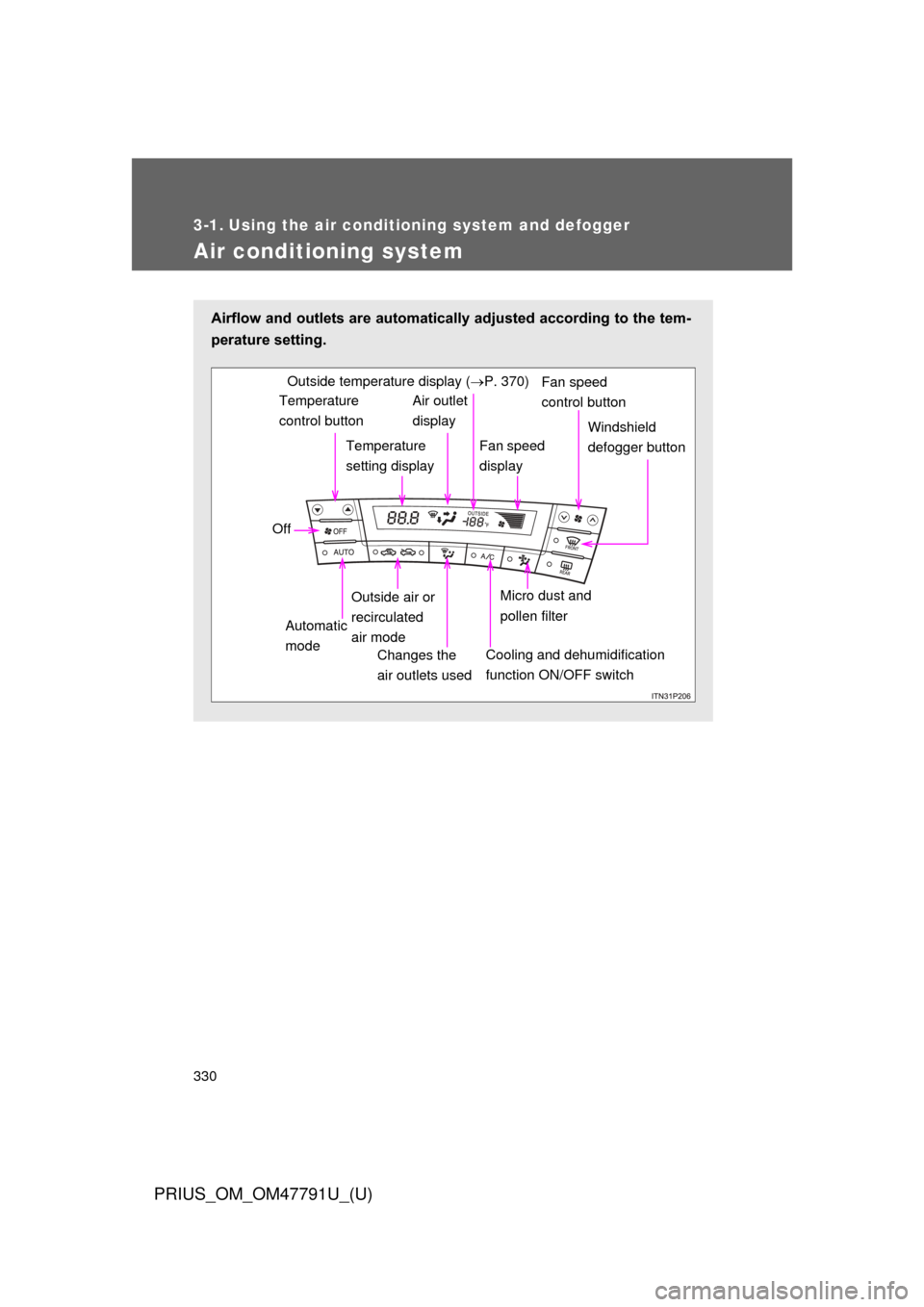

Air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Temperature
control buttonTemperature
setting displayAir outlet
display
Fan speed
display Windshield
defogger button
Off
Automatic
mode Outside air or
recirculated
air mode
Changes the
air outlets used
Fan speed
control buttonOutside temperature display ( P. 370)
Micro dust and
pollen filter
Cooling and dehumidification
function ON/OFF switch
