TOYOTA PRIUS 2013 3.G Owners Manual

481
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)
4
Maintenance and care
When installing, reverse the steps listed.
After installing the bulb base, shake the bulb base gently to check
that it is not loose.
Insert the clip.
STEP 4

482 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)
■Front turn signal lights
Remove the fender liner bolt and clip and pull down the fender
liner. ( P. 480)
For the U.S.A.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

483
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)
4
Maintenance and care
For Canada
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed. Insert the clip.
STEP 2
ITO43P144
STEP 3
STEP 4

484 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)
■Rear turn signal lights and back-up lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Remove the light bulb. Rear turn signal light
Back-up light
When installing, reverse the steps listed.
STEP 1
STEP 2
ITO43P147
STEP 3
STEP 4

485
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)
4
Maintenance and care
■
License plate lights
Open the back door and remove
the cover.
To prevent damage, cover the tip
of the screwdriver with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
ITO43P149
STEP 2
ITO43P150
STEP 3
STEP 4

486 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (LED headlights)
● Parking lights (LED headlights)
● Stop lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● Daytime running lights (except for Canada)
■LED lights
The headlight low beams (LED headlights), parking lights (LED headlights),
stop lights, tail lights, rear side marker lights, high mounted stoplight and
daytime running lights (except for Canada) consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle to your Toyota dealer to have the
light replaced.
■ Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
 P. 471

487
4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)
4
Maintenance and care
CAUTION
■
Replacing light bulbs
● Be sure to stop the hybrid system and turn off the lights. Do not attempt to
replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

488 4-3. Do-it-yourself maintenance
PRIUS_OM_OM47791U_(U)

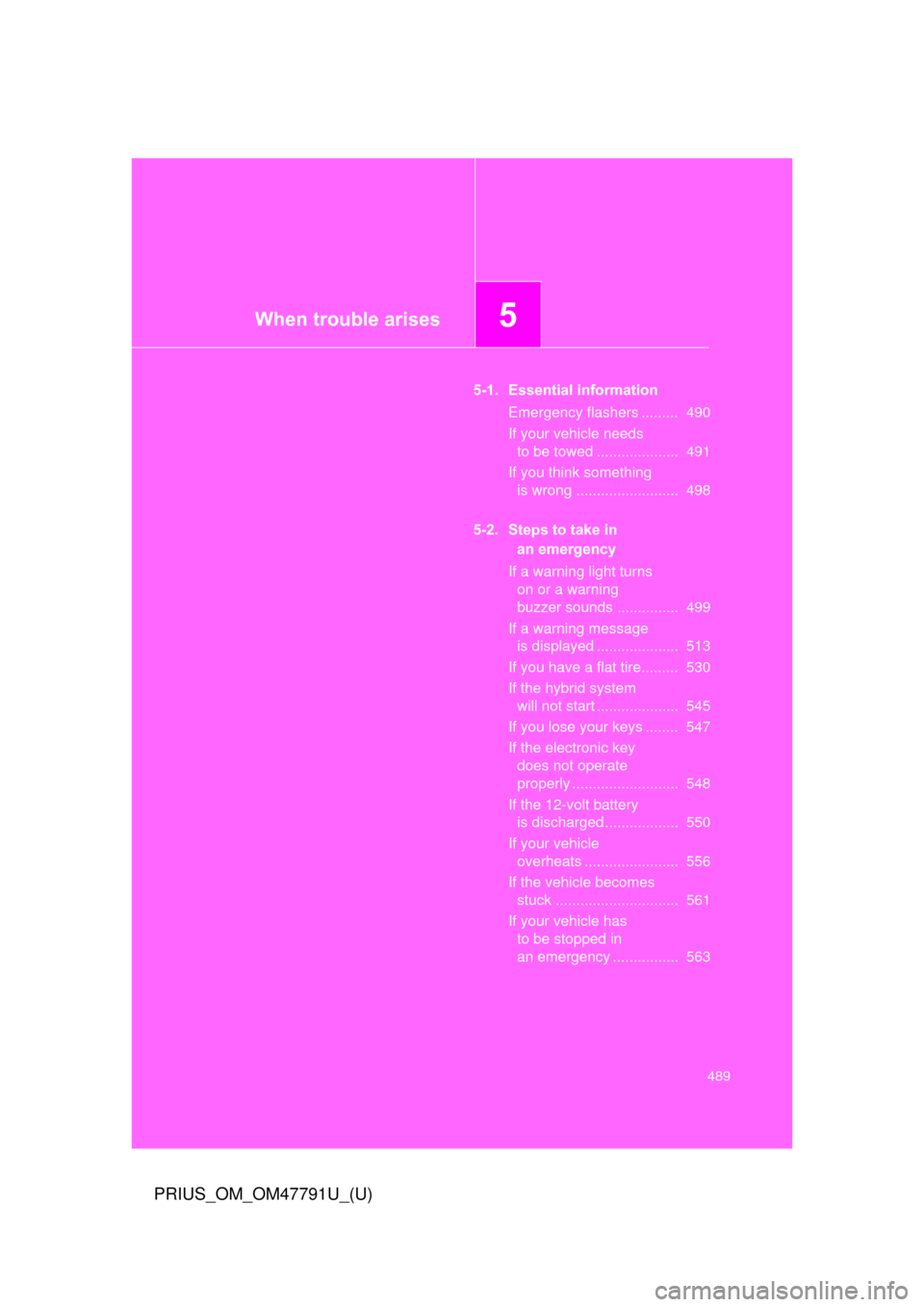

When trouble arises5
489
PRIUS_OM_OM47791U_(U)
5-1. Essential informationEmergency flashers ......... 490
If your vehicle needs to be towed .................... 491
If you think something is wrong ......................... 498
5-2. Steps to take in an emergency
If a warning light turns on or a warning
buzzer sounds ............... 499
If a warning message is displayed .................... 513
If you have a flat tire......... 530
If the hybrid system will not start .................... 545
If you lose your keys ........ 547
If the electronic key does not operate
properly .......................... 548
If the 12-volt battery is discharged .................. 550
If your vehicle overheats ....................... 556
If the vehicle becomes stuck .............................. 561
If your vehicle has to be stopped in
an emergency ................ 563

490
PRIUS_OM_OM47791U_(U)
5-1. Essential information
Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indi cator is not illuminated), the 12-volt
battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To turn them off, press the
switch once again.
