TOYOTA PRIUS 2013 3.G Owners Manual

5
When trouble arises
511
5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
CAUTION
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pre ssure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire ma intenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached the
level to trigger illu mination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indi cate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.

512 5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
CAUTION
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres-
sure warning system may not operate properly.

5
When trouble arises
513
5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)

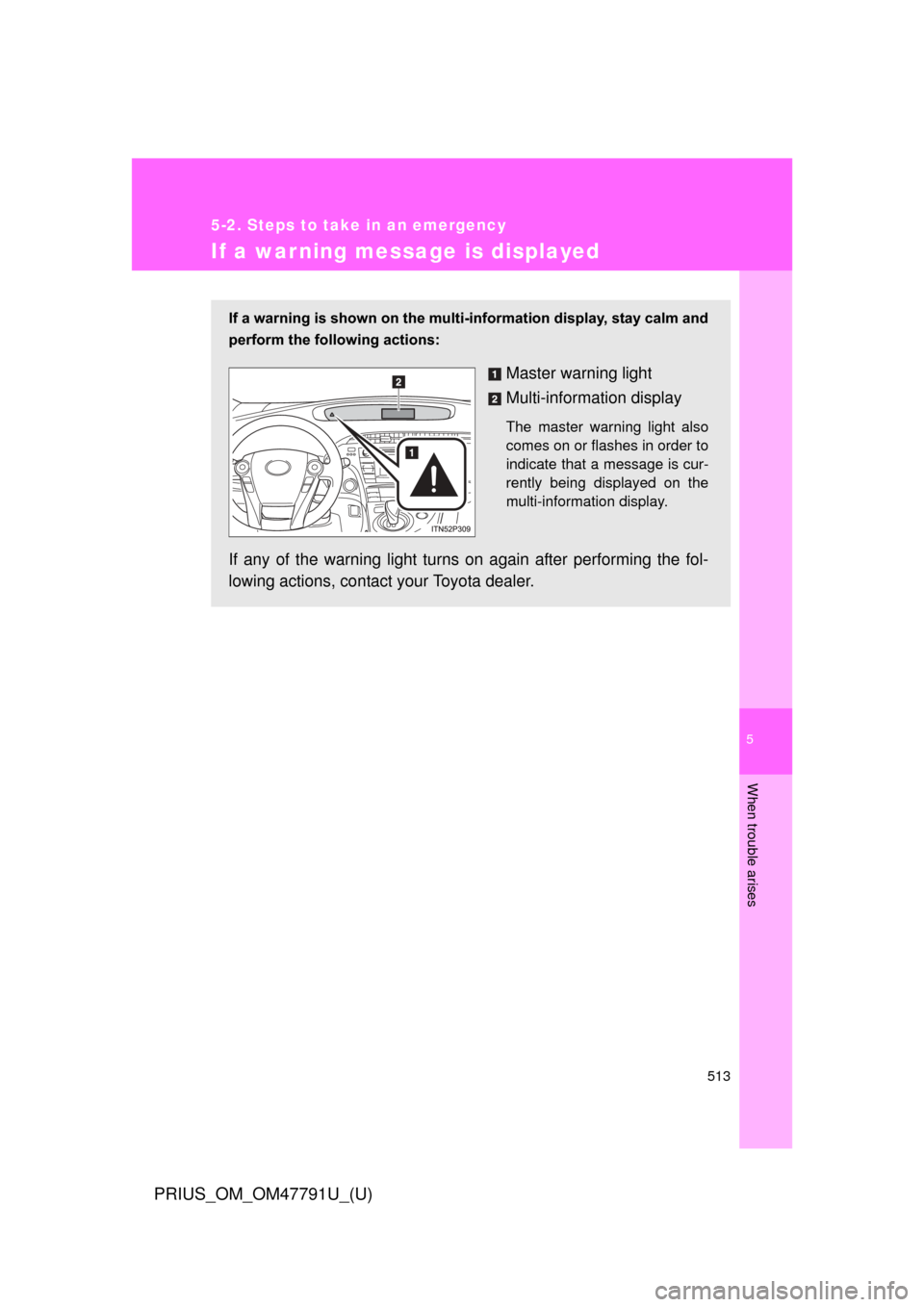

If a warning message is displayed
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
Master warning light
Multi-information display
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
If any of the warning light turns on again after performing the fol-
lowing actions, contact your Toyota dealer.

514 5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-infor-
mation display. The following warnings indicate the possibility of dam-
age to the vehicle that may lead to an accident. Immediately stop the
vehicle in a safe place and contact your Toyota dealer.
Warning messageDetails
Indicates an abnormal engine oil pressure. The warning light may turn on if the engine oil pres-
sure is too low.
Indicates a malfunction in the hybrid system.

5
When trouble arises
515
5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
Have the vehicle inspected immediately.
Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning messageDetails
(If equipped) Indicates a malfunction in the LED headlight system.
Indicates a malfunction in the P position control sys-
tem.
In this situation, there is a possibility that the parking
lock mechanism will not work.
When parking, park the vehicle on a flat surface and
apply the parking brake securely. Also, it may not be
possible to turn the “POWER” switch off. If this hap-
pens, applying the parking brake will enable the
switch to be turned off.
Indicates that the cooling performance of the hybrid
battery is low.

516 5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
Warning messageDetails
(Flashes)
(If equipped) Indicates a malfunction in the pre-collision system.
A buzzer also sounds.
(Flashes)
(If equipped) Indicates a malfunction in the radar cruise control sys-
tem.
A buzzer also sounds.
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
(Flashes)
(If equipped) Indicates a malfunction in the LKA.
A buzzer also sounds.

5
When trouble arises
517
5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning message turns off.
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual Supplement” for the maintenance interval applicable to your vehicle.
Warning messageDetailsCorrection procedure
(U.S.A. only) Indicates that all maintenance
according to the driven dis-
tance on the maintenance
schedule
* should be per-
formed soon. If necessary, per-
form maintenance.
Comes on approximately 4500
miles (7200 km) after the main-
tenance data has been reset.
(U.S.A. only) Indicates that all maintenance
is required to correspond to
the driven distance on the
maintenance schedule
*.
Perform the neces-
sary maintenance.
Please reset the
maintenance data
after the mainte-
nance is per-
formed. (
P. 409)
Comes on approximately 5000
miles (8000 km) after the main-
tenance data has been reset.
(The indicator will not work
properly unless the mainte-
nance data has been reset.)

518 5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
Warning messageDetailsCorrection procedure
(If equipped) • Indicates that the pre-collision
system is not currently func-
tional because the grille or the
sensor is dirty.
• This message also appears when the pre-collision system
is not functional due to over-
heating. • Check the grille
and the sensor and
clean them if they
are dirty.
• In case of over- heating, the system
will become func-
tional once the sys-
tem cools down.
(Flashes)
(If equipped) Indicates that the radar cruise
control sensor is dirty or cov-
ered with ice.
Clean the sensor.
(Flashes)
(If equipped) Indicates that the radar cruise
control system is unable to
judge vehicle-to-vehicle dis-
tance.
If the windshield
wipers are on, turn
them off or set
them to either the
intermittent or the
slow mode.

5
When trouble arises
519
5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
Warning messageDetailsCorrection
procedure
(Flashes
rapidly)
(If equipped) Indicates that there is a high
possibility of a collision, or that
the pre-collision braking func-
tion is operating.
A buzzer also sounds.
At the same time,
will appear on the
head-up display (the image
flashes). Slow the vehicle by
applying the
brakes.
(If equipped, flashes) Indicates that your vehicle is
nearing the vehicle ahead (in
radar cruise mode).
A buzzer also sounds.
At the same time,
will appear on the
head-up display (the image
flashes). Slow the vehicle by
applying the
brakes.

520 5-2. Steps to take in an emergency
PRIUS_OM_OM47791U_(U)
Warning messageDetailsCorrection procedure
(If equipped) Indicates that the LKA (Lane-
Keeping Assist) is suspended
• The camera sensor tempera-
ture is higher than the opera-
tion temperature range.
• The power steering system operation is restricted. Restart the LKA
after driving for a
while.
Alerts the driver that the vehi-
cle is out of the lanes (while
the LKA [Lane-Keeping Assist]
system is operating). The warning buzzer sounds
continuously. The lane mark-
ings and/or the steering
wheel marking flash.
At the same time,
will appear on the
head-up display (the image
flashes). Check around the
vehicle and back to
inside of the lane
markings.
Indicates that the LKA (Lane-
Keeping Assist) system
detects nohanded driving
(while the lane keeping assist
function is operating). The warning buzzer sounds
twice. Grip the steering
wheel firmly.
The hybrid system has over-
heated. A buzzer also sounds.
This message may be dis-
played when driving under
severe operating conditions.
(For example, when driving
up a long steep hill.) Stop and check.
(
P. 556)
