121
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_OM_OM47857U_DVD_(U)
Auto anti-glare inside rear view mirror (without garage door
opener)
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
The function will set to ON mode
each time the “POWER” switch is
turned to ON mode.
Pressing the button turns the
function to OFF mode. (The indi-
cator also turns off.)
Auto anti-glare inside rear vi ew mirror (with garage door opener)
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function modeON
OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
The function will set to ON mode
each time the “POWER” switch is
turned to ON mode.
Turns the function to OFF mode,
the indicator turns off.
Indicator
Indicator

122 1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS_OM_OM47857U_DVD_(U)
■To prevent sensor error (veh icles with auto anti-glare inside rear view
mirror)
Without garage door opener
With garage door opener
CAUTION
■ Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

123
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_OM_OM47857U_DVD_(U)
NOTICE
■Rear view mirror adjustment (vehicles with LKA [Lane-Keeping Assist])
To ensure that the LKA operates properly,
make sure that it does not block the LKA
camera sensor.
ITO24P134

124
1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS_OM_OM47857U_DVD_(U)

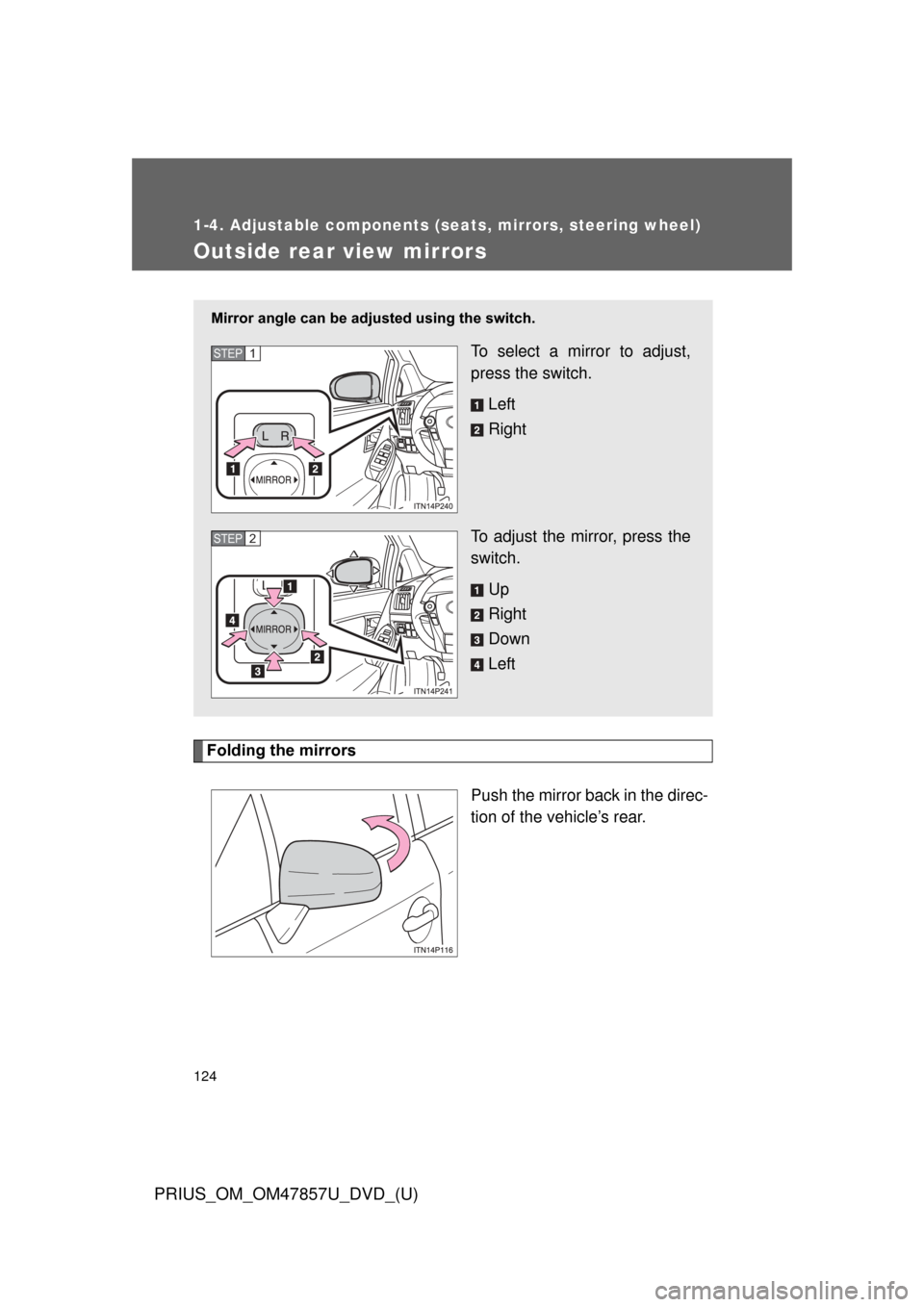

Outside rear view mirrors
Folding the mirrorsPush the mirror back in the direc-
tion of the vehicle’s rear.
Mirror angle can be adjusted using the switch.
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
LeftSTEP 1
STEP 2

125
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_OM_OM47857U_DVD_(U)
■Mirror angle can be adjusted when
The “POWER” switch is in ACCESSORY or ON mode.
■ When the mirrors are fogged up (veh icles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. ( P. 350)
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are oper ating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

126
PRIUS_OM_OM47857U_DVD_(U)
1-5. Opening and closing the windows and moon roof

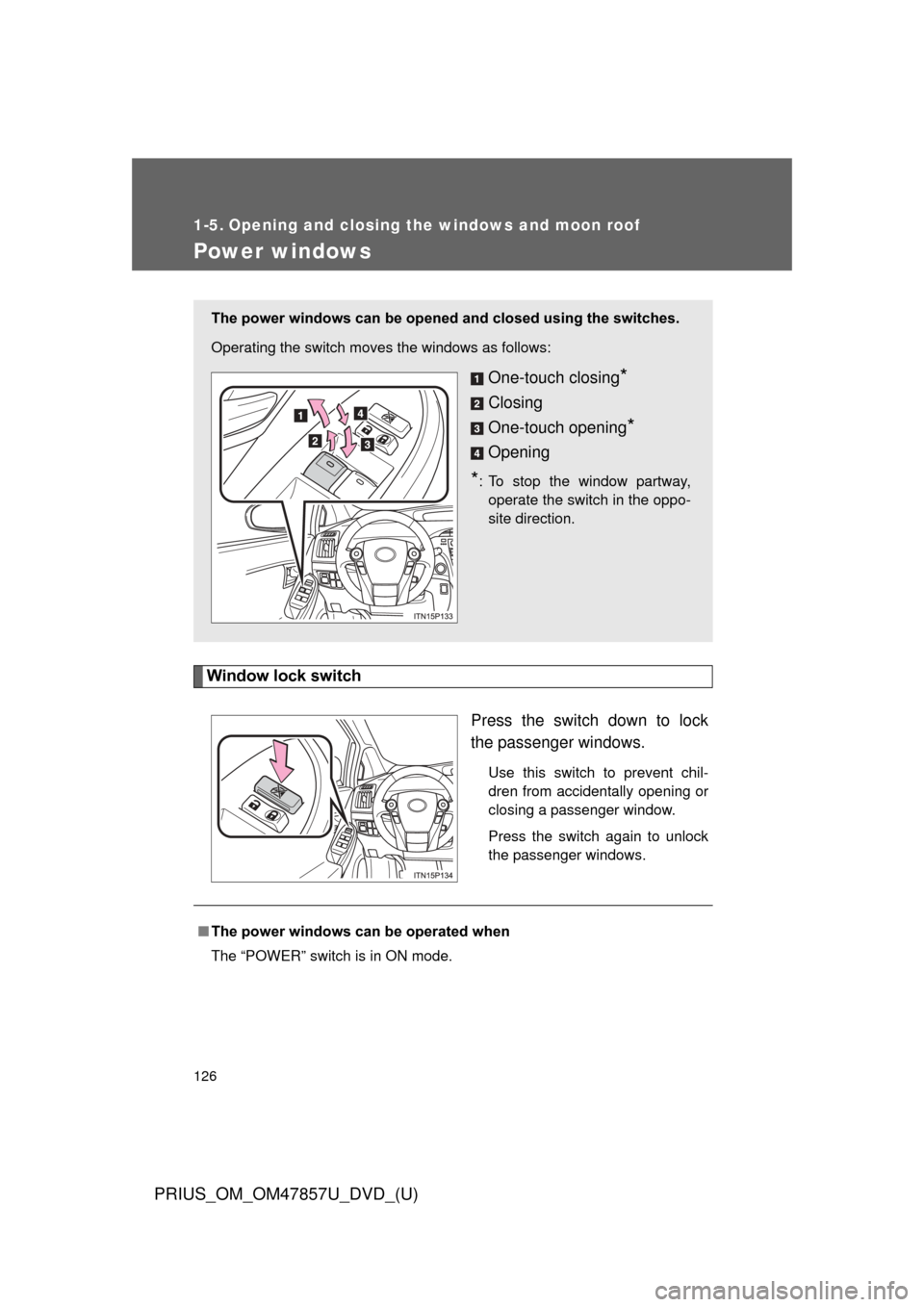

Power windows
Window lock switchPress the switch down to lock
the passenger windows.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
Press the switch again to unlock
the passenger windows.
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
One-touch closing*
Closing
One-touch opening
*
Opening
*: To stop the window partway, operate the switch in the oppo-
site direction.
■ The power windows can be operated when
The “POWER” switch is in ON mode.

127
1-5. Opening and closing the windows and moon roof
1
Before driving
PRIUS_OM_OM47857U_DVD_(U)
■
Operating the power windows afte r turning the hybrid system off
The power windows can be operated for approximately 45 seconds even
after the “POWER” switch is turned to ACCESSORY mode or turned off.
They cannot, however, be operated once either front door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
■ When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
●After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the
“POWER” switch is turned to ON mode.
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by your Toyota
dealer.
STEP 1
STEP 2
STEP 3

128 1-5. Opening and closing the windows and moon roof
PRIUS_OM_OM47857U_DVD_(U)
■Customization
The one-touch closing operation can be disabled, except for the driver’s
seat.
(Customizable features P. 596)
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
■ Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.
●Check to make sure that all passengers
do not have any part of their body in a
position where it could be caught when
a window is being operated.
● Do not allow children to operate the
power windows.
Closing a power window on someone
can cause serious injury, and in some
instances, even death.

129
1
1-5. Opening and closing the windows and moon roof
Before driving
PRIUS_OM_OM47857U_DVD_(U)

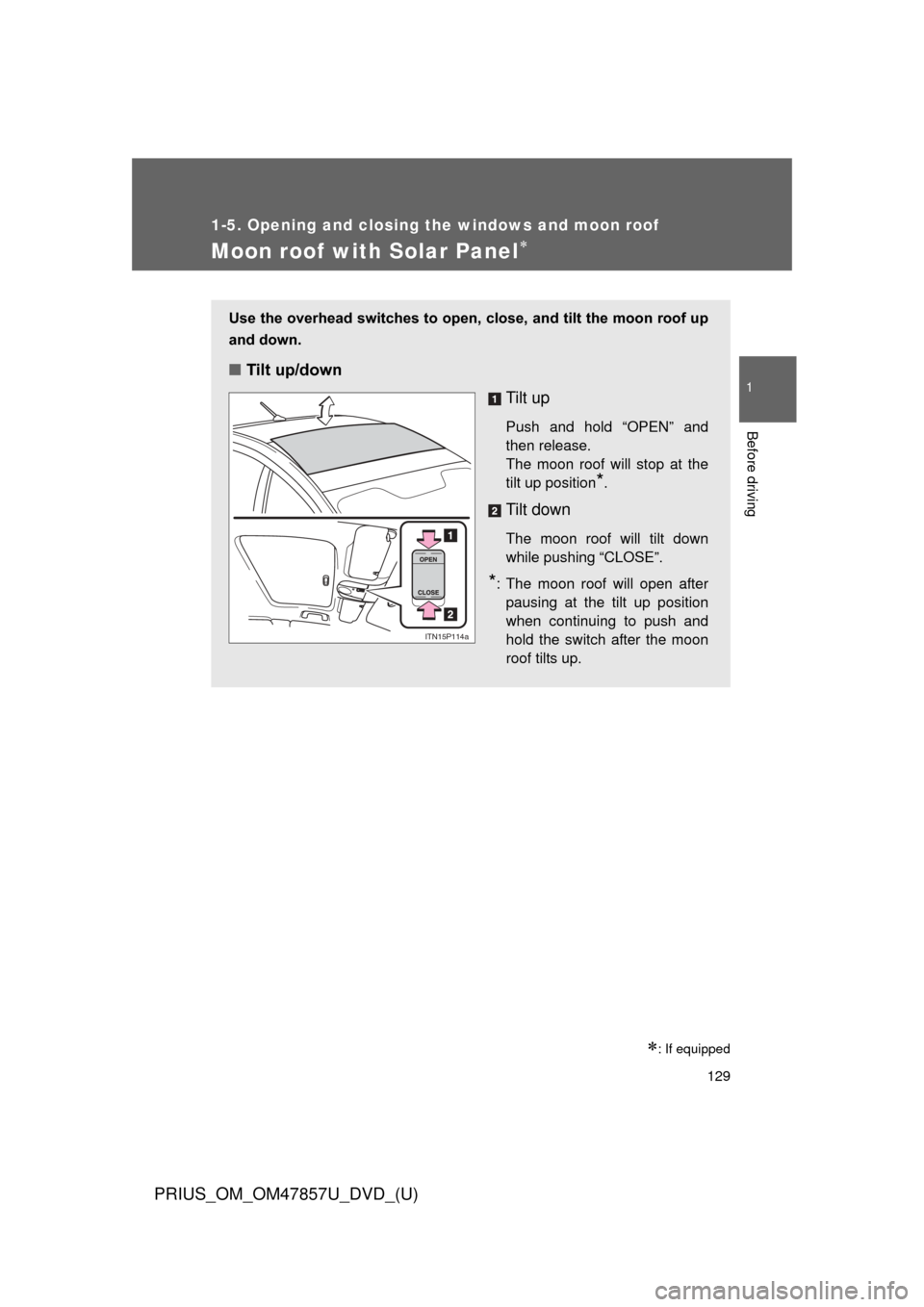

Moon roof with Solar Panel
: If equipped
Use the overhead switches to open, close, and tilt the moon roof up
and down.
■ Tilt up/down
Tilt up
Push and hold “OPEN” and
then release.
The moon roof will stop at the
tilt up position
*.
Tilt down
The moon roof will tilt down
while pushing “CLOSE”.
*: The moon roof will open afterpausing at the tilt up position
when continuing to push and
hold the switch after the moon
roof tilts up.
ITN15P114a

130 1-5. Opening and closing the windows and moon roof
PRIUS_OM_OM47857U_DVD_(U)
■The moon roof can be operated when
The “POWER” switch is in ON mode.
■ Operating the moon roof after turning the hybrid system off
The moon roof can be operated for approximately 45 seconds even after the
“POWER” switch is turned to ACCESSORY mode or turned off. It cannot,
however, be operated once either front door is opened.

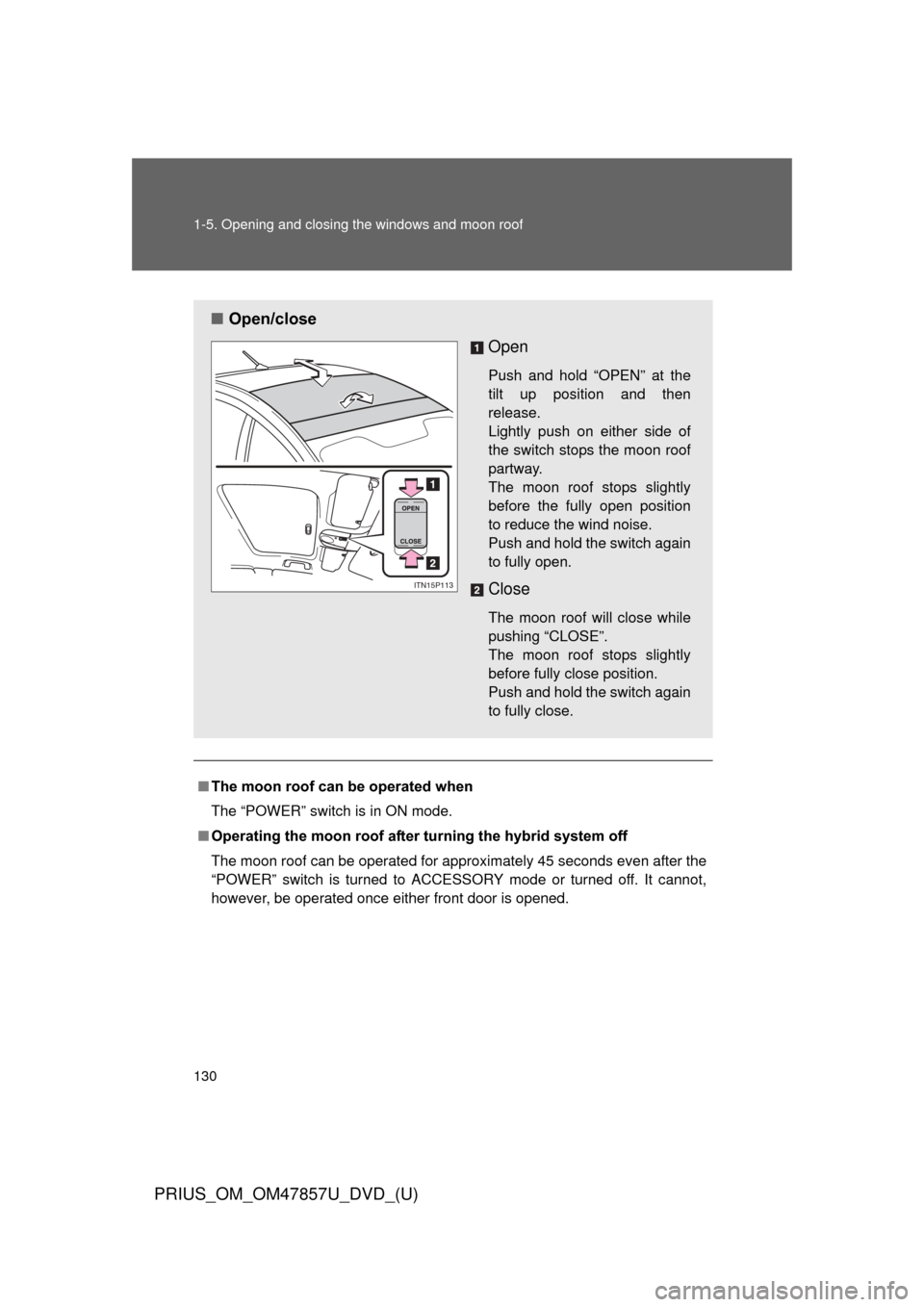

■ Open/close
Open
Push and hold “OPEN” at the
tilt up position and then
release.
Lightly push on either side of
the switch stops the moon roof
partway.
The moon roof stops slightly
before the fully open position
to reduce the wind noise.
Push and hold the switch again
to fully open.
Close
The moon roof will close while
pushing “CLOSE”.
The moon roof stops slightly
before fully close position.
Push and hold the switch again
to fully close.
