TOYOTA PRIUS 2014 3.G Quick Reference Guide

2014 Prius
Quick Reference Guide

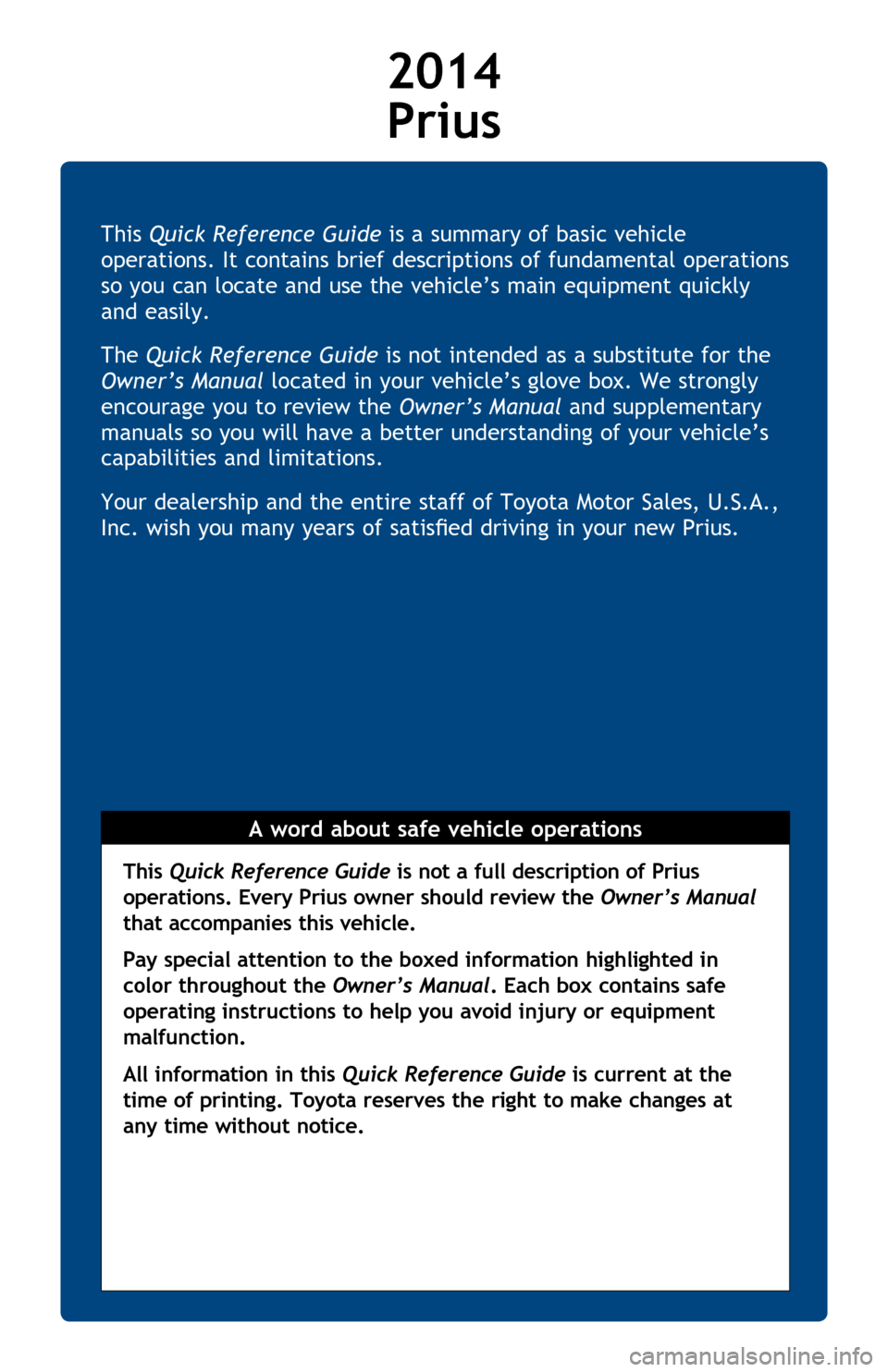

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Prius.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius
operations. Every Prius owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014 Prius

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
Digital Instrumentation 4
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel 9
Smart Key System
1,2 7
Air Conditioning/Heating 16
Audio 18-19
Auto lock/unlock
1,2 10
Clock 22
Cruise control 20
Dynamic Radar Cruise Control 20-21
EV Mode 12
Garage door opener (HomeLink
®)3 23
Hill-start Assist Control (HAC) 23Heated Seats 16
Hybrid Synergy Drive System 10
Lights
1 & turn signals 15
LKA (Lane Keep Assist) 21
Moonroof 17
Multi-Information Display
2 22
Parking brake 12
Power outlets 19
Seat adjustments-Front 13
Seat-Folding down rear seat 13
Seats-Head restraints 13
Solar Powered Ventilation System 17
Steering wheel switches 19
Tilt and telescopic steering wheel 12
Transmission 11
Windows-Power 14
Windshield wipers & washers 14

Doors-Child safety locks 25
Door locks 25
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety System
TM 26-27Tire Pressure Monitoring (warning) System 24
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES

2
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls2,3
Voice command button2,3
Steering wheel climate controls
Multi-Information Display button
“TRIP” button
Cruise control/Dynamic Radar Cruise Control
1 switch
“LKA” switch1
Dynamic Radar Cruise Control distance selection switch1
Telephone controls2,3
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls1
Wiper and washer controls
Mph or km/h button
Head-up display switches
1
Power button
Multi-Information Display
Navigation system
1,2/Display Audio system1,3
Air Conditioning controls

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Rear window and outside rearview mirror defogger button
“PWR MODE” switch
Emergency flasher button
“ECO MODE” switch
“EV MODE” switch
Shift lever
“P” position switch
Tilt and telescopic steering lock release lever
Fuel filler door opener
Power rearview mirror controls
Headlight cleaner switch
1
Solar ventilation switch1
Instrument panel light control
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “Display Audio System Owner’s Manual .”

4
OVERVIEW
Indicator symbols
Digital Instrumentation
Service indicators and reminders
Transmission shift position indicator
Multi-Information Display
Instantaneous fuel consumption
Speedometer
Fuel gauge
Charging system warning1
Brake system warning1
Front passenger occupant classification indicator
Low Tire Pressure Warning1
Open door warning
Airbag SRS warning1
Master warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator
1
Low fuel level warning
Brake system warning light (yellow indicator)1
1
If indicator does not turn off within a few seconds of starting hybrid system, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual .

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
2 If this light flashes, refer to “Cruise control,” or “Dynamic radar cruise control,” Section 2-4, 2014 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Immobilizer system indicator
Electric power steering system warning1
READY indicator
Front fog light indicator
ECO Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning
1
Lane Keep Assist indicator
Pre-Collision System warning light1
High coolant temperature warning light1
Power Mode indicator
ECO Driving Indicator Light
EV indicator

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Remote Air Conditioning system operation (if equipped)
Panic button
Push and hold
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Will automatically shut off
after three minutes, or if a
door is opened.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

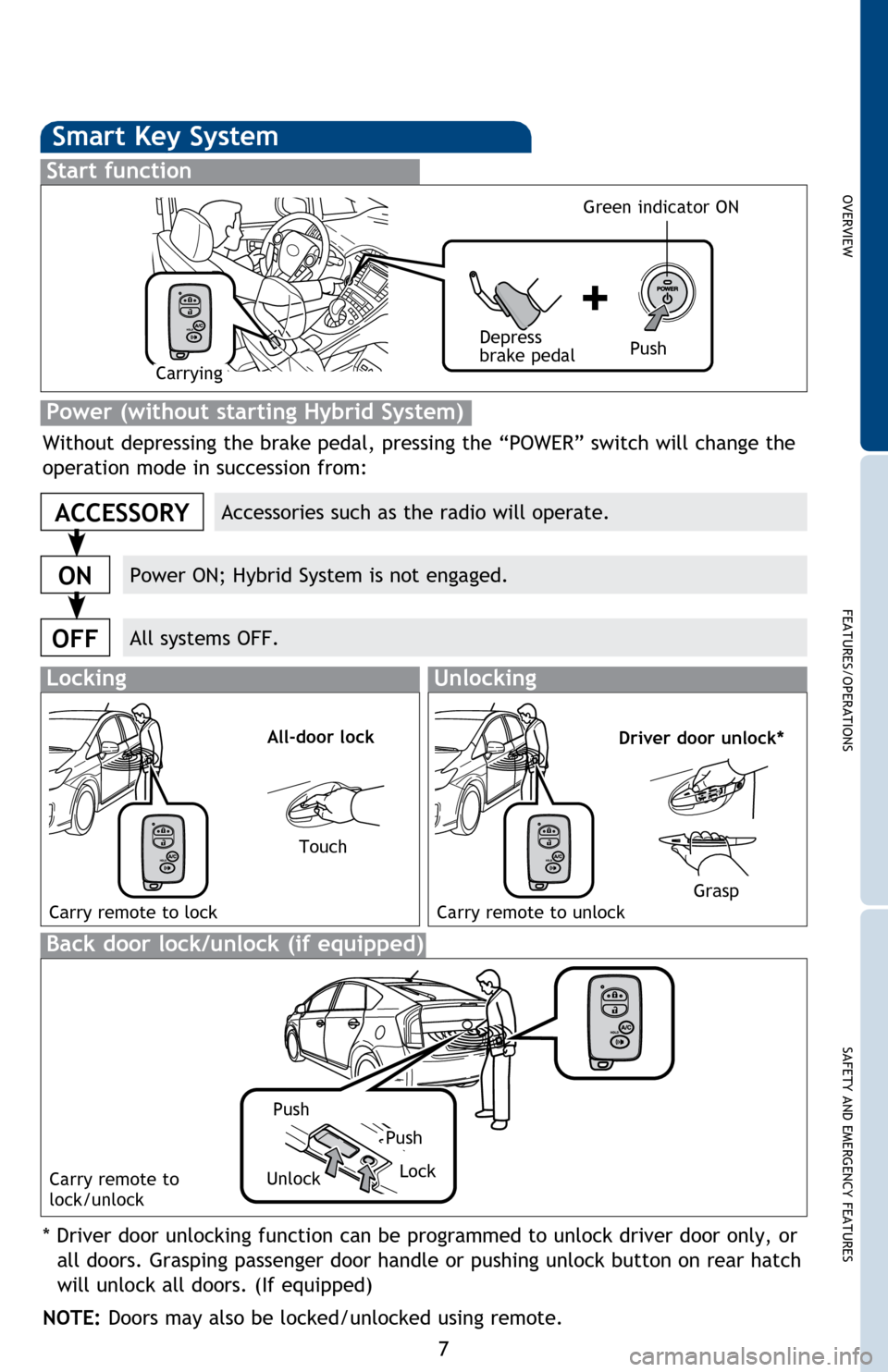

Smart Key System
Start function
Accessories such as the radio will operate.
Power ON; Hybrid System is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Push
Depress
brake pedal
Carrying Green indicator ON
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power (without starting Hybrid System)
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle or pushing unlock button on rear hatch
will unlock all doors. (If equipped)
NOTE: Doors may also be locked/unlocked using remote.
Locking Unlocking
Carry remote to lock Carry remote to unlock
All-door lockDriver door unlock*
Back door lock/unlock (if equipped)
Carry remote to
lock/unlock
Touch
Grasp
Push
Lock
Push
Unlock

8
OVERVIEW
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Pull
Turn to open
Store
Engage support rod
Pull
